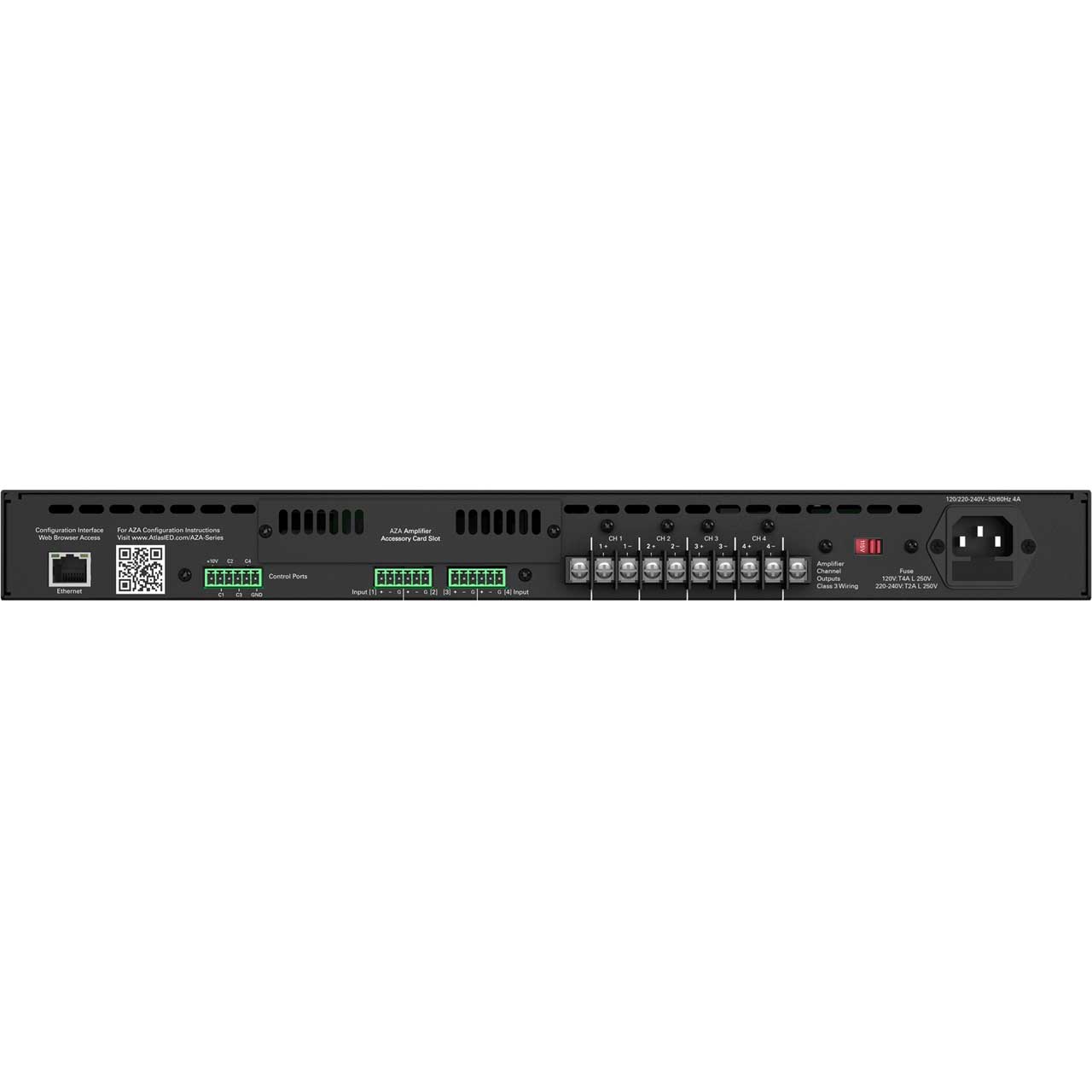

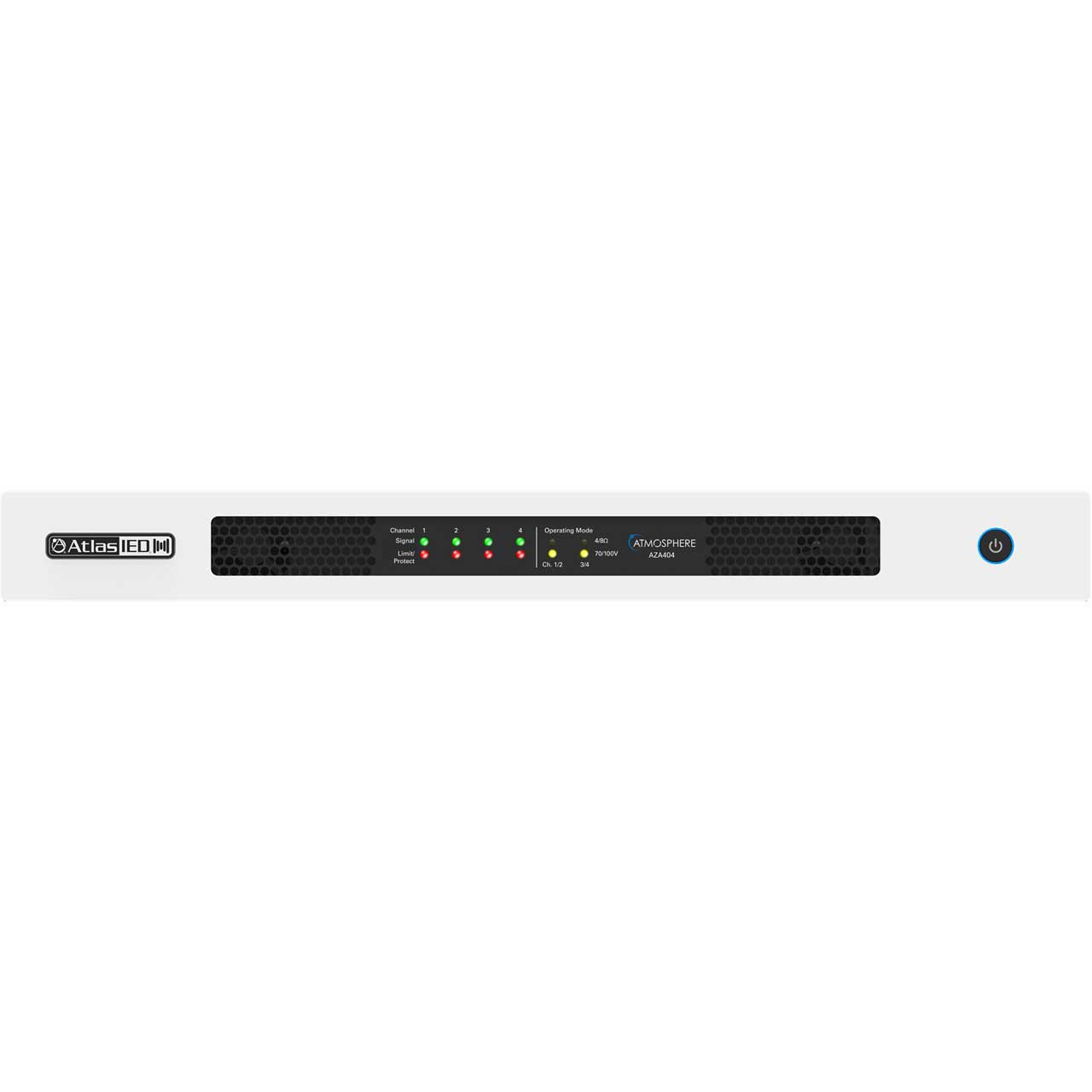

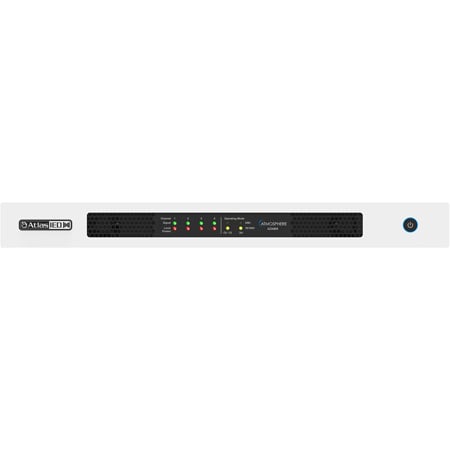

Atlas IED Atmosphere AZA404 Networkable 4 Channel Power Amplifier - 400 Watt

AZA404 - Overview

Create the perfect Atmosphere for your Business!

• Features:

  • 70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
  • Up to 100W per channel (4 x 100W)
  • Four (4) balanced inputs
  • Web interface to change output modes and additional monitoring/processing
  • Optional Accessory Card Slot for a Four-Channel Dante™ Receiver (DPA-DAC4)


• Specifications:

  • System Type: Signal Processor
  • Output Power: (Note 1) AZM4 AZM8 Mic / Line Inputs 4 (Euroblock) 6 (Euroblock) RCA 2 (mono-summed) 4
  • (mono-summed) Line Outputs: 4 (Euroblock)
  • General Purpose Inputs: 6 (Euroblock)
  • High Priority Inputs: 1 (Euroblock)
  • General Purpose Outputs: 2 (Euroblock)
  • Accessory Ports: 4 (RJ45) Network Port 1 (RJ45)
  • Power Requirements: Main Requirements 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
  • Audio Inputs: Balanced Mic / Line Inputs
  • Connector Type: 3.5mm Pitch Euroblock
  • Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps
  • Phantom Power Voltage: +48VDC 10mA
  • Accepts Unbalanced Inputs: Yes
  • Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
  • Input Impedance: 3.9kΩ EIN: -125dBu with 150Ω Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz
  • Maximum Cable Size: 18AWG
  • Minimum Cable Size: 24AWG
  • RCA Right Channel Color: Red
  • Left Channel Color: White
  • Type: Mono-summed Pairs
  • Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu)
  • Audio Outputs: Balanced Line Outputs
  • Connector Type: 3.5mm Pitch Euroblock
  • Color: Orange
  • Maximum Output Level: +20dBu (7.75 Vrms)
  • Maximum Cable Size: 18AWG
  • Minimum Cable Size: 24AWG
  • Audio Performance: THD+N 108dB Unweighted 20Hz - 20kHz, > 110dB ""A"" Weighted Crosstalk >-78dB
  • Output: 5.38msec Accessory
  • Input B/D to Euroblock Output: 6.71msec
  • Maximum Hardware Gain: 60dB
  • Voltage: 24VDC Accessory Ports Maximum Accessories per Port: 8 Maximum Accessories per AZM: 12 (10 for
  • AZM4) Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 Ethernet 10/100mB... Mechanical
  • Airflow Front to Back Operating Ambient Temperature Range: 0° - 40°C Cooling System Forced Air with Side and Back Panel Venting Energy Consumption AZM4 AZM8
  • Dimensions - Shipping: W 13.5"" x H 4.75"" x D 14"" (343mm x 121mm x 356mm) W 22"" x H 4.75"" x D 14"
  • Weight - Unit: 4.735 lbs (2.148kg) 8.330 lbs (3.778kg)
  • Weight - Shipping:7.3 lbs (3.3kg) 10.67 lbs (4.8kg) Agency Approvals Safety Conforms to: ANSI / UL 62368-1


• GTIN:

  0612079700721
