Atlas IED Atmosphere X-ANS Ambient Noise Sensor

ITEM #: ATL-X-ANS MFG #: X-ANS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$209.00

Our Price:

$198.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


X-ANS - Overview

Create the perfect Atmosphere for your Business!

AtlasIED's Atmosphere 2.0 Audio Control System sets a new standard for digital audio with multi-zone processors, amplifiers, and a variety of accessories. Touchless control, easy-to-program automation, and artificial intelligence offer integrators and users an effortless way to create the perfect Atmosphere for any business!

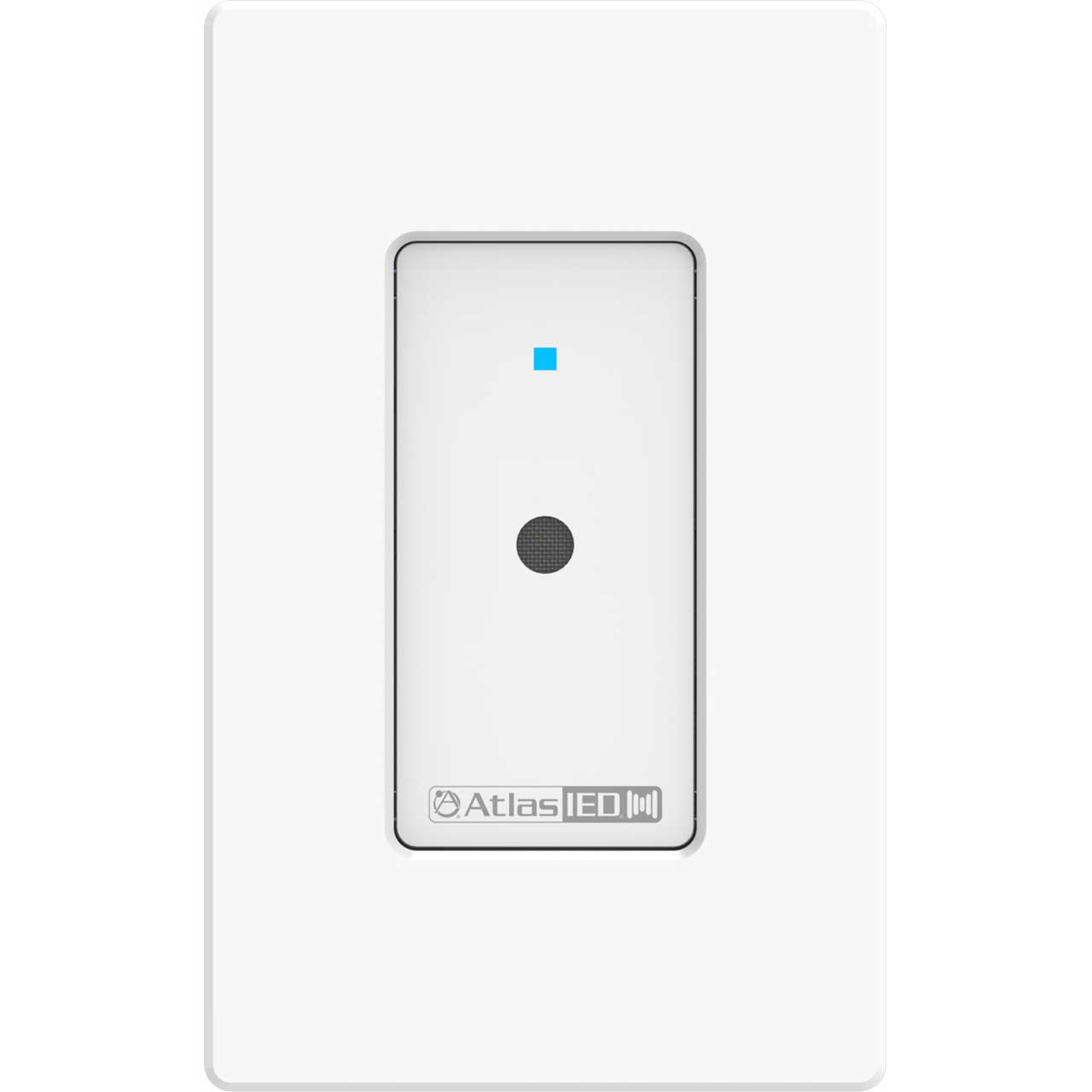

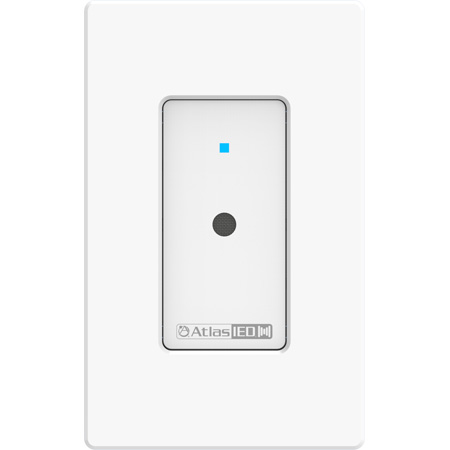

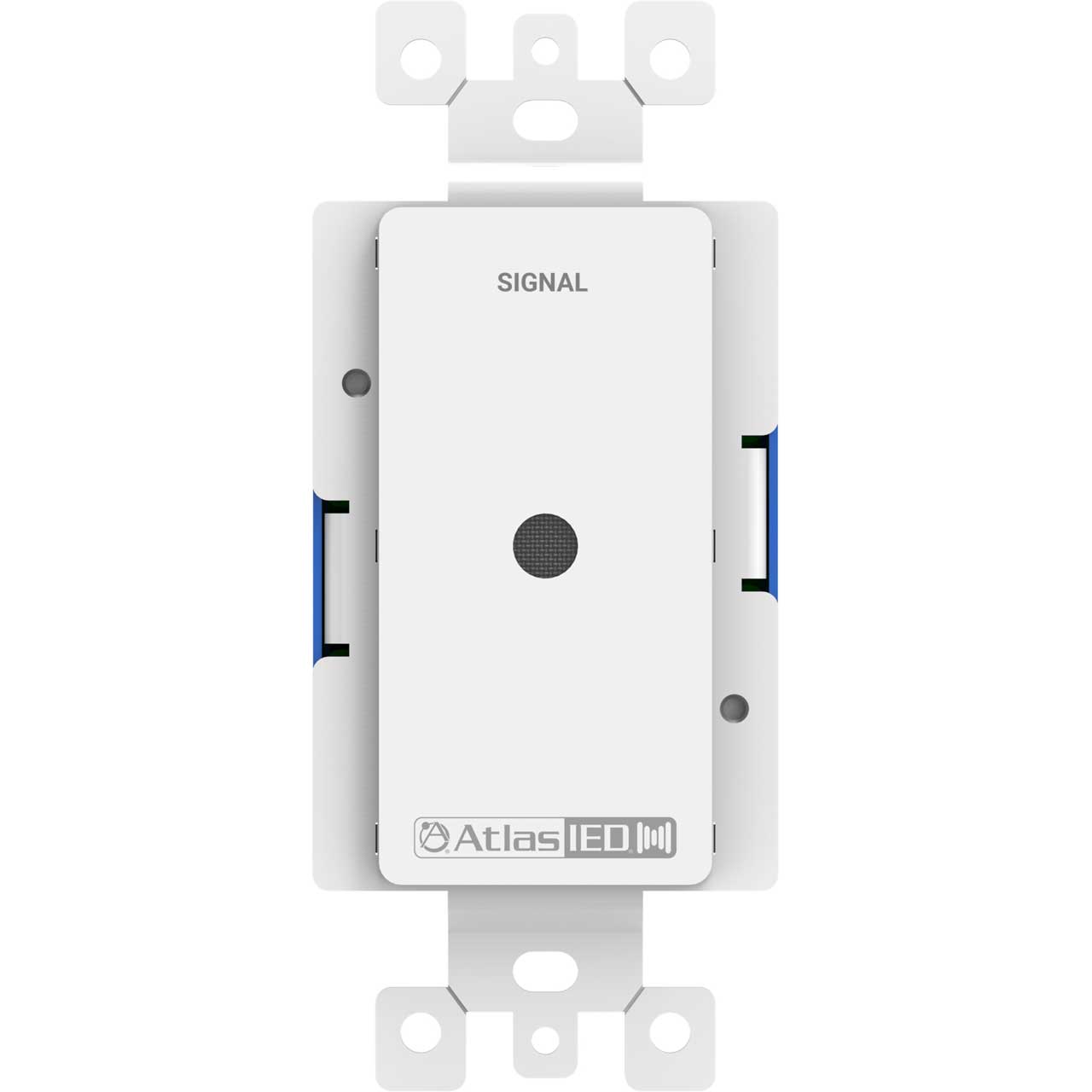

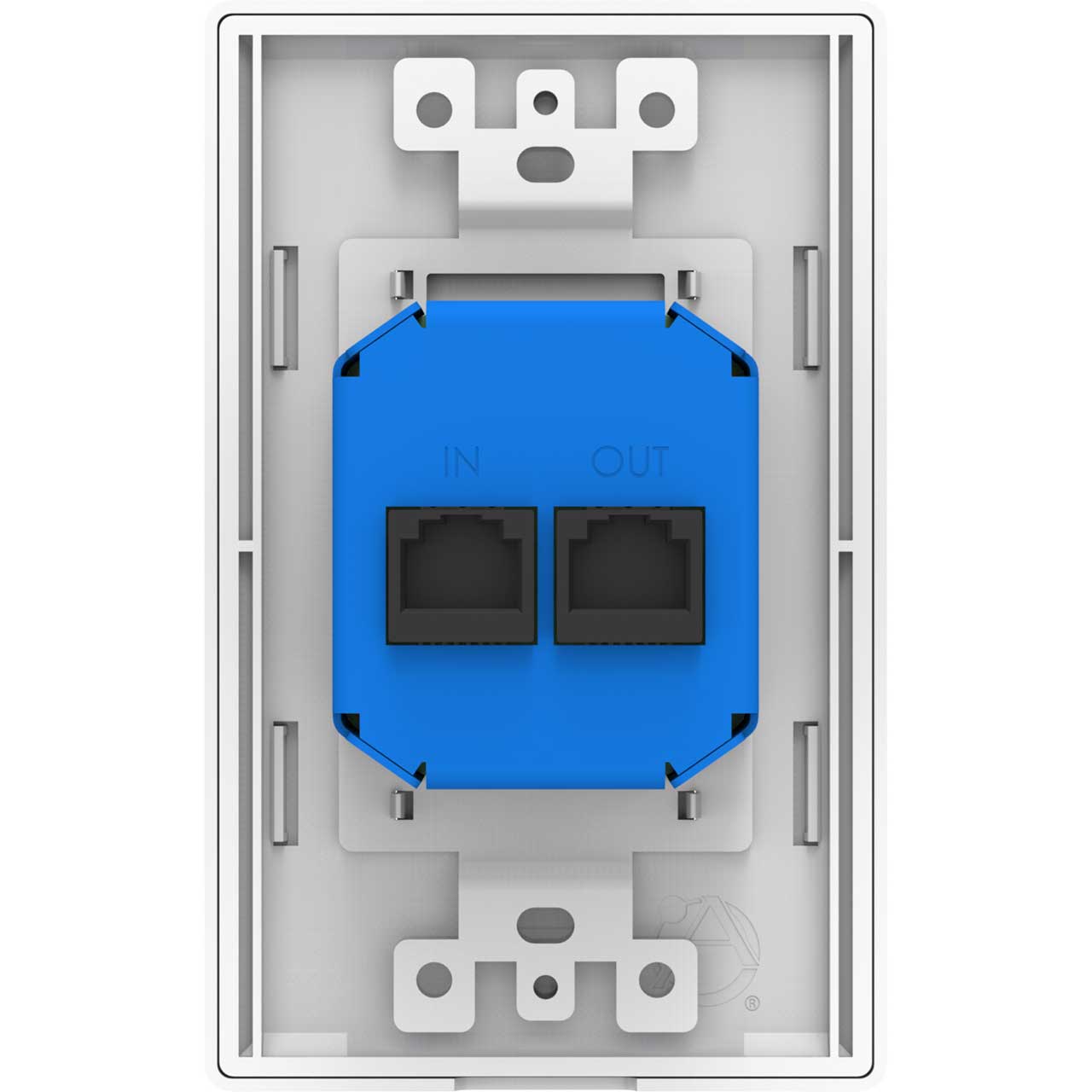

The Atmosphere X-ANS is an ambient noise sensor specifically for use with the Ambient Noise Compensation (ANC) functionality in the Atmosphere AZM. Ambient noise compensation allows for automatic adjustment of volume within a given zone based on how loud the environment is. The AZM can accept up to four X-ANS sensor per zone. And for those installations where privacy is of paramount importance, the X-ANS only sends sensor data back, not audio. Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port.

New Atmosphere 2.0 firmware adds:
Fully Updated Intuitive GUI!
Automated Message Player adds Bell Scheduler for schools!
Accessory Self Heal-No Re-programming!
Room Combiner Source Sharing!
Stereo AND Sub-woofer capability!

  • Features:

    • Calibration free design
    • No audio content is returned to host processor
    • Use up to 4 X-ANS per zone

  • Specifications:

    • System Type: Signal Processor
    • Output Power: (Note 1) AZM4 AZM8 Mic / Line Inputs 4 (Euroblock) 6 (Euroblock) RCA 2 (mono-summed) 4
    • (mono-summed) Line Outputs: 4 (Euroblock)
    • General Purpose Inputs: 6 (Euroblock)
    • High Priority Inputs: 1 (Euroblock)
    • General Purpose Outputs: 2 (Euroblock)
    • Accessory Ports: 4 (RJ45) Network Port 1 (RJ45)
    • Power Requirements: Main Requirements 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
    • Audio Inputs: Balanced Mic / Line Inputs
    • Connector Type: 3.5mm Pitch Euroblock
    • Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps
    • Phantom Power Voltage: +48VDC 10mA
    • Accepts Unbalanced Inputs: Yes
    • Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
    • Input Impedance: 3.9kΩ EIN: -125dBu with 150Ω Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz
    • Maximum Cable Size: 18AWG
    • Minimum Cable Size: 24AWG
    • RCA Right Channel Color: Red
    • Left Channel Color: White
    • Type: Mono-summed Pairs
    • Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu)
    • Audio Outputs: Balanced Line Outputs
    • Connector Type: 3.5mm Pitch Euroblock
    • Color: Orange
    • Maximum Output Level: +20dBu (7.75 Vrms)
    • Maximum Cable Size: 18AWG
    • Minimum Cable Size: 24AWG
    • Audio Performance: THD+N 108dB Unweighted 20Hz - 20kHz, > 110dB ""A"" Weighted Crosstalk >-78dB
    • Output: 5.38msec Accessory
    • Input B/D to Euroblock Output: 6.71msec
    • Maximum Hardware Gain: 60dB
    • Voltage: 24VDC Accessory Ports Maximum Accessories per Port: 8 Maximum Accessories per AZM: 12 (10 for
    • AZM4) Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 Ethernet 10/100mB... Mechanical
    • Airflow Front to Back Operating Ambient Temperature Range: 0° - 40°C Cooling System Forced Air with Side and Back Panel Venting Energy Consumption AZM4 AZM8
    • Dimensions - Shipping: W 13.5"" x H 4.75"" x D 14"" (343mm x 121mm x 356mm) W 22"" x H 4.75"" x D 14"
    • Weight - Unit: 4.735 lbs (2.148kg) 8.330 lbs (3.778kg)
    • Weight - Shipping:7.3 lbs (3.3kg) 10.67 lbs (4.8kg) Agency Approvals Safety Conforms to: ANSI / UL 62368-1
