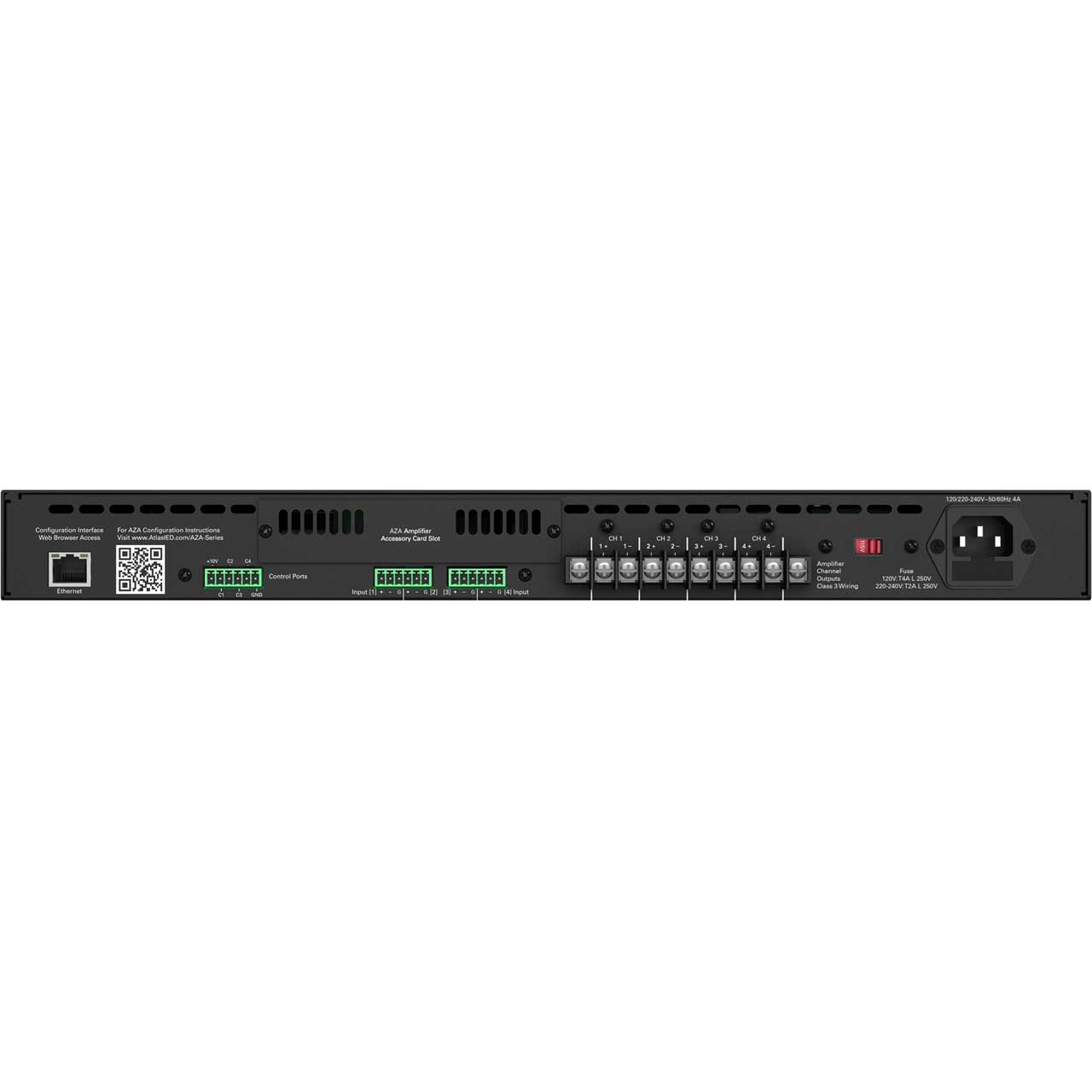

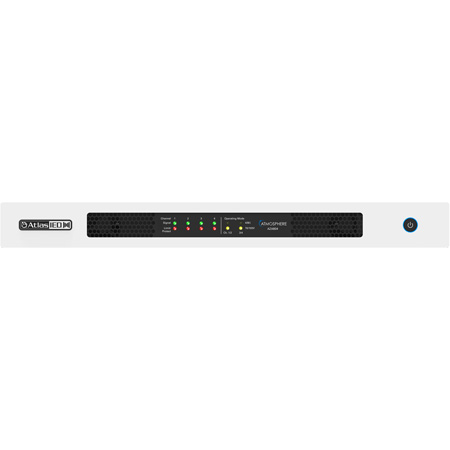

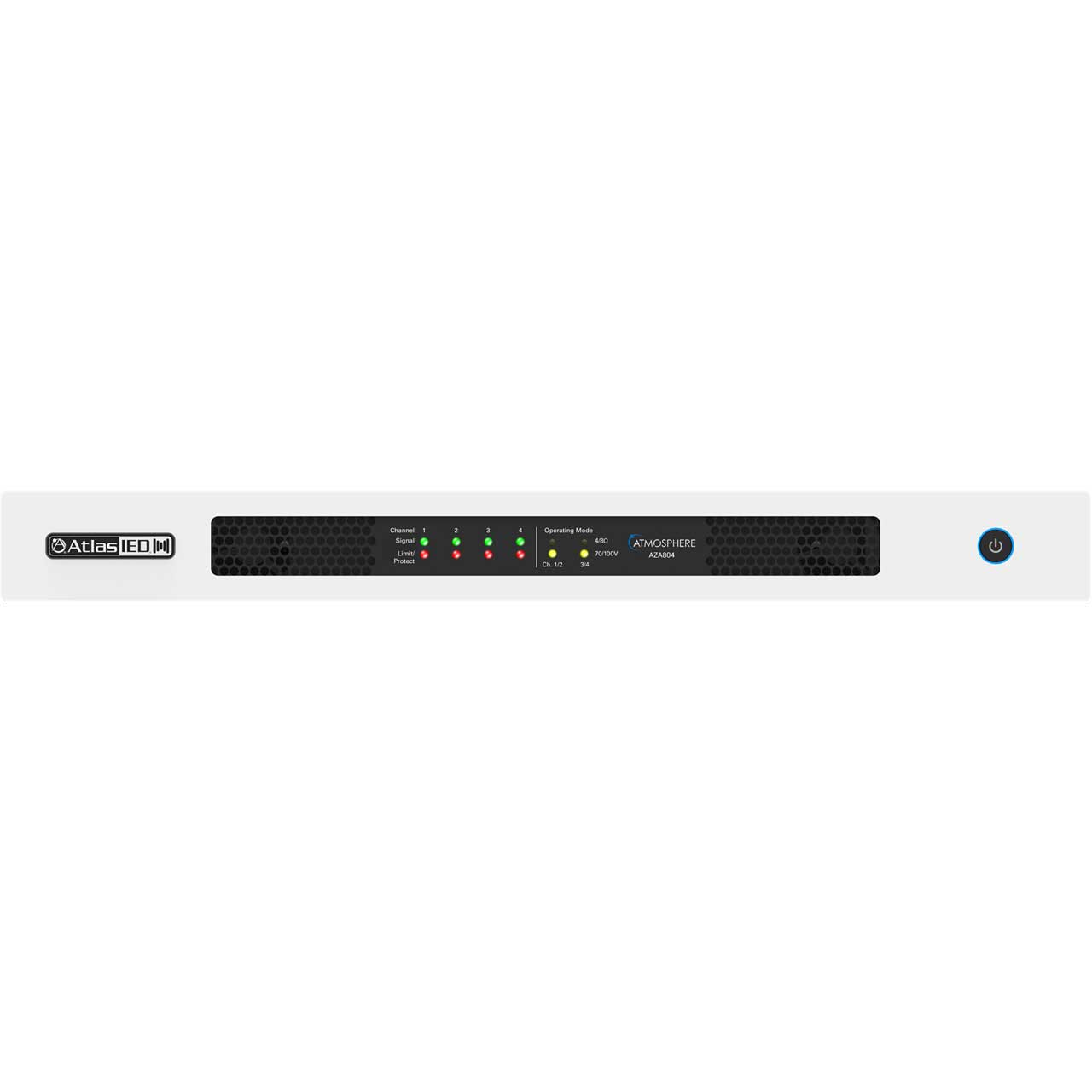

Atlas IED Atmosphere AZA804 Networkable 4 Channel Power Amplifier - 800 Watt

Name: Atlas IED Atmosphere AZA804 Networkable 4 Channel Power Amplifier - 800 Watt
Brand: AtlasIED
SKU: ATL-AZA804
Price: 1522.99 USD
Availability: PreSale

ITEM #: ATL-AZA804 MFG #: AZA804

AtlasIED

List Price:

$1,901.99

Our Price:

$1,522.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AZA804 - Overview

Create the perfect Atmosphere for your Business!

Atlas IED's Atmosphere 2.0 Audio Control System sets a new standard for digital audio with multi-zone processors, amplifiers, and a variety of accessories. Touchless control, easy-to-program automation, and artificial intelligence offer integrators and users an effortless way to create the perfect Atmosphere for any business!

The AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere Audio Control System. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4O/8O/70V/100V). The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.

New Atmosphere 2.0 firmware adds:
Fully Updated Intuitive GUI!
Automated Message Player adds Bell Scheduler for schools!
Accessory Self Heal-No Re-programming!
Room Combiner Source Sharing!
Stereo AND Sub-woofer capability!

Features:
- 70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
- Up to 200W per channel (4 x 200W)
- Four (4) balanced inputs
- Web interface to change output modes and additional monitoring/processing
- Optional Accessory Card Slot for a Four-Channel Dante™ Receiver (DPA-DAC4)
Specifications:
- System Type: Signal Processor
- Output Power: (Note 1) AZM4 AZM8 Mic / Line Inputs 4 (Euroblock) 6 (Euroblock) RCA 2 (mono-summed) 4
- (mono-summed) Line Outputs: 4 (Euroblock)
- General Purpose Inputs: 6 (Euroblock)
- High Priority Inputs: 1 (Euroblock)
- General Purpose Outputs: 2 (Euroblock)
- Accessory Ports: 4 (RJ45) Network Port 1 (RJ45)
- Power Requirements: Main Requirements 100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
- Audio Inputs: Balanced Mic / Line Inputs
- Connector Type: 3.5mm Pitch Euroblock
- Color: Green Sensitivity: +4dBu with Gain Set to 0dB Input Gain: 0 - 60dB in 6dB Steps
- Phantom Power Voltage: +48VDC 10mA
- Accepts Unbalanced Inputs: Yes
- Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
- Input Impedance: 3.9kΩ EIN: -125dBu with 150Ω Source Impedance and 20kHz BW CMRR: Typically 65dB at 1kHz
- Maximum Cable Size: 18AWG
- Minimum Cable Size: 24AWG
- RCA Right Channel Color: Red
- Left Channel Color: White
- Type: Mono-summed Pairs
- Sensitivity: -10dBV Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu)
- Audio Outputs: Balanced Line Outputs
- Connector Type: 3.5mm Pitch Euroblock
- Color: Orange
- Maximum Output Level: +20dBu (7.75 Vrms)
- Maximum Cable Size: 18AWG
- Minimum Cable Size: 24AWG
- Audio Performance: THD+N 108dB Unweighted 20Hz - 20kHz, > 110dB ""A"" Weighted Crosstalk >-78dB
- Output: 5.38msec Accessory
- Input B/D to Euroblock Output: 6.71msec
- Maximum Hardware Gain: 60dB
- Voltage: 24VDC Accessory Ports Maximum Accessories per Port: 8 Maximum Accessories per AZM: 12 (10 for
- AZM4) Maximum Bus Length: 1000ft Maximum Audio Wall Plates per Port: 1 Ethernet 10/100mB... Mechanical
- Airflow Front to Back Operating Ambient Temperature Range: 0° - 40°C Cooling System Forced Air with Side and Back Panel Venting Energy Consumption AZM4 AZM8
- Dimensions - Shipping: W 13.5"" x H 4.75"" x D 14"" (343mm x 121mm x 356mm) W 22"" x H 4.75"" x D 14"
- Weight - Unit: 4.735 lbs (2.148kg) 8.330 lbs (3.778kg)
- Weight - Shipping:7.3 lbs (3.3kg) 10.67 lbs (4.8kg) Agency Approvals Safety Conforms to: ANSI / UL 62368-1
