AT-RON-442 - Overview

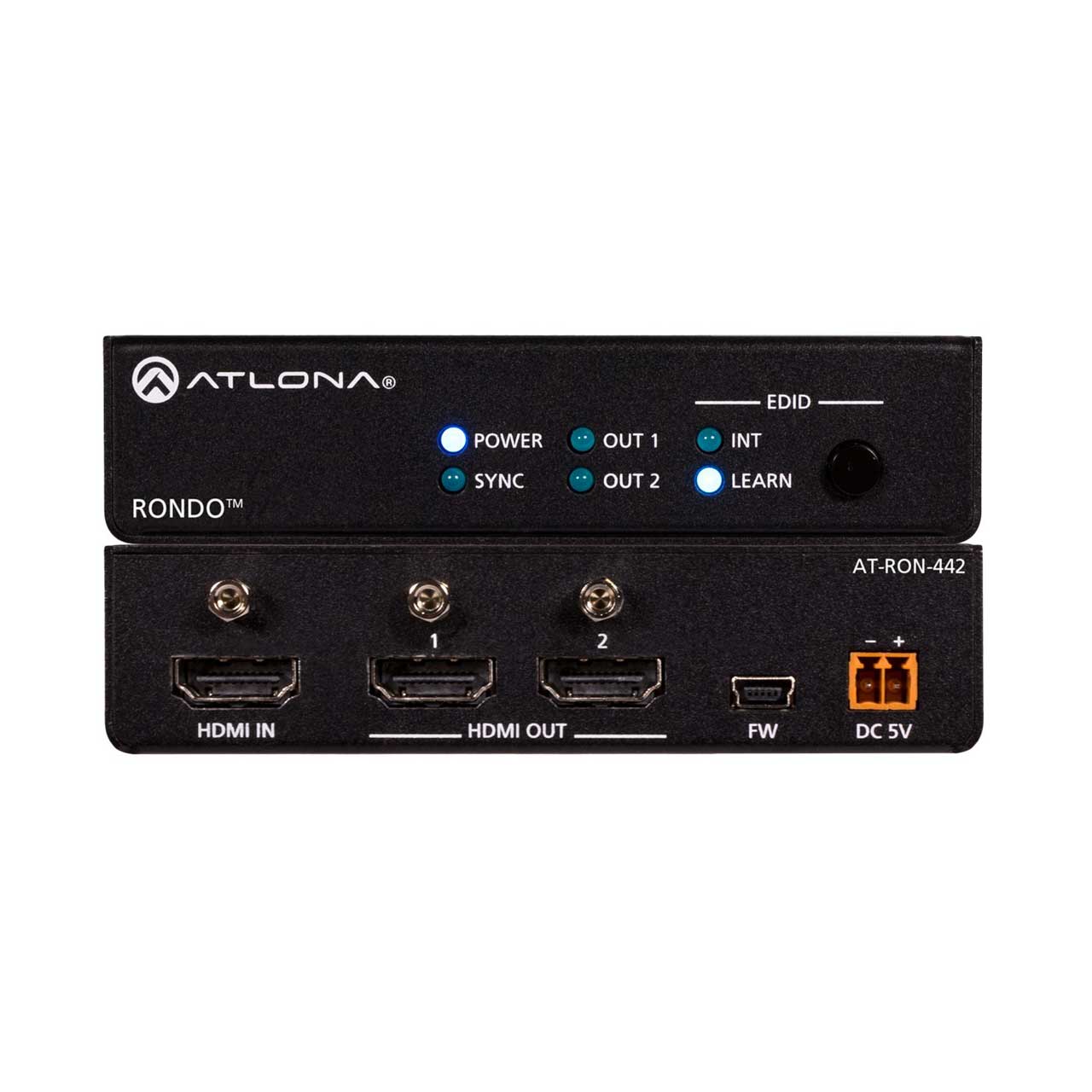

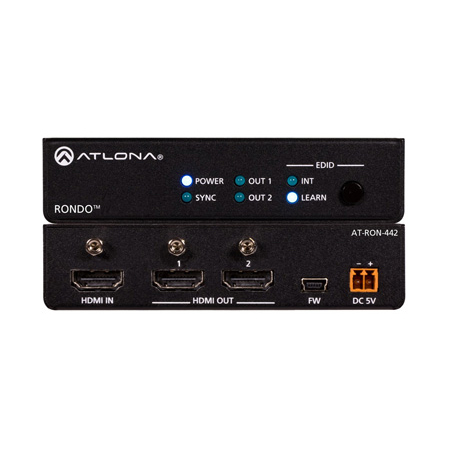

The Atlona Rondo 442 (AT-RON-442) is a 1x2 HDMI distribution amplifier for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 442 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.

The Rondo 442 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications. It includes Atlona's award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Applications:

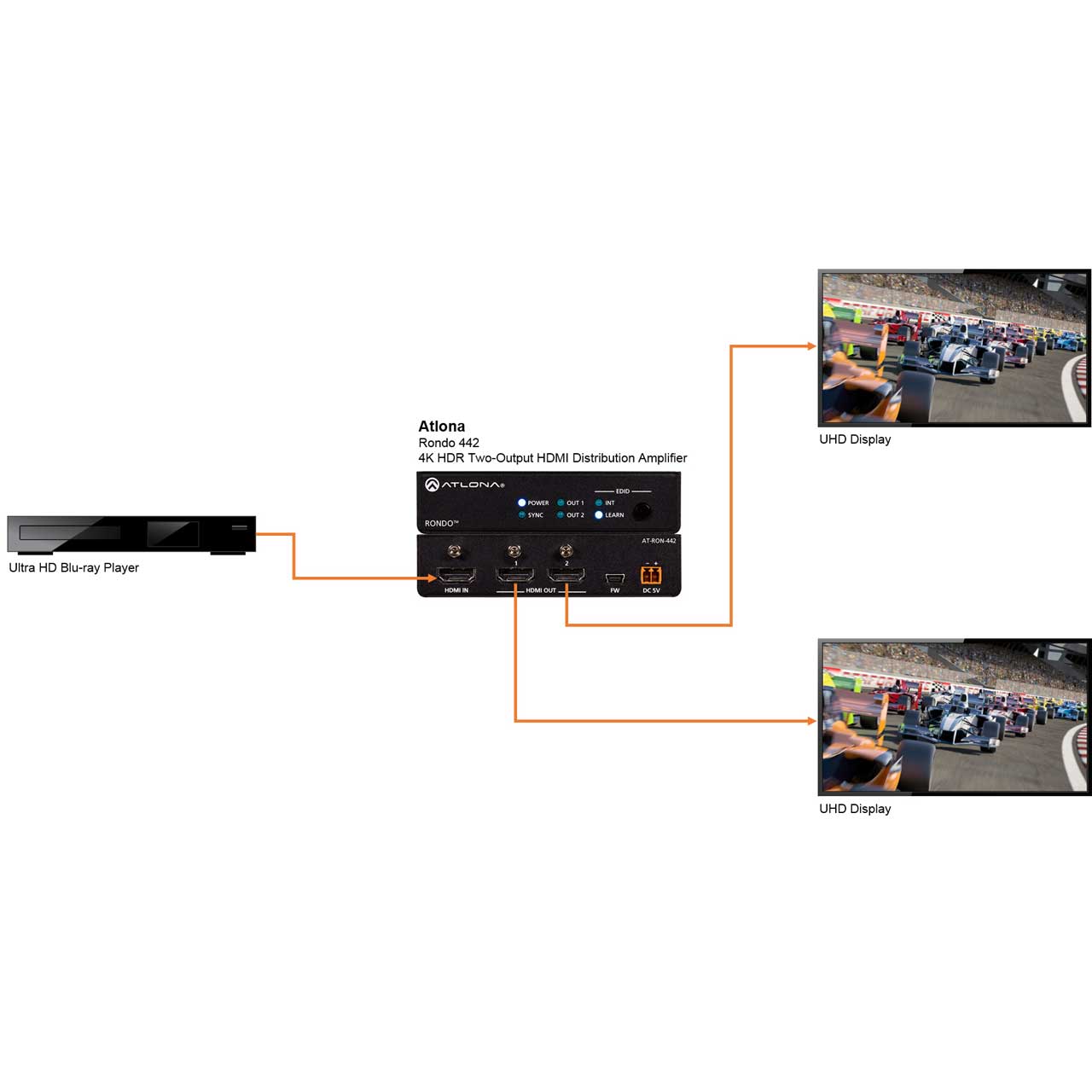

  • Residential installations - The Rondo 442 is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
  • TV showrooms - The Rondo 442 can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
  • Professional AV applications - Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.
    • Features:

      • Delivers high performance, reliable HDMI signal distribution
      • Easy to install and deploy in commercial and residential applications
      • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0a specification
      • Allows protected content stream to pass between devices
      • Manages EDID communications with the source through a display's EDID or internally stored EDID
      • Combine multiple Rondo 442 and other Rondo Series distribution amplifiers without compromising performance or reliability
      • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
      • Rear panel USB port provides an easy means for device updates
      • Provides easy setup and troubleshooting
      • Easy installation into racks and confined spaces

    • Specifications:

      • Resolution
      • Video: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10 and Dolbyr VisionT @ 60Hz

        Audio
      • HDMI: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: up to 24-bit

        Distance
      • HDMI IN/OUT @ 4K: up to 5 meters: up to 15 feet
      • HDMI IN/OUT @ 1080p: up to 10 meters: up to 30 feet

        Signal
      • Bandwidth: 18 Gbps
      • CEC: No
      • HDCP: 2.2 Compliant

        Temperature
      • Operating: 0°C to 50°C: 32°F to 122°F
      • Storage: -20°C to 60°C: -4°F to 140°F
      • Humidity: 20 to 90% non-condensing

        Power
      • Consumption: 6W
      • Supply: Input: AC100-240V ~ 50/60Hz
      • Output: DC 5V

        Dimensions
      • H x W x D: 26 x 109 x 89 (mm): 1.02 x 4.29 x 3.5 (inch)

        Weight
      • Device: 0.2 kg: 0.4 lbs

        Certification
      • Unit: CE, FCC
      • Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC

    • Item Includes:

      • User guide
      • Rack mount brackets
      • External universal power supply

    • GTIN:

      0846352004941
