Atlona AT-HDR-EX-100CEA-RX 4K HDR/UHD HDBaseT to HDMI Receiver with Control - Ethernet & Remote Power

AT-HDR-EX-100CEA-RX - Overview

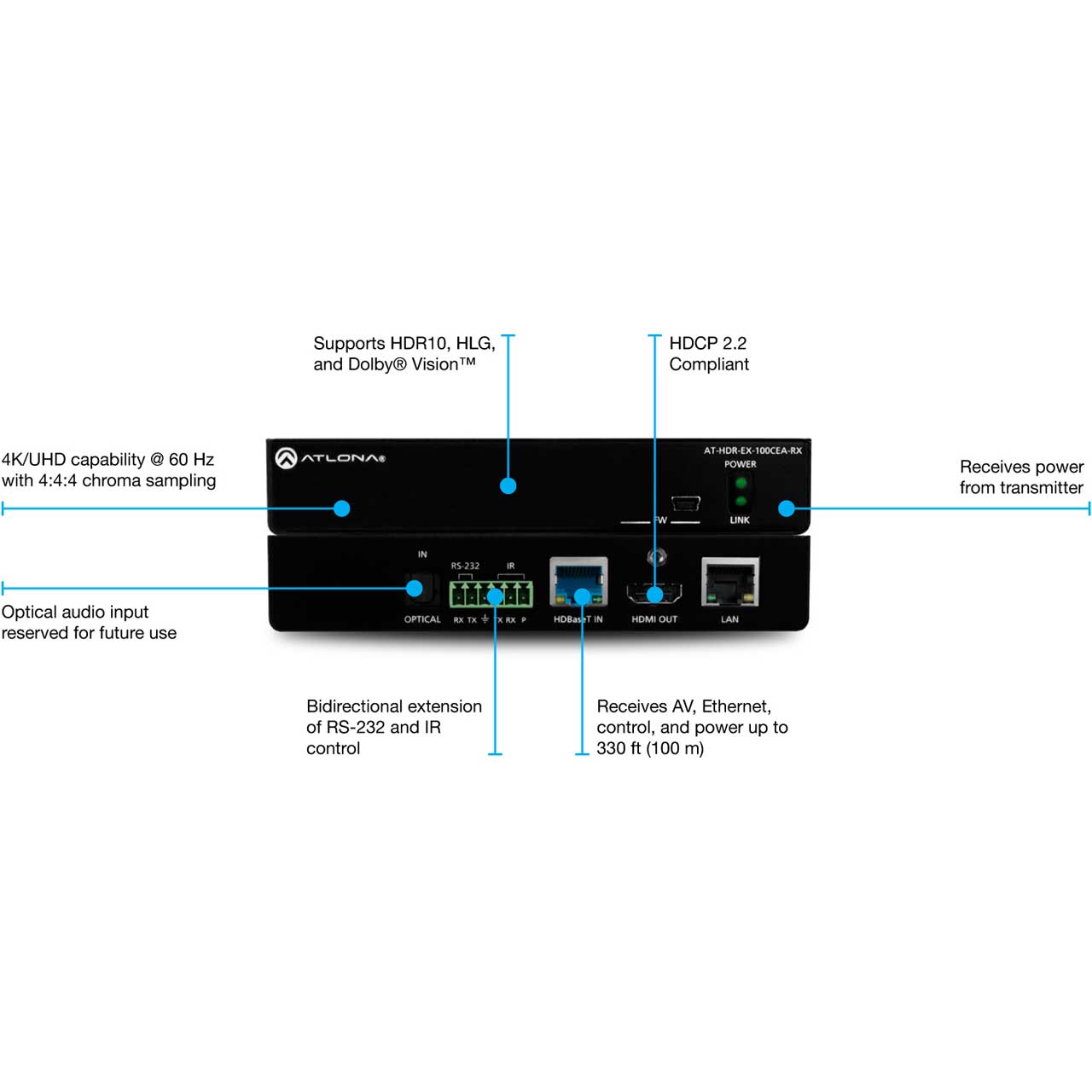

• Features:

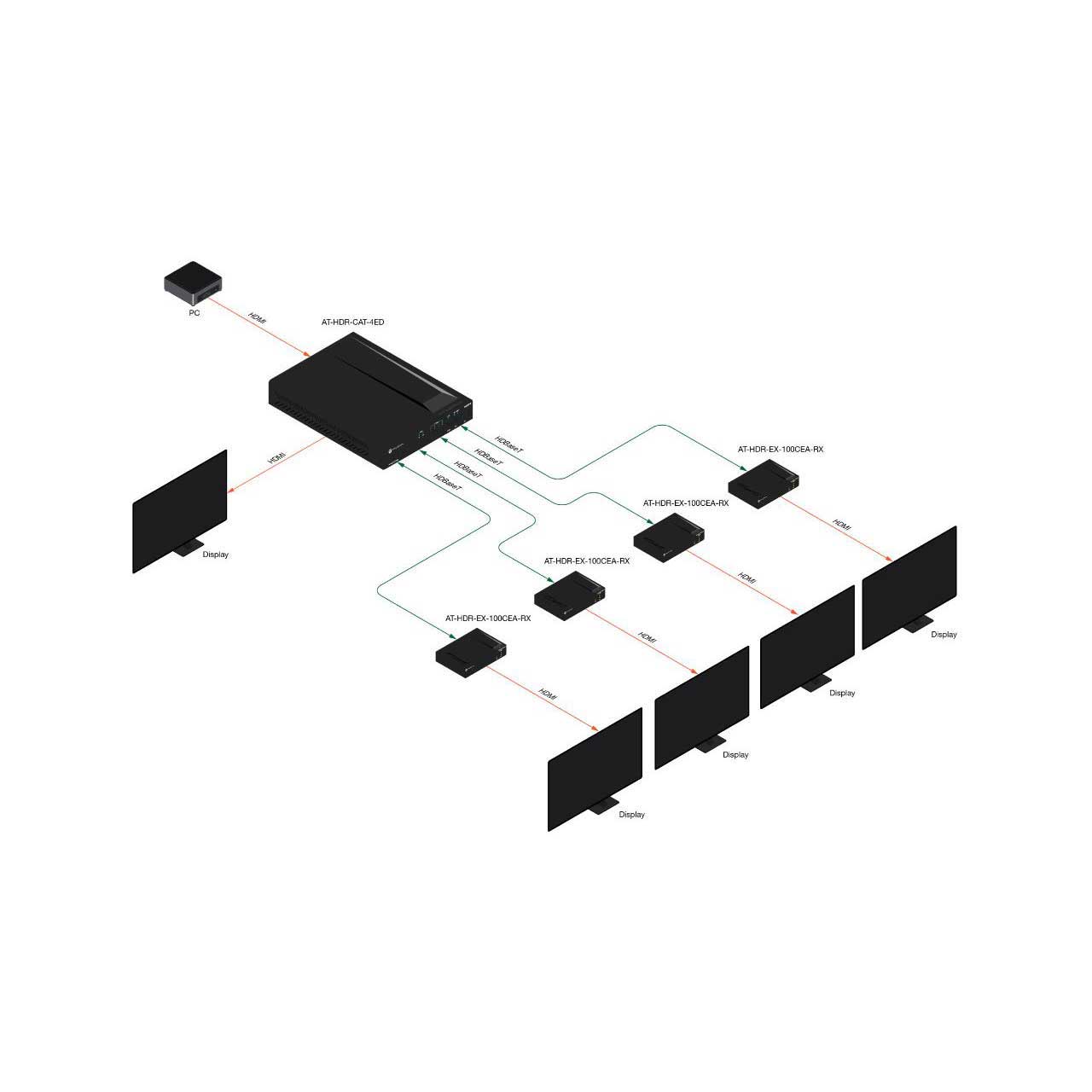

  • HDBaseT receiver for use with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby Vision HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT input receives HDMI, Ethernet, control signals, and power up to 330 feet (100 meters) for both 4K HDR and 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Remotely powered by the AT-HDR-CAT distribution amplifier over HDBaseT
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Multi-channel audio pass-through
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, behind a display, or above a projector


• Specifications:

  • Video
  • Signal: Input: HDBaseT, Output: HDMI
  • Copy Protection: HDCP 2.2
  • Pixel Clock: 600 MHz
  • UHD/HD/SD: 4096x2160@60/50/30/25/24Hz, 3840x2160@60/50/30/25/24Hz, 1920x1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1920x1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
  • VESA (All resolutions are 60Hz): 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768, 800x600, 640x480
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby Vision @ 60 Hz

    Audio
  • HDMI / HDBaseT Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

    Control
  • RS-232: Pass through, up to 115200 baud
  • IR: Pass through, 30kHz to 60kHz
  • CEC: Pass through

    Resolution / Distance
  • HDMI IN/OUT: 4K/UHD: 15 Feet (5 Meters) 1080p: 30 Feet (10 Meters)
  • CAT5e: 4K/UHD: 295 Feet (90 Meters) 1080p: 330 Feet (100 Meters)
  • CAT6/6a/7: 4K/UHD: 330 Feet (100 Meters) 1080p: 330 Feet (100 Meters)

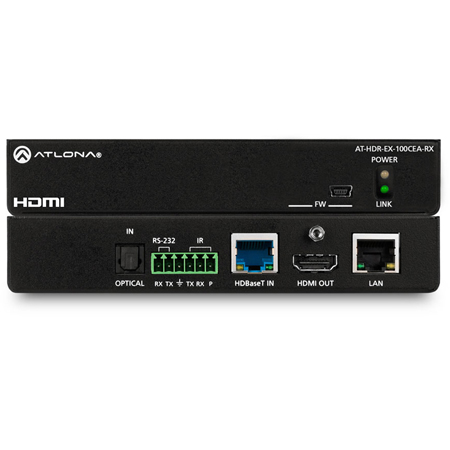

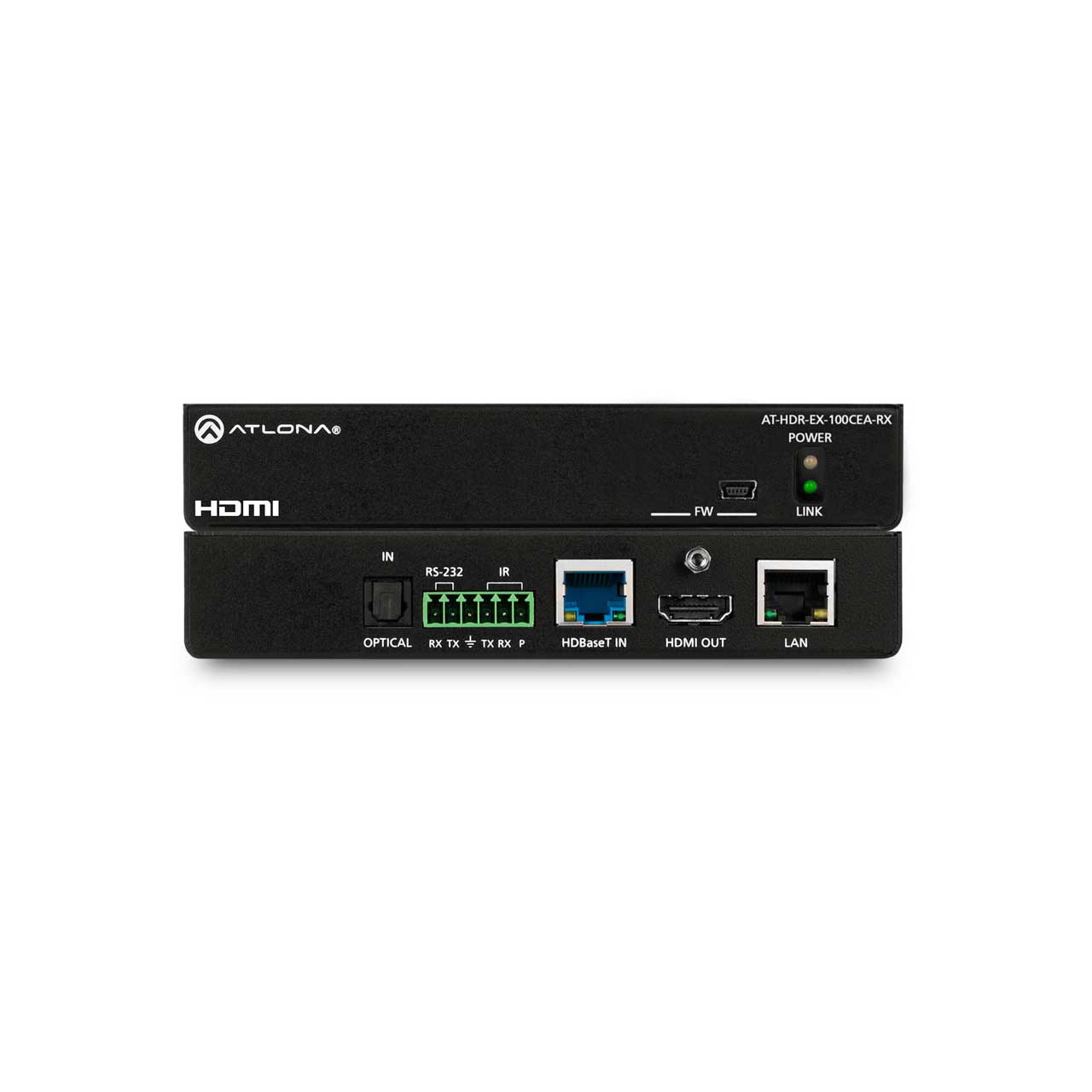

    Connectors
  • HDMI OUT: 1x Type A, 19-pin female
  • HDBaseT IN: 1x RJ45
  • OPTICAL IN: 1x TOSLINK
  • RS-232 / IR: 1x 6-pin captive screw
  • Utility: 1x Mini-USB
  • LAN: 1x RJ45

    Environmental
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating (RH): 20% to 90%, non-condensing

    Power
  • Consumption: 10.4 W
  • BTU/h: 35.5
  • PoE: Powered by compatible 48V transmitters

    Deimensions and Weight
  • Dimensions: 1.02" x 5.74" x 3.81" (36mm x 146mm x 97mm)
  • Weight: .873 lbs (.396 kg)


• Item Includes:

  • 1x Atlona AT-HDR-EX-100CEA-RX HDBaseT Receiver
  • 2x Mounting Brackets
  • 4x Mounting Screws
  • 1x 6-pin Captive Screw Connector
  • 1x Installation Guide


• Warranty:

  • 10-Year Warranty
