Atlona HDR-SW-52ED 5x2 4K/HDR UHD HDMI 2.0b to HDBaseT Matrix Switcher with IR & Extended Distance to 328 Feet/100m

ITEM #: ATNO-HDR-SW-52ED MFG #: AT-HDR-SW-52ED

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Atlona Technologies
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,447.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AT-HDR-SW-52ED - Overview

    The Atlona AT-HDR-SW-52ED is a 5x2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately). The HDR-SW-52ED is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features, automatic input switching, and automatic display control. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the outputs when connected to an HD display. The HDR-SW-52ED can de-embed audio from an HDMI input, or return audio from the HDR-EX-100CEA-RX receiver, to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.

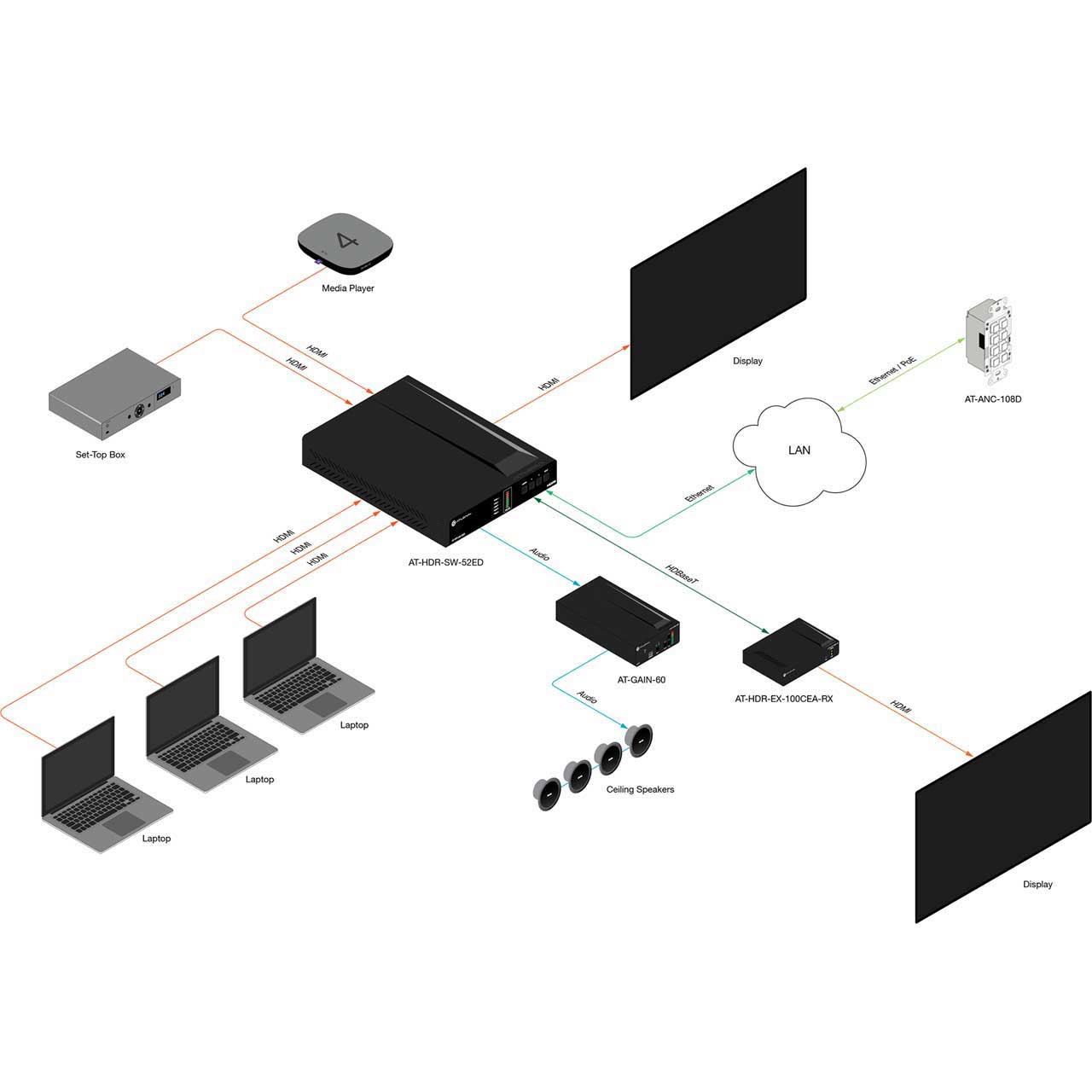

    Applications
    Conference rooms and meeting rooms - The HDR-SW-52ED is compact and ideal for under-table mounting. It conveniently provides automatic switchingand display control for simplified user operation, especially when laptops are brought into the system.
    Presentation spaces where two displays are needed - This matrix switcher can feed separate content into the main presentation display and an auxiliary display.
    Auditoriums and lecture halls - The HDR-SW-52ED can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location.

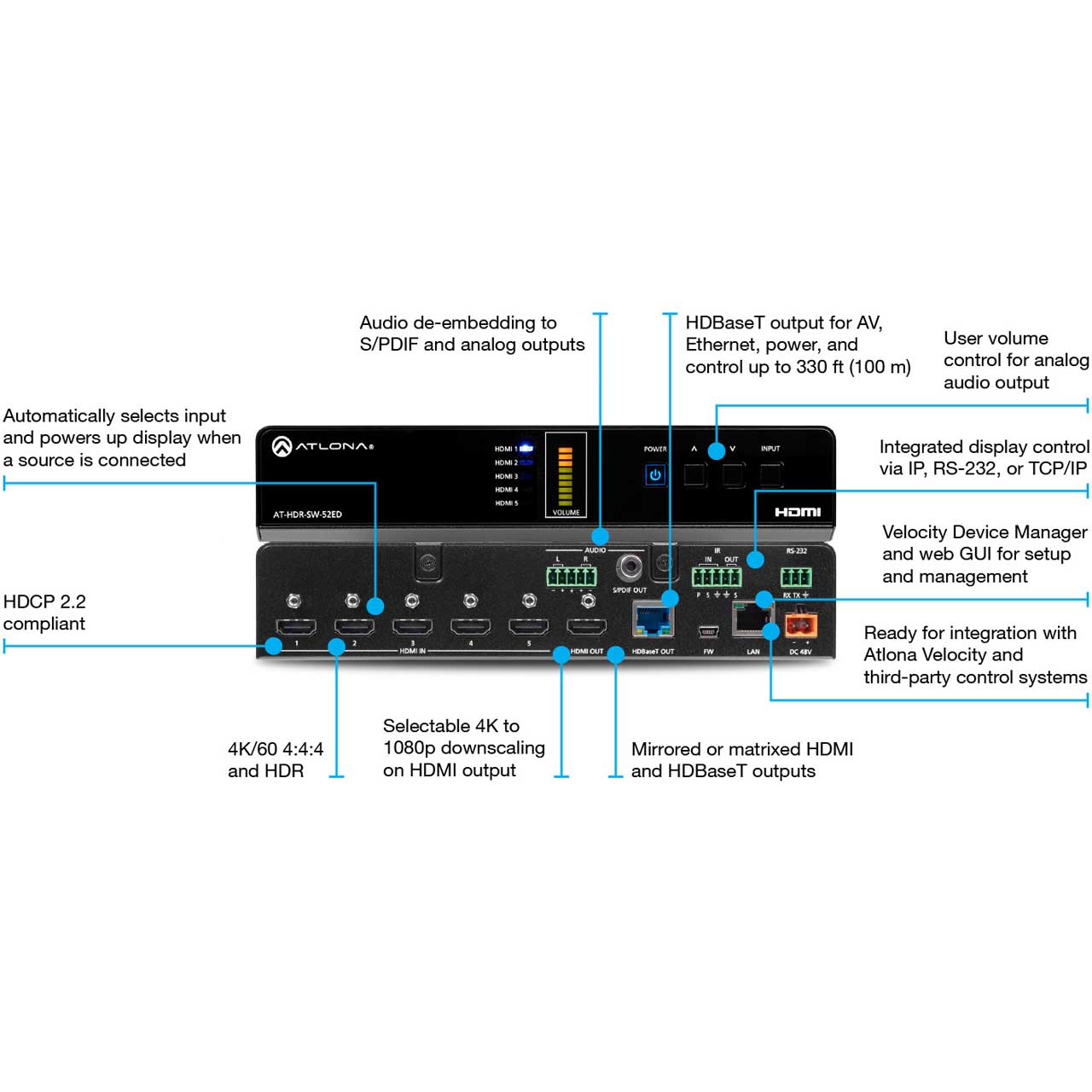

    Unique Features
    The Atlona AT-HDR-SW-52ED is a high dynamic range (HDR) matrix switcher with five HDMI inputs, and HDMI and HDBaseT outputs. It is part of the comprehensive family of Atlona 4K HDR integration products for commercial AV applications.

    4K to 1080p Downscaling - Selectable video processing available for down-converting 4K video to 1080p for legacy devices.
    Long Distance Extension - The HDBaseT output is capable of extending 4K HDR video up to 330 feet or 100 meters.
    Built-In Display Control - Send display on/off and audio commands to the display, through Ethernet, IP, RS-232, or CEC.
    Audio De-Embedding - De-embed HDMI audio to balanced analog and S/PDIF digital outputs for integration with an external audio system.

    • Features:

      • Five HDMI inputs, HDMI and HDBaseT outputs
      • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
      • HDBaseT output transmits 4K video up to 330 feet (100 meters)
      • Selectable 4K to 1080p downscaling
      • Automatic input selection and automatic display control
      • Audio de-embedding


    • Specifications:

      • Video
      • Signal: Input - HDMI
      • Output - HDMI, HDBaseT
      • Copy Protection: HDCP 2.2
      • Pixel Clock: 600 MHz
      • UHD/HD/SD: 4096x2160 (DCI) @ 24/25/30/50/60 Hz, 3840x2160 (UHD) @ 24/25/30/50/60 Hz, 1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz, 1920x1080i @ 50/60 Hz, 1280x720p @ 30/50/60 Hz: 720x576p @ 50 Hz, 720x576i @, 25/50 Hz, 720x480p @ 60 Hz, 640x480p @ 60 Hz, 640x480i @ 60 Hz
      • VESA - All resolutions are 60 Hz: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @ 60 Hz

        Audio
      • HDMI Pass-Through Formats: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, DTS:X®
      • S/PDIF: LPCM 2.0, Dolby® Digital, DTS® Digital Surround™
      • Bit Depth: Up to 24 bits
        Analog Audio
      • Format: Stereo 2-Channel
      • Balanced Output: +4 dBu nominal gain, +19 dB headroom
      • Frequency Response: 20 Hz to 20 kHz, ± 0.5 dB
      • THD+N: < 0.006% at 20 Hz to 20 kHz
      • SNR: > 105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

        Ethernet
      • Port: 1x RJ45
      • Standards and Protocols: HTTP, Telnet
      • Speeds: 10/100 Mbps
      • Addressing: DHCP, Static - selectable through built-in web server and Telnet commands

        RS-232
      • Port: 1x 3-pin captive screw
      • Use: Unit and external device control and configuration
      • Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • Data Flow: Bidirectional

        IR
      • Port: 1x 5-pin captive screw
      • Use: Unit and external device control and configuration
      • Carrier Frequency Range: 30 kHz - 60 kHz
      • Data Flow: Bidirectional

        Resolution / Distance
      • HDMI IN/OUT 4K/UHD: 15 feet
      • HDMI IN/OUT 1080p: 30 feet
      • CAT5e 4K/UHD: 295 feet
      • CAT5e 1080p: 330 feet
      • CAT6/6a/7L 4K/UHD: 330 feet
      • CAT6/6a/7 1080p: 330

        Buttons and Indicators
      • Buttons POWER, UP, DOWN, INPUT: 4x momentary, tact-type
      • Indicators POWER HDMI 1 - HDMI 5: 1x LED, blue, 5x LED, blue, VOLUME: 9 x LED, green, amber, red

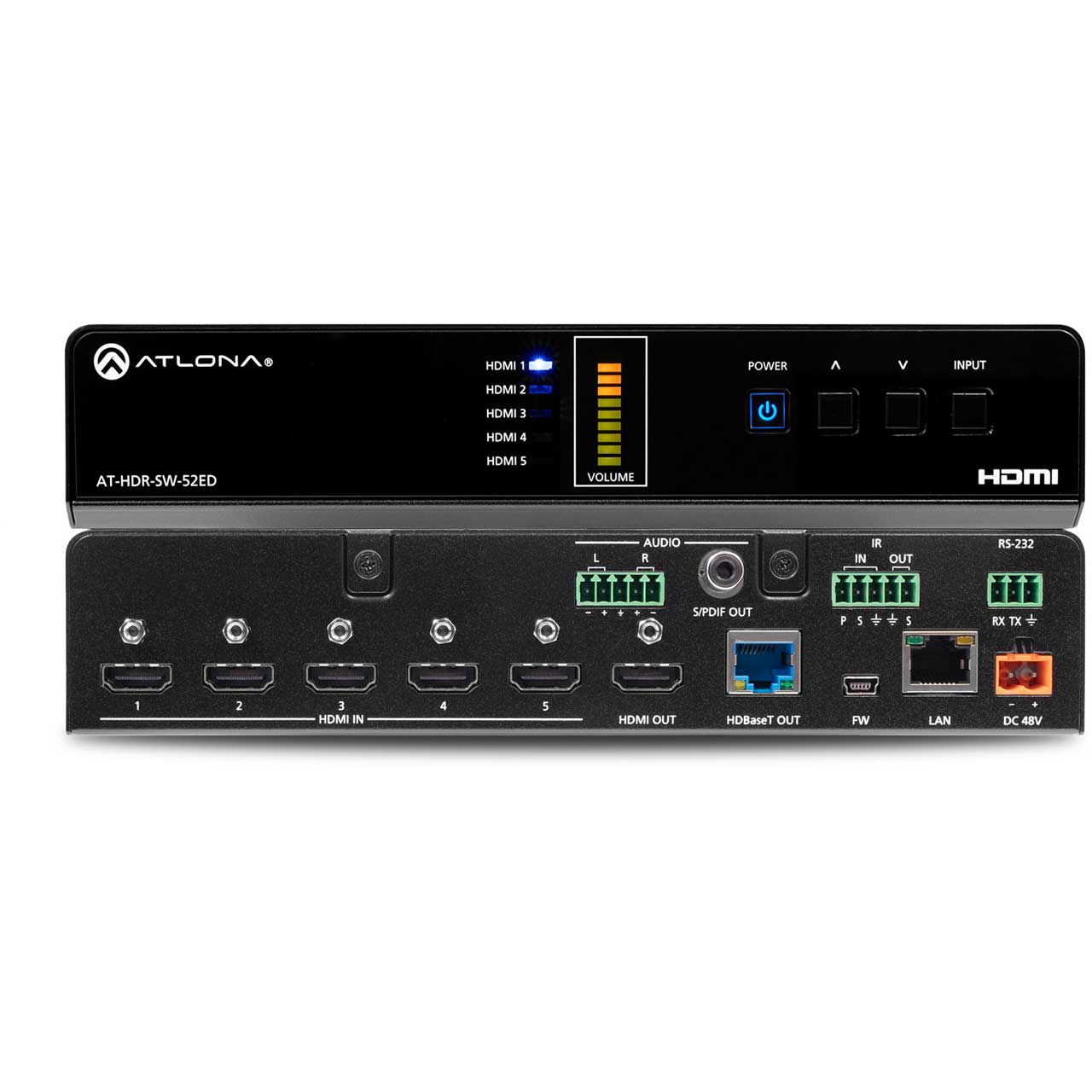

        Connectors
      • HDMI IN: 5x Type A, 19-pin female
      • HDMI OUT: 1x Type A, 19-pin female
      • HDBaseT OUT: 1x RJ45
      • LAN: 1x RJ45
      • L/R: 1x 5-pin captive screw
      • S/PDIF OUT: 1x RCA, female
      • RS-232: 1x 3-pin captive screw
      • IR IN / OUT: 1x 5-pin captive screw
      • FW: 1x mini-USB
      • DC 48V: 1x 2-pin captive screw

        Environmental
      • Operating Temperature: +32 to +122
      • Storage Temperature: -4 to +140
      • Operating Humidity (RH): 20% to 90%, non-condensing

        Power
      • Consumption: 22.4 W, 37.4 W (with PoE)
      • BTU/h: 76.4
      • External Power Supply: 100 - 240 V AC, 50/60 Hz, Output: 48 V / 0.83 A DC

        Physical
      • Unit: 1.34x 8.19 x 4.41"
      • Power Supply: (AT-PS-48083-C) 1.42 x 1.81 x 4.41"
      • Weight: 1.44lbs

        Certification
      • Device: CE, RoHS, FCC
      • Power Supply: CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC


    • Item Includes:

      • 1x AT-HDR-SW-52ED
      • 1x Captive screw connector, 2-pin
      • 1x Captive screw connector, 3-pin
      • 2x Captive screw connector, 5-pin
      • 1x Long rack ear
      • 1x Short rack ear
      • 2x Mounting plates
      • 4x Mounting screws
      • 4x Rack screws
      • 4x Feet w/rubber grips
      • 1x 48 V / 0.83 A DC power supply


    • Warranty:

      • 3 Years


    • GTIN:

      0846352007355
