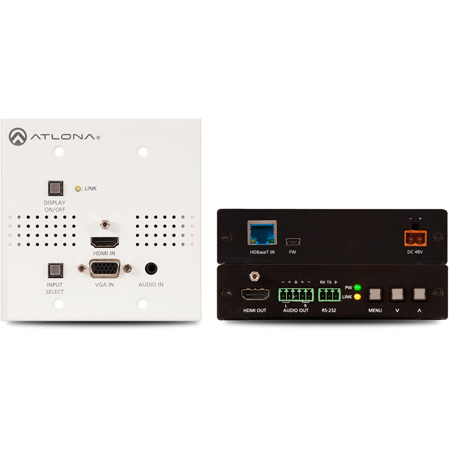

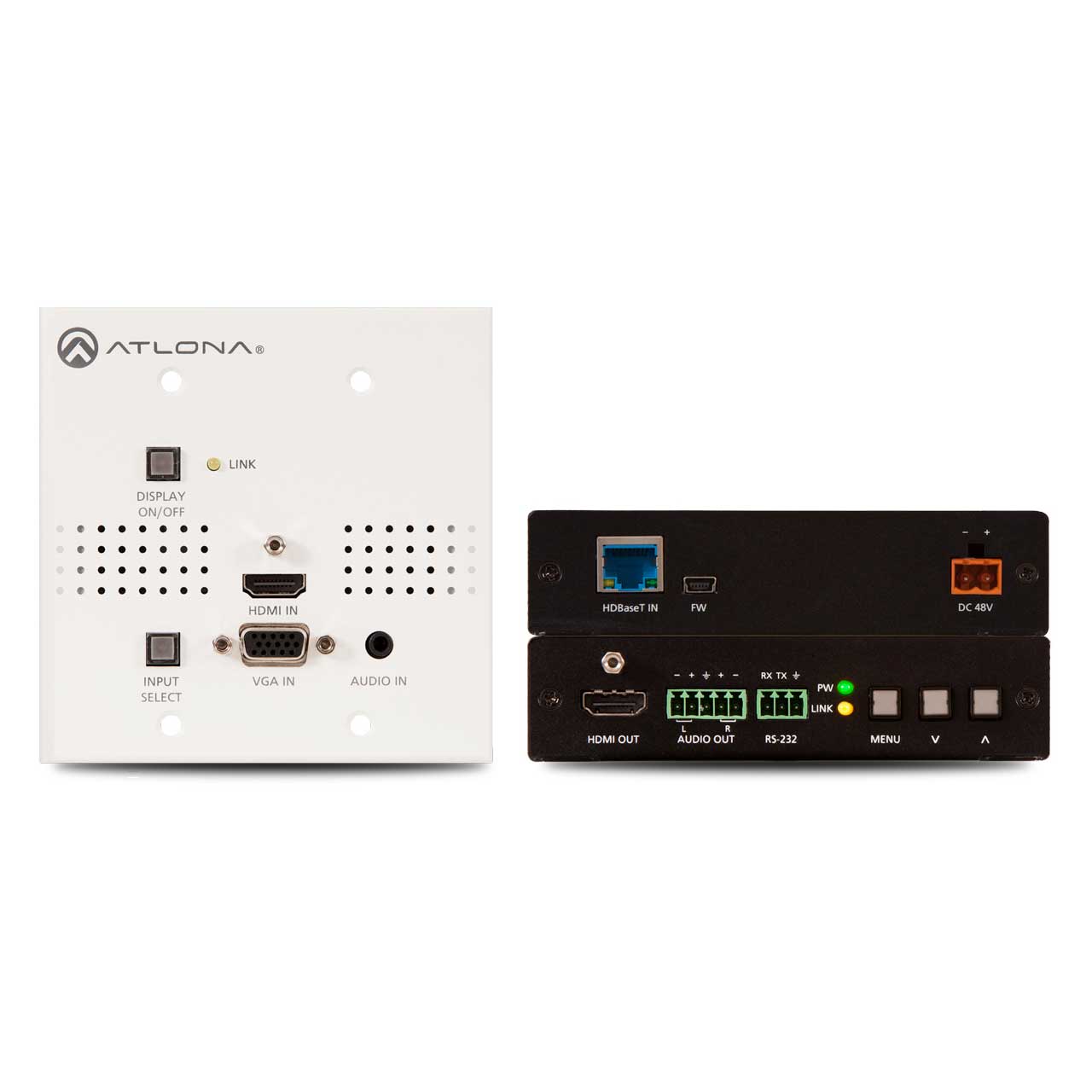

Atlona AT-HDVS-150-WP-KIT Wallplate HDBaseT TX/RX for HDMI/VGA includes AT-HDVS-150-RX and AT-HDVS-150-TX-WP Combo Kit

AT-HDVS-150-WP-KIT - Overview

• Features:

  • HDBaseT™ extender kit for AV, power, and control up to 230 feet (70 meters)
  • US two-gang enclosure for wallplate openings
  • 2x1 HDBaseT switcher with HDMI® and VGA inputs
  • HD video scaler with HDMI output and input resolution control
  • Transmitter powered by receiver via PoE (Power over Ethernet)
  • Automatic input selection and automatic display control
  • Front panel input selection and display on/off control
  • RS-232 control for switcher, scaler, and display
  • Audio de-embedding
  • On-screen display with menu button controls


• Specifications:

  • AT-HDVS-150-TX-WP Specifications
  • Video Resolutions:
    4096x2160@24/25/30/50/60Hz
    3840x2160@24/25/30/50/60Hz
    [email protected]/24/25/29.97/30/50/59.94/60Hz
    1080i@50/59.94/60Hz
    720p@50/59.94/60Hz
    576p, 576i, 480p, 480i
  • VESA:
    2560x2048, 2560x1600, 2048x1536, 1920x1200,
    1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050,
    1366x768, 1360x768, 1280x1024, 1280x800 1280x768,
    1152x768, 1024x768, 800x600, 640x480
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
  • Color Depth: 8-bit, 10-bit, 12-bit

    Audio
  • Analog In: PCM 2Ch
  • HDMI In & HDBaseT Out: PCM 2Ch
  • Sample Rate: 2kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Rate: up to 24-bit

    Distance
  • CAT5e/6: @4K 115' (35m) @1080p 197' (60m)
  • CAT6a/7: @4K 130' (40m) @1080p 230' (70m)
  • HDMI In/Out: @4K 15' (5m) @1080p 30' (10m)

    Signal
  • Bandwidth: 10.2 Gbps
  • HDCP: 1.4

    General
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Humidity: 20 to 90% (non-condensing)
  • Power Consumption: 18.7W (when paired)
  • Wall Dimension: 2 Gang, 1.5" (40mm) Deep
  • Weight: 0.82Lbs (37kg)
  • Unit Certification: CE, FCC
  • Please Note! *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only

    AT-HDVS-150-RX Specifications
  • Resolution In
    [email protected]/24/25/29.97/30/50/59.94/60Hz
    1080i@50/59.94/60Hz
    720p@25/29/30/50/59.94/60Hz, 576p, 576i, 480p, 480i
    1920x1200RB, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768,
    1280x1024, 1280x960, 1280x800, 1280x768, 1152x854, 1024x768, 800x600, 720x400,
    640x480
  • Resolution Out
    [email protected]/24/25/29.97/30/50/59.94/60Hz
    1080i@50/59.94/60Hz, 720p@25/29/30/50/59.94/60Hz
    1920x1200, 1680x1050, 1680x1200, 1400x1050, 1366x768, 1280x1024, 1280x800,
    1024x768
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2
  • Color Depth: 8-bit, 10-bit, 12-bit

    Audio
  • Analog: PCM 2Ch (De-embedded)
  • HDMI OUT & HDBaseT IN: PCM 2Ch
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Rate: up to 24-bit

    Distance
  • CAT5e/6: 197' (60m)
  • CAT6a/7: 230' (70m)
  • HDMI In/Out: 30' (10m)

    Signal
  • Bandwidth: 6.75 Gbps
  • CEC: No
  • HDCP: Compliant - 1.4

    General
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Humidity: 20 to 90% (non-condensing)
  • Power Consumption: 15W (varies per paired transmitter)
  • Power Supply:
    Input: AC100-240V ~ 50/60Hz
    Output: DC 48V/0.83A
  • Dimension (HxWxD): 1.18 x 4.8 x 4.92" (30 x 122 x 125mm)
  • Device Weight: 0.67Lbs (0.31kg)
  • Certification:
    Unit: CE, FCC
    Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC


• GTIN:

  0846352006815
