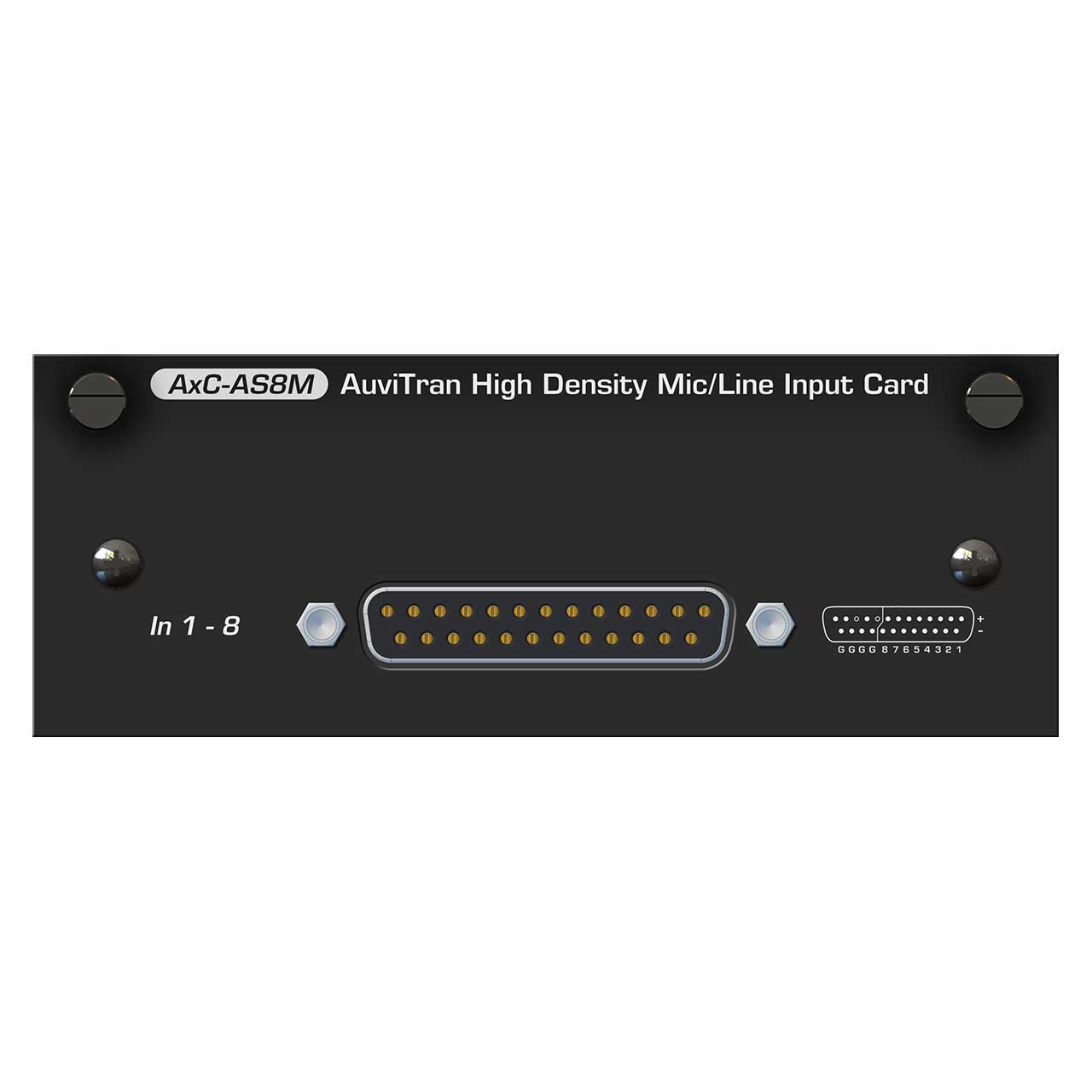

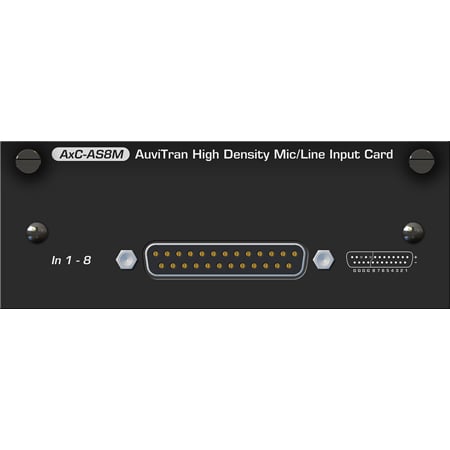

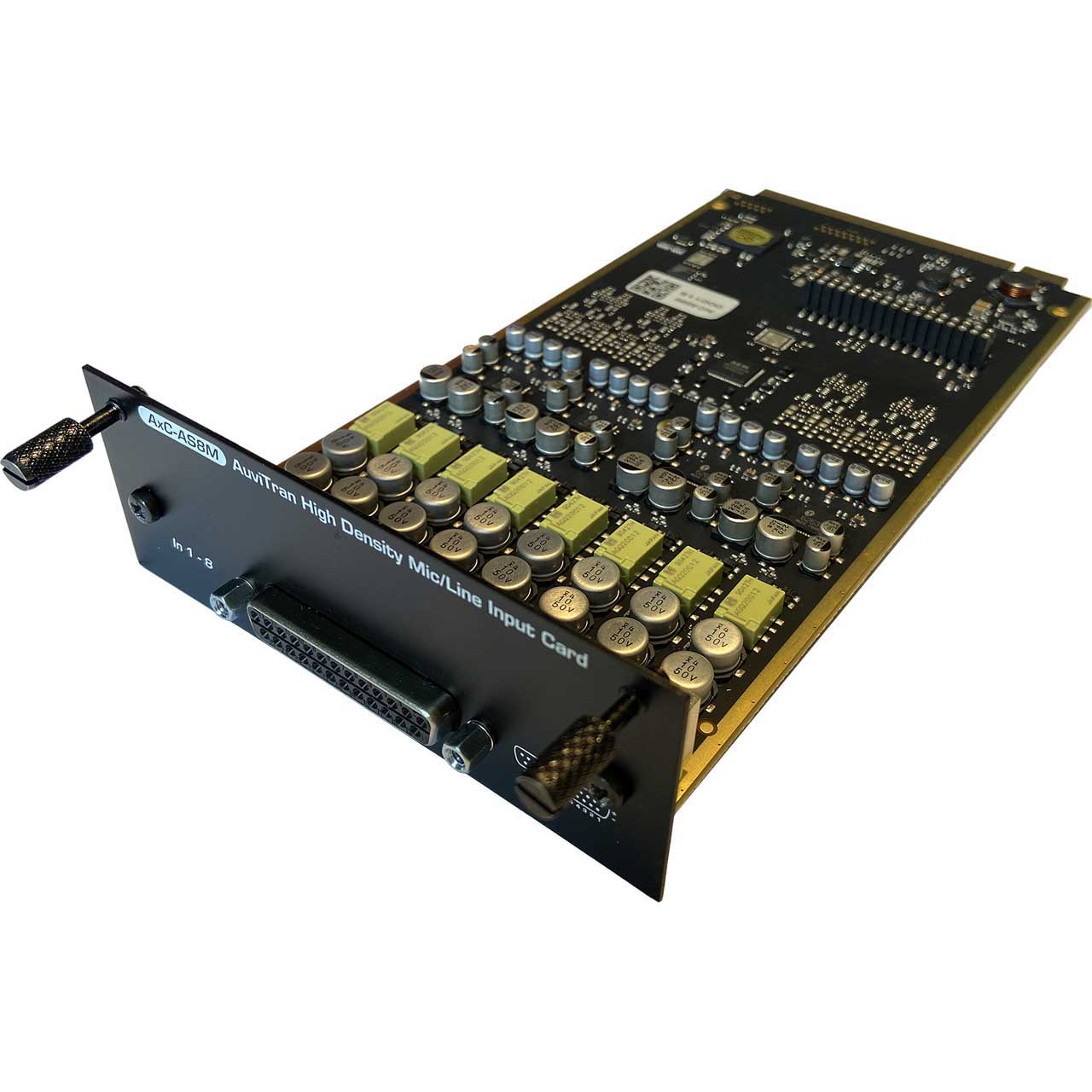

Like all other cards within the Audio ToolBox range, the Auvitran AxC-AS8M can be used in either the AVBx3 or AVBx7 platforms. Using only 1 slot of the Audio ToolBox, the AxC-AS8M provides 8 high-end Mic/Line input (both line and microphone level) with an incredible density for the AuviTran Audio ToolBox platform.
Smart, expandable, and sustainable:
Meet AuviTran's versatile and flexible platforms that brings convergence among network technologies and audio interfaces. With two 19" rack chassis AVBx7 and AVBx3 both available in StageBox or Installation modes, plus twenty interface cards, build the configuration you need.
Suitable for all professional applications that request large numbers of high-quality Mic/Line inputs with a reduced size:
- Featuring 8 high performance microphones and line pre-amplification, high class AD converter chips and excellent circuit design
- AxC-AS8M card sets a new quality, price, density ratio standards for professional audio applications.
- A linear 0.5 dB step digital attenuator/gain gives access to an input sensibility from -56dBu to +24dBu.
- +48V phantom power activation per channel, preamp value setting,
- Attenuation/gain settings and vu-meter can be controlled and monitored individually per channel via network for a remote management from virtually anywhere.
- All individual gains and +48V phantom power activation remote controls are manageable by Yamaha HA remote protocol enabling direct control and monitoring from Yamaha console/mixer
