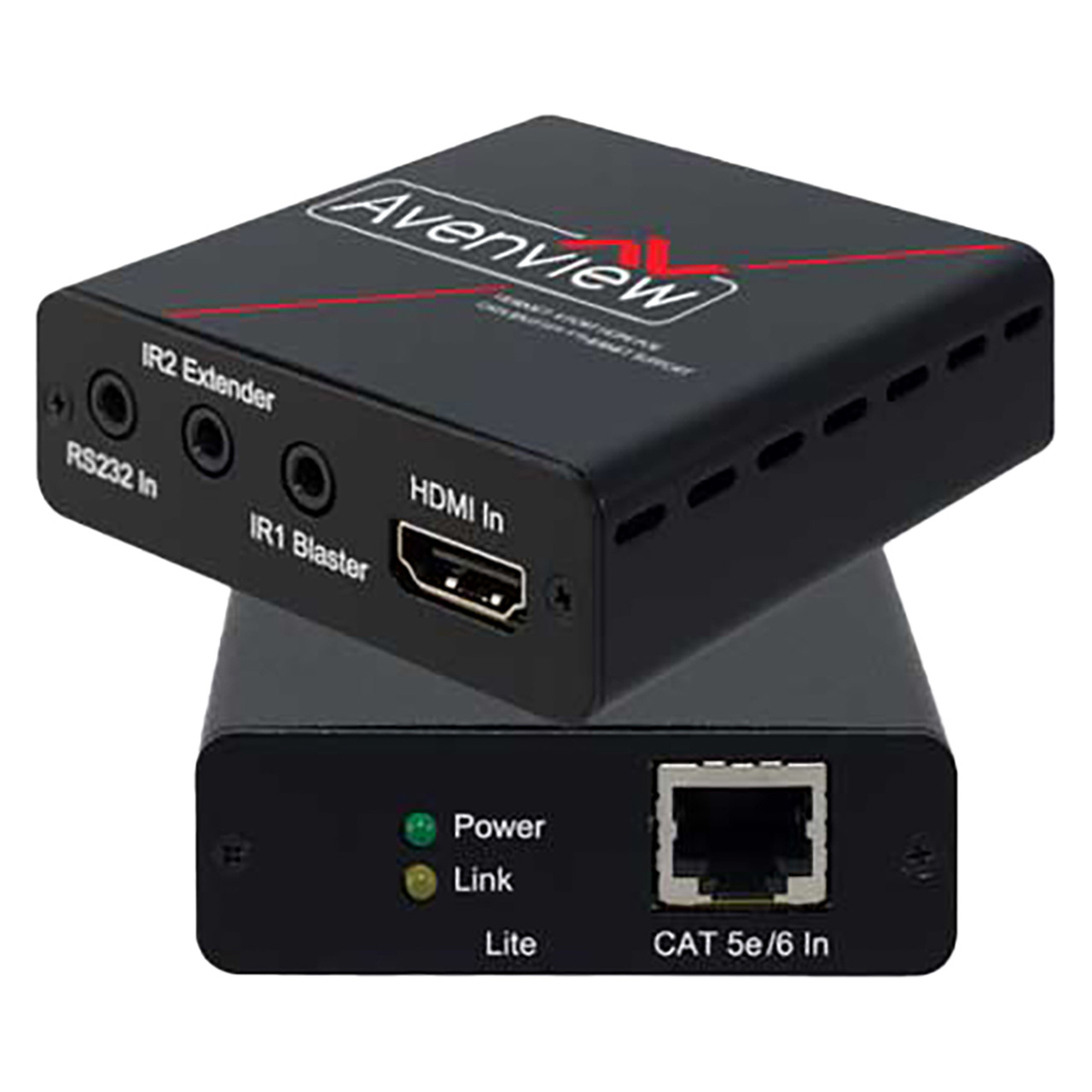

Avenview HBT-C6PLT-R HDBaseT Lite Extender Receiver with POE

HBT-C6PLT-R - Overview

• Features:

  • INPUT: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
  • VIDEO BANDWIDTH: From 300MHz / 9 Gbps
  • PC RESOLU TIONS: Up to VGA to WUXGA
  • HD RESOLU TIONS: Up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)1080p (1920x1080@60Hz)
  • AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • AUDIO TRANSMISSION: (32-192kHz sample rate)
  • SUPPORTS: CEC bypass

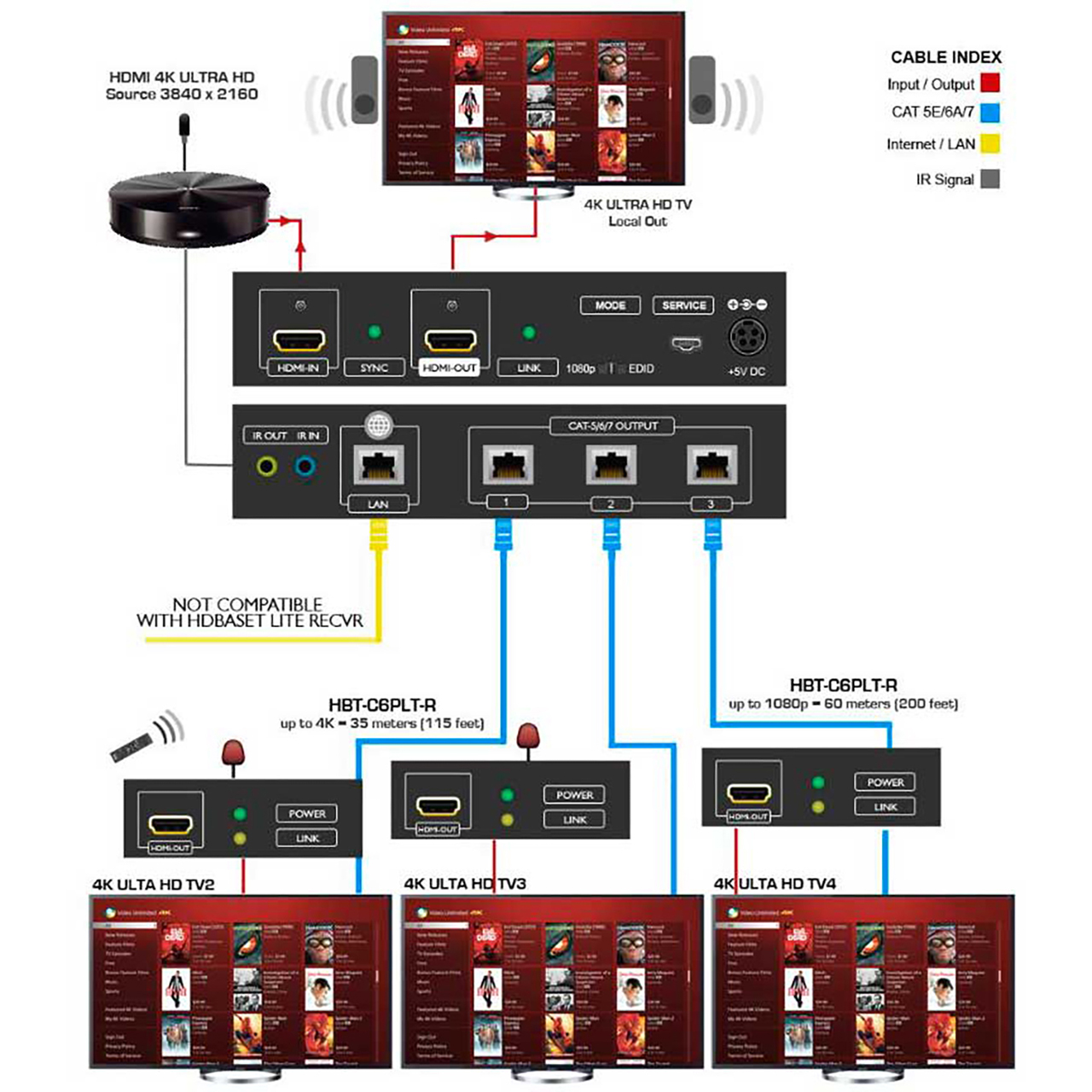

  • DISTANCE: Up to 60 meters through CAT6e/6a/7 cables
  • UNCOMPRESSED VIDEO: 1080p, 60 Hz, 36-bit
  • 3D SUPPORT: Follow by Display / TV's EDID


  • NOTE:
  • The PoE function is designed for powering compatible Receiver units only.
  • The non-PoE Receivers has to be powered with a power supply.
  • Receivers (Rx) from different manufactures would not be compatible.
  • Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results


  • NOTICE:
  • 1. All HDMI over CATx transmission distances are measured using Belden CAT6A (625MHz), 4-Pair,UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal HDMI Video Generator Module with Video Pattern Testing and shielded ends.
  • 2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP connectors are better suit than unshielded UTP connectors. A solid UTP CAT6A cable shows longer transmission length than solid UTP CAT5E/6E cable.
  • 3. EIA/TIA-568-B termination (T568B) for category cables is recommended.
  • 4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can use shielded STP cables with shielded connector to improve EMI problems, which occurs in poor wiring environments with unplanned cable runs situated away from EMI interference.
  • 5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received signal on the display, the actual transmission length is subject to high quality category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6E 250MHz cable is the only viable choice.


• Specifications:

  • HDCP Compliance Yes
  • Video Bandwidth Single-link 340MHz [10.2Gbps]
  • PC Resolutions VGA to WUXGA (1920x1200)
  • Video Resolutions 480i / 480p / 720p / 1080i / 1080p60 /
  • 4K@30 Up to Ultra HD (3840x2160@24/25/30Hz) 4K2K-(4096x2160@24Hz)
  • HDMI Transmission Range 4K2K: (3840X2160@30Hz) ~ 35meter (115 feet) (CAT6e) /(CAT6a)
  • FULL HD: (1080p) ~ 60meter (200feet) (CAT6e) (CAT6a)
  • Audio Supported
  • LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Audio Transmission (32-192kHz sample rate)
  • IR Frequency 30-50kHz
  • Input DDC Signal 5 Volts (peak-to-peak, TTL)
  • ESD Protection [1] Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
  • [2] Core chipset - ±8kV
  • Input Connectors 1x 3.5mm IR Extender
  • 1x CAT5e/6/7
  • Output Connectors 1x RS-232
  • 1x 3.5mm IR
  • 1x LAN port
  • 1x HDMI
  • Dimensions (L x W x H) 2.8" x 2.9" x 1"
  • 71 mm (L)x73.5mm (W)x23 mm (H)
  • Weight - Unit 0.3lbs 126g
  • Power Supply Power Over Ethernet Cable from HDBaseT Transmitter
  • Power Consumption 6 Watt (max)
  • Operating Temperature 0~40°C (32~104°F)
  • Storage Temperature -20~60°C (-4~140°F)
  • Relative Humidity 20 ~ 90% RH (no condensation)


• Warranty:

  • 3 years


• GTIN:

  0606825934195
