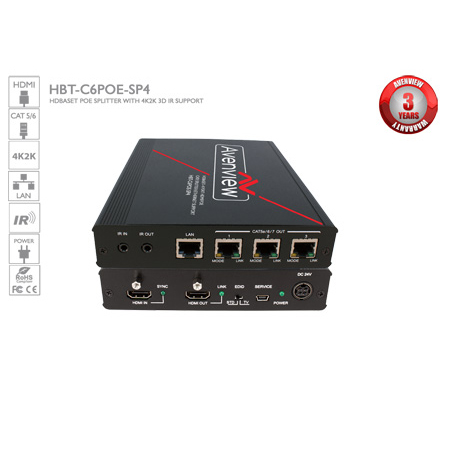

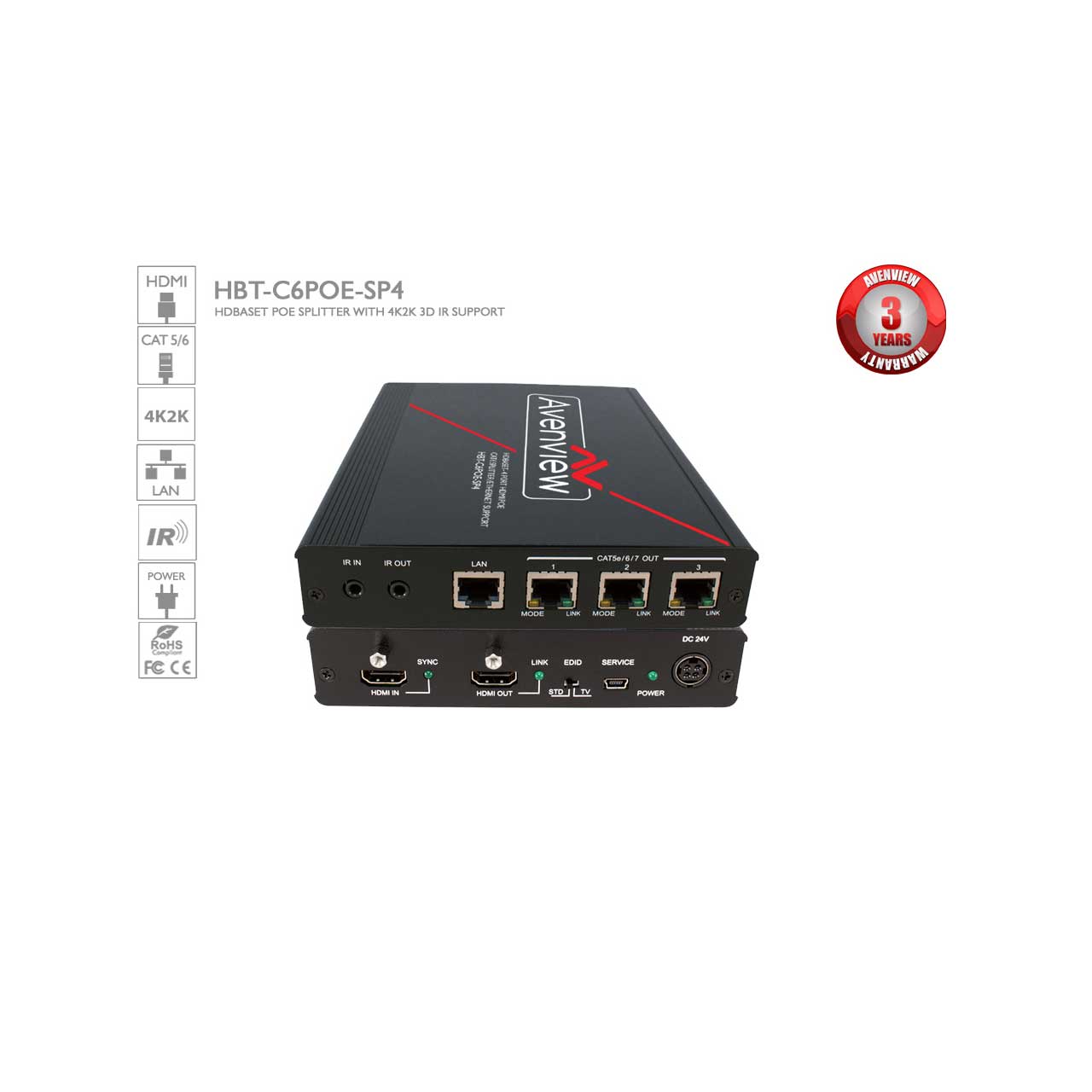

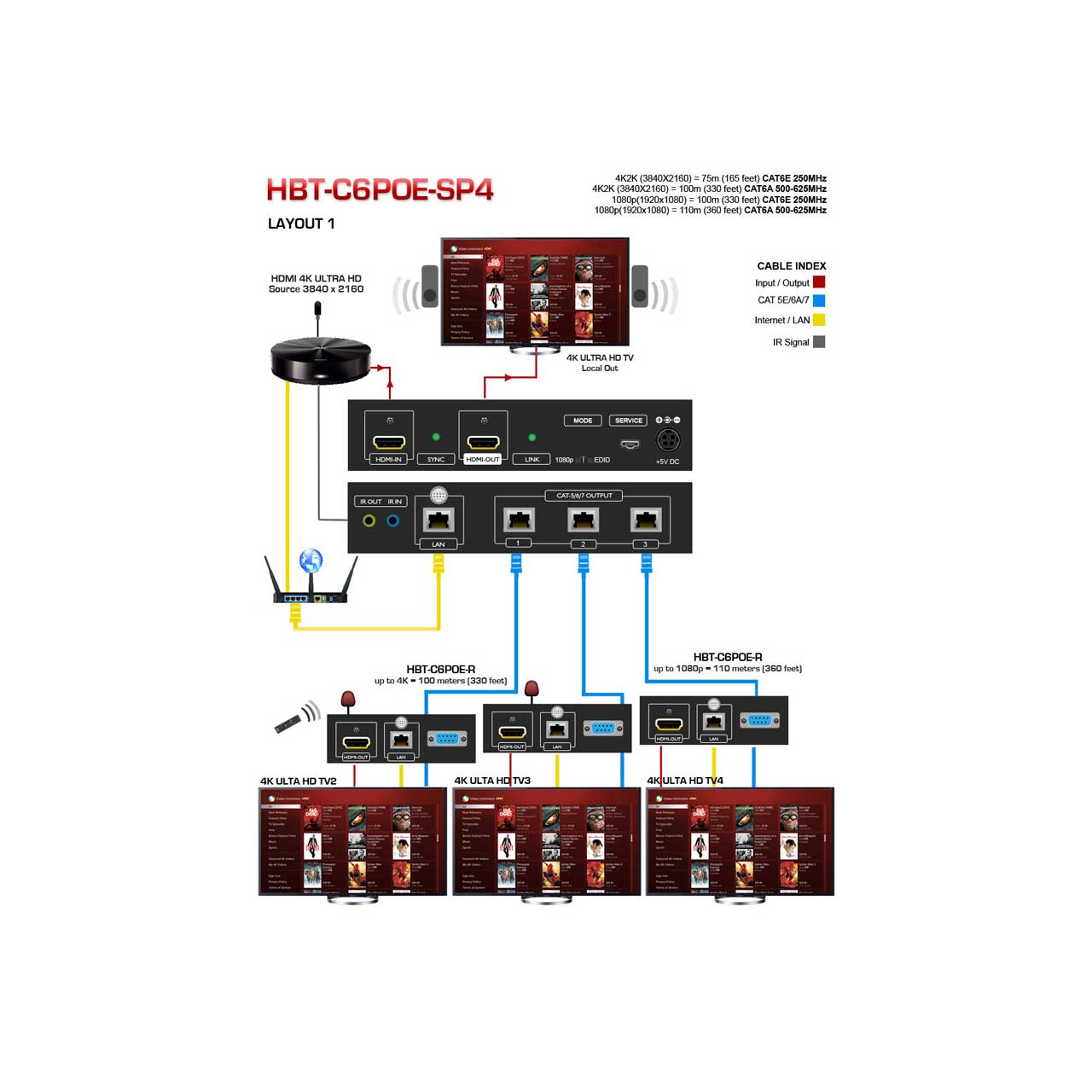

Avenview HBT-C6POE-SP4 1 X 4 HDBaseT HDMI CAT5/6/7 Splitter with PoE Bi-directional IR and Ethernet Extending 4K2K

HBT-C6POE-SP4 - Overview

• Features:

  • INPUT: HDMI with 3D & 4Kx2K, 1080p, HDCP and DVI compliant source devices
  • DATA RATE: from 250Mbps up to 3Gbps
  • PC RESOLUTIONS: up to VGA to WUXGA
  • HD RESOLUTIONS: up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)1080p (1920x1080@60Hz)
  • AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • AUDIO TRANSMISSION: (32-192kHz sample rate)
  • DISTANCE up to 100 meters through CAT6e/6a/7 cables
  • ETHERNET TRANSMISSION: rate up to 100Mbps
  • MODE: Standard 1080p@60Hz or TV EDID timing
  • SERVICE: USB for Manufacturer USE ONLY
  • 3D SUPPORT: Follow by Display / TV's EDID
  • POE SUPPORT: ONLY with capable Receiver (Rx units)
  • IR CONTROL: Bi-directional IR Control
  • NOTE:
  • The PoE function is designed for powering compatible Receiver units only.
  • The non-PoE Receivers has to be powered with a power supply.
  • Receivers of another brand would not be compatible.
  • Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.
  • NOTICE:
  • 1. All HDMI over CATx transmission distances are measured using Belden CAT6A (625MHz), 4-Pair,UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal HDMI Video Generator Module with Video Pattern Testing and shielded ends.
  • 2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP connectors are better suit than unshielded UTP connectors. A solid UTP CAT6A cable shows longer transmission length than solid UTP CAT5E/6E cable.
  • 3. EIA/TIA-568-B termination (T568B) for category cables is recommended.
  • 4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can useshielded STP cables with shielded connector to improve EMI problems, which occurs in poor wiring environments with unplanned cable runs situated away from EMI interference.
  • 5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received signal on the display, the actual transmission length is subject to high quality category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6E 250MHz cable is the only viable choice.


• Specifications:

  • HDCP COMPLIANCE Yes
  • DATA RATE 250Mbps up to 3Gbps
  • PC RESOLUTIONS VGA to WUXGA (1920x1200)
  • VIDEO RESOLUTIONS 480i / 480p / 720p / 1080i / 1080p60 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)
  • HDMI TRANSMISSION RANGE 4K2K: (3840X2160@30Hz) ~ 75meter (250feet) (CAT6e) / 100meter (330feet) (CAT6a)
  • FULL HD: (1080p) ~ 100meter (330feet) (CAT6e) /110meter (360feet) (CAT6a)
  • AUDIO SUPPORTED LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • AUDIO TRANSMISSION (32-192kHz sample rate)
  • IR FREQUENCY 30-50kHz
  • INPUT DDC SIGNAL 5 Volts (peak-to-peak, TTL)
  • ESD PROTECTION [1] Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
  • [2] Core chipset - ±8kV
  • INPUT CONNECTORS 1 x HDMI1 x IR IN, 1 x LAN*, 1 x USB (Service only)
  • OUTPUT CONNECTORS 1 x HDMI (Local Out) 3 x CAT5e/6/7 1 x IR OUT
  • DIMENSIONS (L x W x H) 7.8" x 5.7" x 1.2"
  • WEIGHT-UNIT 1.3lbs(590g)
  • POWER SUPPLY 24V/2.7A DC (US/EU STANDARD CE FCC UL CERTIFIED)
  • POWER CONSUMPTION 36 Watt (max)


  • ENVIRONMENTAL
  • OPERATING TEMPERATURE 0~40°C (32~104°F)
  • STORAGE TEMPERATURE -20~60°C (-4~140°F)
  • RELATIVE HUMIDITY 20 ~ 90% RH (no condensation)


• Item Includes:

  • 1x4 HDMI CAT5e/6/7 PoE Splitter
  • IR Receiver x 1
  • IR Blaster x 1
  • 24V DC Power Adaptor
  • Power Cord
  • User Guide


• Warranty:

  • 3 years


• GTIN:

  0606825934157
