Azden FMX-42u Professional Portable Mixer with USB Output - 4 XLR Input / 2 XLR Ouput

ITEM #: AZ-FMX-42U MFG #: FMX-42U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-FMX-42U

FMX-42U - Overview

Azden's FMX-42 portable mixer has been trusted by audio professionals in the field for over a decade. Its extensive set of features, handcrafted quality and affordability have made it one of the most popular portable mixers on the market. Now with the new FMX-42u, Azden has added a USB digital audio output for even more flexibility.

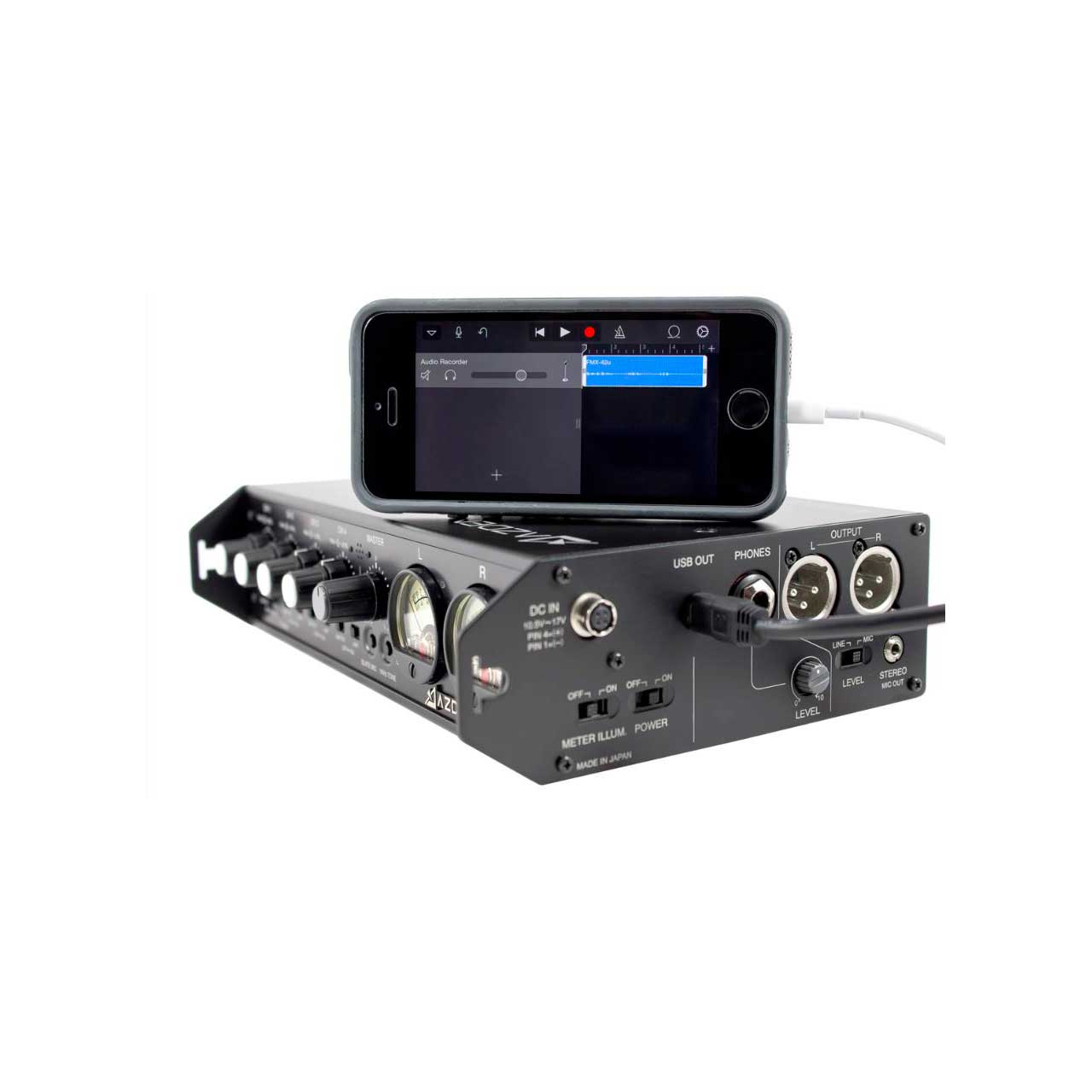

The USB Out on the FMX-42u is designed to connect to a computer, smartphone or tablet and acts as a secondary stereo audio output (necessary USB cables and adapters are not included but readily available from electronics suppliers). This flexible feature could now allow you to use a mobile device or laptop computer as a backup digital recorder, use up to 4 XLR microphones white shooting video with a smartphone or tablet, or even use the FMX-42u as an in-studio mixer for web streaming or podcasting.

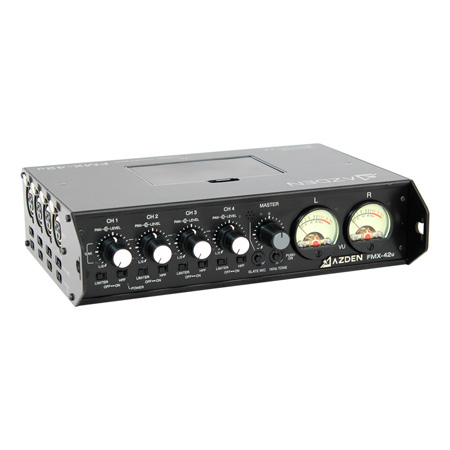

Of course the FMX-42u still boasts the many features of its predecessor, which include 4 balanced XLR line/mic inputs with individual level and pan controls, switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras and a headphone output with level control.

The FMX-42u can be powered by either 6 internal "AA" batteries or an optional 12V DC external power supply (Azden part #BC-27H). A ballistic nylon carrying case is included.

  • Features:

    • Handcrafted in Japan
    • 2 Channel USB digital audio output
    • USB out connects to computer, smartphone or tablet
    • 4 balanced XLR line/mic inputs and pan controls
    • Switchable 48V phantom power and limiting
    • Professional quality VU meters
    • 2 balanced XLR outputs (line/mic switchable)
    • Stereo mini-jack output for DV cameras
    • 6x AA battery powered
    • Optional A/C adapter

  • Specifications:

    • Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
    • Monitor Output: 30 Hz - 30 kHz (+0/-2 dB)
    • Signal-to-Noise Balanced Output: -120 dBu (A weighted, input equivalent level)
    • T.H.D. Balanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output)
    • Phantom Power Voltage: 48V (±1.5V)
    • Sample Tone Frequency: 1 kHz
    • Battery Requirement: 6 Alkaline "AA"
    • External Power: 10.5 ~ 17V DC @ 200mA
    • Dimensions: 220mmW x 160mmD x 56mmH (without protrusions); 9"W x 6 1/2" D x 2 1/4"H (without protrusions)
    • Weight: 1.3 kg / 2.9 lbs (without batteries)

    • INPUT

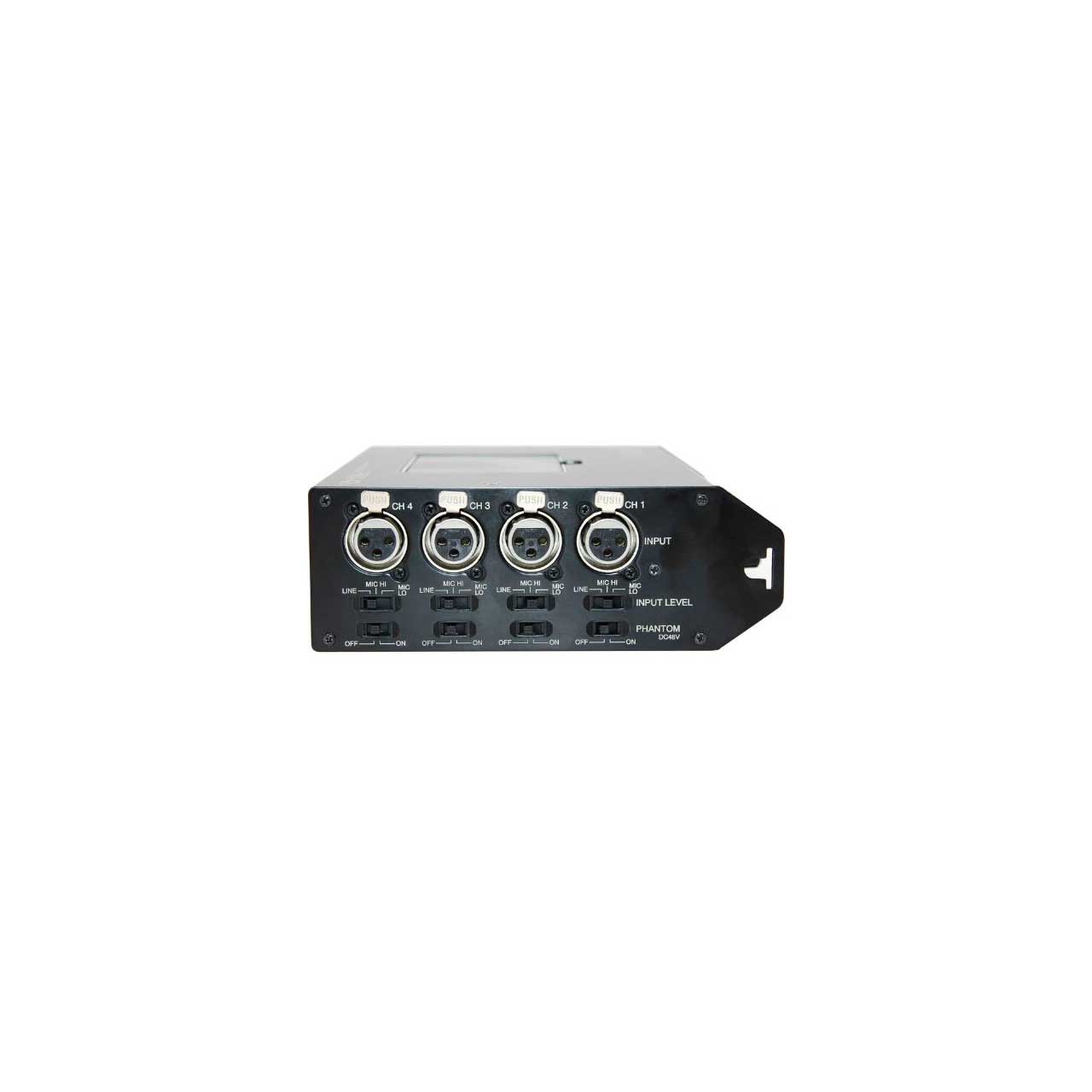

    • Balanced Input: XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
    • Level Line Standard:+4 dBu (electronically balanced)
    • Maximum: > +26 dBu
    • Impedance: 20kO
    • MIC HI Standard: -38 dBu (electronically balanced)
    • Maximum: +4 dBu
    • Impedance: 2kO
    • MIC LO Standard: -58 dBu (electronically balanced)
    • Maximum: -15 dBu
    • Impedance: 2kO
    • High Pass Filter (HPF): 100Hz - 6dB/oct
    • Return Inputs (FMX-42a): Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
    • 3.5mm (1/8") Stereo Mini-Jack
    • Input Level: -20 dBu - +19 dBu (unbalanced)
    • Impedance: 11k ohm

    • OUTPUT
    • Balanced Outputs: XLR 3-pin Male x 2 (Output L & R)
    • Hirose 10-pin Female for Hirose Plug (FMX-42a only)
    • Unbalanced Output: 3.5mm (1/8") Stereo Mini-Jack
    • Monitor Output: 6.3mm (1/4") Stereo Jack
    • Digital Signal Output (FMX-42u): USB mini-B connector (female)
    • Balanced Level Output
    • +4 dBu LINE Standard: +4 dBu (electronically balanced, 5kO load)
    • Maximum: +20 dBu (electronically balanced, 5kO load)
    • Impedance: 600O
    • -36 dBu MIC Standard: -36 dBu (electronically balanced, 5kO load)
    • Maximum: -20 dBu (electronically balanced, 5kO load)
    • Impedance: 600O
    • Unbalanced Output Level Standard: -36 dBu (electronically balanced, 2kO load)
    • Maximum: -20 dBu (electronically balanced, 2kO load)
    • Impedance: 120O
    • Monitor Output Max Output: +1 dBu (32O load at 9V)
    • 16-100 Ohm load recommended
    • Meters Standard Output Level: 0 VU (+4 dBu)

    • DIGITAL SIGNAL OUTPUT (FMX-42u Only)
    • Interface Format: USB 2.0 Full Speed
    • Audio Data Format: Isochronous Data Format
    • Sampling Frequencies: 16 / 22.05 / 32 / 44.1 / 48 kHz Compatible
    • Bit Depth: 8 / 16 bit Compatible
    • Channels: 2
    • Device Name: USB AUDIO CODEC

  • Item Includes:

    • FMX-42u mixer
    • Nylon carrying case
    • Manual

  • GTIN:

    0095528122211
