BZBGEAR BG-A88M Versatile 8x8 Balanced Digital Audio Matrix Processor AEC ANS AGC Auto Mixer and 8-ch GPIO Support

ITEM #: BG-A88M MFG #: BG-A88M

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BG-A88M - Overview

    The BZBGEAR BG-A88M digital audio processor is designed to enhance the audio quality in a variety of settings where multiple speakers are present and clear communication is essential. It provides eight MIC/linear inputs and eight linear outputs, allowing you to connect a wide range of audio sources and destinations. Its advanced algorithms, including full-band Adaptive Echo Cancellation (AEC), Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), and Auto Mixer, work together to produce clear, clean, and resonant sound with a high signal-to-noise ratio. This processor is easy to use, with no need for additional software. It is ready to use right out of the box, making it an excellent choice for project implementation and testing. It can be applied in a variety of settings and industries, including smart system integration in small to medium-sized conference rooms, instruction recording and distance teaching in education, court trial recording and virtual court trials in the judiciary, surgery recording and video consultations in healthcare, and command center establishment in governmental projects. Its versatility and high-quality audio processing capabilities make it an invaluable tool for improving the clarity and quality of audio in many different types of environments.

    • Features:

      • Advanced DSP Manipulate and enhance audio signals with essential modules like Expander, Equalizer, Compressor, and more, ensuring optimal audio quality and control
      • Quality Audio Conversion Achieve high-quality audio output with a 48kHz sampling rate and 24-bit A/D or D/A conversion
      • Echo Cancellation Clear audio communication and minimized feedback issues with built-in echo cancellation
      • Adaptive Feedback Mitigate feedback problems and improve audio performance with adaptive feedback suppression
      • Adaptive Noise Reduction Enhance audio clarity and signal-to-noise ratio with dynamic noise reduction technology
      • Auto Mixer function Seamless audio mixing in scenarios with multiple microphones and adjustable priority settings

    • Specifications:

      • Technical
      • Amplitude Frequency (20Hz~20kHz@+4dBu): ±0.2dB
      • THD+N (1kHz@+4dBu): ≤ 0.01%
      • SNR (linear input): ≥ 90dB
      • Dynamic Range: ≥ 100dB
      • Channel Level Difference: ±0.5dB
      • Channel Isolation: ≥ 80dB
      • Max Input Level: 20dBu
      • Max MIC Gain: 40dB
      • Input Impedence: 20KΩ
      • Output Impedence: 300Ω
      • Sampling Frequency: 48kHz
      • A/D and D/A Conversion: 24Bit
      • Phantom Power: +48 VDC

        Connection

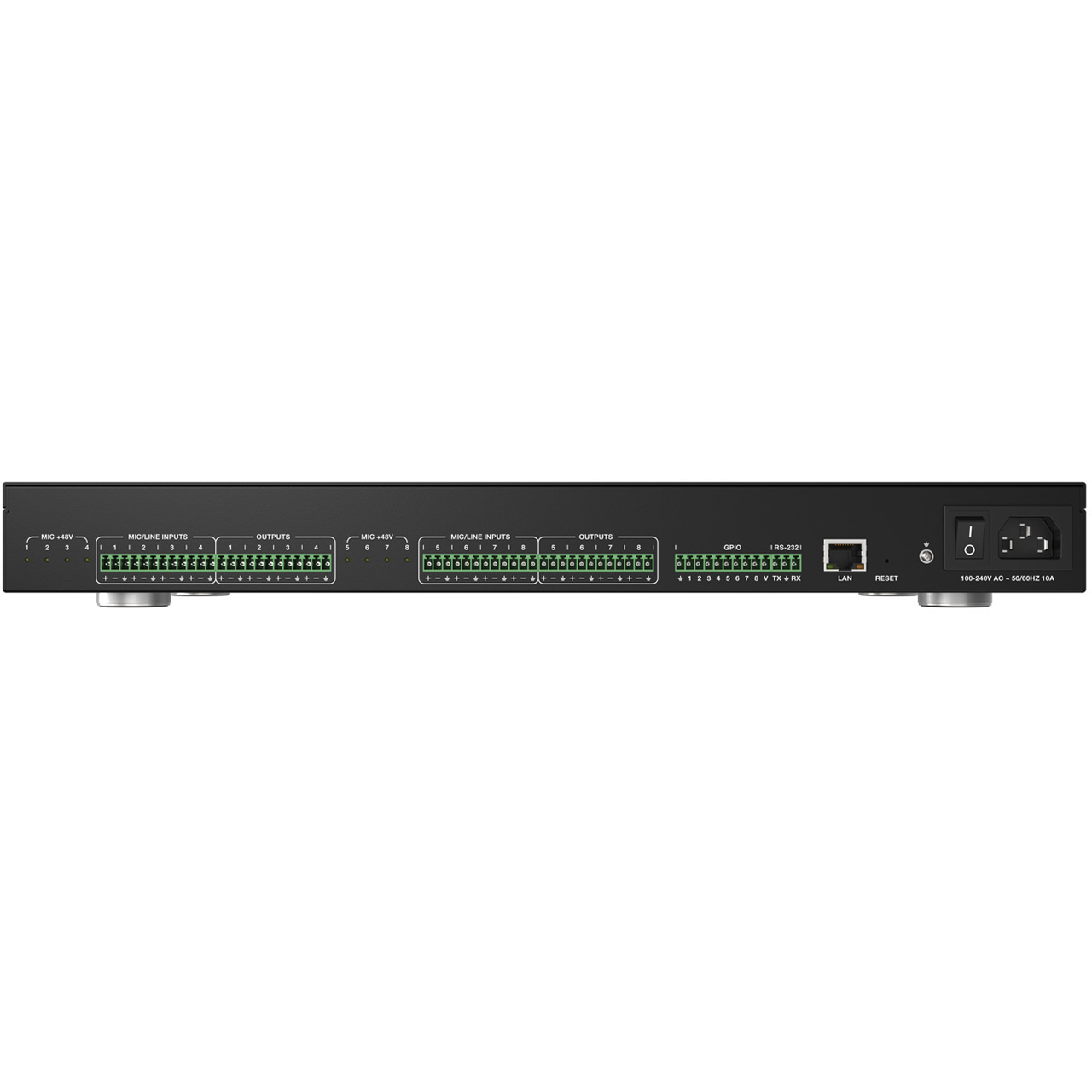

      • Inputs: 8x Balanced MIC/LINE (3-pin phoenix connector) or 4x Stereo Audio (3-pin phoenix connector)
      • Outputs: 8x Balanced LINE (3-pin phoenix connector) or 4x Stereo Audio (3-pin phoenix connector)
      • Controls: 1x LAN (RJ45) 1x RS-232 (3-pin phoenix connector) 8x GIPO (10-pin phoenix connector)

        Mechanical
      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions (WxDxH): 17" x 9.8" x 1.8" (440mm x 250mm x 45mm)
      • Weight: 7.3lbs (3.3kg)
      • Power Supply: AC 100V - 240V 50/60Hz
      • Power Consumption: 9W (Max)
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Relative Humidity: 20% - 90% RH (non-condensing)

    • Item Includes:

      • 1x BZBGEAR BG-A88M Digital Audio Processor
      • 1x AC 100~240V 50/60Hz Power Cord
      • 1x 3pin-3.81mm Phoenix Connectors (Male)
      • 1x 10pin-3.81mm Phoenix Connectors (Male)
      • 4x 12pin-3.81mm Phoenix Connectors (Male)
      • 2x Mounting Ears (Wall Mount)
      • 8x Machine Screws (KM3x4)
      • 1x User Manual

    • Warranty:

      • 5 Year Limited Warranty

    • GTIN:

      0850050134237
