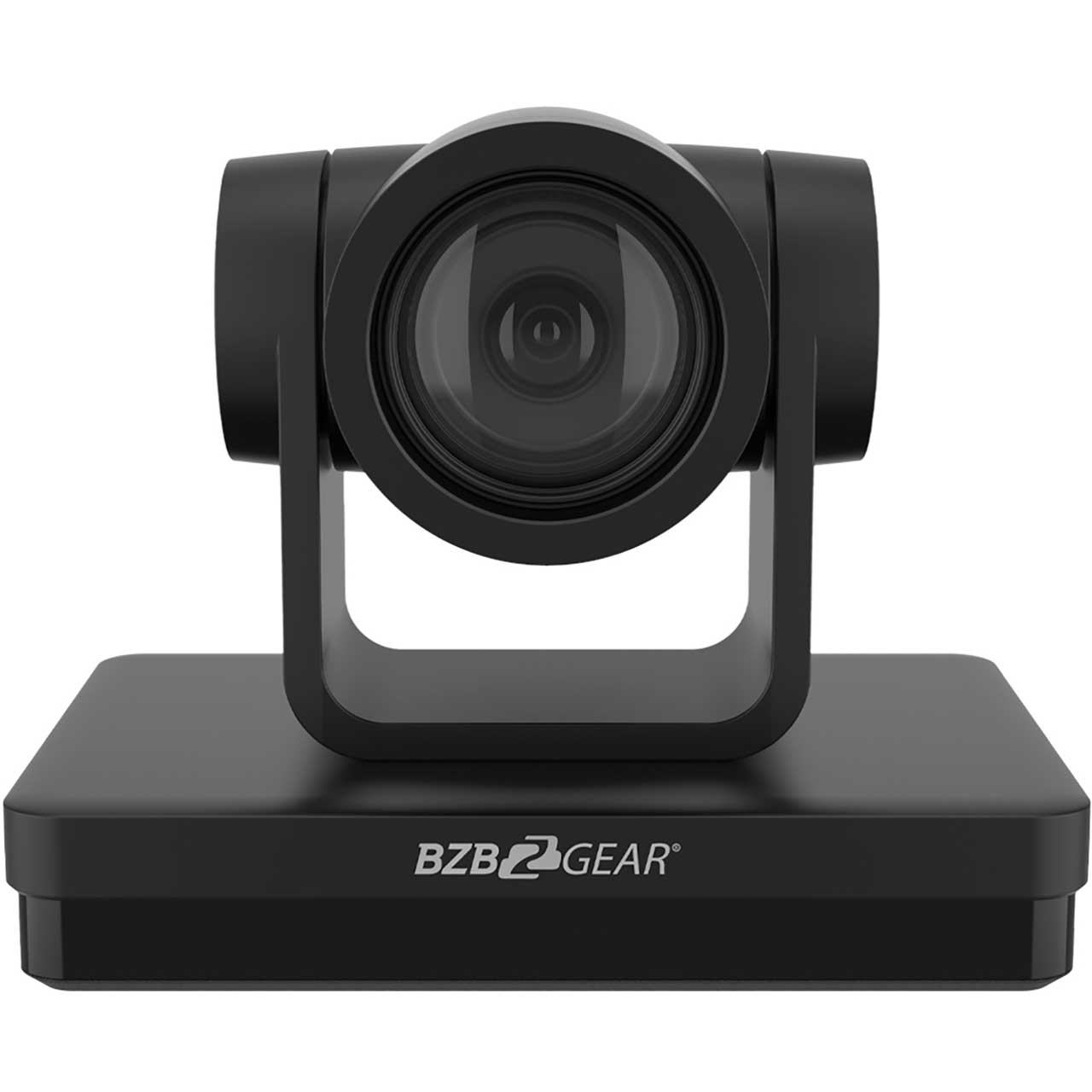

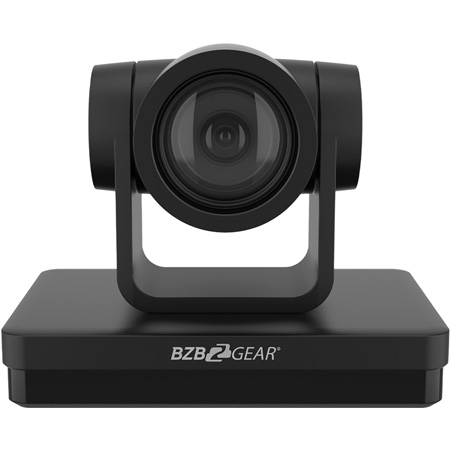

BZBGEAR BG-UPTZ Universal 20X HDMI/SDI/USB3.0/RS232/485 Live Streaming PTZ Camera - Black

Name: BZBGEAR BG-UPTZ Universal 20X HDMI/SDI/USB3.0/RS232/485 Live Streaming PTZ Camera - Black
Brand: BZBGEAR
SKU: BG-UPTZ-20XHSUB
Price: 949.00 USD
Availability: PreSale

ITEM #: BG-UPTZ-20XHSUB MFG #: BG-UPTZ-20XHSUB

BZBGEAR

Colors:

Zoom:

Colors

Zoom

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$949.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BG-UPTZ-20XHSUB - Overview

BZBGear BG-UPTZ series cameras (BG-UPTZ-20XHSUB) are truly universal and cover almost any possible application you can think of. High grade lenses give you pristine image quality, exceptional mechanical craftsmanship and components - responsive and quite operation, latest compression algorithms make modern video streaming easy, and rich I/O interface ability to use these cameras in any setup. From video conferencing and tele-education, to broadcasting evens and streaming to multiple online platforms - you can do it all with BZBGEAR BG-UPTZ cameras.

Features:
- Crystal Clear Image -1/2.8in 2.07 megapixel Low-Noise CMOS sensor insures High SNR (Signal to Noise Rate). Resolution up to 1080p@60fps
- Wide FOV: Field of view up to 72.5° - enough for the whole room (72.5° for 12X, 56° for 20X and 65° for 30X lenses)
- Add a Mic - supports stereo audio input and embedding
- Extremely quiet - using high quality step driving motor and precise motor drive controller ensures whisper quiet and smooth rotation and zooming
- Rich Network Protocol Support - RTMP and RTMPS for Youtube, Facebook live streaming or other CDN. RTP and RTSP for streaming over your network. ONVIF and GB/T28181 - for your security applications, Visca - to enable control over network.
Specifications:
- Lens: 20X Optical zoom
- Horizontal View Angle: 54.7°(W)~3.3°(T)
- Image Sensor: 1/2.8" Progressive CMOS
- Effective Pixels: 2.07 Megapixels (16:9)
- Resolution: 1080p60/50, 1080i60/50, 1080p30/25,720p60/50

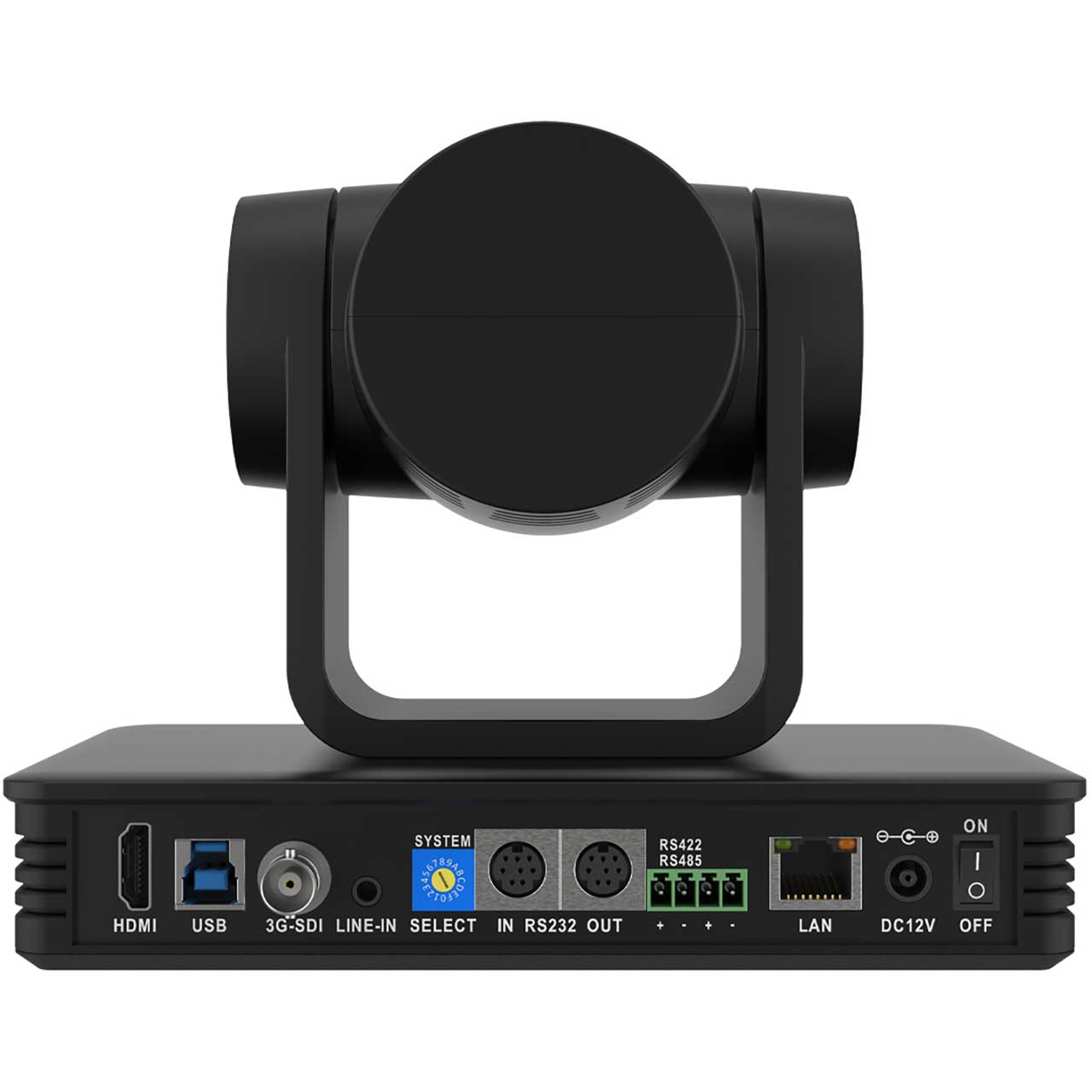

- Interface: USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
- Pan Rotation: 340°(max. speed: 80°/s)
- Tilt Rotation: -30° to +90° (max. speed: 60°/s)
- Focus System: Auto/Manual
- S/N Ratio: ≥50db
- Preset Position: 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
- Minimum Illumination: 0.5 Lux (F1.8, AGC ON)
- Exposure Control: Auto/Manual/Priority AE/Exposure Compensation/Bright
- Shutter Speed: 1/1~1/10,000s
- Gain: Auto/Manual
- White Balance: Auto/Manual/ATW/One-click/Indoor/Outdoor
- Image Effect: Full color/black and white/Electronic flip
- Video Output HD: HDMI, 3G-SDI, IP, USB 3.0
- Control Protocol: RTSP, RTMP, ONVIF, GB/T28181
- Power: 12V DC
- Power Consumption: Max. 30W(DC 12V)
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
- Camera Dimensions (LxWxH): 7 x 4.55 x 5.94" (178 x 115.5 x 150.9mm)
- Weight: 3.04Lbs (1.38kg)
- Color: Black
Item Includes:
- 1x BZBGEAR BG-UPTZ Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control cable
- 1x IR Remote Control
- 1x User Manual
Warranty:
- 3 years
GTIN:
0850009357854
