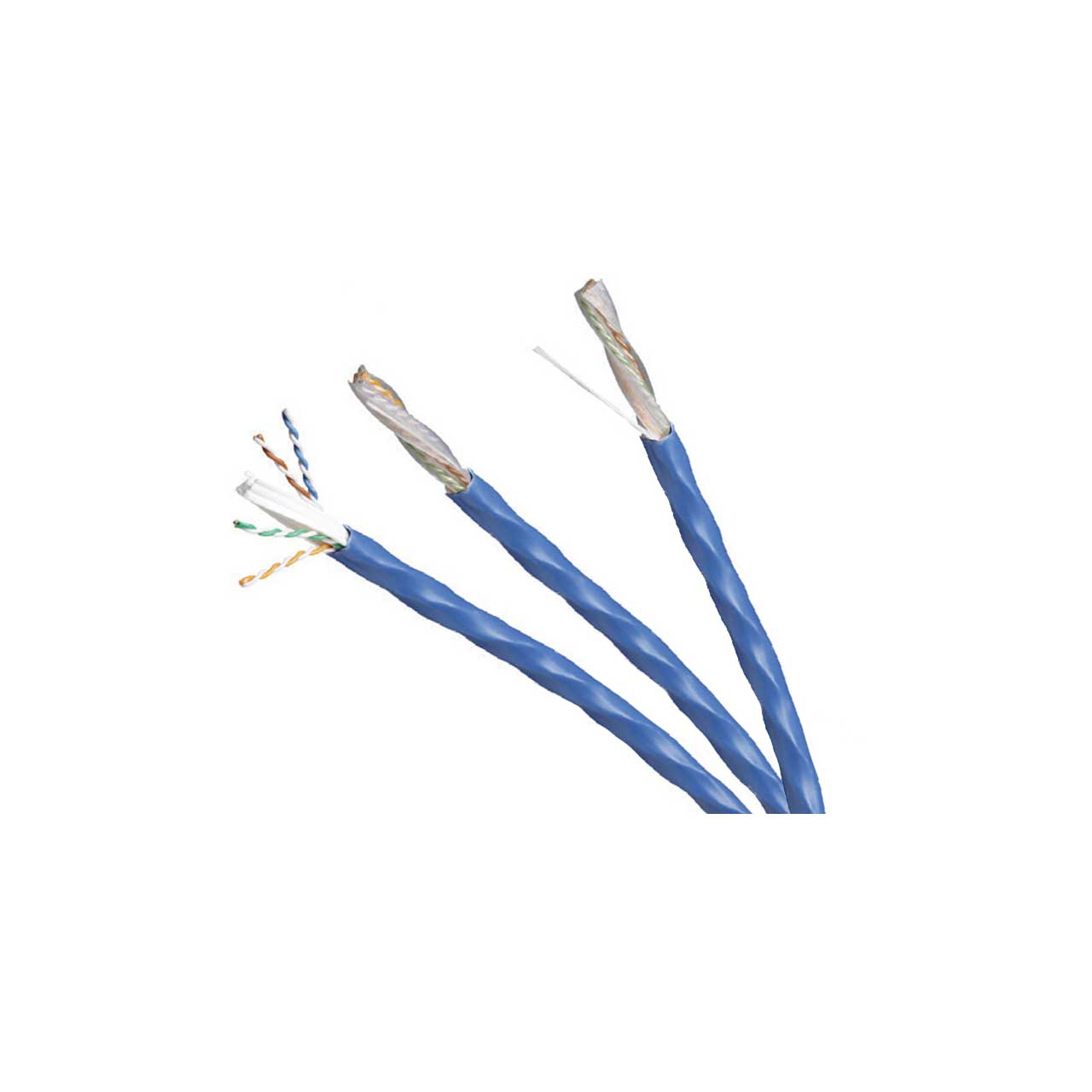

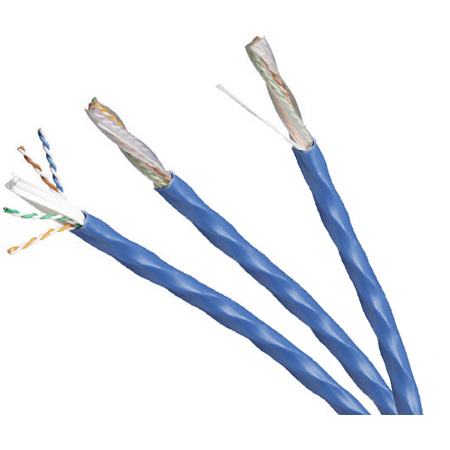

Belden 10GX12 23 AWG 4 Pair Enhanced Category 6A Cable - Blue - 50 Foot Unterminated

BL-10GX12-50-BE - Overview

• Specifications:

  • AWG: 24
  • Stranding: Solid
  • Material: BC - Bare Copper
  • Pairs: 4
  • Max. Conductor DCR: 74 Ohm/km
  • Max. DCR Unbalance: 3%
  • Max. DCR Unbalanced Between Pairs [%]: 5%
  • Max. Capacitance Unbalance: 50 pF/100m
  • Nom. Mutual Capacitance: 17 pF/ft
  • Nom. Velocity of Prop.: 64%
  • UL Voltage Rating: 300 V (CMR), 300 V (CL3R)
  • UL Rating Temp: 90°C
  • Operating Temp: -20°C To +75°C
  • Installation Temp: 0°C To +50°C
  • Storage Temp: -20°C To +75°C
  • Max. Pull Tension: 25 lbs
  • Bulk Cable Weight: 36 lbs/1000ft
  • EnvironmentalSuitability: Riser, Indoor
  • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
  • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
  • NEC / UL Compliance: 800, CMR;CMR-LP (0.5A);CL3R-LP (0.5A)
  • CEC / C(UL) Compliance: CMR
  • ICEA Compliance: S-116-732-2013
  • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
  • NEMA Compliance: ANSI/NEMA WC-66
  • Data Category: Category 6A
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
  • Cenelec Compliance: Segregation class according EN50174-2=a
