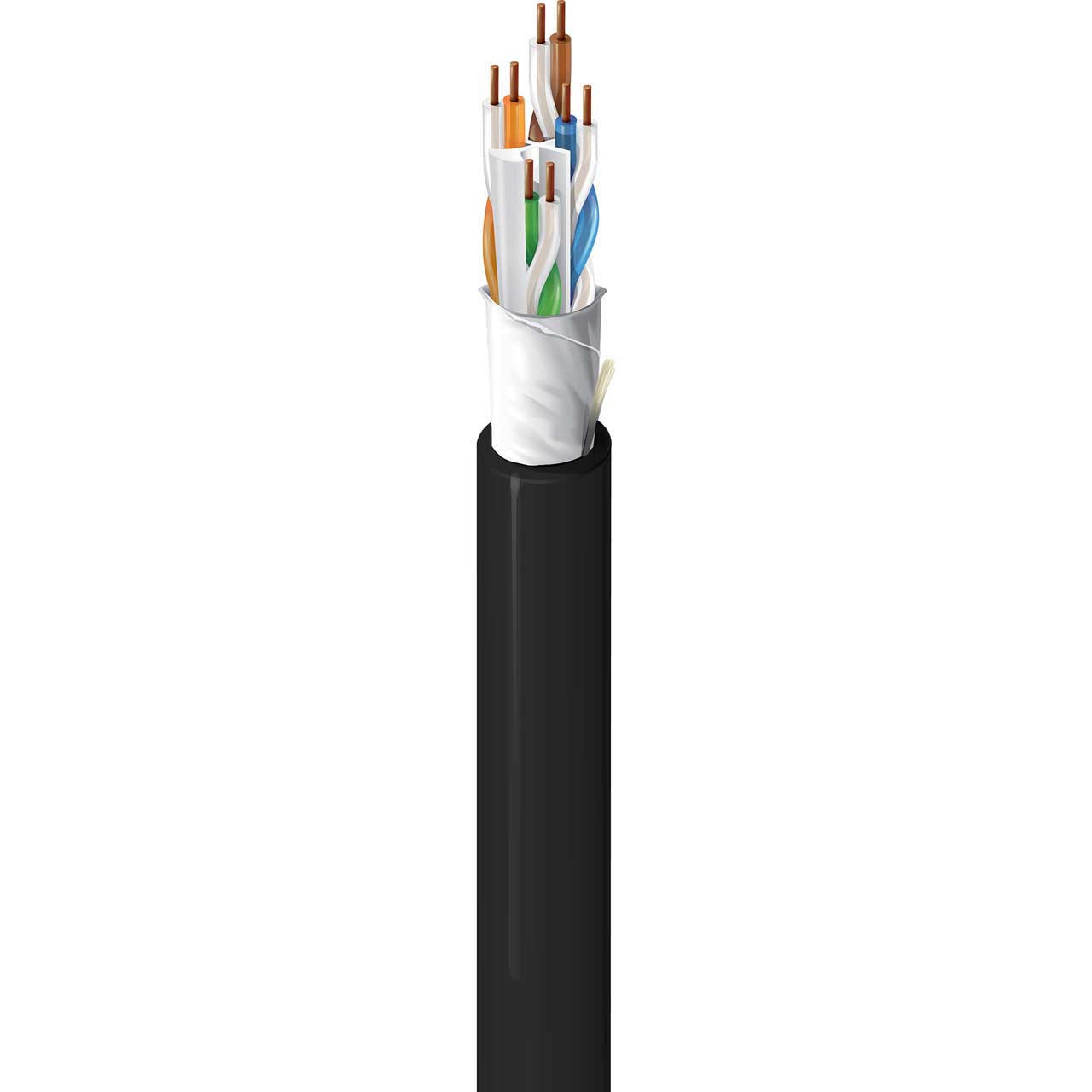

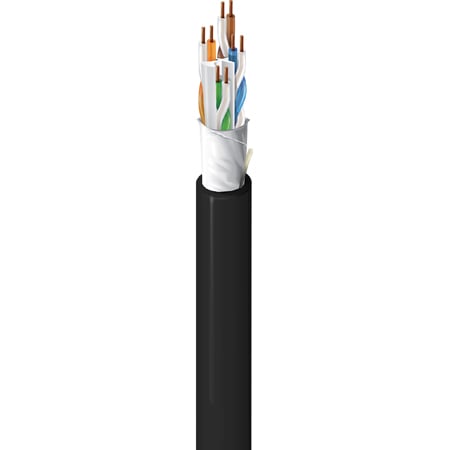

Belden 10GXS12 Category 6A Cable 625MHz 4 Pair UTP CMR-Riser - Black - 1000 Ft/Reel-in-Box

10GXS12010A1000 - Overview

• Features:

  • 10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz)
  • 4 Pair 23 AWG Solid Bare Copper Conductors
  • U/UTP Riser-CMR with PVC Jacket
  • Up to 25% Space & Weight Savings
  • 0.265" OD Category 6A cable (CMP)
  • Improved shape for easier handling
  • Durable, lightweight round construction
  • Up to 10 dB of alien crosstalk headroom
  • Exceeds TIA standards for full 100 m channels
  • Superior crosstalk isolation and EMI suppression
  • Up to 25% Less Temperature Rise
  • Delivers more than 100W from power source for 4-pair PoE
  • More uniform heat dissipation and transfer
  • Eliminates length de-rating up to 60 Degrees C


  • Key Applications:
  • 10GBASE-T Ethernet
  • 1000BASE-T as well as 2.5G and 5G Ethernet
  • PoE Type 1 (15 W), Type 2 (30 W), Type 3 (60 W), Type 4 (90 W)
  • IEEE 802.11ac Wave 1 and Wave 2 High-Throughput Wi-Fi
  • HDBaseT, Broadband (CATV) and High-Speed Internet (DOCSIS)


  • Patented EquiSpline Design:
  • Maintains equal distance between pairs and outer barrier along the cable to prevent noise coupling
  • Retains more air space around individual pairs for better electrical performance
  • Improves cable roundness and flexibility for easier handing during installation
  • Ensures structural integrity for better electrical control, reliability and long-term installable performance
  • Optimizes balance and consistent cable geometry for reduced bit error rates


  • Simplicity and Elegance in Design:
  • Smaller Diameter: Saves up to 25% on space and weight
  • Fewer Twists: Easier to separate pairs for faster installation
  • Round Structure: EquiSpline ensures structural integrity and maintains distance between pairs
  • Smaller Bend Radius: Accommodates tighter spaces and workstations
  • Easier Tape Removal: Easy to remove barrier tape for faster installation


  • EquiBlock Barrier Technology:
  • Improves heat transfer and achieves uniform heat flow dissipation to eliminate hotspots in cable bundles when delivering remote power
  • Maintains low insertion loss at elevated temperatures to reduce length de-rating for improved PoE performance
  • Blocks noise coupling and electromagnetic radiation by effectively surrounding the conductors with a Faraday cage
  • Provides an electromagnetic barrier without concern for ground loops or needing to terminate a shield to ground
  • Suppresses antenna effect caused by common mode ANEXT and EMI


• Specifications:

  • Construction Details
  • Size: 23AWG
  • Stranding: Solid
  • Material: BC - Bare Copper
  • Number of Pairs: 4
  • Insulation Material: PO - Polyolefin
  • Outer Jacket:
    Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology
    Material: PVC - Polyvinyl Chloride
    Nom. Diameter: 0.275" (6.99mm)
    Ripcord: Yes
    Overall Cable Diameter (Nominal): 0.275" (6.99 mm)

    Electrical Characteristics
  • Max. Conductor DCR: 82 Ohm/km (25 Ohm/1000ft)
  • Max. Capacitance Unbalance: 45 pF/100m

    Delay
  • Frequency: 100 MHz
  • Max. Delay: 537.6 ns/100m
  • Max. Delay Skew: 45 ns/100m
  • Nom. Velocity of Prop.: 65%
  • Typical Delay Skew: 30 ns/100m

    Voltage
  • UL Voltage Rating: 300 V (CMR) / 300 V (CL3R)

    Temperature
  • UL Temperature: 194°F (90°C)
  • Operating: -4° to 167°F (-20° to +75°C)
  • Installation: 32° to 122°F (0° to +50°C)
  • Storage: -4° to 167°F (-20° to +75°C)

    Bend Radius
  • Stationary Min.: 1.25 x 2.75" (69.9mm)
  • Installation Min.: 2.75" (69.9mm)
  • Max. Pull Tension: 25Lbs (11kg)
  • Bulk Cable Weight: 35 lbs/1000ft

    Standards and Compliance
  • Environmental Suitability: Riser, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Reaction to Fire: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CMR;CMR-LP (0.6A);CL3R-LP (0.6A)
  • CEC / C(UL) Compliance: CMR
  • ICEA Compliance: S-116-732-2013
  • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
  • NEMA Compliance: ANSI/NEMA WC-66
  • Data Category: Category 6A
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
  • ISO/IEC Compliance:ISO/IEC 11801-1, IEC 61156-5
  • CENELEC Compliance: Segregation class according EN50174-2 = a
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): Verified Channel/Category 6A
  • Plenum Number: 10GXS13


• Item Includes:

  • 10GXS12 Category 6A Cable - Black - 1000 Foot Reel in Box


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825004318
