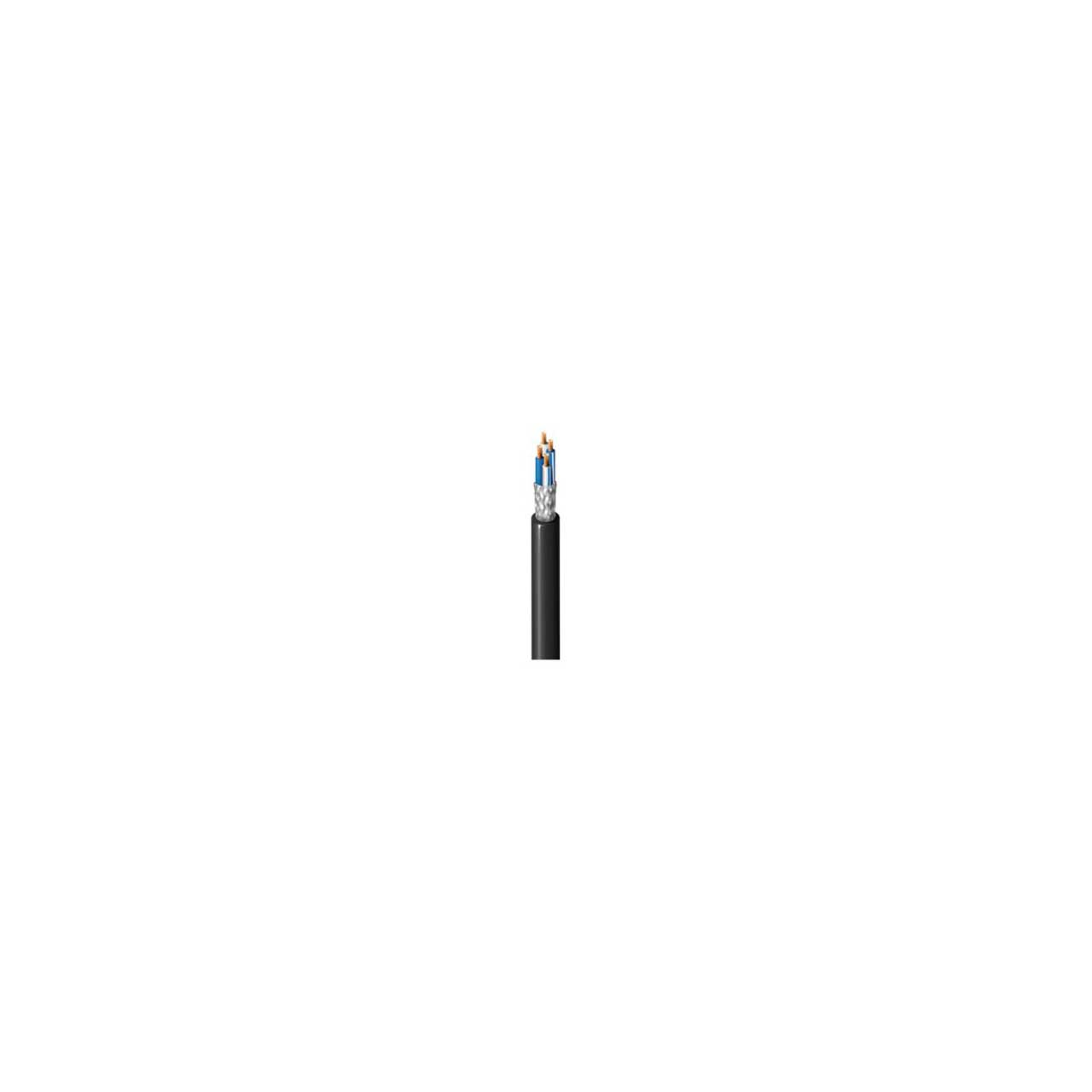

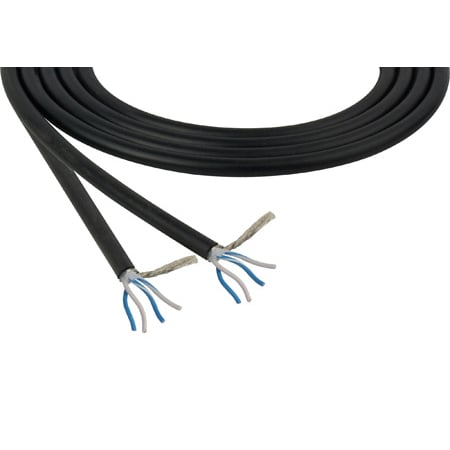

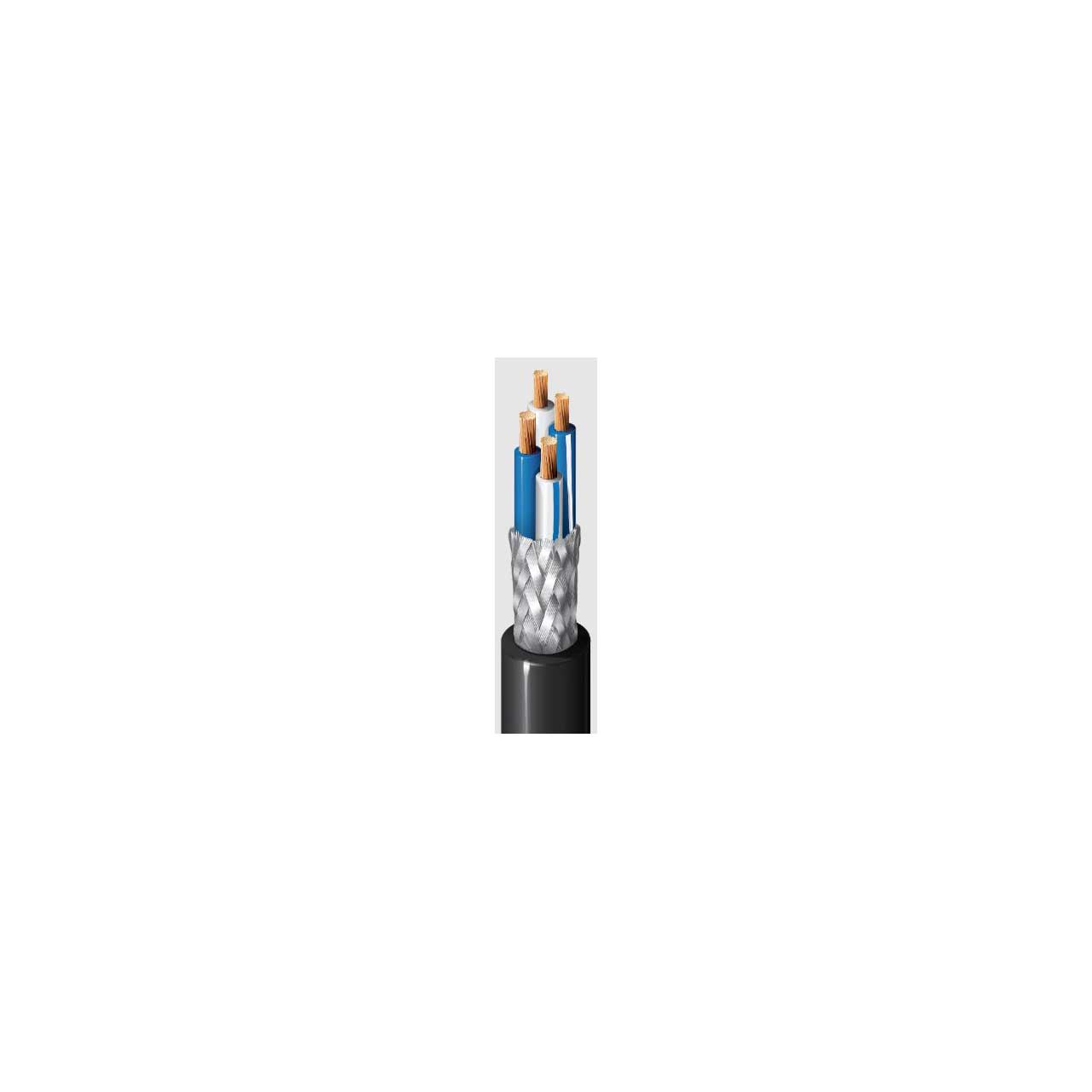

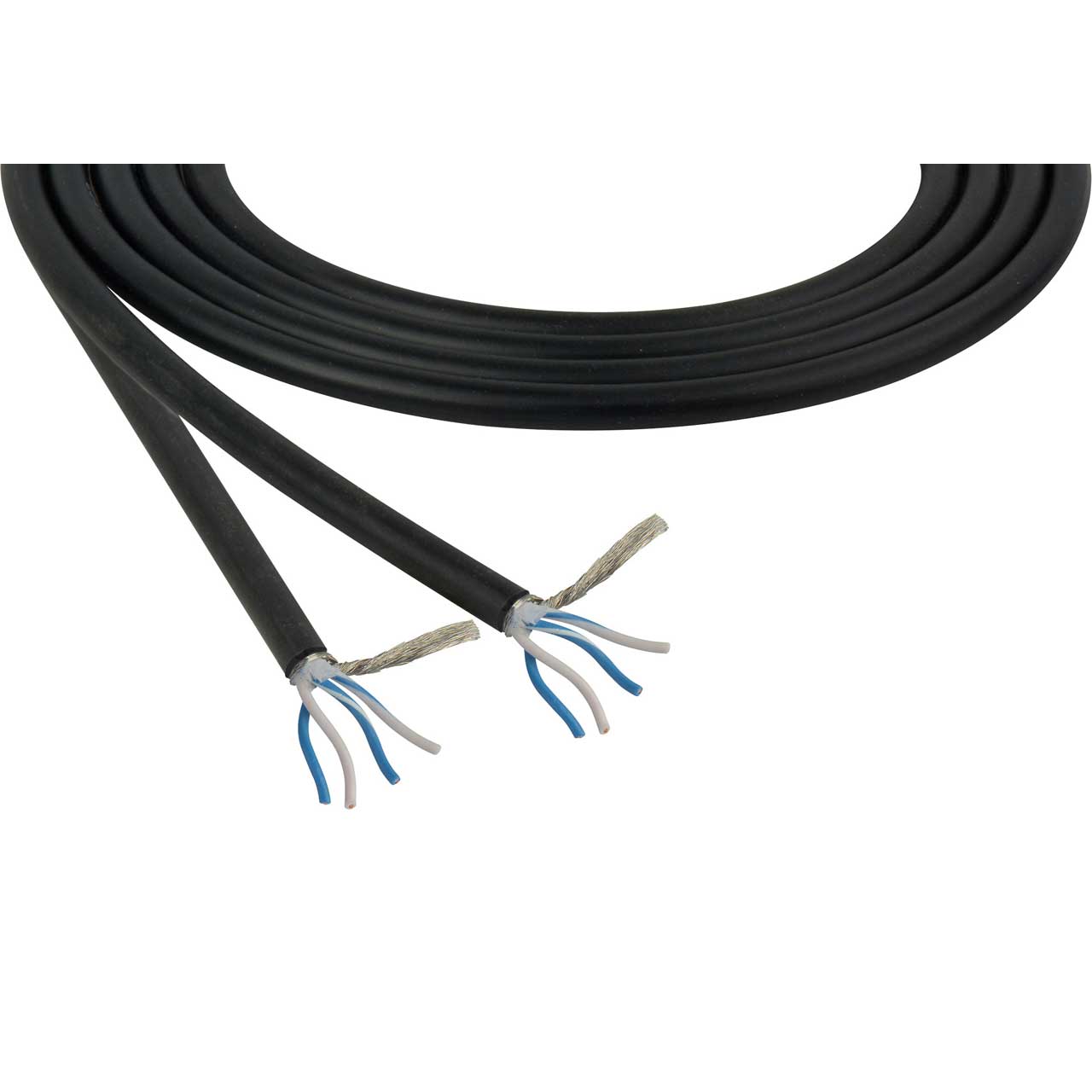

Belden 1192A Star Quad Low Impedance Mic & Instrument Cable Str BC 4x24AWG - Black - 1000 Ft

1192A B591000 - Overview

• Features:

  • High Performance: Belden microphone cables are made with high-conductivity copper
  • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
  • Experience Less Distortion: Cables feature low capacitance


• Specifications:

  • Conductor Element: Conductor(s)
  • Conductor Number of Element: 4
  • Conductor Size: 24 AWG
  • Conductor Stranding: 42x40
  • Conductor Material: BC - Bare Copper
  • Insulation Element: Conductor(s)
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.016 in (0.41 mm)
  • Insulation Nom. Insulation Diameter: 0.056 in (1.4 mm)
  • Insulation Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
  • Outer Shield Type: Braid
  • Outer Shield Material: Tinned Copper (TC)
  • Outer Shield Coverage: 92%
  • Outer Shield Notes: Paper tape under braid
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.044 in (1.1 mm)
  • Outer Jacket Nom. Diameter: 0.245 in (6.22 mm)
  • Overall Cable Diameter (Nominal): 0.245 in (6.22 mm)
  • Voltage Rating: 100 V
  • Operating Temperature Range: -30°C To +75°C
  • Non-UL Temperature Rating: 75°C
  • Bulk Cable Weight: 33 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 21 lbs.
  • Min. Bend Radius (Install)/Minor Axis: 2.450 in.
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Plenum (Y/N): No
  • Impedance (Ohm): 40
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)


• Item Includes:

  • 1192A Star Quad Cable Str BC 4x24AWG - Black - 1000 Ft


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825108207
