Belden 1278R HD-SDI 4-Channel Hi-Resolution Sub-Miniature Coaxial Cable - Per Foot

ITEM #: BL-1278R MFG #: 1278R

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2.81

Our Price:

$2.67

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in March.
Report Lower PriceLarge Quantity Quote

1278R - Overview

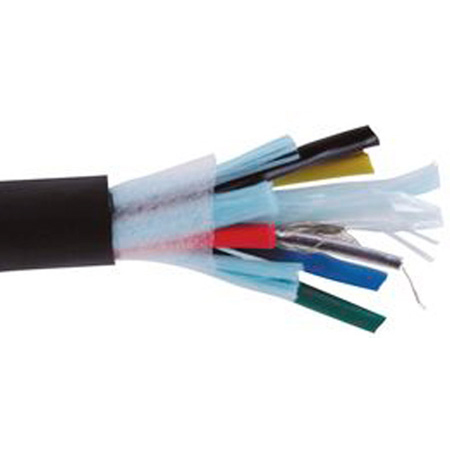

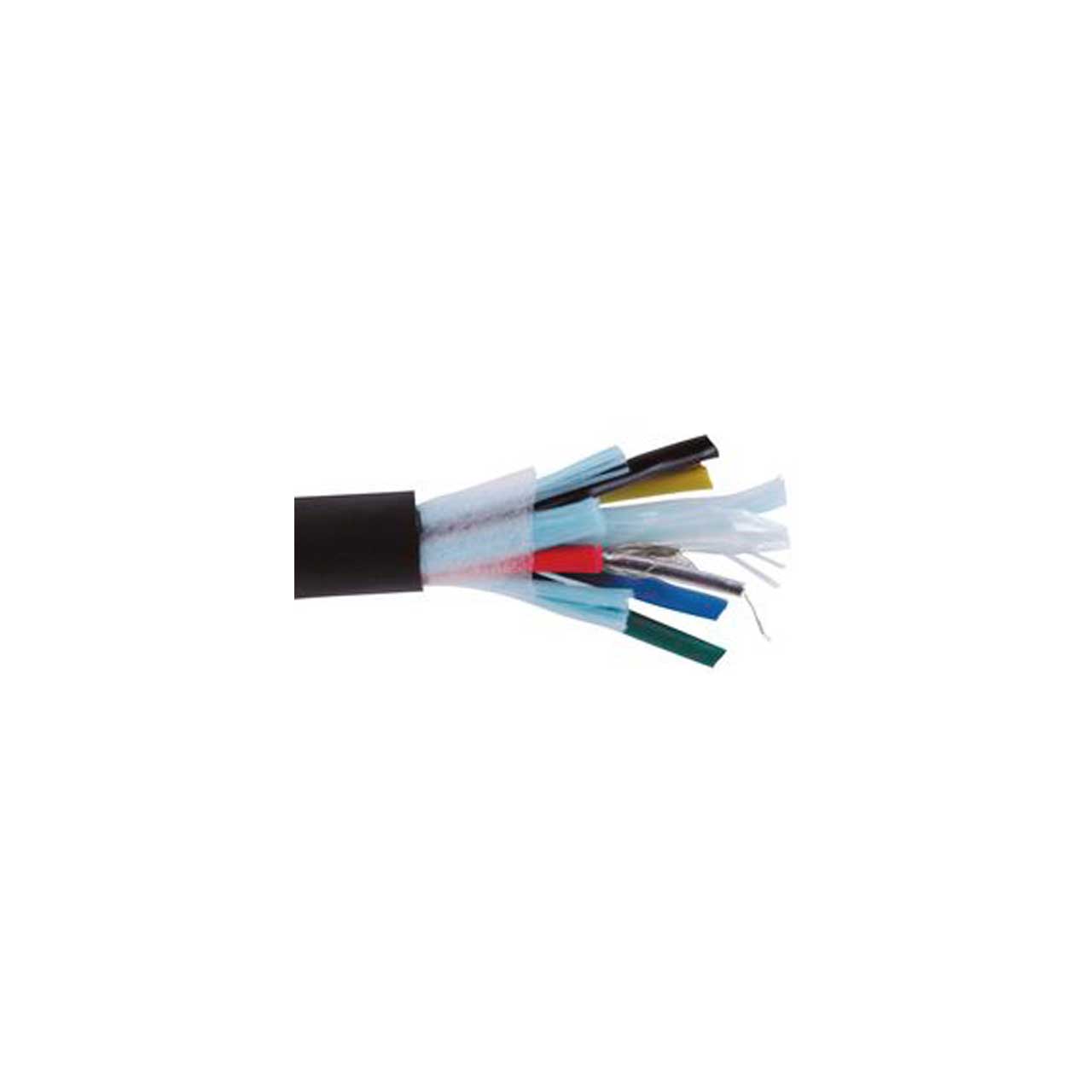

The Belden 1278R is an RGB Video Coax cable with Riser-CMR, 4-25 AWG solid tinned copper conductors, foam polyethylene insulation, Duofoilr + 95% tinned copper interlocked serve shield, inner PVC jackets, and a PVC jacket.

Applications:
Indoor - Riser Suitable
RGB Projectors
LCD Projectors
Video Distribution
Component Video
Graphic Displays
Special Effects Editing
Animation
Video Post Production
Home Theater
Offices
Boardrooms
Auditoriums
Teleconferencing
Theaters

  • Features:

    • 3G Rated up to 64 Feet (19.5 Meters)


  • Specifications:

    • # Coax: 4
    • Condcutor AWG: 25
    • Conductor Stranding: Solid
    • Conductor Material: TC - Tinned Copper
    • Conductor Dia. (in.): 0.018
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Insulation MaterialDia. (in.): 0.074
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Dia. (in.): 0.114
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Nominal Diameter: 0.351 in.
    • NEC/(UL) Specification: CMR
    • CEC/C(UL) Specification: CMG
    • Bulk Cable Weight: 55 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 110 lbs.
    • Min. Bend Radius (Each Coax): 1.100 in.
    • Min. Bend Radius (Overall): 3 in.
    • Impedance (Ohm): 75
    • Nom. Inductance (æH/ft): 0.087
    • Nom. Capacitance Conductor to Shield (pF/ft): 17.0
    • Nominal Velocity of Propagation - VP (%): 80
    • Nominal Delay (ns/ft): 1.24
    • Nom. Conductor DC Resistance - DCR @ 20°C (Ohm/1000 ft): 34
    • Nom. Inner Shield DC Resistance - DCR @ 20°C (Ohm/1000 ft): 5.4
    • Sweep Testing: 5 - 850 MHz


  • GTIN:

    0612825355168
