Belden 1302E Indoor/Outdoor CatSnake Cat6a Cable S/FTP Stranded Bare Copper 4-Pr 24AWG - Black - 1000 Ft

ITEM #: BL-1302E-1000 MFG #: 1302E 0101000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

List Price:

$2,093.40

Our Price:

$1,546.16

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1302E 0101000 - Overview

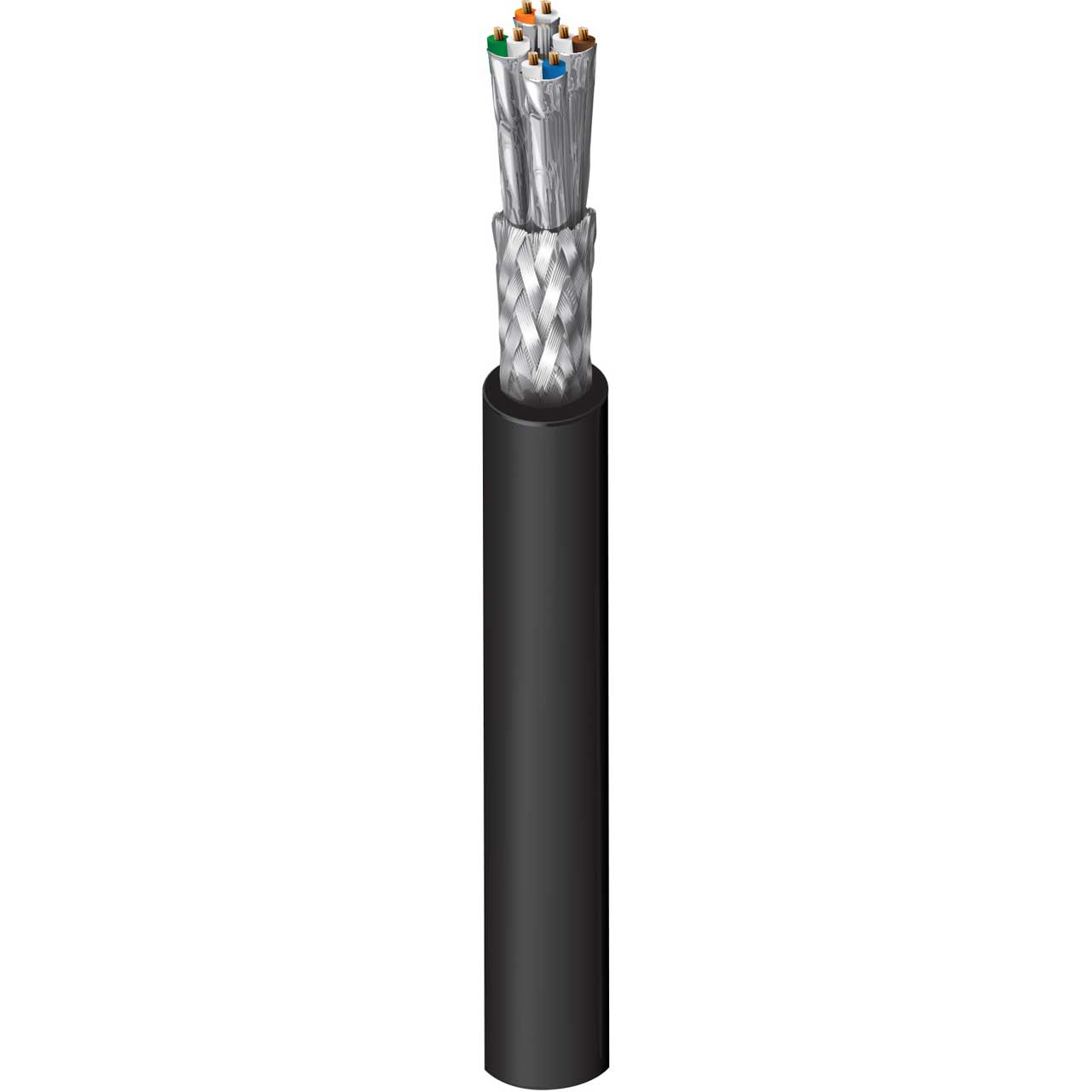

Belden 1302E is a CATSNAKE Category 6A Ethernet Snake Indoor Audio Cable with 4 Pair, Stranded Bare Copper S/FTP in a PVC jacket.

CatSnake Ethernet Snake Cables offer exceptional AV performance and are extremely rugged and flexible. You'll find them in broadcast trucks, in studios and for portable, professional AV use to send audio over standard Ethernet cable. They're designed to meet the requirements of the latest digital audio formats, they pass UL 1581 -40 degree C cold bend tests and are RJ45 and Neutrik EtherCon® compatible. 1302E supports current and future Category 6A and 6 applications like 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM.

Applications
Field deployable CAT6a patch horizontal and building backbone cable
CobraNEt, eSnake, Ethersound
Digital audio over Ethernet
Support currents and future Category 6A and 6 applications covering: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM

  • Features:

    • Built to Last: Withstands repeated pulling, flexing, bending, coiling and crushing during stage and live sound events
    • Excellent Flexibility: Cables have stranded (7x32) conductors and matte-finished Belflex® jackets


  • Specifications:

    • Element: Individual Shielded Pair
    • Conductor Size: 24 AWG
    • Conductor Stranding: 7x32
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Pairs: 4
    • Number of Element: 8
    • Overall Cable Diameter (Nominal): 0.250 in (6.35 mm)
    • Insulation Material: PO - Polyolefin
    • Insulation Element: Individual Shielded Pair
    • Nom. Insulation Diameter: 1.4 mm (0.055 in)
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
    • Cable Core: 4 pairs twisted together
    • Bonded pair: Yes
    • Inner Shield Element: Individual Shielded Pair
    • Inner Shield Type: Tape
    • Inner Shield Material: Bi-Laminate (Alum+Poly)
    • Inner Shield Coverage: 100%
    • Outer Shield Type: Braid
    • Outer Shield Material: Tinned Copper (TC)
    • Outer Shield Coverage: 80%
    • Outer Shield Drainwire Type: 26 AWG (Solid) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride / Matte Finish
    • Outer Jacket Nom. Diameter: 7.9 mm (0.31 in)
    • Overall Cable Diameter (Nominal): 7.9 mm (0.31 in)
    • Voltage Rating: 300 V
    • Max. Conductor DCR: 93.8 Ohm/km (28.6 Ohm/1000ft)
    • Max. Capacitance Unbalance: 90 pF/100m
    • Environmental Suitability: Indoor, Indoor
    • Flammability / Reaction to Fire: IEC 60332-1-2
    • IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
    • NEMA Compliance: ANSI/NEMA WC-66
    • Data Category: Category 6A


  • Item Includes:

    • 1302E CatSnake S/FTP Shielded Cat6a Cable Stranded Bare Copper Conductors - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825381778
