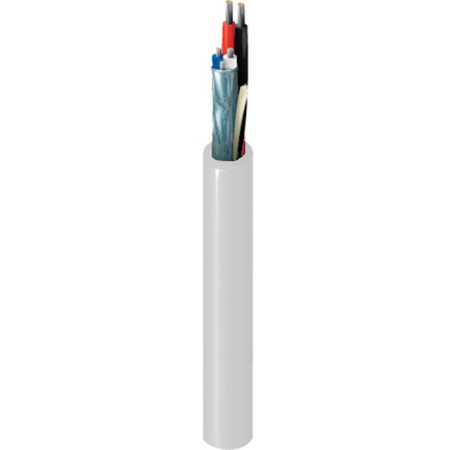

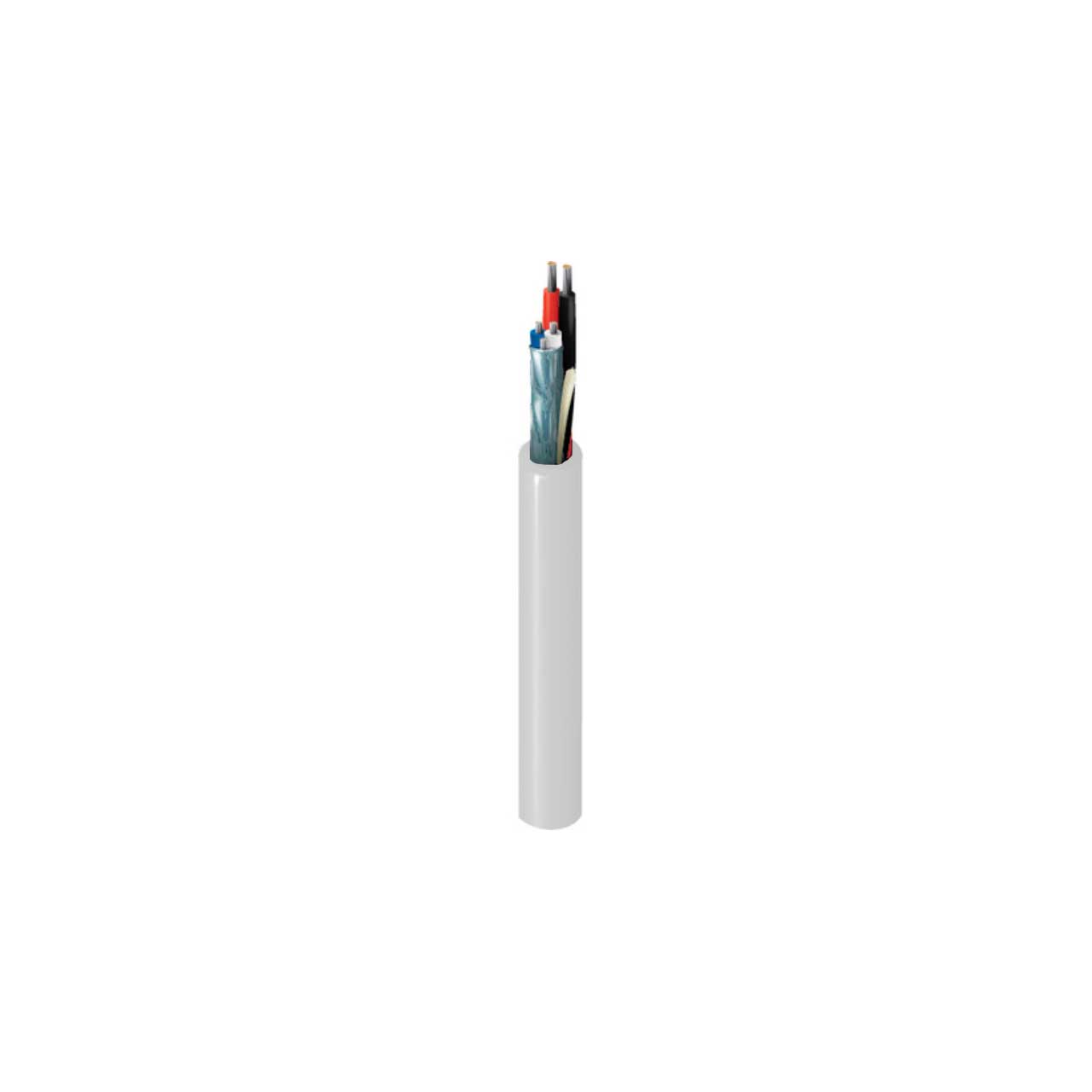

Belden 1502R Multi-Conductor Multimedia Control Cable 1 Pr 22AWG TC Data/2 Cond 18AWG TC Power - White - 1000 Foot

1502R 0091000 - Overview

Riser Rated and compatible with AMX and Crestron Control Systems

• Features:

  • Multimedia Control Cable
  • AMX™ and Crestron® Control System compatable
  • Indoor - Riser Rated
  • Sequential footage marking every two feet


• Specifications:

  • Number of Pairs: 1
  • Pair AWG: 22
  • Pair Stranding: 7x30
  • Pair Material: TC - Tinned Copper
  • Total Number of Conductors: 2
  • Conductor AWG: 18
  • Conductor Stranding: 19x30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material Pair: PE - Polyethylene (Foam)
  • Nom. Insulation Diameter Pair: 0.079 in (2.0 mm)
  • Insulation Material Conductors: PVC - Polyvinyl Chloride
  • Nom. Insulation Diameter Conductors: 0.073 in (1.9 mm)
  • Outer Shield Material Trade Name: Beldfoil
  • Outer Shield Material: Aluminum Foil-Polyester Tape
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.039 in (0.99 mm)
  • Outer Jacket Nom. Diameter: 0.25 in (6.4 mm)
  • Ripcord: Yes
  • Overall Cable Diameter: 0.25 in (6.4 mm)
  • Plenum (Y/N): N
  • Operating Temperature: -20°C to +75°C
  • Max. Pull Tension: 59.8 lbs
  • Bulk Cable Weight: 40 lbs/1000ft
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG


• Item Includes:

  • 1502R Multi-Conductor Multimedia Control Cable - White - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825115960
