Belden 1502R Multi-Conductor Multimedia Control Cable 1 Pr 22AWG TC Data/2 Cond 18AWG TC Power - Black - 500 Foot

ITEM #: BL-1502R-500BK MFG #: 1502R 010500

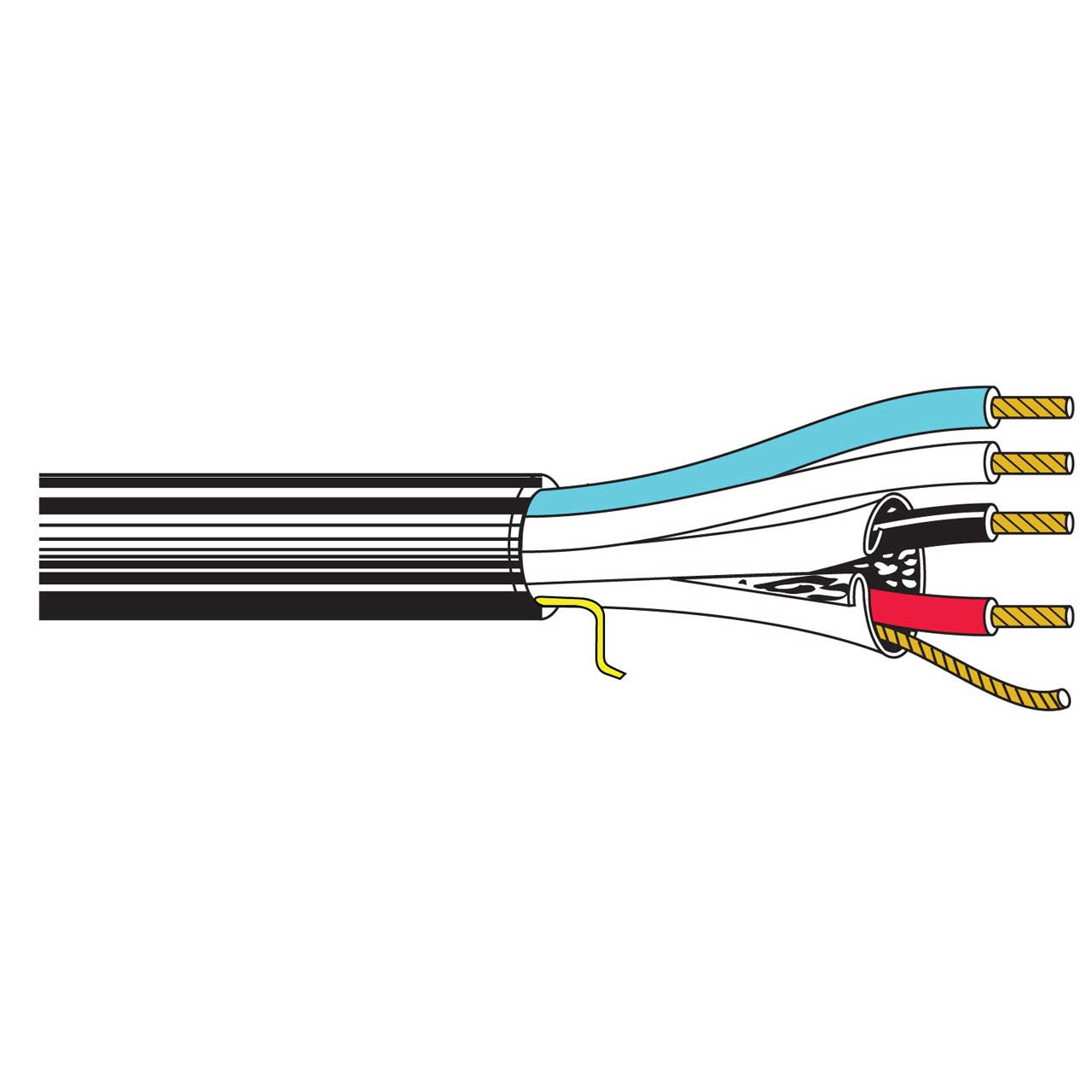

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$672.60

Our Price:

$406.60

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1502R 010500 - Overview

Riser Rated and compatible with AMX and Crestron Control Systems

If you're seeking a Multi-Media & Lighting Automation Control cable that's compatible with AMX and Crestron Control Systems, the Belden 1502R is the perfect choice. This Multimedia Control Cable features 1 Pair of 22AWG stranded (7x30) tinned copper for Data with FPE insulation and Beldfoil® shield w/ drain plus 2 Conductor 18AWG stranded (16x30) tinned copper conductor for Power in a F-R PVC jacket. The flexible outer jacket and sequential footage marking every two feet makes installs a breeze.

Applications
Multi-Media & Lighting Automation/Control
AMX™ and Crestron® Control Systems

  • Features:

    • Multimedia Control Cable
    • AMX™ and Crestron® Control System compatable
    • Indoor - Riser Rated
    • Sequential footage marking every two feet


  • Specifications:

    • Number of Pairs: 1
    • Pair AWG: 22
    • Pair Stranding: 7x30
    • Pair Material: TC - Tinned Copper
    • Total Number of Conductors: 2
    • Conductor AWG: 18
    • Conductor Stranding: 19x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Material Pair: PE - Polyethylene (Foam)
    • Nom. Insulation Diameter Pair: 0.079 in (2.0 mm)
    • Insulation Material Conductors: PVC - Polyvinyl Chloride
    • Nom. Insulation Diameter Conductors: 0.073 in (1.9 mm)
    • Outer Shield Material Trade Name: Beldfoil
    • Outer Shield Material: Aluminum Foil-Polyester Tape
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.039 in (0.99 mm)
    • Outer Jacket Nom. Diameter: 0.25 in (6.4 mm)
    • Ripcord: Yes
    • Overall Cable Diameter: 0.25 in (6.4 mm)
    • Plenum (Y/N): N
    • Operating Temperature: -20°C to +75°C
    • Max. Pull Tension: 59.8 lbs
    • Bulk Cable Weight: 40 lbs/1000ft
    • Environmental Suitability: Indoor - Riser, Indoor
    • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMR
    • CEC / C(UL) Compliance: CMG


  • Item Includes:

    • 1502R Multi-Conductor Multimedia Control Cable - Black - 500 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825116004
