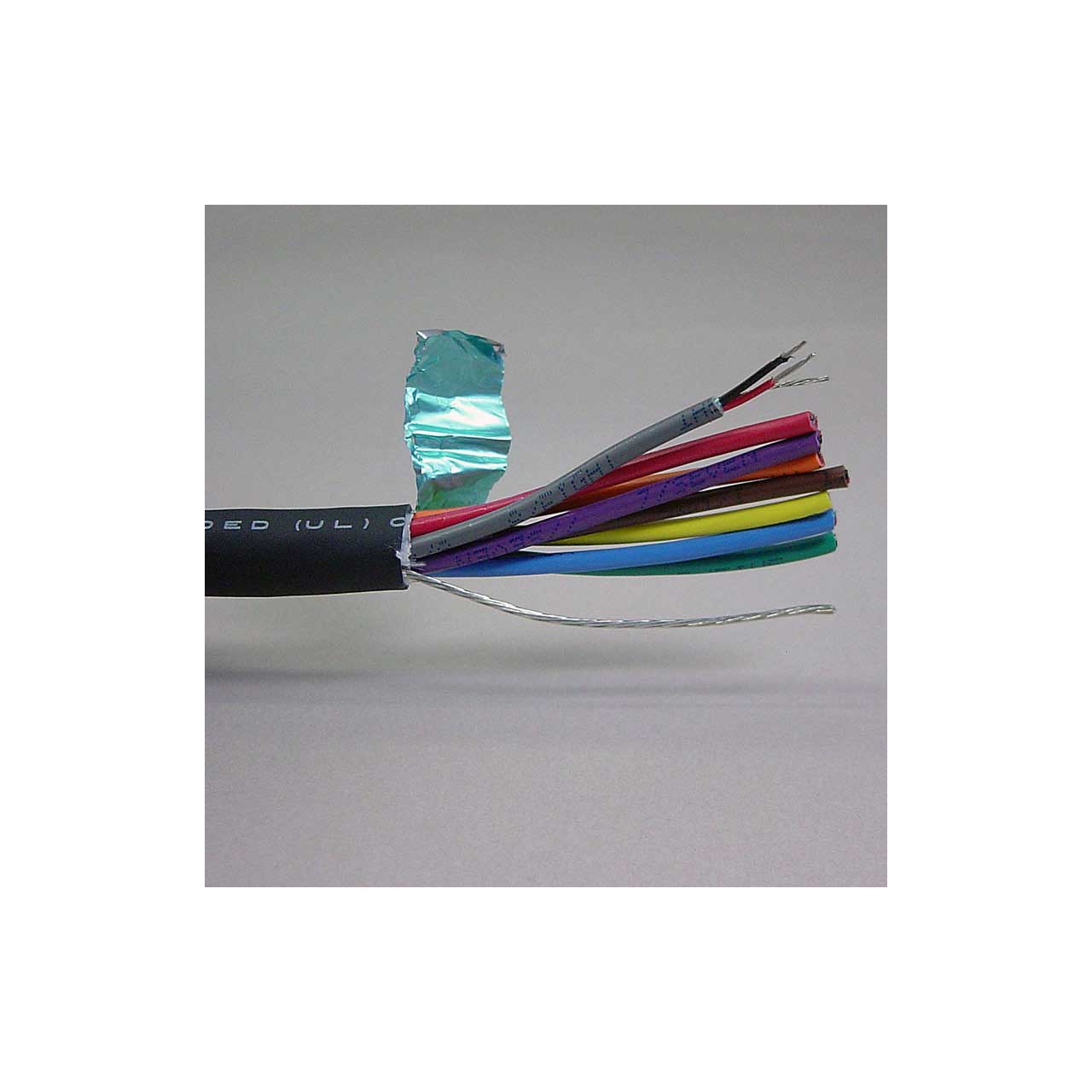

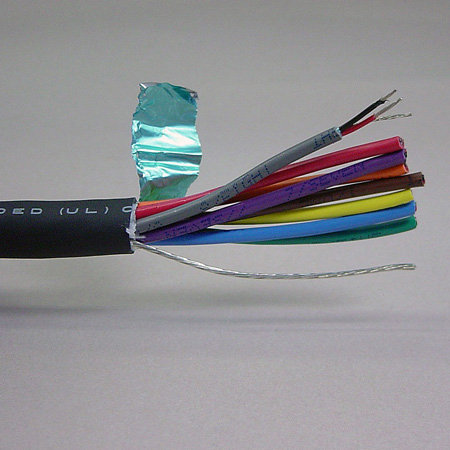

Belden 1512C CM-Rated Analog Audio Snake Cable 24 AWG/8 Pair TC Individually Shielded - Black - 500 Foot

ITEM #: BL-1512C-500 MFG #: 1512C B59500

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,622.90

Our Price:

$3,187.51

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1512C B59500 - Overview

Belden 1512C CM-Rated Audio Snake Cable with 8-24 AWG tinned copper pairs. It features polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously in an overall Beldfoil® shield with drain in a flexible PVC jacket.

Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden’s quality standards in mind.

Applications
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles
Live events
Studio sound
Analog audio

  • Features:

    • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
    • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
    • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


  • Specifications:

    • Number of Pairs: 8
    • Total Number of Conductors: 16
    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PP - Polypropylene
    • Insulation Nom. Thickness: 0.008 (unece.unit.INH)
    • Nom. Insulation Diameter: 0.04 in (1.0 mm)
    • Insulation Color Code: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, Red & Black
    • Inner Shield Type: Tape
    • Inner Shield Material: Bi-Laminate (Alum+Poly) 100% Coverage
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Thickness: 0.015 in (0.38 mm)
    • Inner Jacket Nom. Diameter: 0.113 (unece.unit.INH)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.452 in (11.5 mm)
    • Outer Jacket Nom. Thickness: 0.033 (unece.unit.INH) mm
    • Outer Jacket Ripcord: Yes
    • UL Voltage Rating: 300 V RMS
    • Plenum (Y/N): N
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Reaction to Fire: UL1581 Vertical Tray^UL1685 FT4 Loading, Limited Smoke, IEC 60332-1-2
    • CPR Compliance: CPR Euroclass: Eca
    • NEC / UL Compliance: CM
    • CEC / C(UL) Compliance: CM
    • Applications: Analog Multi-Pair Snake Cables
    • CM Rated: - Flexible - Individually Shielded and Jacketed Pairs
    • Operating Temp Range: -35°C To +75°C
    • Bulk Cable Weight: 117 lbs/1000ft
    • Max Recommended Pulling Tension: 152 lbs
    • Min Bend Radius/Minor Axis: 4.5 in


  • Item Includes:

    • 1512C CM-Rated Analog Audio Snake Cable 8 Pair - Black - 500 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825116837
