Belden 1592A CM Rated Cat5e Premise Patch U/UTP Ethernet Cable (200MHz) 4-Pr 24AWG - Black - 1000 Foot

Name: Belden 1592A CM Rated Cat5e Premise Patch U/UTP Ethernet Cable (200MHz) 4-Pr 24AWG - Black - 1000 Foot
Brand: Belden
SKU: BL-1592A-1000
Price: 426.93 USD
Availability: PreSale

ITEM #: BL-1592A-1000 MFG #: 1592A 0101000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$608.30

Our Price:

$426.93

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1592A 0101000 - Overview

DataTwist CAT-5e Patch Cable - 1000 Foot Roll - Black

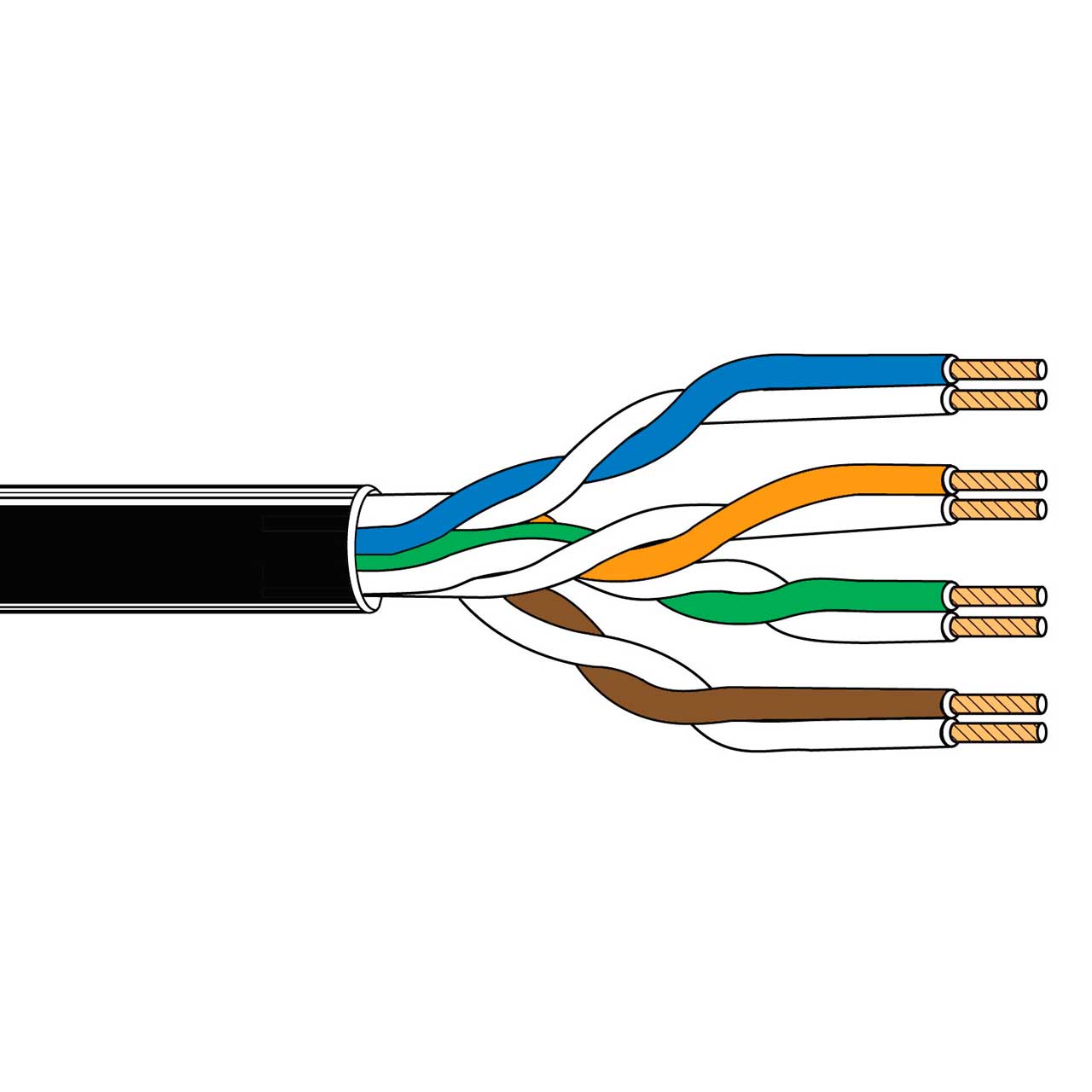

Belden 1592A is a Category 5e, U/UTP Premise Patch Cable (200MHz). It features 4 Pair, 24 AWG Stranded (7x32) Bare Copper Conductors in a CM rated PVC Jacket.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Applications
Premise Patch Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

Features:
- Superior Electrical Performance: Exceeds Category 5e performance
- Stable Electricals: Cable's design features matched conductors on all four pairs Provides for extremely stable electrical performance
Specifications:
- Conductor Number of Pairs: 4
- Total Number Of Conductors: 8
- Conductor AWG: 24
- Conductor Stranding: 7x32
- Conductor Material: BC (Bare Copper)
- Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Insulation Material: Polyolefin
- Outer Shield Material: Unshielded
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.213 in (5.41 mm)
- Outer Jacket Ripcord: No
- Overall Cable Diameter (Nominal): 0.213 in (5.41 mm)
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: Product Lens™ Environmental Product Declaration (EPD) Available
- Flammability / Reaction to Fire: UL 1685 (UL Loading-Limited Smoke)
- NEC / UL Compliance: Article 800, CM
- CEC / C(UL) Compliance: CM
- Operating Temperature Range: -20°C To +75°C
- Bulk Cable Weight: 21 lbs/1000 ft.
- Max. Recommended Pulling Tension: 25 lbs.
- Min. Bend Radius/Minor Axis: 1 in.
- Min. Bend/Installation: 2.100 in.
- Capacitance (pF/ft): 15
- Maximum Capacitance Unbalance (pF/100 m): 330
- Delay Skew (ns/100 m): 45
- DCR @ 20°C (Ohm/100 m): 9.38
- Voltage: 300 V RMS
Item Includes:
- 1592A Cat5e Premise Patch U/UTP Ethernet Cable 24AWG - Black - 1000 Ft
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825118749

1592A 0101000 - Recommended Accessories

Eclipse Tools 702-022 8P8C RJ45 Modular Plug for Round Solid Wire - 50 Pack
ECL702-022
Our Price: $14.12
Eclipse Tools 300-004 Crimp Tool for Modular 8P RJ45 and 6P or 4P RJ11 Plugs
ECL300-004
Our Price: $33.54
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Belden 1797B Category Cable Bonded Pair Separator & Jacket Stripper Tool
BL-1797B
Our Price: $16.72
Platinum Tools 202003J EZ-RJ45 CAT5/5e Connectors for Solid or Stranded Conductors - Jar of 100
PLAT-EZ5-100J
Our Price: $58.00
Platinum Tools 100004C EZ-RJ45 Crimp Tool for RJ45 Connectors (Carded Tool)
PLAT-EZRJ45-B
Our Price: $58.90
Switchcraft EHRJ45P6S Shielded RJ45 Cat6 Feedthru Panel Mount
EHRJ45P6S
Our Price: $13.77
Platinum Tools 100003C EZ-RJ45 CAT5/5e Connectors for Solid or Stranded Conductors - 50 Pack
PLAT-EZ5-50
Our Price: $29.54
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
Platinum Tools 100054C EZ-RJPRO Heavy Duty Crimp Tool
PLAT-100054C
Our Price: $80.36
Triplett CTX200 PocketCAT RJ45 Ethernet - BNC COAX Network Cable Tester
BYB-CTX200
Our Price: $64.99
Klein Tools VDV526-100 LAN Explorer Data Cable Tester with Remote
KLT-VDV526100
Our Price: $34.97
Arlington LV1 Low Voltage Mounting Bracket 1G Existing Construction
LV1
Our Price: $1.86
Connectronics CRSX-2 5-Channel Cable Ramp Crossover & Cable Protector - Black with Yellow Lid
CRSX-2
Our Price: $129.95
Digital Forecast Bridge X-TS PACK V3 Video and Audio Troubleshooter and Cross Converter Hard Case Bundle
DF-X-TS-PACK-V3
Our Price: $1,424.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99
Eclipse Tools 400-011 Cable Locator All In One Tone Generator and Probe Set
ECL400-011
Our Price: $56.70
Hosa CBT-500 Audio Cable Tester for XLR - Dante - RCA - I/4 Inch - speakON DIN - Ethernet & USB Type A & B cables
HOS-CBT-500
Our Price: $79.95
Mystery Electronics AW2000 All Weather Enclosure - Padlockable/Composite Grey
MYS-AW2000
Our Price: $229.00
Eclipse Tools PK-15308EM Field and Maintenance Kit - 97 Piece
ECL-PK-15308EM
Our Price: $438.74
Middle Atlantic RULER 16 Foot Tape Measure Includes Markings For Rack Spaces
RK-RULER
Our Price: $36.45
Securitytronix ST-ALLIN1-TEST2 7 Inch Touch Screen IP Camera Monitor and Tester with Li-ion battery
ST-ALLIN1-TEST2
Our Price: $795.00
SpoolMaster DC-1 Wire & Cable Spooling Dispensing Caddy
SPMA-DC1
Our Price: $160.00
NTI MR-PRO 70V/100V Protective Adapter
MR-PRO-PA
Our Price: $162.00
Klein Tools SRS56037 Magnetic Wire Pulling System
KLT-SRS56037
Our Price: $54.97
3M Scotch Super 88 Heavy Duty Grade Vinyl Electrical Tape 3/4In.x44 Ft
3M-88-44
Our Price: $6.57
Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier with Shoulder Bag - Li-Ion
PLAT-TNC950AR
Our Price: $2,152.36
LSD 53-315 EZ Cut Template and Level for Electrical Box Installations
LSD-53315
Our Price: $17.21
SoundTools SSXLR Sniffer/Sender 3-Pin XLR/Phantom Power Test Set - DMX Compatible
ST-XLR-SS
Our Price: $60.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
LSD BNC/RF Finger Protector Kit
LSD-51146
Our Price: $23.87
Corning TKT-UNICAM-PFC UniCam Premium Fiber Optic Tool Kit for SC ST and LC Connectors (MM and SM Fiber)
COR-TKTUNICAMPFC
Our Price: $2,495.00

1592A 0101000 - Reviews

1592A 0101000 - Attachments

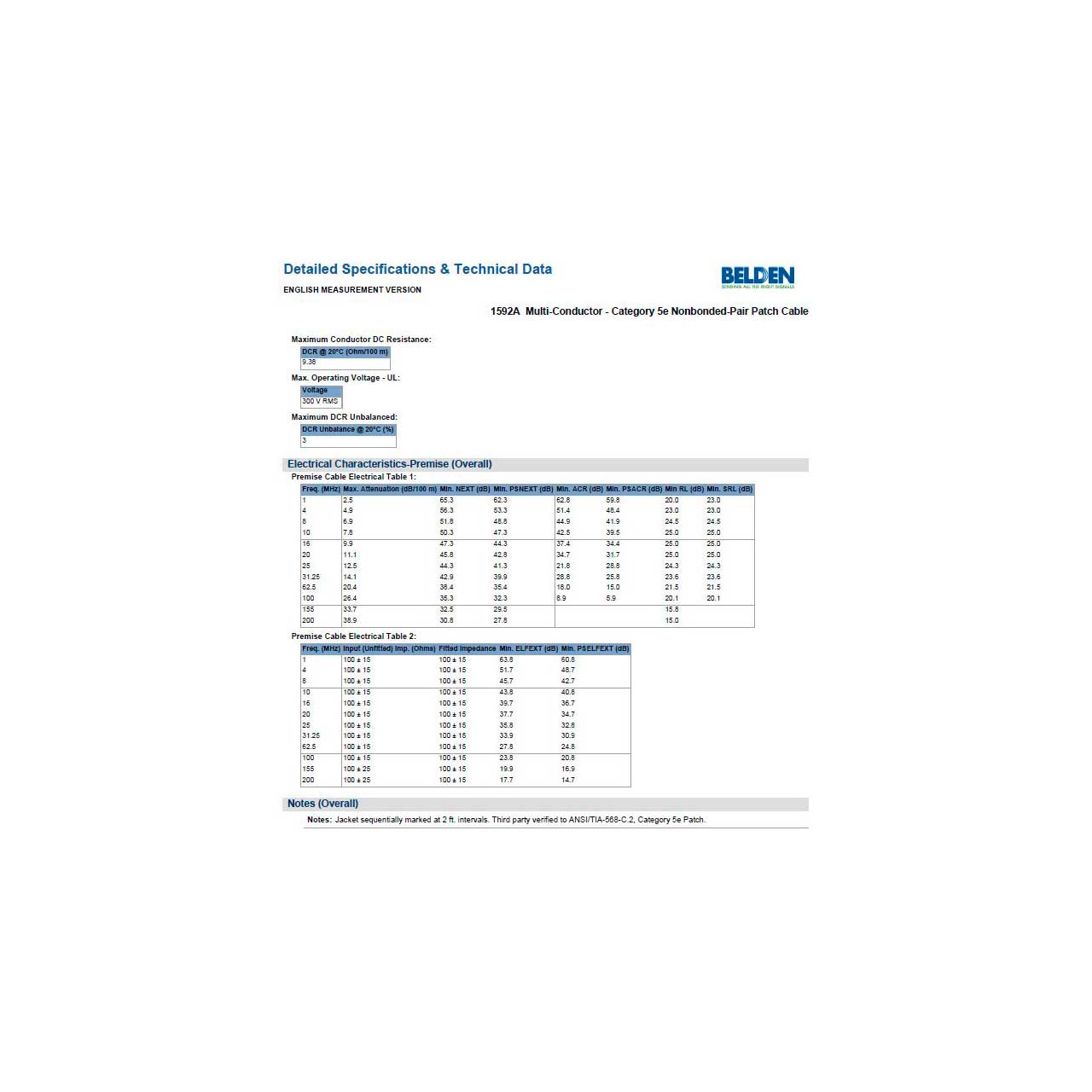

1592A Spec Sheet
