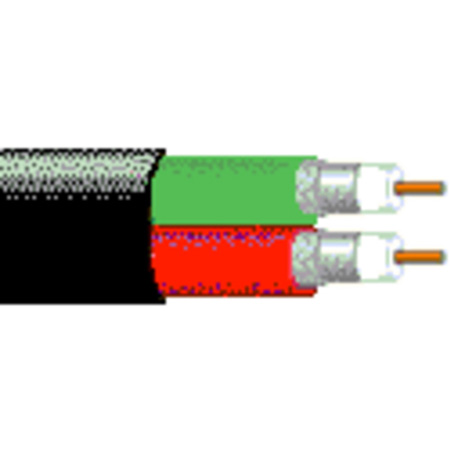

Belden 1694D 18 AWG Dual RG-6/U Serial Digital Coax - Black - 500 Foot Roll

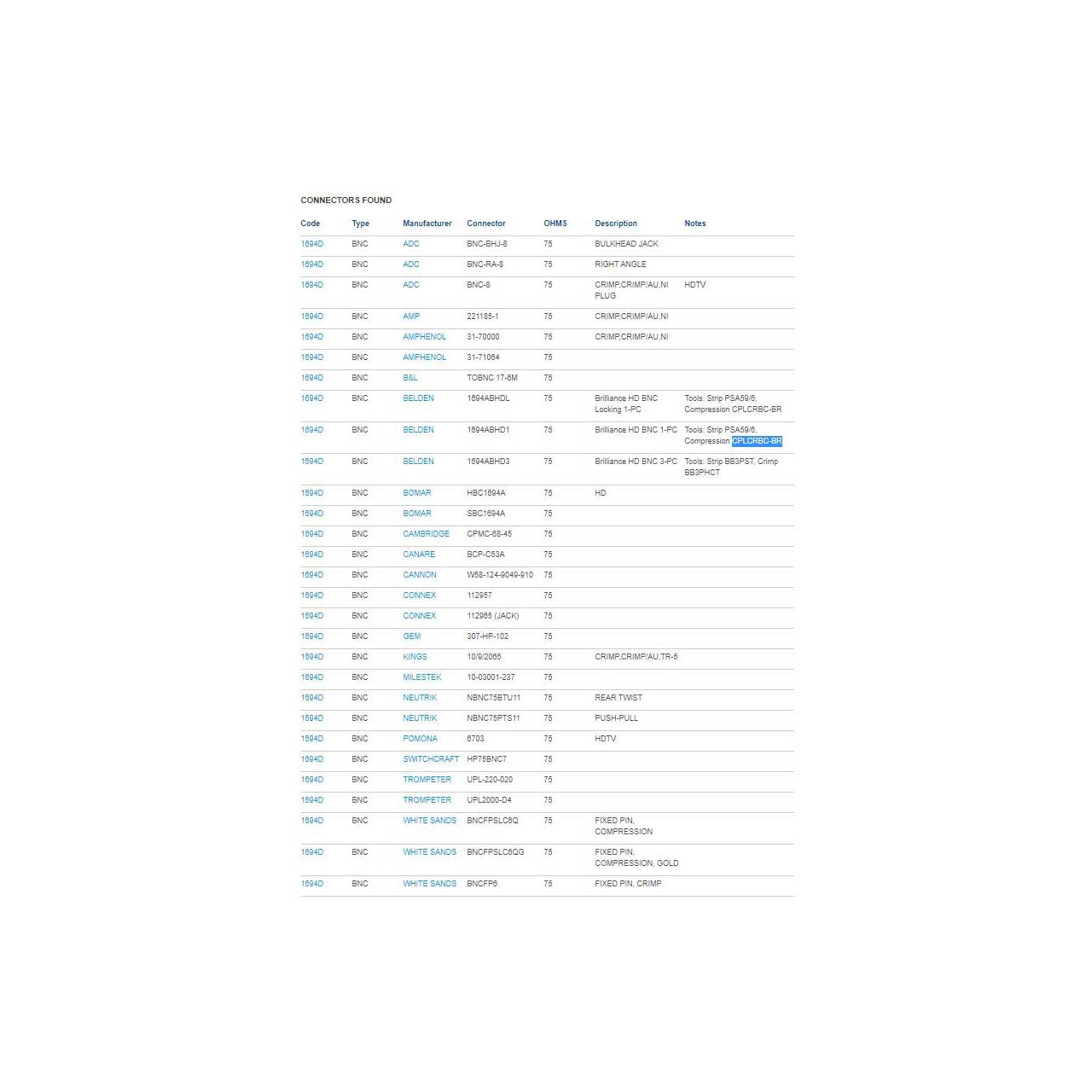

1694D 010500 - Overview

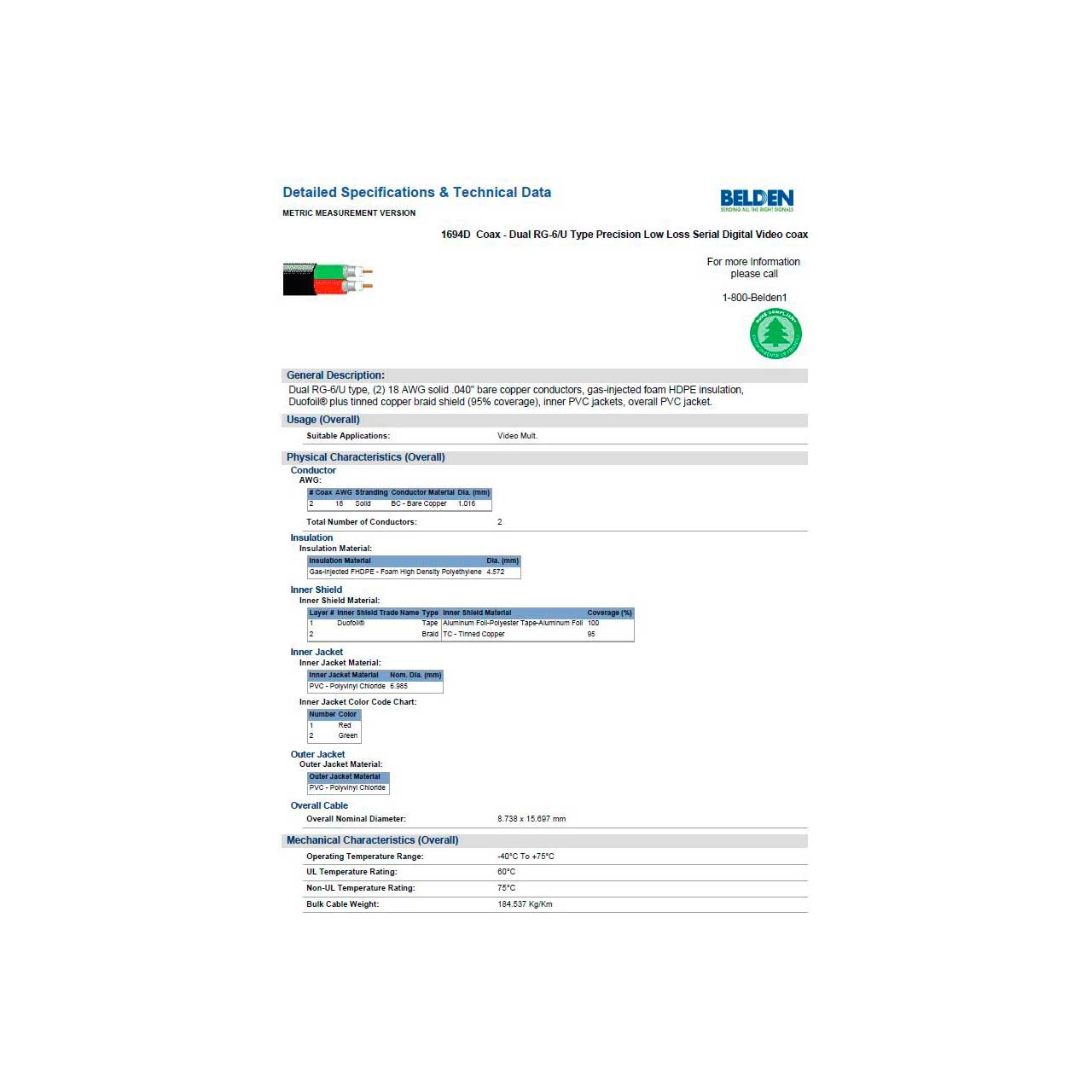

• Specifications:

  • Environmental Space: Indoor/Outdoor
  • Suitable Applications: Video Mult.
  • AWG: 18
  • Stranding: Solid
  • Material: BC - Bare Copper
  • Nominal Diameter: 0.04 in
  • No. of Coax: 2
  • Nominal Characteristic Impedance: 75 Ohm

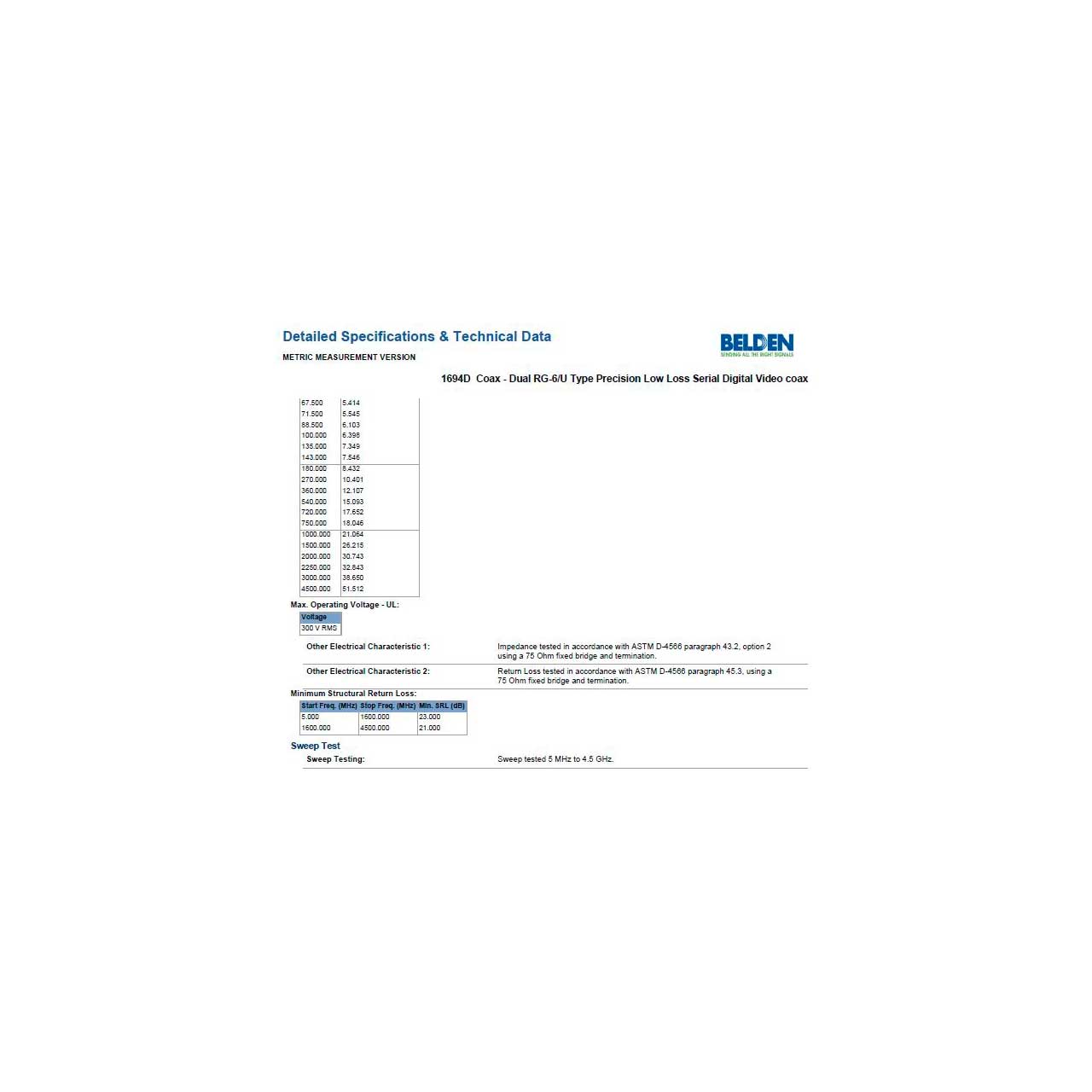

            Return Loss (RL)
    Frequency [MHz]          Minimum Return (RL)
  • 5-1600 MHz             23 dB
  • 1600-4500 MHz            21 dB
    High Frequency (Nominal/Typical)  Frequency [MHz] Nom. Insertion Loss
  • 1 MHz                0.24 dB/100ft
  • 3.58 MHz              0.44 dB/100ft
  • 5 MHz               0.52 dB/100ft
  • 7 MHz               0.61 dB/100ft
  • 10 MHz              0.71 dB/100ft
  • 67.5 MHz             1.65 dB/100ft
  • 71.5 MHz             1.69 dB/100ft
  • 88.5 MHz             1.86 dB/100ft
  • 100 MHz             1.95 dB/100ft
  • 135 MHz             2.24 dB/100ft
  • 143 MHz             2.3 dB/100ft
  • 180 MHz             2.57 dB/100ft
  • 270 MHz             3.17 dB/100ft
  • 360 MHz             3.69 dB/100ft
  • 540 MHz             4.6 dB/100ft
  • 720 MHz             5.38 dB/100ft
  • 750 MHz             5.5 dB/100ft
  • 1000 MHz             6.42 dB/100ft
  • 1500 MHz             7.99 dB/100ft
  • 2000 MHz             9.37 dB/100ft
  • 2250 MHz             10.01 dB/100ft
  • 3000 MHz             11.78 dB/100ft
  • 4500 MHz             15.7 dB/100ft

    Temperature Range
  • Non-UL Temp Rating: 75°C
  • UL Temp Rating: 60°C
  • Operating Temp Range: -40°C To +75°C

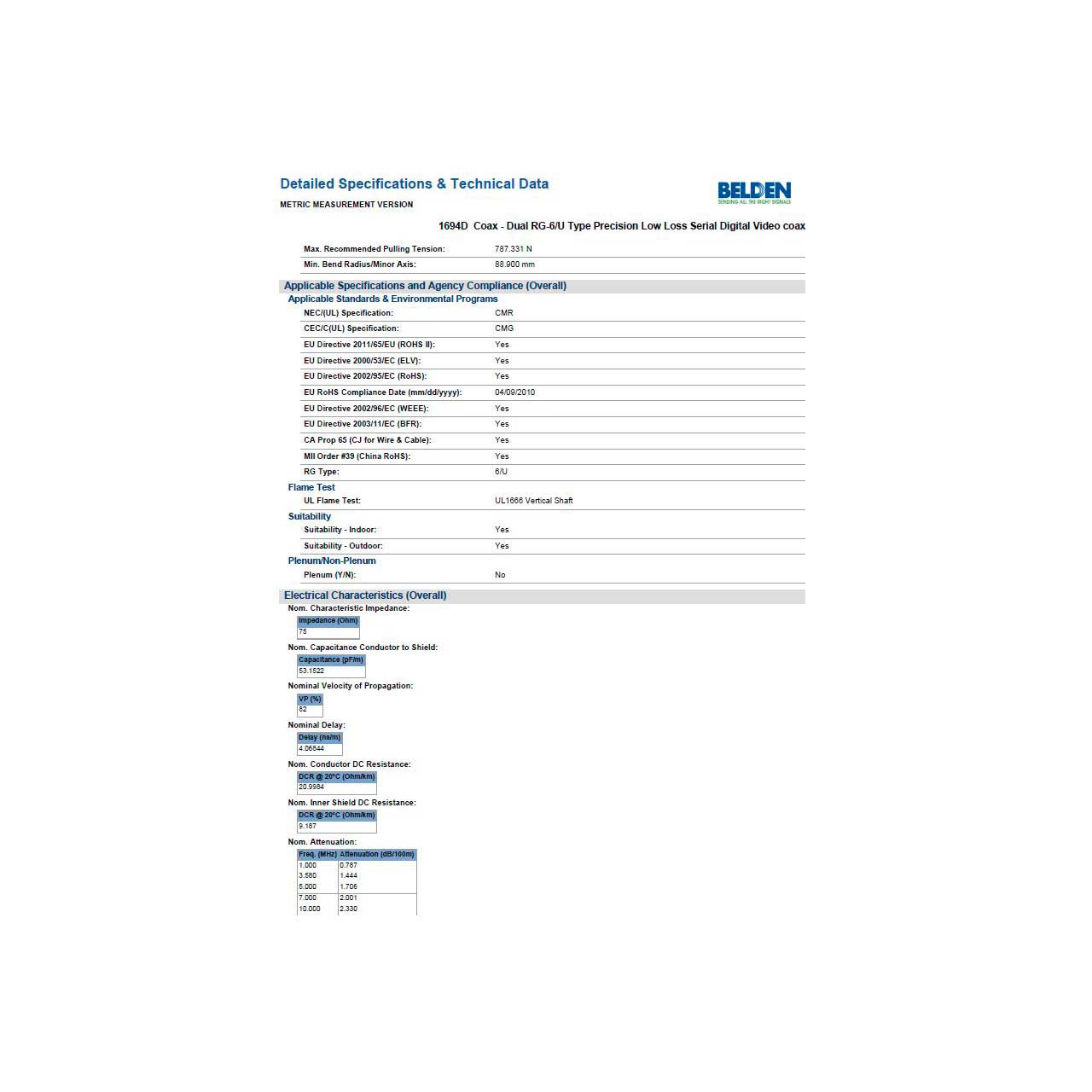

    Mechanical Characteristics
  • Bulk Cable Weight: 124 lbs/1000ft
  • Max Recommended Pulling Tension: 177 lbs
  • Min Bend Radius/Minor Axis: 3.5 in

    Standards
  • NEC/(UL) Specification: CMR
  • CEC/C(UL) Specification: CMG
  • RG Type: 6/U Type
  • Series Type: Series 6


• GTIN:

  0612825357452
