Belden 1801B CMP/Plenum 1-Pair AES/EBU Digital Audio Cable Str TC 24 AWG - Natural - 1000 Foot

ITEM #: BL-1801B-1000 MFG #: 1801B 8771000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,761.00

Our Price:

$2,237.37

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1801B 8771000 - Overview

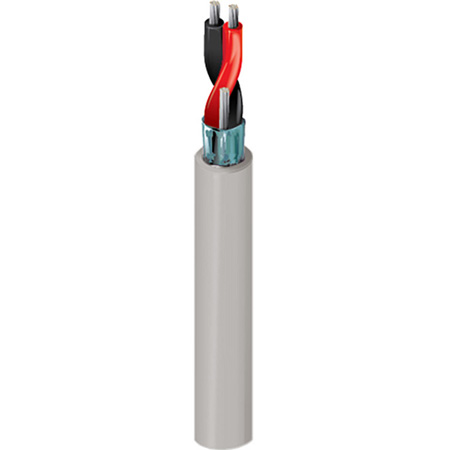

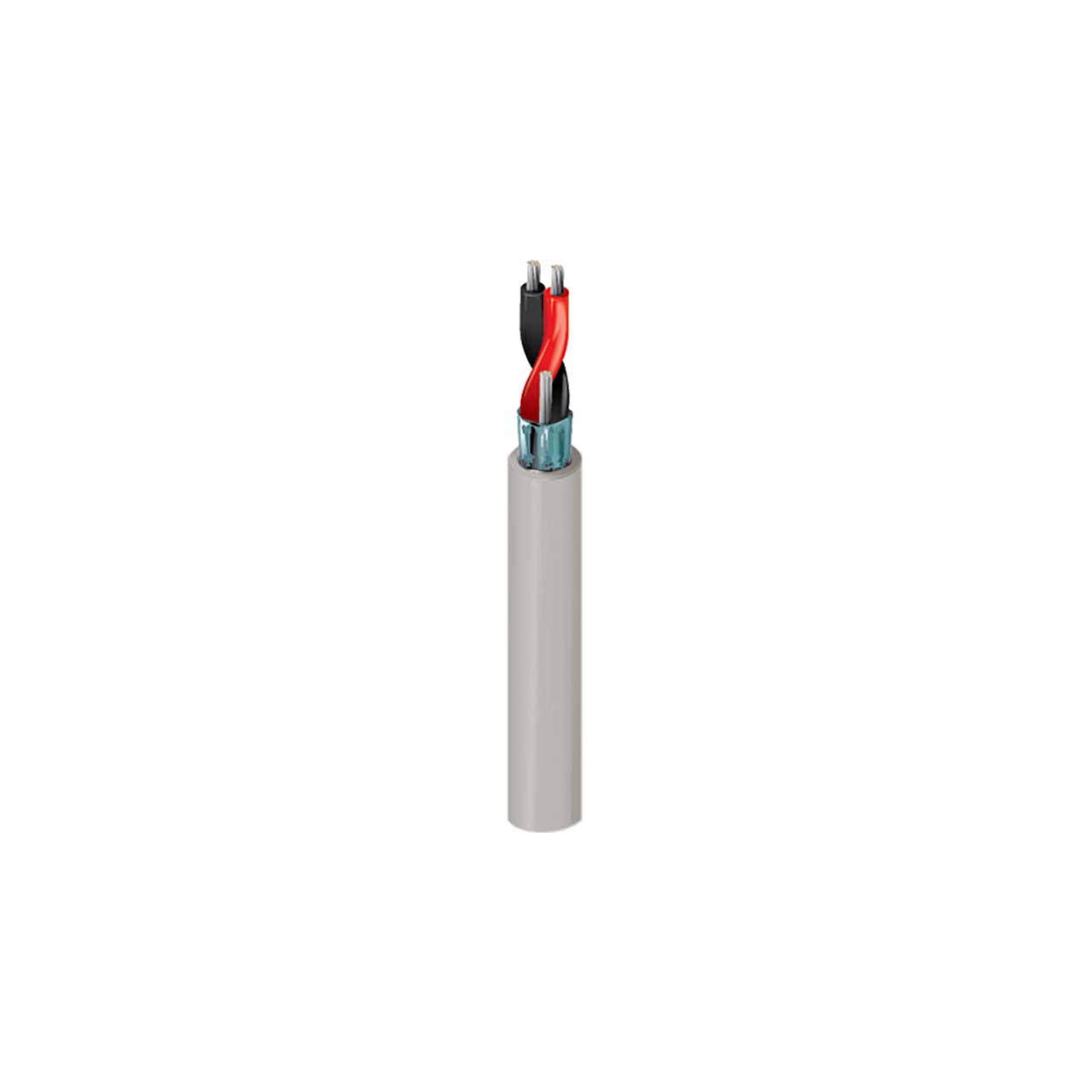

Belden 1801B is a Single Pair CMP/Plenum Digital Audio Cable. It's 24 AWG (7 x 32) Tinned Copper with FEP Insulation, an Overall Beldfoil® Shield in a Flamarrest® Jacket.

Belden offers a comprehensive selection of digital audio cables for professional recording applications, sound system installations and multi-channel audio applications. Digital Audio Cables from Belden can be used anywhere a traditional analog or digital shielded pair cables are used. These cables are also ideally suited for applications requiring small size, low weight and high-performance.

Applications
Digital audio
Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

  • Features:

    • Ready-to-use jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
    • High impedance ensures low capacitance making them an ideally suited as analog cables
    • Ruggedized PVC jacket designed for flexibility


  • Specifications:

    • Conductor Element Pair(s)
    • Number of Elements: 1
    • Total Number of Conductors: 2
    • Conductor AWG: 24
    • Conductor Stranding: 7x32
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
    • Insulation Nom. Thickness: 0.021 in (0.53 mm)
    • Insulation Nom. Insulation Diameter: 0.066 in (1.7 mm)
    • Insulation Color Code: Red & Black
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 24 AWG (7x32) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
    • Outer Jacket Nom. Diameter: 0.165 in (4.19 mm)
    • Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)
    • Plenum (Y/N): Y
    • Non-Plenum Number: 1800B
    • Nom. Conductor DCR: 23.7 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 12 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft
    • Characteristic Impedence: 110 Ohm
    • Nom. Velocity of Prop: 78%
    • Max. Current: 2.75 Amps per conductor @ 25°C
    • UL Voltage Rating: 300 V (CMP)
    • Max. Pull Tension: 16.5 lbs
    • Bulk Cable Weight: 12 lbs/1000ft
    • Environmental Suitability: Indoor - Plenum, Indoor
    • Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMP
    • CEC / C(UL) Compliance: CMP


  • Item Includes:

    • 1801B CMP/Plenum Digital Audio Cable Str TC 24 AWG - Natural - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825122951
