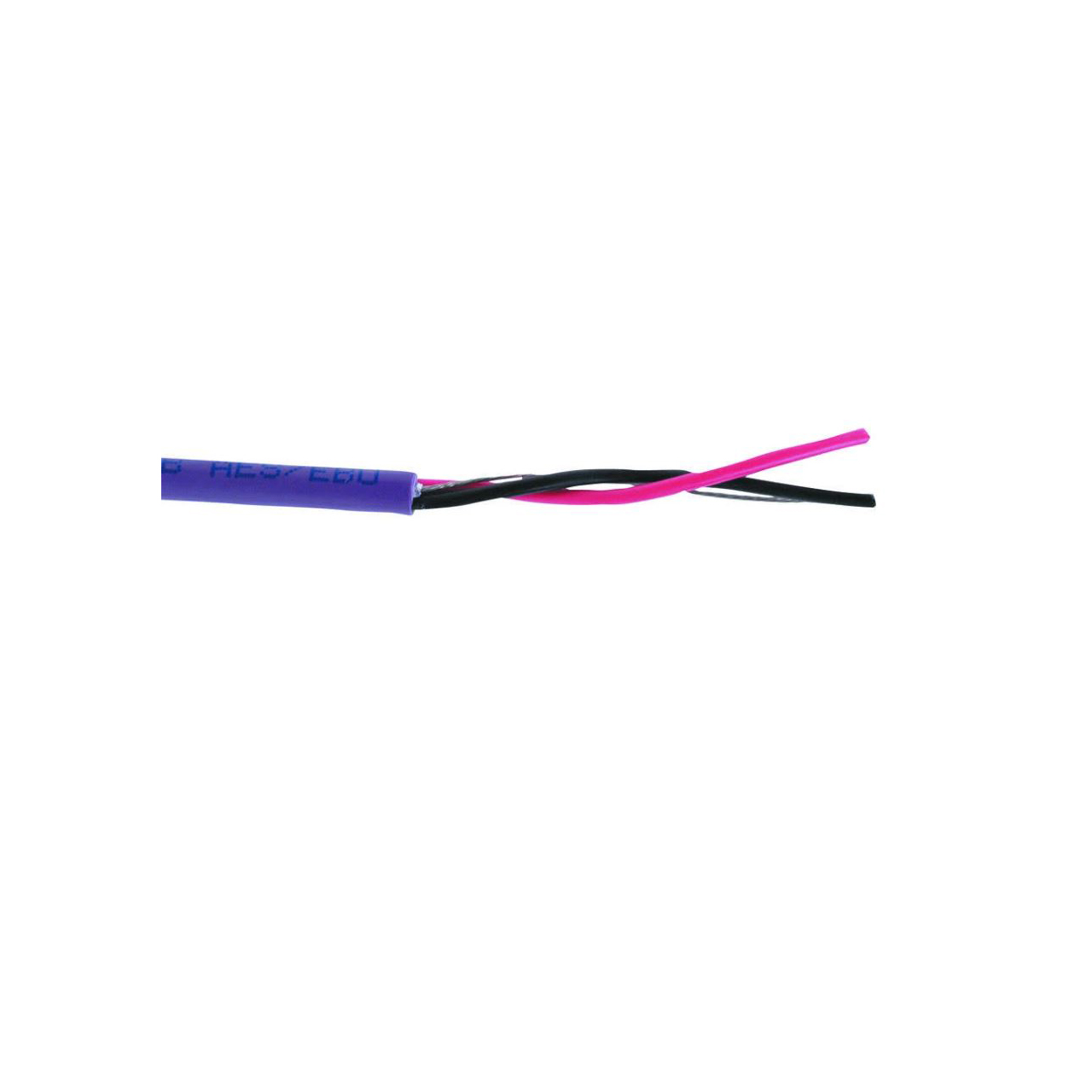

Belden 1801B CMP Single Pair 24 AWG O/A Foil Flamarrest Jacket Digital Audio Cable - Violet - 1000 Foot

1801B Z4B1000 - Overview

• Features:

  • Patented Bonded-Pair technology for maximum ruggedness & consistent electrical performance during & following installation
  • Ready-to-use jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
  • High impedance ensures low capacitance making them an ideally suited as analog cables
  • Ruggedized PVC jacket designed for flexibility


• Specifications:

  • Conductor
  • No. of Elements: 1
  • Size: 24 AWG
  • Stranding: 7x32
  • Material: Tinned Copper

    Insulation
  • Material: Fluorinated Ethylene Propylene (Foam)
  • Nom. Thickness: 0.021 in (0.53 mm)
  • Nom. Insulation Diameter: 0.066 in (1.7 mm)
  • Color Code: Red & Black

    Outer Shield
  • Shield Type: Tape
  • Material: Bi-Laminate (Alum+Poly)
  • Coverage: 100%
  • Drainwire Type: 24 AWG (7x32) TC

    Outer Jacket
  • Material: PVC - Polyvinyl Chloride
  • Nom. Thickness: 0.015 in (0.38 mm)
  • Nom. Diameter: 0.165 in (4.19 mm)
  • Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)

    Electricals
  • Nom. Conductor DCR: 28.8 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m)
  • Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft (85 pF/m)
  • Nom. Characteristic Impedence: 110 Ohm
  • Nom. Velocity of Prop.: 78%
  • Max. Current: 3.8 Amps per conductor @ 30°C

    Voltage
  • UL Voltage Rating: 300 V (CMP)

    Mechanical Characteristics
  • Temperature: UL Temperature: 75°C
  • Operating: -20°C to +75°C
  • Bend Radius: Stationary Min.: 1.7 in (43 mm) / Installation Min: 1.7 in (43 mm)
  • Max. Pull Tension: 16.5 lbs (7.48 kg)
  • Bulk Cable Weight: 12 lbs/1000ft

    Standards and Compliance
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
