Belden 1804A Star Quad High Conductivity Str Silvered Copper Alloy Shielded Microphone Cable 28AWG - Black - 500 Ft

ITEM #: BL-1804A-500 MFG #: 1804A J5C500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,633.45

Our Price:

$1,438.08

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1804A J5C500 - Overview

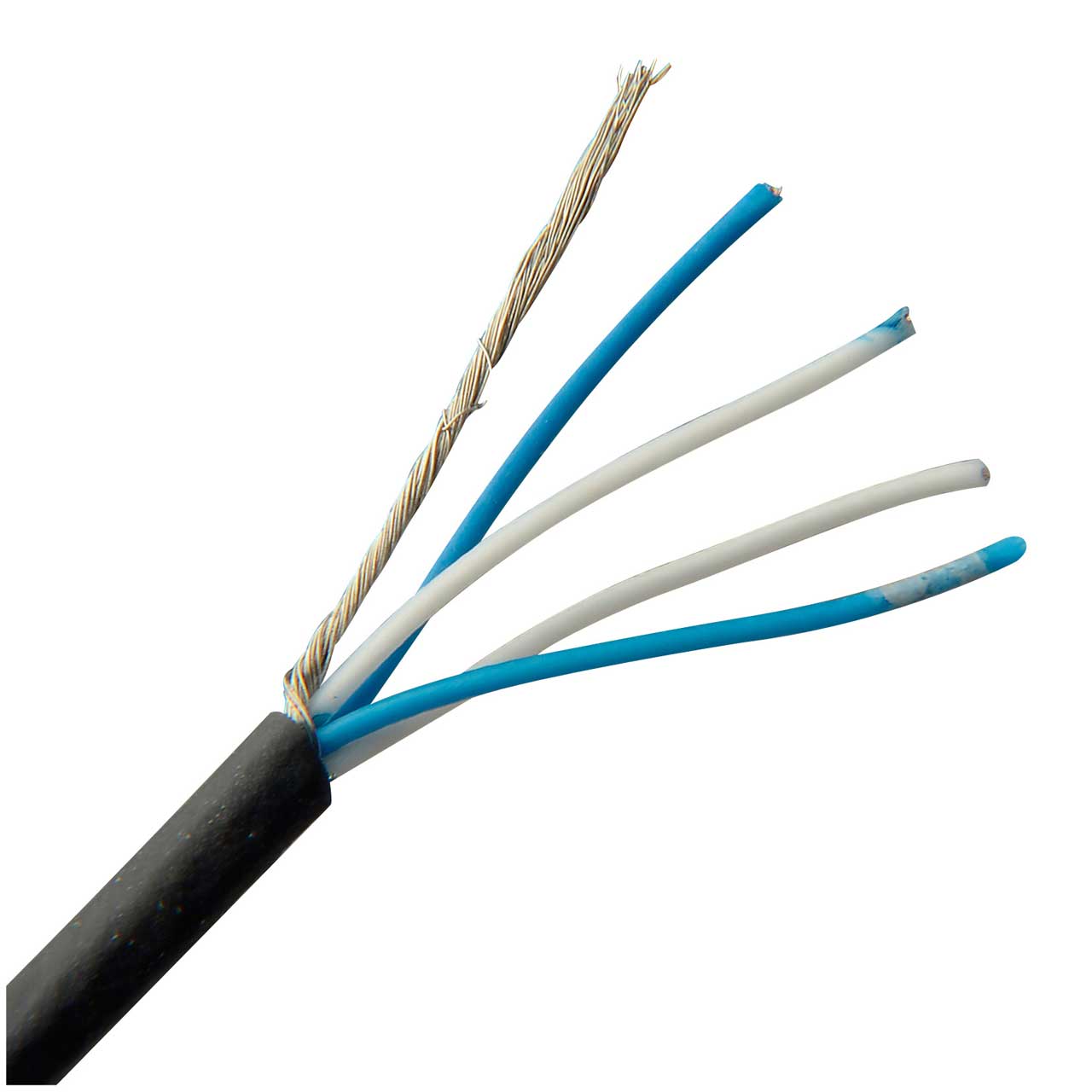

Belden 1804A is a 4 Conductor, 28 AWG (19 x 40), High Conductivity, Stranded Silvered Copper Alloy Star Quad Microphone Cable. It features PP insulation, and a 80% Tinned Copper Braid Shield in a PVC jacket.

Belden Microphone Cables are available in a variety of high-performance analog and digital options that withstand constant handling and use, as well as deployable cables for harsh environments. Belden also offers a variety of cables with specialty options, such as small diameters, high flexibility and pulling tensions up to 250 lbs.

Applications
Microphone
Low Noise for high-EMI environments
Line level balanced analog audio

  • Features:

    • High Performance: Belden microphone cables are made with high-conductivity copper
    • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
    • Experience Less Distortion: Cables feature low capacitance

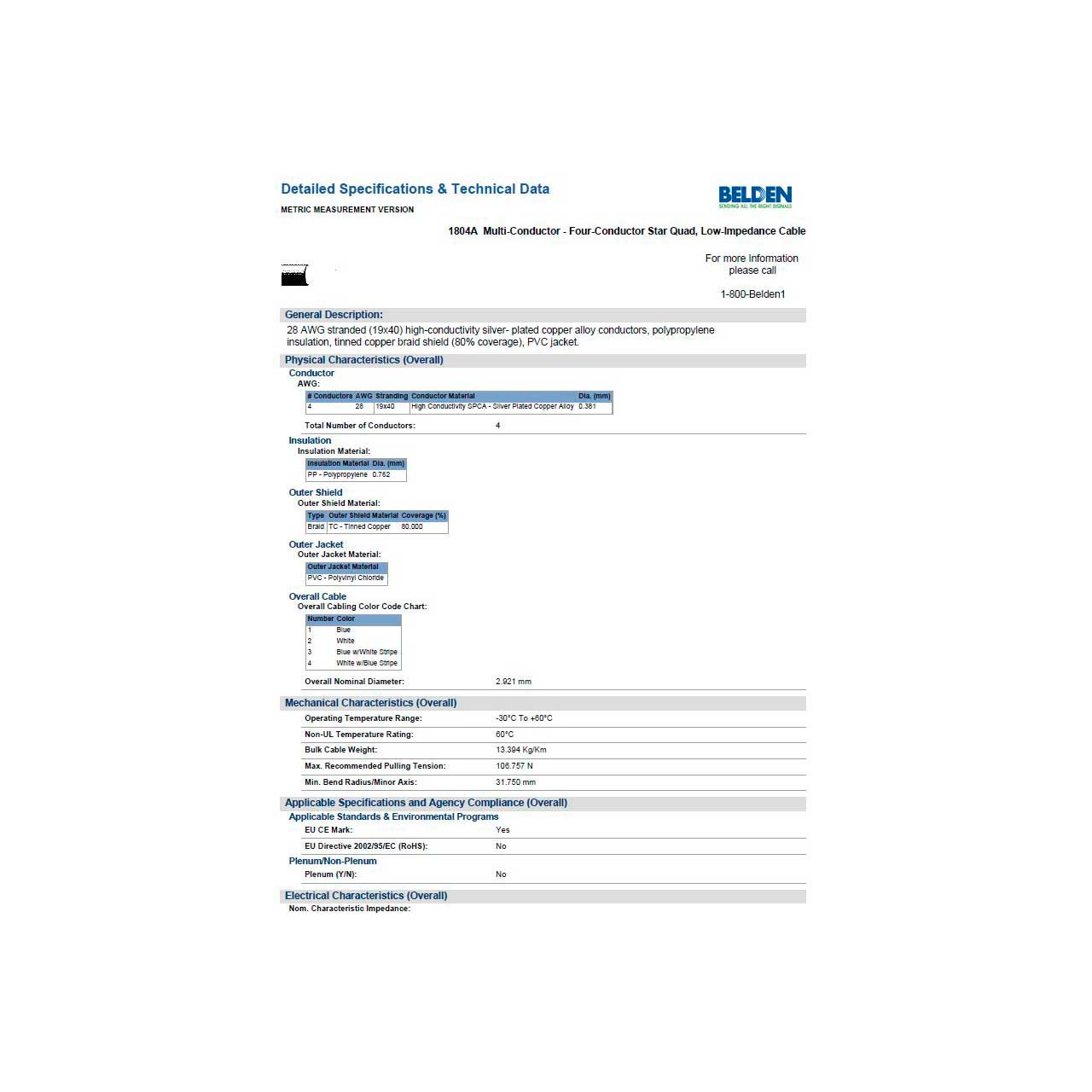

  • Specifications:

    • Number of Conductors: 4
    • Conductor AWG: 28
    • Conductor Stranding: 19x40
    • Conductor Diameter: .015 in
    • Conductor Material: SCA - Silvered Copper Alloy (High Conductivity)
    • Insulation Material: PP - Polypropylene
    • Insulation Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
    • Nom. Insulation Thickness: 0.008 in (0.20 mm)
    • Nom. Insulation Diameter: 0.03 in (0.76 mm)
    • Outer Shield Type: Braid
    • Outer Shield Material: TC - Tinned Copper
    • Outer Shield % Coverage: 80%
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.014 in (0.36 mm)
    • Outer Jacket Nom. Diameter: 0.115 in (2.92 mm)
    • Overall Nominal Diameter: 0.115 in (2.92 mm)
    • Voltage Rating: 100 V
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor


  • Item Includes:

    • 1804A Star Quad Shielded Microphone Cable 28AWG - Black - 500 Ft


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825123156
