Belden 1865A CMR/Riser Sub-miniature Serial Digital Coax Cable Shld/Stranded BC 25AWG - Black - 1000 Foot

ITEM #: BL-1865A-1000 MFG #: 1865A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,143.70

Our Price:

$940.68

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1865A 0101000 - Overview

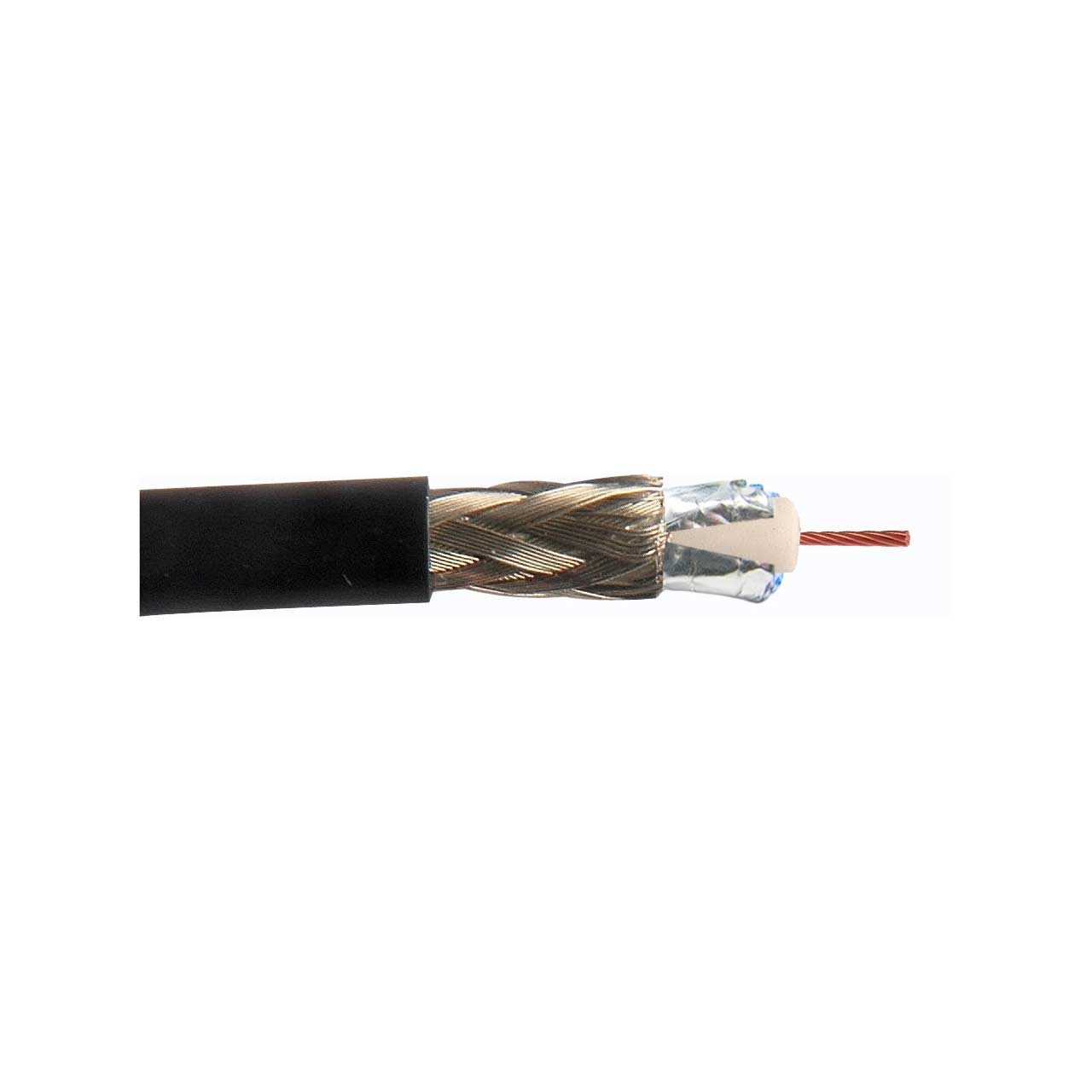

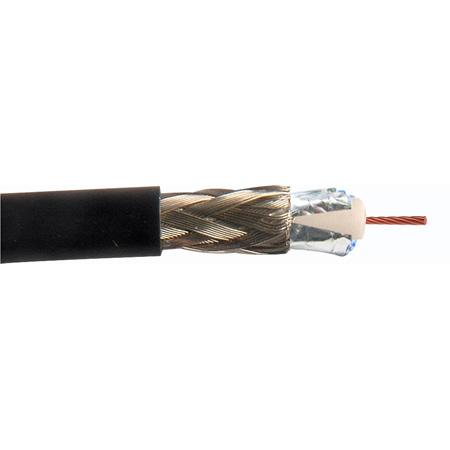

Belden 1865A is a Sub-miniature Serial Digital Coax Cable. It features a 25 AWG stranded (19x37) .021" bare copper conductor, gas-injected foam HDPE insulation with a Duofoil®; tinned copper braid shield (95% coverage) in a CMR/Riser Indoor PVC jacket.

Belden 75 Ohm Video Coax Cables, ranging from 12 GHz to 3 GHz, ensure reliable signal integrity and exceptional quality. No other cable manufacturer has invested in this technology like Belden has, so no other manufacturer can assure you beyond-high-definition performance like Belden.

Applications
Analog and Digital Video
Multimedia
Lighting and Automation
Tight Spaces

  • Features:

    • Specially formulated gas injected high density foam polyethylene is more crush-resistant than standard polyethylene.
    • Even with rough handling during installation, it resists deformation and maintains impedance and return loss characteristics.
    • Belden's skin/foam insulation process provides the right amount of conductor adhesion for easier stripping and improved connector reliability.
    • Compared to SMPTE's return loss limit, Belden's Precision Video Coax provides significant RL headroom to account for potential losses elsewhere in the transmission line.

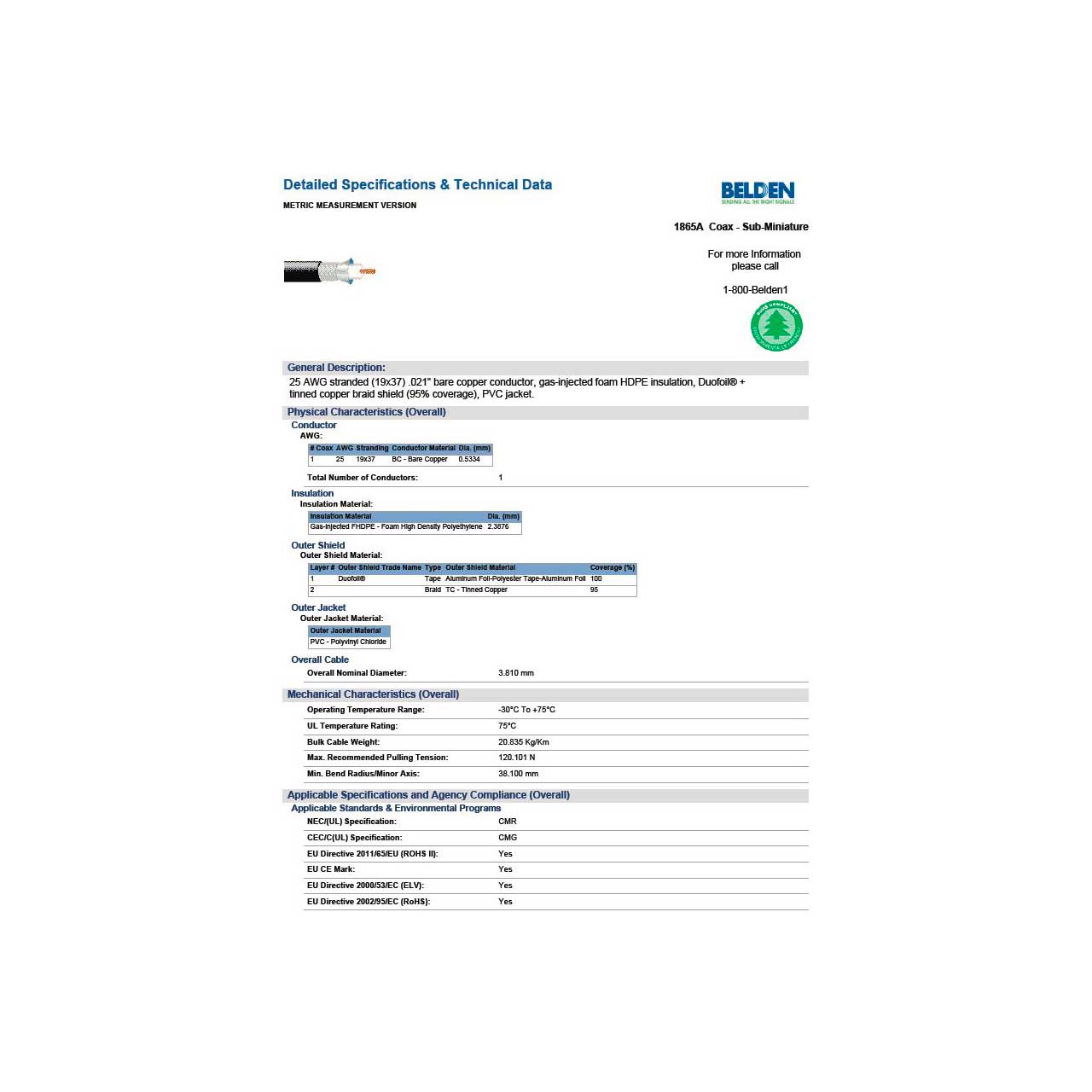

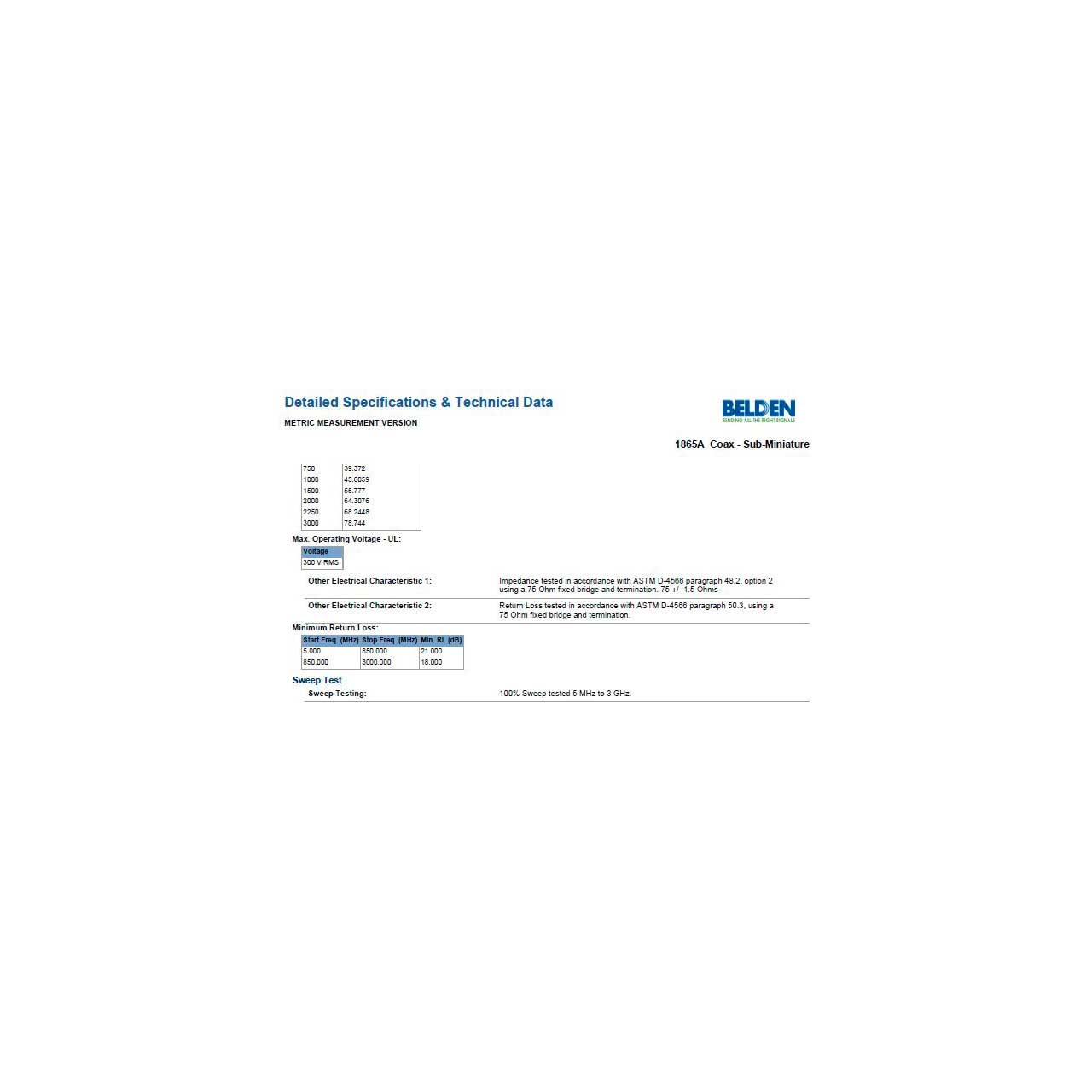

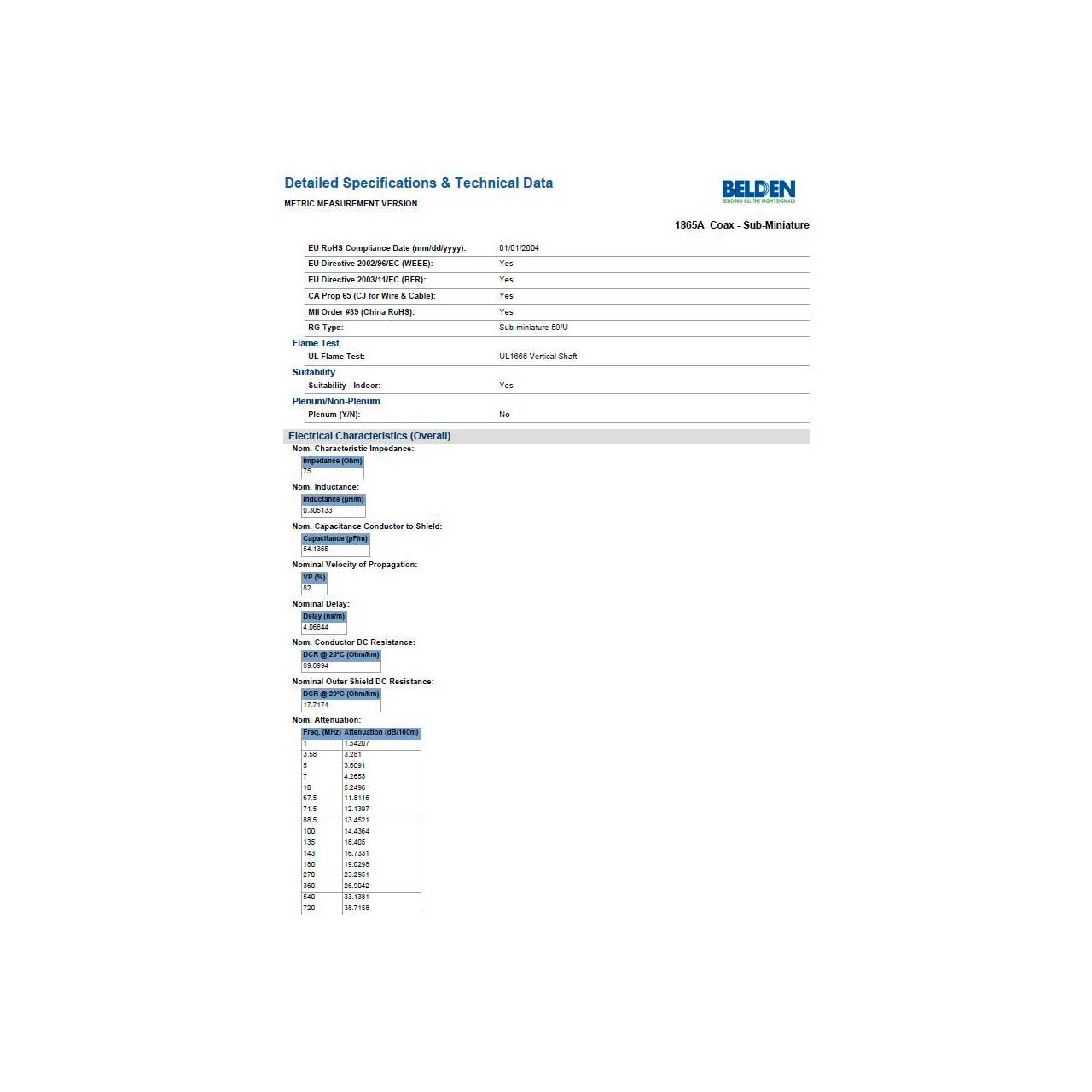

  • Specifications:

    • Conductor Number of Coax: 1
    • Conductor RG Type: Sub-miniature 59/U
    • Conductor AWG: 25
    • Conductor Stranding: 19x37
    • Conductor Material: BC - Bare Copper
    • Conductor Nominal Diameter: 0.021 in
    • Insulation Material: PE - Polyethylene (Foam) Gas-injected
    • Insulation Nominal Diameter: 0.094 in
    • Outer Shield Material Trade Name: Duofoil®
    • Outer Shield Material Layer 1: Tape - Tri-Laminate (Alum+Poly+Alum) 100%
    • Outer Shield Material Layer 2: Braid - Tinned Copper (TC) 95%
    • Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.15 in
    • Nom. Capacitance Conductor to Shield: 16.5 pF/ft
    • Nom. Characteristic Impedance: 75 +/- 1.5Ω
    • Nominal Inductance: 0.093 æH/ft
    • Plenum (Y/N): N
    • UL Voltage Rating: 300 V RMS
    • UL Temp Rating: 75°C
    • Operating Temperature Range: -30°C To +75°C
    • Environmental Space: Indoor - Riser
    • NEC/(UL) Compliance: CMR
    • CEC/C(UL) Compliance: CMG
    • CPR Euroclass: Eca
    • RG Type: Sub-miniature 59


  • Item Includes:

    • 1865A Sub-miniature Serial Digital Coax Cable - Black - 1000 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825358435
