Belden 1883A 2-Conductor Paired Audio Cable - Black - 1000 Foot Pull Box

ITEM #: BL-1883A-1000 MFG #: 1883A 010U1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$457.00

Our Price:

$376.44

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1883A 010U1000 - Overview

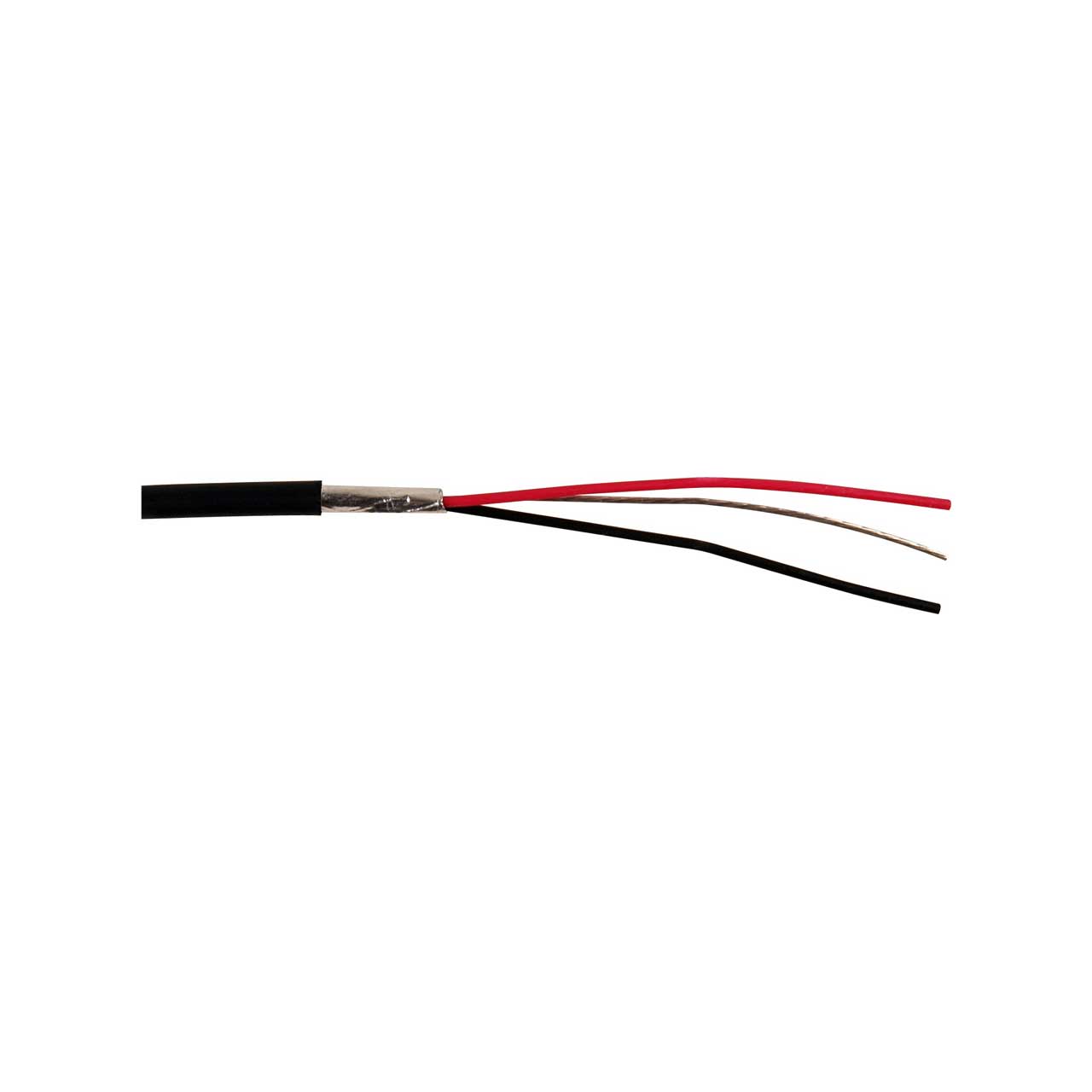

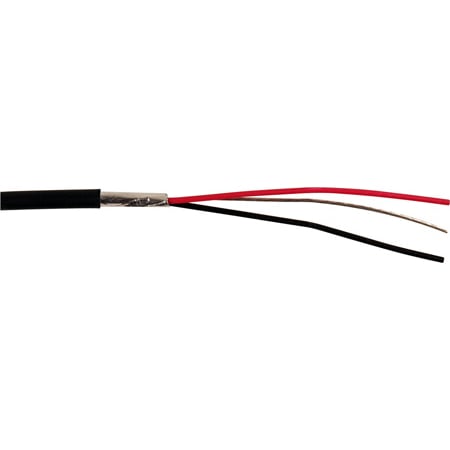

Belden 1883A Line Level Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, PP insulation, Overall Beldfoilr Shield, PVC Jacket, CMR. Suitable for Line level audio; Low voltage analog signals applications.

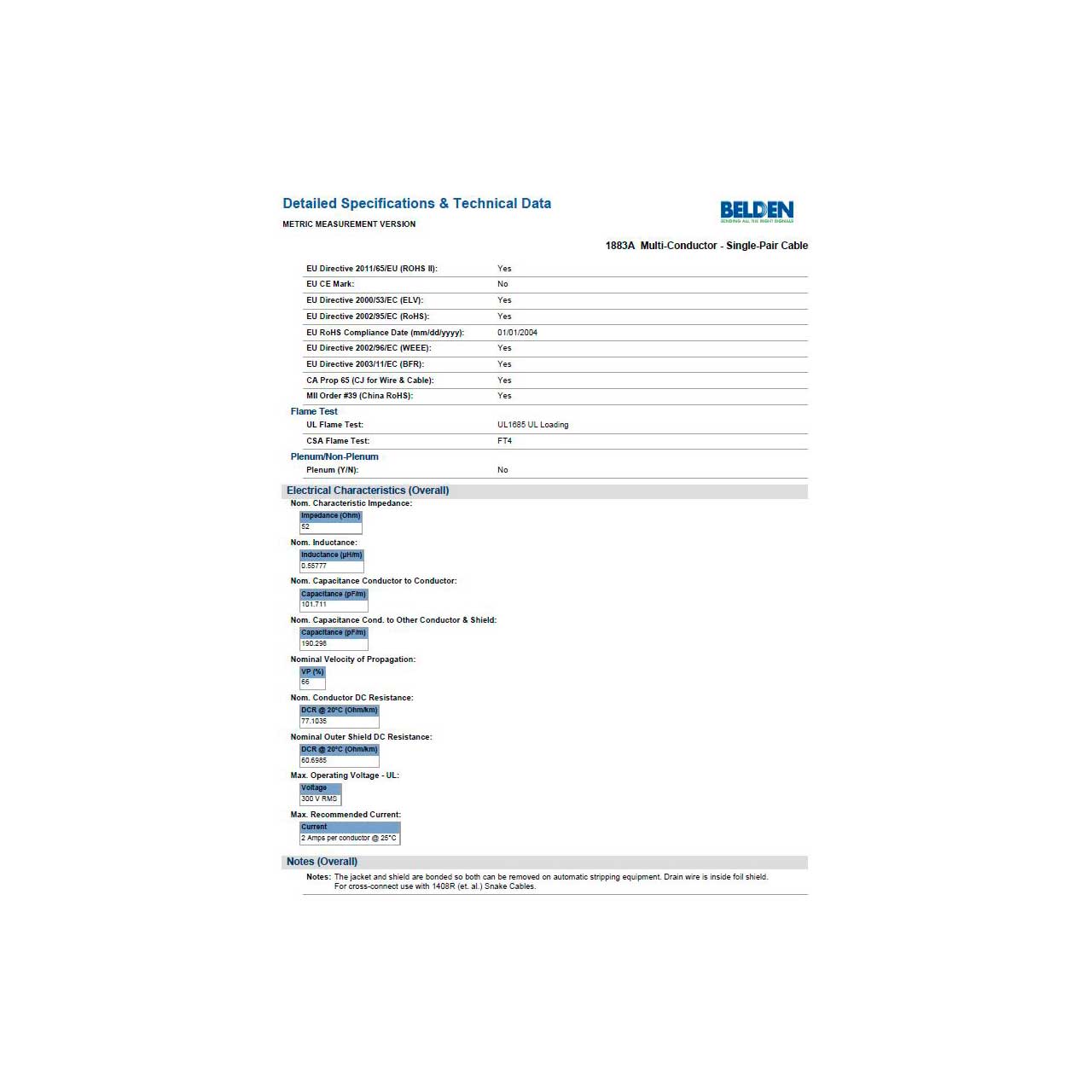

  • Specifications:

    • Number of Pairs: 1
    • Total Number of Conductors: 2
    • AWG: 24
    • Stranding: 7x32
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PP - Polypropylene
    • Outer Shield Material Trade Name: Beldfoil (Z-Fold)
    • Outer Shield Material: Aluminum Foil-Polyester Tape
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Plenum (Y/N): N
    • Nom. Conductor DCR: 23.5 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 31 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft
    • Characteristic Impedence: 52 Ohm
    • Max. Current: 2 Amps per conductor @ 25°C
    • Nom Outer Shield DCR: 18.5 Ohm/1000ft
    • UL Voltage Rating: 300 V (CMR)
    • Operating Temp: -30°C to +60°C
    • Max. Pull Tension: 16 lbs
    • Bulk Cable Weight: 10 lbs/1000ft
    • Environmental Suitability: Indoor - Riser, Indoor
    • Flammability / Fire Resistance: UL1685 UL Loading,


  • GTIN:

    0612825126072
