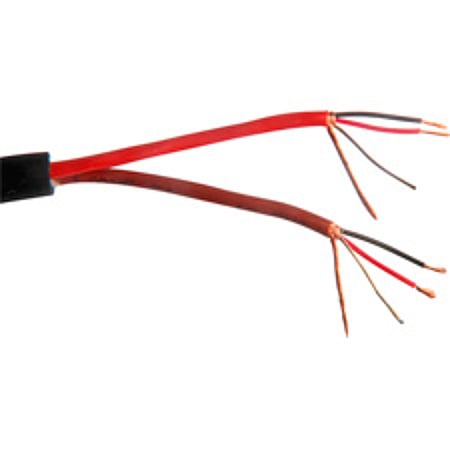

Belden 1902A 2-pair Individually Shielded BC Flexible Analog Audio Snake Cable 2x24AWG - Per Foot

1902A B59500 - Overview

• Features:

  • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
  • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
  • Improved Performance: Shorting fold technique to maintain metal-to-metal contact

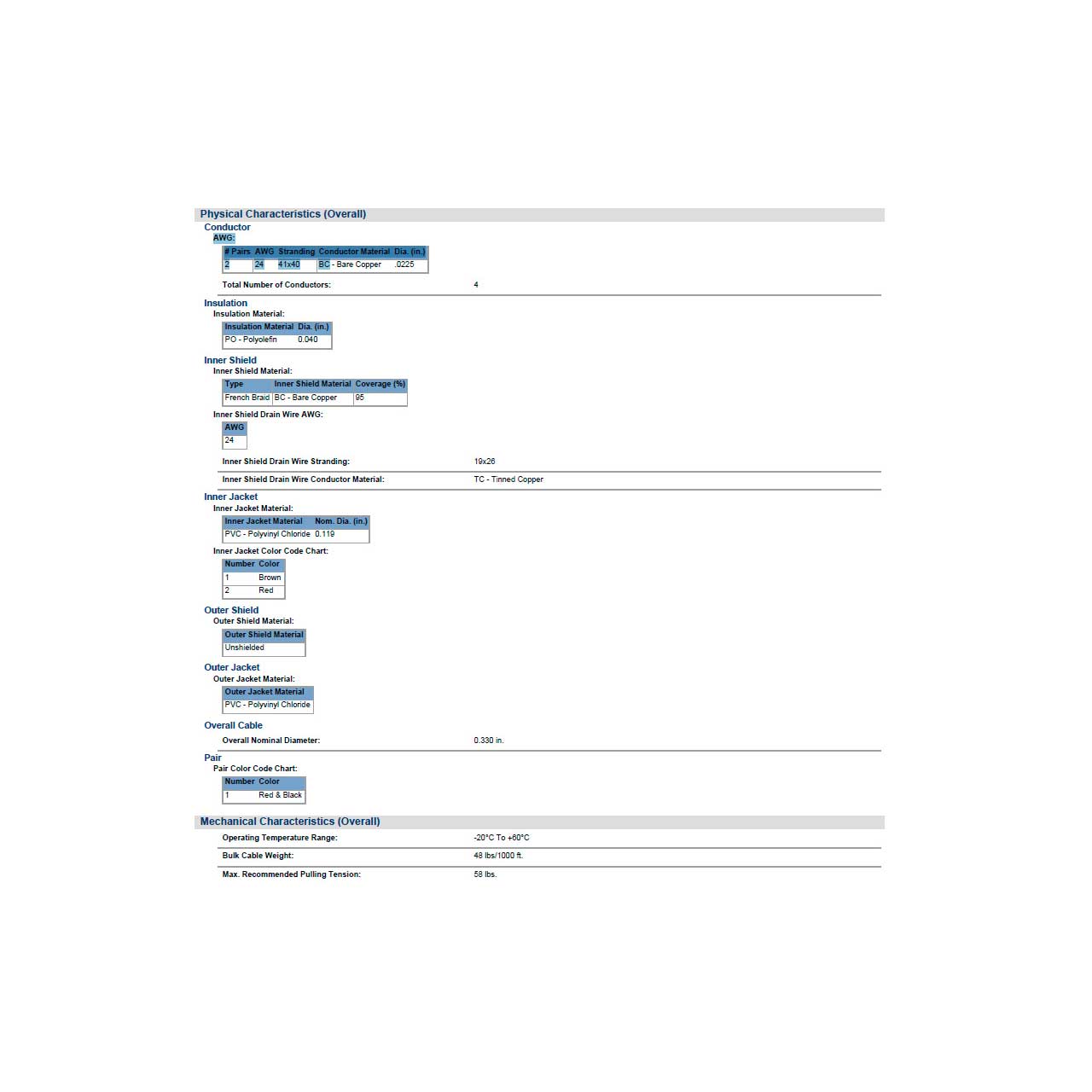

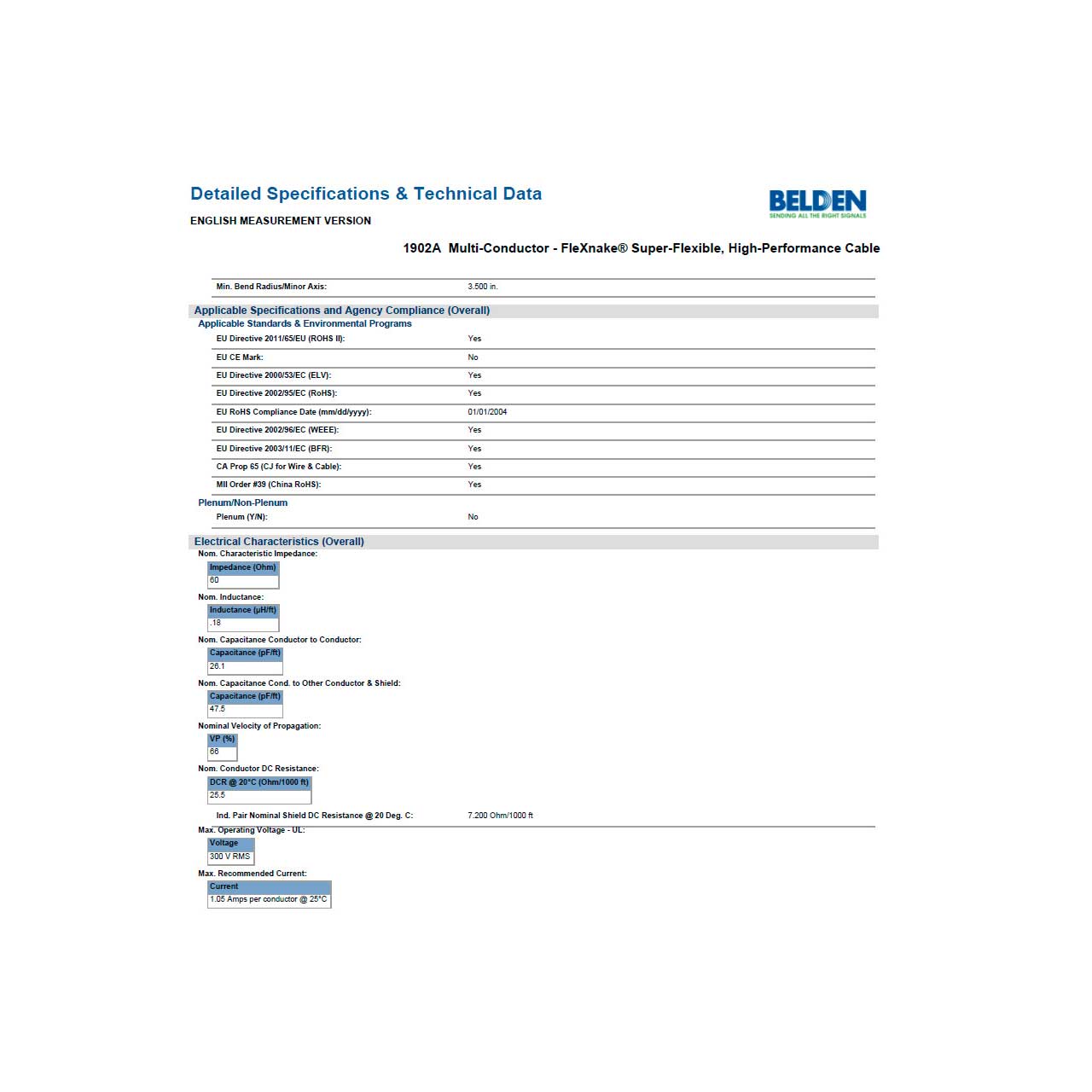

• Specifications:

  • Conductor AWG: 24
  • Conductor Stranding: 41x40
  • Conductor Material: BC - Bare Copper
  • Conductor Nominal Diameter: 0.0225 in
  • Conductor No. of Pairs: 2
  • Conductor Count: 4
  • Conductor Nominal Diameter: 0.0225 in
  • Insulation Material: PP - Polypropylene
  • Insulation Nominal Diameter: 0.0395 in
  • Insulation Nominal Wall Thickness: 0.0085 in
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nominal Diameter: 0.33 in
  • Nominal Wall Thickness: 0.0445 in
  • Individual Pair Nominal Shield DCR: 7.2 Ohm/1000ft
  • Nominal Conductor DCR: 25.5 Ohm/1000ft
  • Nominal Conductor DCR Conductor Resistance: 25.5 Ohm/1000ft
  • Nominal Inductance: 0.18 µH/ft
  • Nominal Characteristic Impedance: 60 Ohm
  • Max. Recommended Current [A]: 1.05 Amps per Conductor at 25§C
  • UL Voltage Rating: 300 V RMS
  • Operating Temp Range: -20°C To +60°C
  • Bulk Cable Weight: 48 lbs/1000ft
  • Max. Pull Tension: 58 lbs
  • Min Bend Radius/Minor Axis: 3.5 in
  • Environmental Space: Indoor (Not Riser or Plenum)


• Item Includes:

  • 1902A 2-pair Individually Shielded Analog Audio Snake Cable 2x24AWG - Per Foot


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825126157
