Belden 3106A Industrial Automation & Process Control Cable - 1000 Foot

Name: Belden 3106A Industrial Automation & Process Control Cable - 1000 Foot
Brand: Belden
SKU: BL-3106A-1000
Price: 2937.63 USD
Availability: PreSale

ITEM #: BL-3106A-1000 MFG #: 3106A 0101000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,550.40

Our Price:

$2,937.63

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

3106A 0101000 - Overview

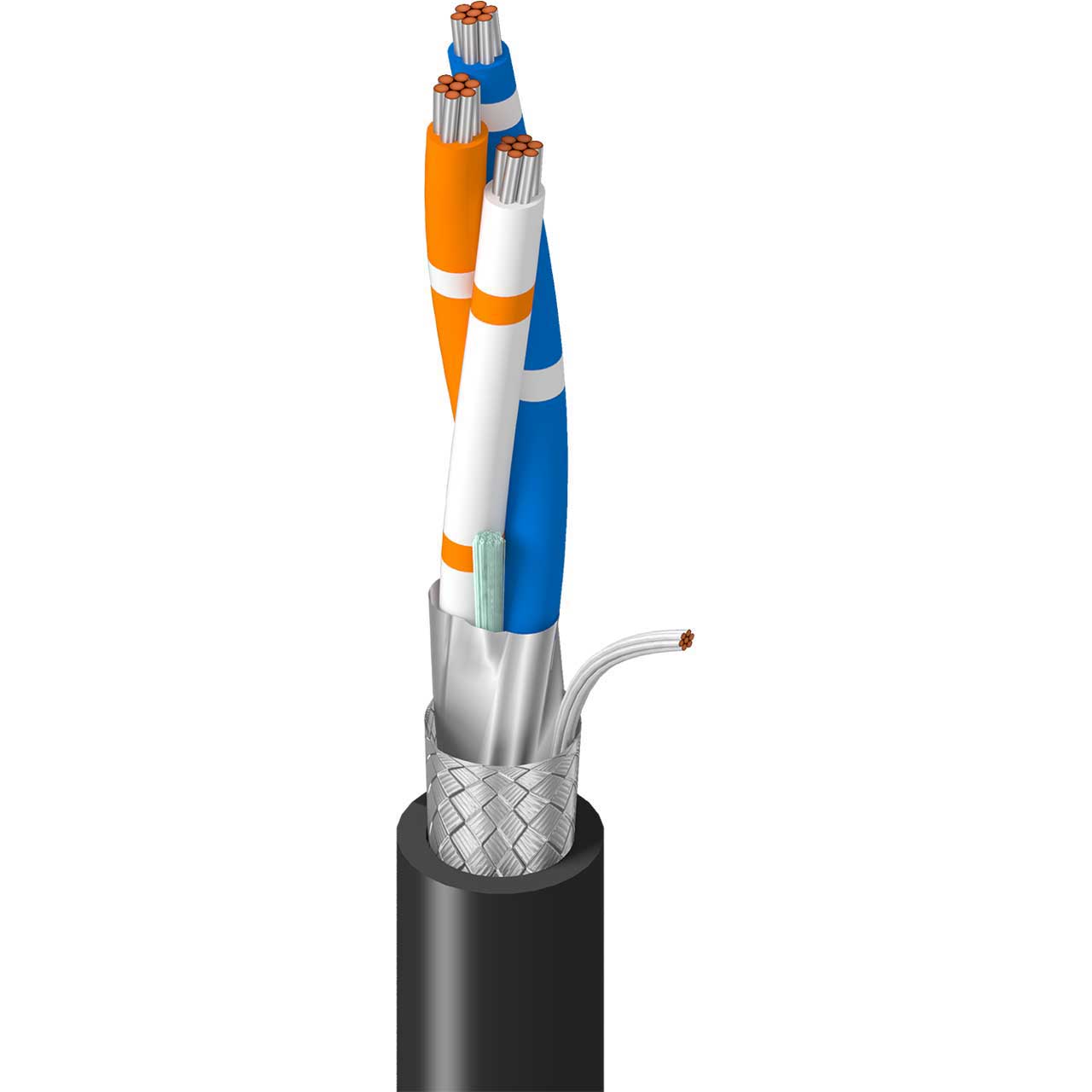

Belden 3106A RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene insulaton, with Foil Shield, 1 Conductor 22AWG (7x30) Tinned Copper, PVC Insulated, Overall 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES and oil-resistant. Suitable for harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. applications.

Specifications:
- Number of pairs: 1
- Number of Conductors: 1
- Total Number of Conductors: 3
- AWG: 22
- Stranding: 7x30
- Conductor Diameter: .030 in
- Conductor Material: TC - Tinned Copper
- Insulation Material Trade Name: Datalene
- Insulation Material: FHDPE - Foam High Density Polyethylene
- Lay Length: 3.0 in
- Outer Shield Material Trade Name: Beldfoil
- Outer Shield Type: Tape/Braid
- Nom. Conductor DCR: 14.7 Ohm/1000ft
- Nom. Capacitance Cond-to-Cond: 11 pF/ft
- Nom. Capacitance Cond-to-Other (Conds + Shield): 20.9 pF/ft
- Characteristic Impedence: 120 Ohm
- Nom. Velocity of: 78%
- Prop. Max. Current: 78% 2.7 Amps per Conductor at 25°C
- UL Voltage Rating: 300 V (CM, PLTC)
- Max. Pull Tension: 65 lbs
- Bulk Cable Weight: 48 lbs/1000ft
- Environmental Suitability: Indoor, Sunlight Resistance, Oil Resistance
- Flammability / Fire Resistance: UL1685 UL Loading, FT1, IEC 60332-1
GTIN:
0612825141655

3106A 0101000 - Recommended Accessories

Brother PT-E300 Industrial Handheld Labeling Tool w/ Rechargeable Li-ion Battery
BRO-PTE300
Our Price: $130.00
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
CAIG DN5S-6N DeoxIT Spray Contact Cleaner & Rejuvenator - Non Flammable
DN5S-6N
Our Price: $29.50

3106A 0101000 - Reviews

3106A 0101000 - Attachments

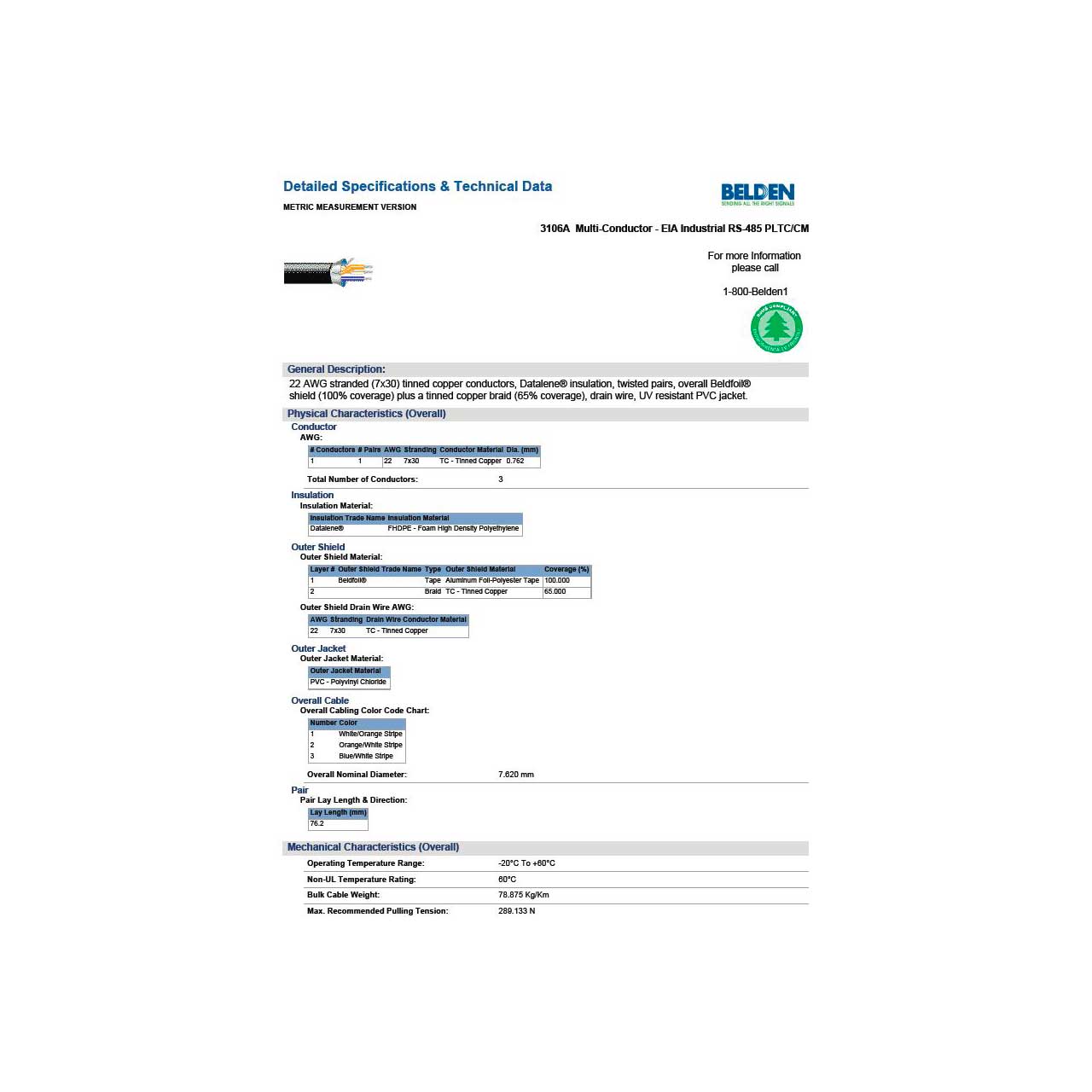

See Belden BL-3106A-1000 Specifications (PDF)
