Belden 4855RX5 CMR 12G-SDI 4K UHD 5 Coax Mini RG-59 Solid SC Precision 75 Ohm Video Cable 23 AWG - Black - Per Foot

ITEM #: BL-4855RX5-FT MFG #: 4855RX5-FT

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$10.16

Our Price:

$8.24

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

4855RX5-FT - Overview

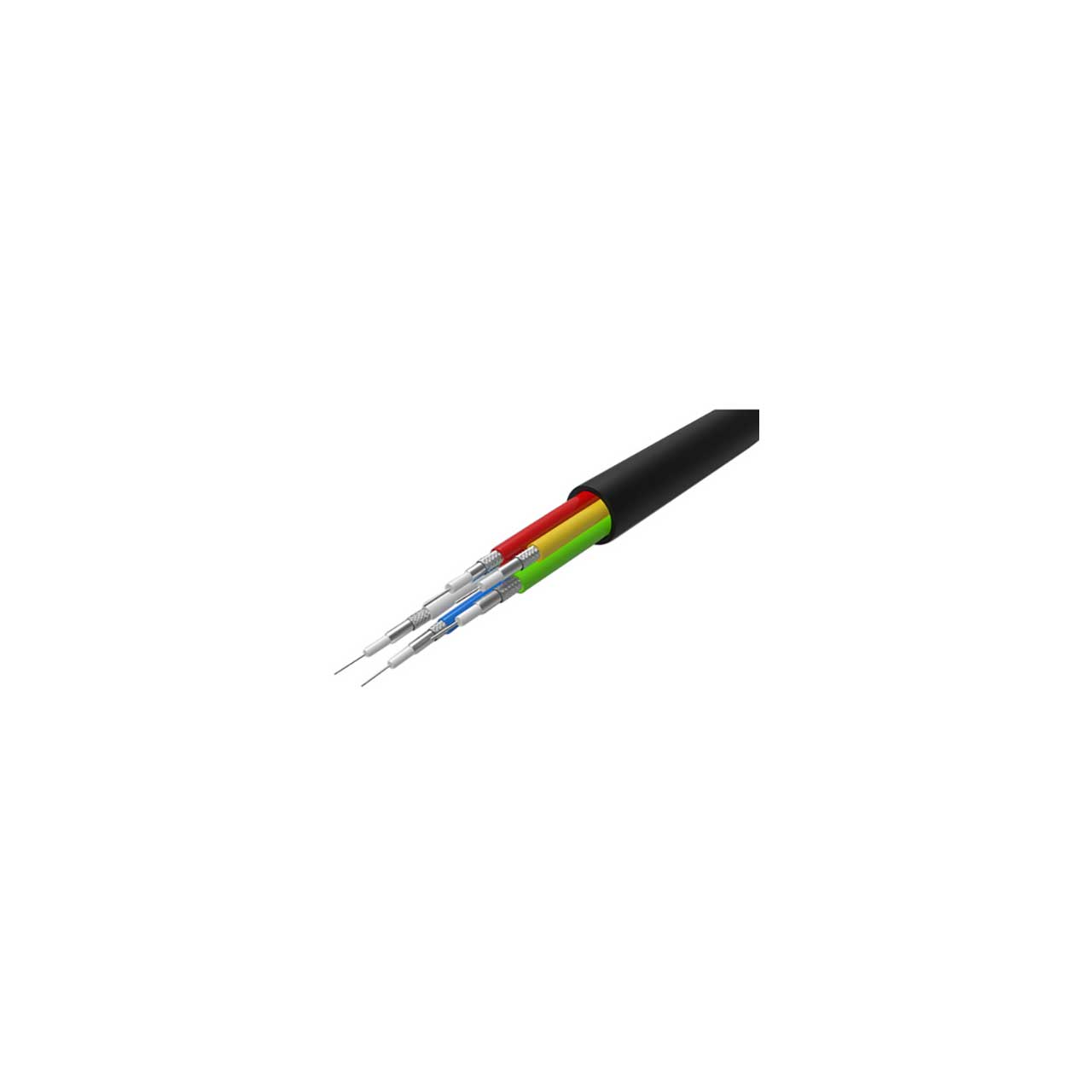

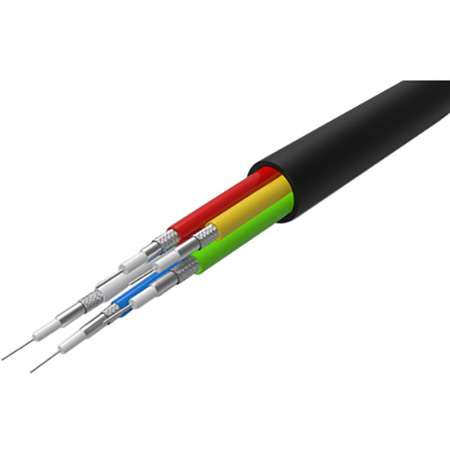

Belden 4855RX5 is a 12G-SDI, 4K UHD, Mini RG-59, 75 Ohm Precision Video Cable. It features 5 23 AWG solid 0.023" silver-plated copper conductor Coax that has gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage) in CMR Rated PVC inner and outer jackets.

Belden Serial Digital Interface (SDI) Video Coax Cable delivers uncompressed digital video signals to support professional video equipment. The portfolio of Belden SDI Cables is the world-wide broadcast cable standard today and supports legacy 3 GHz applications as well as upgraded 6 GHz and a full line of 4K UHD Coax Cables for 12G-SDI. No other cable manufacturer has invested in this technology like Belden, so no other manufacturer can assure you beyond-high-definition performance like Belden.

Applications
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p

  • Features:

    • High Performance: Low Return Loss SDI Video Coax provides significant headroom to account for potential losses elsewhere in the transmission line
    • Reliable Transmission: Maintains impedance and return loss characteristics even through rough handling during installation
    • Robust Design: Incorporates specially formulated foam polyethylene increasing crush-resistance


  • Specifications:

    • RG Type: Mini 59/U Type
    • Series Type: Mini 59/U
    • Conductor AWG: 23
    • Conductor Stranding: solid
    • Conductor Matrial: SPC - silver plated copper
    • Conductor Nominal Diameter: 0.023 in
    • No. of Coax: 5
    • Insulation Material: PE - Polyethylene (Foam)
    • Nom. Insulation Diameter: 0.102 in (2.59 mm)
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Diameter: 0.159 in (4.04 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.539 in (13.7 mm)
    • Electrical Characteristics Notes: Return Loss: Fixed bridge and termination
    • Other Electrical Characteristic 2: Percent test
    • UL Temp Rating: 60°C
    • Operating Temp Range: -20°C to +75°C
    • Bulk Cable Weight: 135 lbs
    • Max Recommended Pulling Tension: 165 lbs
    • Min Bend Radius (Overall): 5.4 in
    • Min Bend Radius (Each Coax): 1.6 in
    • NEC/(UL) Specification: CMR
    • CEC/C(UL) Specification: CMG
    • Environmental Suitability: Indoor - Riser, Indoor, Aerial - Black only, When supported by messenger wire
    • Flammability / Reaction to Fire: UL1666 Vertical Shaft, FT4


  • Item Includes:

    • 4855RX5 12G-SDI 5 Coax Video Cable - 23 AWG Solid - Black - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
