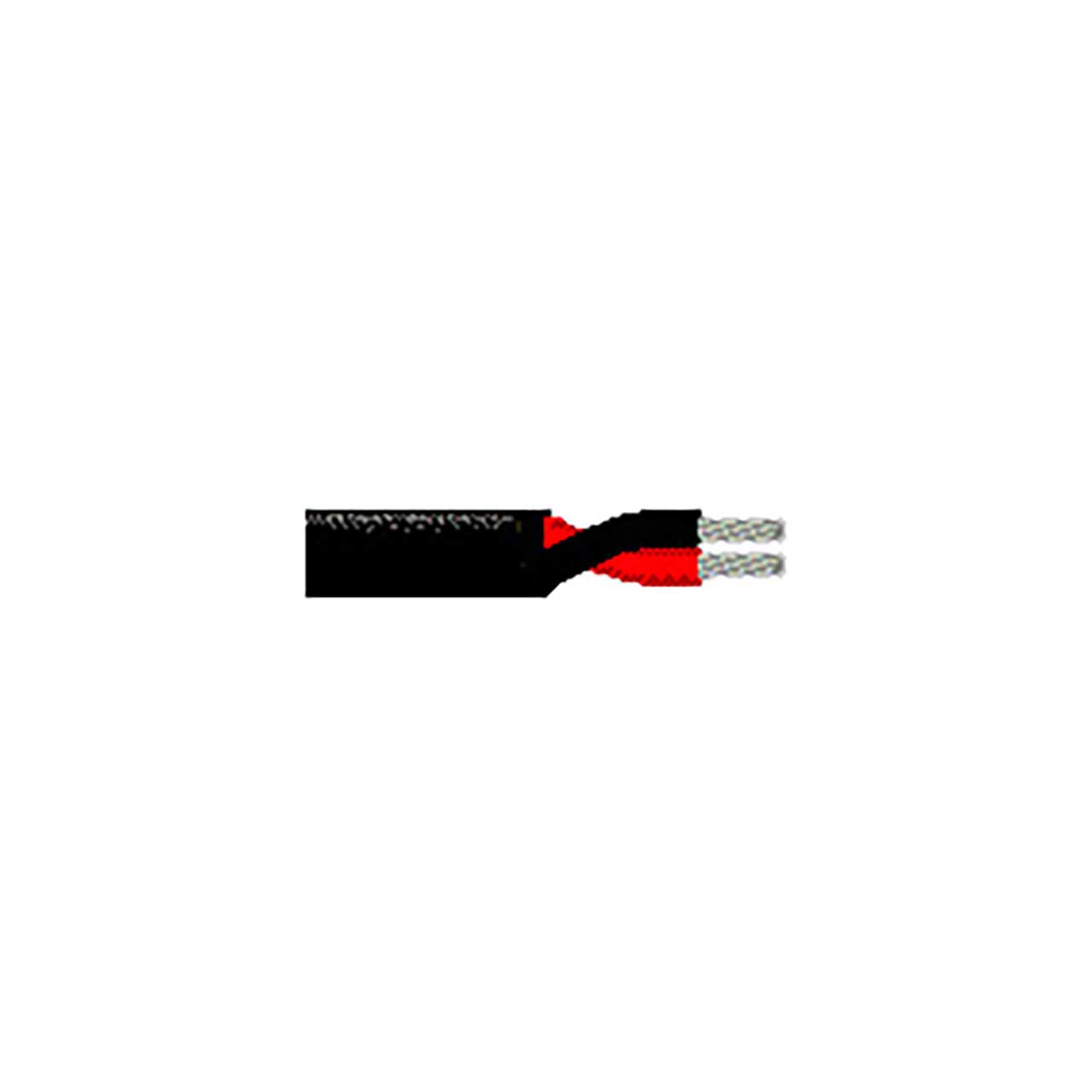

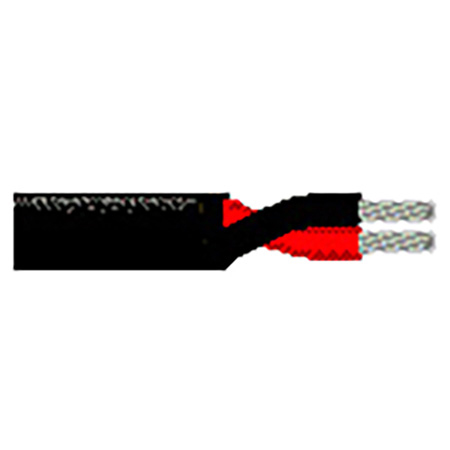

Belden 5240U1 16 AWG Multi-Conductor Water Resistant Cable - Black - 1000 Foot

ITEM #: BL-5240U1-1000BK MFG #: 5240U1 0101000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$484.60

Our Price:

$395.76

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

5240U1 0101000 - Overview

Belden 5240U1 Security & Sound Cable, Rated-CMG-FPL-PLTC-ER, 1-16 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket. Suitable for Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct locations.

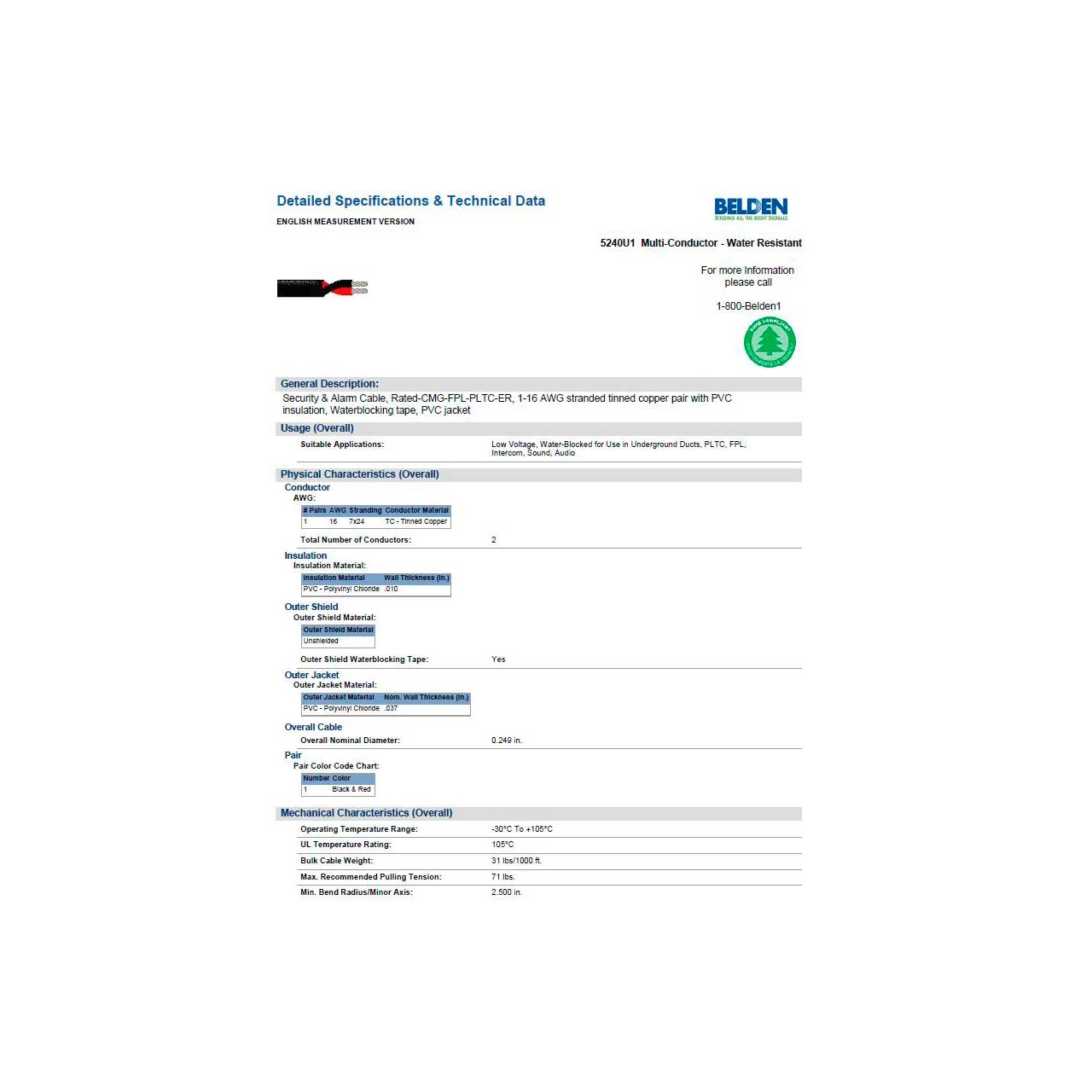

  • Specifications:

    • AWG: 16
    • Elements: 1
    • Stranding: 7x24
    • Material: TC - Tinned Copper
    • Waterblocking: Super Absorbant Polymer (SAP) Tape
    • Cable Diameter (Nominal): 0.289 in: 300 V (CMG, FPL, PLTC-ER)
    • UL Rating: 105°C
    • Operating: -30°C to +105°C
    • Max. Pull Tension: 71 lbs
    • Bulk Cable Weight: 31 lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
    • Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202, IEC 60332-1-2
    • NEC / UL Compliance: Article 725, Article 760, Article 800, CMG, FPL, PLTC-ER
    • CEC / C(UL) Compliance: CMG


  • GTIN:

    0612825158721
