Belden 5500UE Non-Paired Unshielded Security / Alarm Cable - Gray - 1000 Foot/Unreel

ITEM #: BL-5500UE-1000U MFG #: 5500UE 008U1000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$193.50

Our Price:

$168.32

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5500UE 008U1000 - Overview

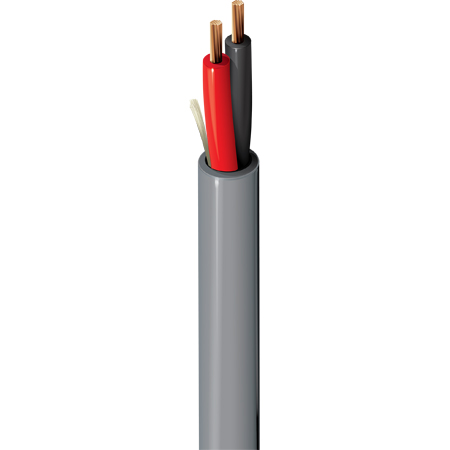

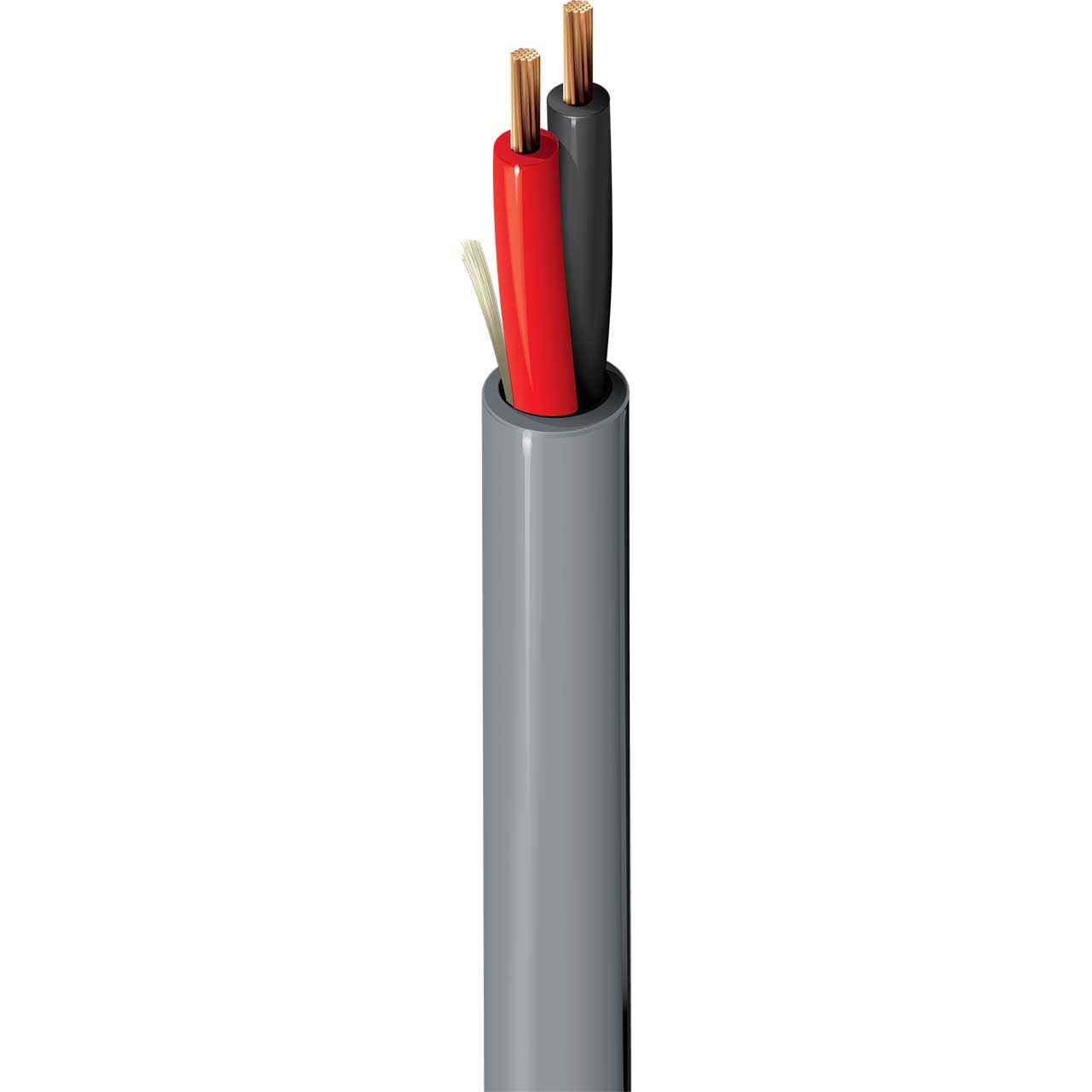

The 5500UE 008U1000 is a security & commercial audio cable with riser-CMR, 2-22 AWG stranded tinned copper conductors with polyolefin insulation, and PVC jacket with ripcord.

  • Specifications:

    • UL Temp Rating: 75°C
    • Operating Temp Range: -20°C To +75°C
    • Bulk Cable Weight: 8 lbs/1000ft
    • Max Recommended Pulling Tension: 18.2 lbs
    • Min Bend Radius/Minor Axis: 1.25 in
    • NEC Articles: 800
    • NEC/(UL) Specification: CMR
    • CEC/C(UL) Specification: CMG
    • CPR Euroclass: Eca
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2003/96/EC (BFR): Yes
    • EU Directive 2011/65/EU (ROHS II): Yes
    • EU Directive 2012/19/EU (WEEE): Yes
    • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    • EU CE Mark: Yes
    • EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
    • CA Prop 65 (CJ for Wire & Cable): Yes
    • MII Order #39 (China RoHS): Yes
    • C(UL) Flammability: FT4
    • UL Flammability: UL1666 Vertical Shaft


  • GTIN:

    0612825162896
