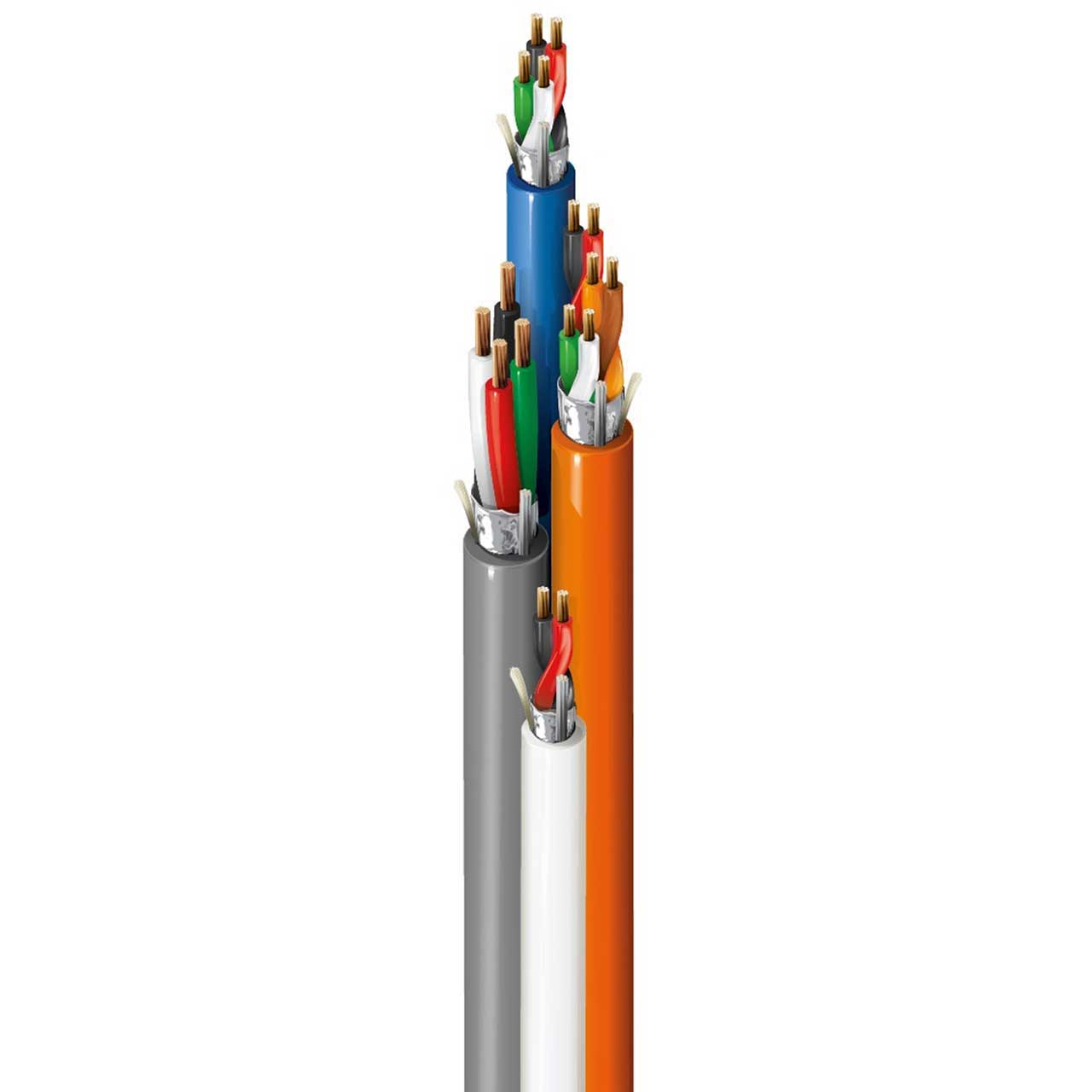

Belden 558AFS 16c Shielded Access Control Cable with 22AWG-3pr/18-4c/22-6c AWG Conductors - Banana Peel - 500 Foot

558AFS 000500 - Overview

• Specifications:

  • Conductors
  • Card Reader - Pair(s):3 / 22 AWG 7x30 BC - Bare Copper
  • Door Contact - Conductor(s): 2 / 22 AWG 7x30 BC - Bare Copper
  • REX/Spare - Conductor(s): 4 / 22 AWG 7x30 BC - Bare Copper
  • Lock Power - Conductor(s): 4 / 18 AWG 7x26 BC - Bare Copper

    Insulation
  • Card Reader Pair(s) PP - Polypropylene 0.009 in (0.23 mm) 0.045 in (1.1 mm) Black & Red, White & Green, Brown & Orange
  • Door Contact Conductor(s) PP - Polypropylene 0.009 in (0.23 mm) 0.045 in (1.1 mm) Black, Red
  • REX/Spare Conductor(s) PP - Polypropylene 0.008 in (0.20 mm) 0.045 in (1.1 mm) Black, Red, White, Green
  • Lock Power Conductor(s) PP - Polypropylene 0.009 in (0.23 mm) 0.062 in (1.6 mm) Black, Red, White, Green

    Inner Shield
  • Card Reader Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
  • Door Contact Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
  • REX/Spare Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
  • Lock Power Conductor(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

    Inner Jacket
  • Card Reader Pair(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.211 in (5.36 mm) Orange
  • Door Contact Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.132 in (3.35 mm) White
  • REX/Spare Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.151 in (3.84 mm) Blue
  • Lock Power Conductor(s) PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.194 in (4.93 mm) Gray

    Outer Jacket
  • Outer Jacket: No Jacket - Nom. Diameter: 0.448 in (11.4 mm)
  • Overall Cable Diameter: (Nominal): 0.448 in (11.4 mm)

    Electrical Characteristics
  • Card Reader Pair(s) 16.3 Ohm/1000ft 13.9 Ohm/1000ft (45.6 Ohm/km) 25 pF/ft (82 pF/m) 45 pF/ft (150 pF/m) 4.2 Amps per Conductor @ 25°C
  • Door Contact Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 16.1 Ohm/1000ft (52.8 Ohm/km) 34.5 pF/ft (113 pF/m) 62 pF/ft (200 pF/m) 6 Amps per Conductor at 25°C
  • REX/Spare Conductor(s) 16.4 Ohm/1000ft (53.8 Ohm/km) 16.1 Ohm/1000ft (52.8 Ohm/km) 22.5 pF/ft (73.8 pF/m) 40 pF/ft (130 pF/m) 10.5 Amps per Conductor at 25°C
  • Lock Power Conductor(s) 6.5 Ohm/1000ft (21 Ohm/km) 7.2 Ohm/1000ft (24 Ohm/km) 27 pF/ft (89 pF/m) 48.5 pF/ft (159 pF/m) 11.2 Amps per Conductor at 25°C

    UL Voltage Rating
  • 300 V

    Temperature
  • UL Temperature: 75°C
  • Operating: 0°C to +75°C

    Bend Radius
  • Stationary Min.: 4.48 in (114 mm)
  • Installation Min.: 4.48 in (114 mm)
  • Max. Pull Tension: 200 lbs (91 kg)
  • Bulk Cable Weight: 97 lbs/1000ft

    Standards and Compliance
  • Environmental Suitability: Indoor - Riser, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Reaction to
  • Fire: UL 1666 Riser, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG


• Item Includes:

  • 1x Belden 558AFS 16c Shielded Access Control Cable with 22AWG-3pr/18-4c/22-6c AWG Conductors - Banana Peel - 500 Foot
