Belden 6500FE CMP/Plenum 2 Conductor Security & Commercial Audio Cable 2x22AWG - Natural - 1000 Foot

Name: Belden 6500FE CMP/Plenum 2 Conductor Security & Commercial Audio Cable 2x22AWG - Natural - 1000 Foot
Brand: Belden
SKU: BL-6500FE-1000
Price: 156.64 USD
Availability: PreSale

ITEM #: BL-6500FE-1000 MFG #: 6500FE 8771000

Belden

List Price:

$258.60

Our Price:

$156.64

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

6500FE 8771000 - Overview

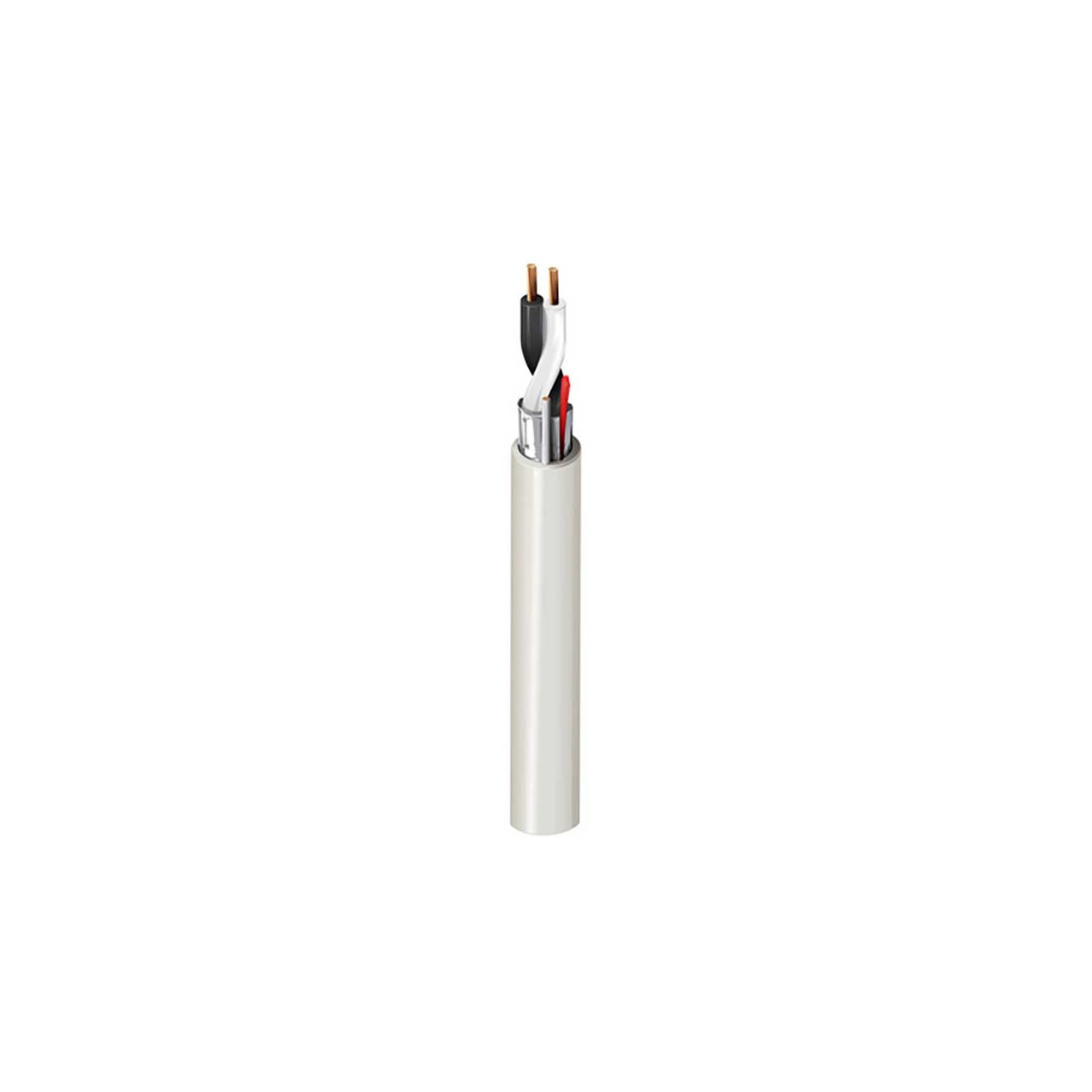

Belden 6500FE is a Plenum-CMP Security & Commercial Audio Cable. It features 2-22 AWG stranded bare copper conductors with Flamarrest® insulation, a Beldfoil® shield in a Flamarrest® jacket with ripcord.

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers.

Applications
Intercom & PA Systems
Commercial Sound & Audio Systems

Features:
- Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
- Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
- Easy Identification: Cable jackets feature footage room and zone markings
Specifications:
- Number of Conductors: 2
- Total Number of Conductors: 2
- Conductor AWG: 22
- Conductor Stranding: 7x30
- Conductor Material: BC - Bare Copper
- Insulation Nom. Thickness: 0.009 in (0.23 mm)
- Insulation Nom. Insulation Diameter: 0.047 in (1.2 mm)
- Insulation Color Code: Black, Red
- Insulation Material Trade Name: Flamarrest
- Insulation Material: PVC - Polyvinyl Chloride
- Outer Shield Drainwire Type: 24 AWG (7x32) TC
- Outer Shield Material Trade Name: Beldfoil
- Outer Shield Material: Bi-Laminate (Alum+Poly) - Tape 100%
- Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
- Outer Jacket Nom. Diameter: 0.128 in (3.25 mm)
- Overall Cable Diameter (Nominal): 0.128 in (3.25 mm)
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- Outer Jacket Material Trade Name: Flamarrest
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): Y
- Non-Plenum Number: BL-5500FE
Item Includes:
- 6500FE Plenum Security/Alarm Cable - Natural - 1000 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825177357

6500FE 8771000 - Recommended Accessories

Rolls MA1705 70v Mixer Amplifier 70w
MA1705
Our Price: $379.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $151.93
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19

6500FE 8771000 - Reviews

6500FE 8771000 - Attachments

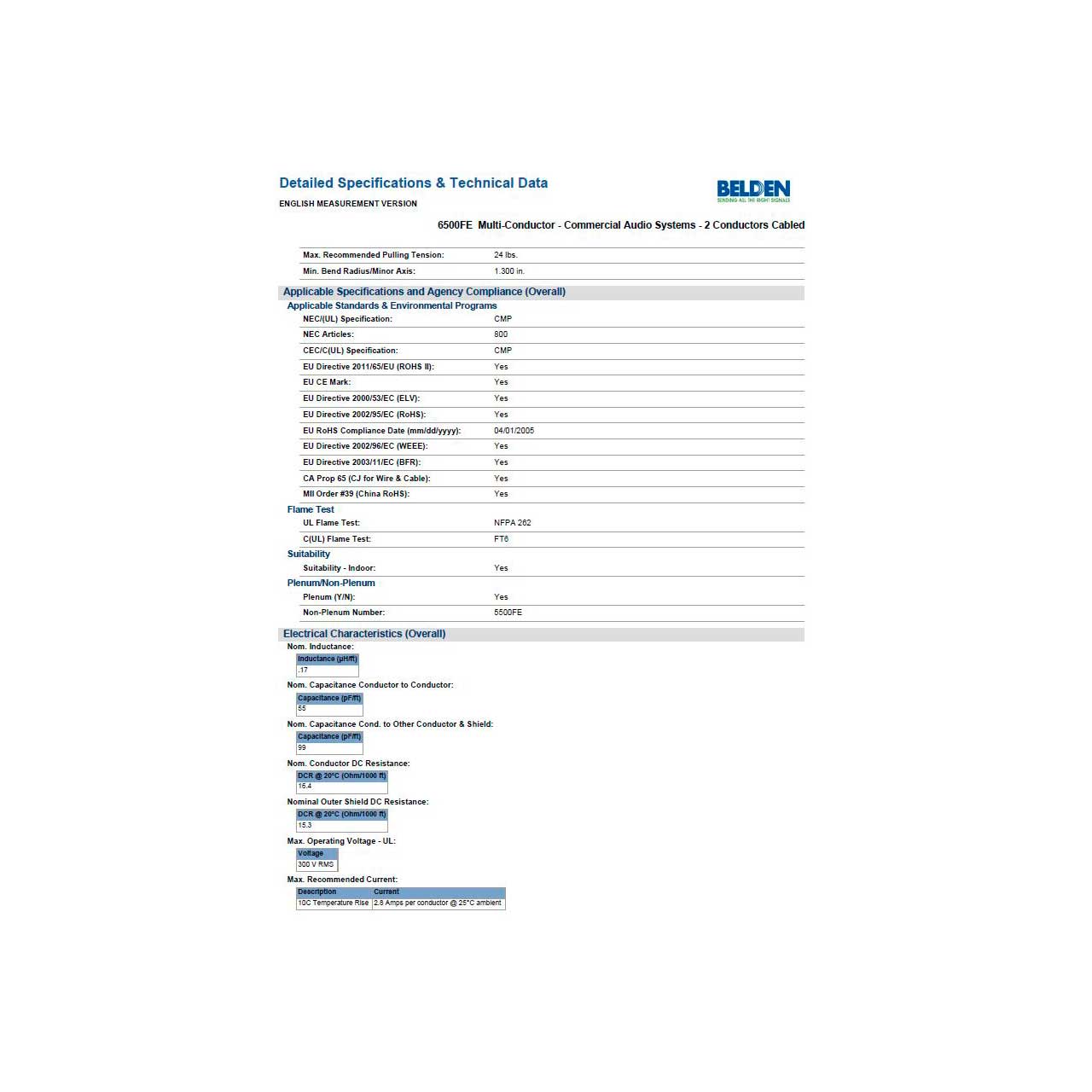

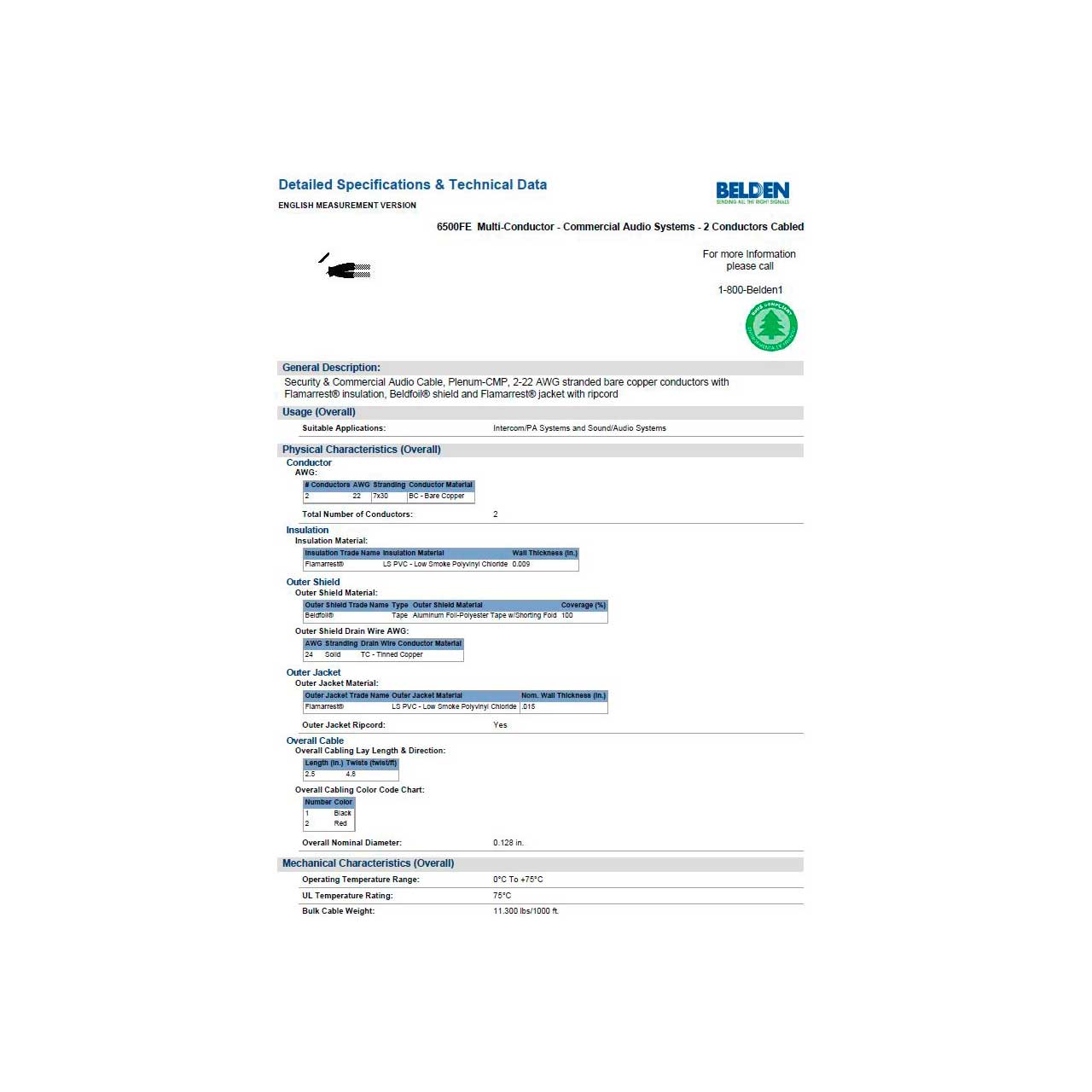

See Belden BL-6500FE-1000 Specifications (PDF)

Overview

6500FE 8771000 - Overview

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers.

Applications
Intercom & PA Systems
Commercial Sound & Audio Systems

Features:
- Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
- Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
- Easy Identification: Cable jackets feature footage room and zone markings
Specifications:
- Number of Conductors: 2
- Total Number of Conductors: 2
- Conductor AWG: 22
- Conductor Stranding: 7x30
- Conductor Material: BC - Bare Copper
- Insulation Nom. Thickness: 0.009 in (0.23 mm)
- Insulation Nom. Insulation Diameter: 0.047 in (1.2 mm)
- Insulation Color Code: Black, Red
- Insulation Material Trade Name: Flamarrest
- Insulation Material: PVC - Polyvinyl Chloride
- Outer Shield Drainwire Type: 24 AWG (7x32) TC
- Outer Shield Material Trade Name: Beldfoil
- Outer Shield Material: Bi-Laminate (Alum+Poly) - Tape 100%
- Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
- Outer Jacket Nom. Diameter: 0.128 in (3.25 mm)
- Overall Cable Diameter (Nominal): 0.128 in (3.25 mm)
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- Outer Jacket Material Trade Name: Flamarrest
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): Y
- Non-Plenum Number: BL-5500FE
Item Includes:
- 6500FE Plenum Security/Alarm Cable - Natural - 1000 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825177357
