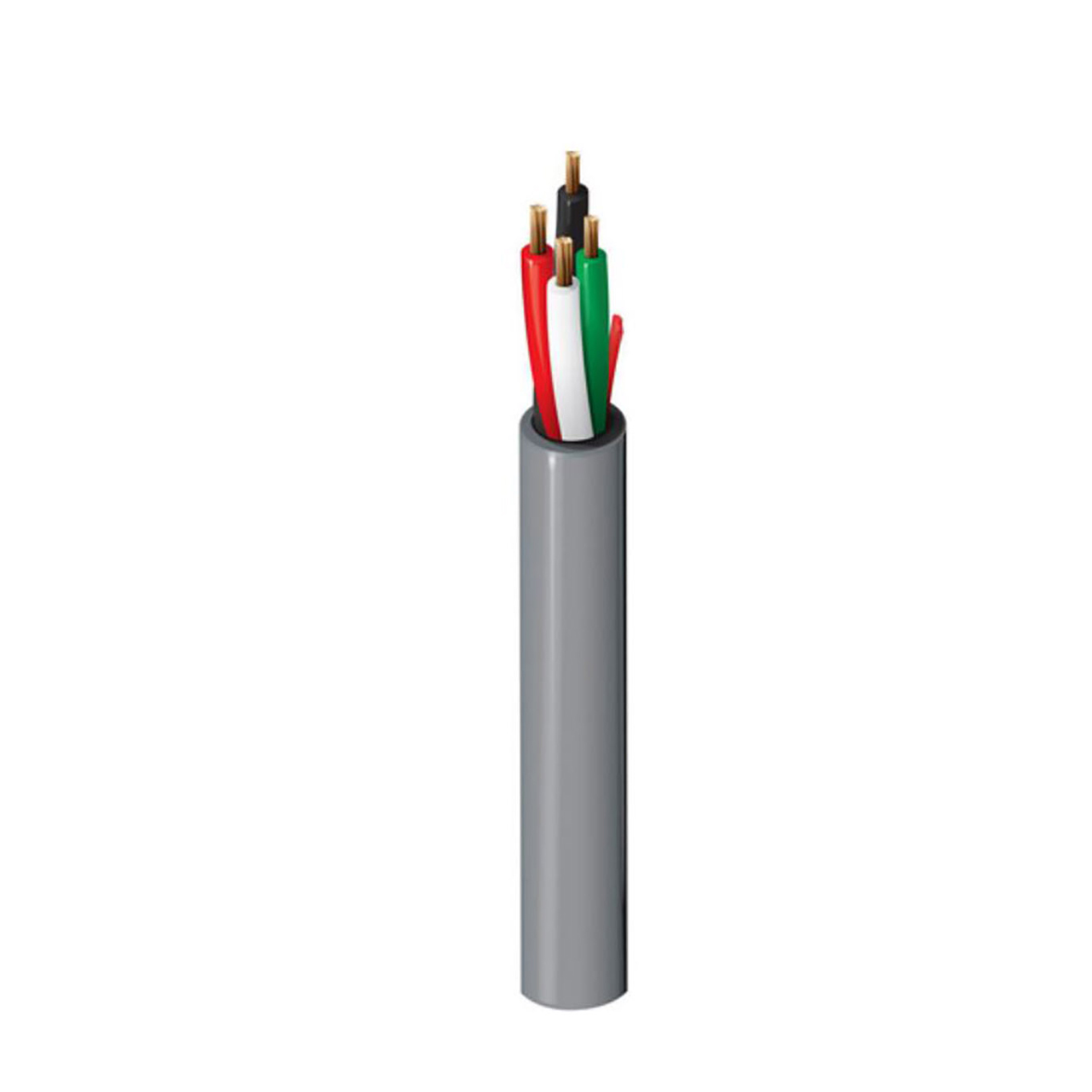

Belden 6502UE Plenum-CMP 4-22 AWG Security & Sound Cable - Flamarrest Jacket with Ripcord - Natural - 1000 Foot Reel

6502UE 8771000 - Overview

• Specifications:

  • Size: 22 AWG
  • Material: BC - Bare Copper
  • Stranding: 7x30
  • No. of Elements: 4
  • Insulation Material: PVC - Polyvinyl Chloride
  • Color Code: Black, Red, White, Green
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Nom. Thickness: 0.015" (0.38mm)
  • Nom. Diameter: 0.139" (3.53mm)
  • Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.139" (3.53mm)
  • Nom. Conductor DCR: 16.1 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 27pF/ft (89pF/m)
  • Max. Current: 2.2 Amps per conductor @ 77°F (25°C)
  • UL Voltage Rating: 300V (CMP)
  • UL Temperature: 167°F (75°C)
  • Operating Temperature: 32°F - 167°F (0°C - 75°C)
  • Bend Radius Stationary Min: 1.39" (35.3mm)
  • Max. Pull Tension: 36lbs (16kg)
  • Bulk Cable Weight: 15lbs/1000ft
  • Nom. Thickness: 0.008" (0.20mm)
  • Nom. Insulation Diameter: 0.045" (1.1mm)
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • CPR Compliance: CPR Euroclass: Eca
  • NEC/UL Compliance: Article 800, CMP
  • CEC/C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5502UE


• GTIN:

  0612825177753
