Belden 8219 50 Ohm Coax Cable - 500 Foot

Name: Belden 8219 50 Ohm Coax Cable - 500 Foot
Brand: Belden
SKU: BL-8219-500
Price: 254.00 USD
Availability: SoldOut

ITEM #: BL-8219-500 MFG #: 8219 010500

Belden

Lengths:

Lengths

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8219 010500 - Overview

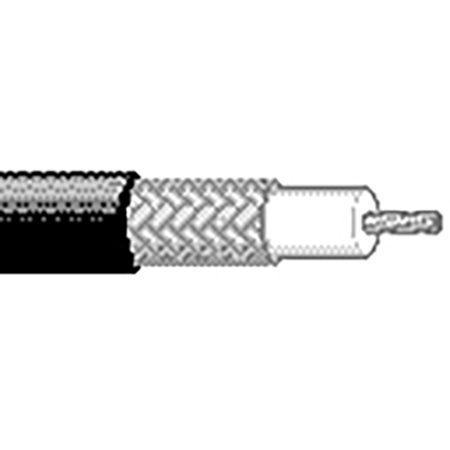

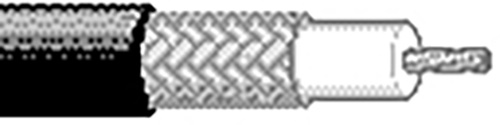

RG-58A/U type, 20 AWG stranded (19x32) .037" tinned copper conductor, foam polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.

Specifications:
- Number of Coax: 1
- RG Type: 58A/U
- AWG: 20
- Stranding: 19x32
- Conductor Material: TC - Tinned Copper
- Insulation Material: FPE - Foam Polyethylene
- Outer Shield Material: TC - Tinned Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Nom. Characteristic Impedance: 53.5O
GTIN:
0612825196372

8219 010500 - Recommended Accessories

Securitytronix ST-ALLIN1-TEST2 7 Inch Touch Screen IP Camera Monitor and Tester with Li-ion battery
ST-ALLIN1-TEST2
Our Price: $795.00
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
LSD 53-315 EZ Cut Template and Level for Electrical Box Installations
LSD-53315
Our Price: $17.21
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $151.93
Kester 60/40 44 Rosin 031 Diameter 21AWG Solder Wire One Pound Roll
KS4460-21
Our Price: $65.15
Canare TS100E 5-In-1 Multi Stripper
TS100E
Our Price: $84.64
MKK-2 Markerstraps Sturdy-High Quality Cable Organizers with 20 Inch Strap and Built In Rigid Carry Handle
MKK-2
Our Price: $15.45
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Brady M21-750-499 Aggressive Adhesive Multi-Purpose Nylon Labels w/ Ribbon for M21 Printers Black on White 3/4inx16 Ft
M21-750-499
Our Price: $31.11
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
Checkers FL1X1.5-B FastLane 1 Channel Drop Over Cable Protector - 3 Foot - Black
CHK-FL1X15-B
Our Price: $64.47
Amphenol Connex 112116 50 Ohm BNC Straight Crimp Plug for RG-58 Coax - LMR-195
9101
Our Price: $3.62
BM-P 50 Ohm BNC Male to RCA Male Video Adapter
BM-P
Our Price: $2.79
Connectronics BM-UF BNC Male to UHF Female Adapter - 50 Ohm
BM-UF
Our Price: $3.49
Amphenol 112162 BNC Right Angle 50 Ohm Crimp Plug Connector for RG-58 / LMR-195
112162
Item Details

8219 010500 - Reviews

8219 010500 - Attachments

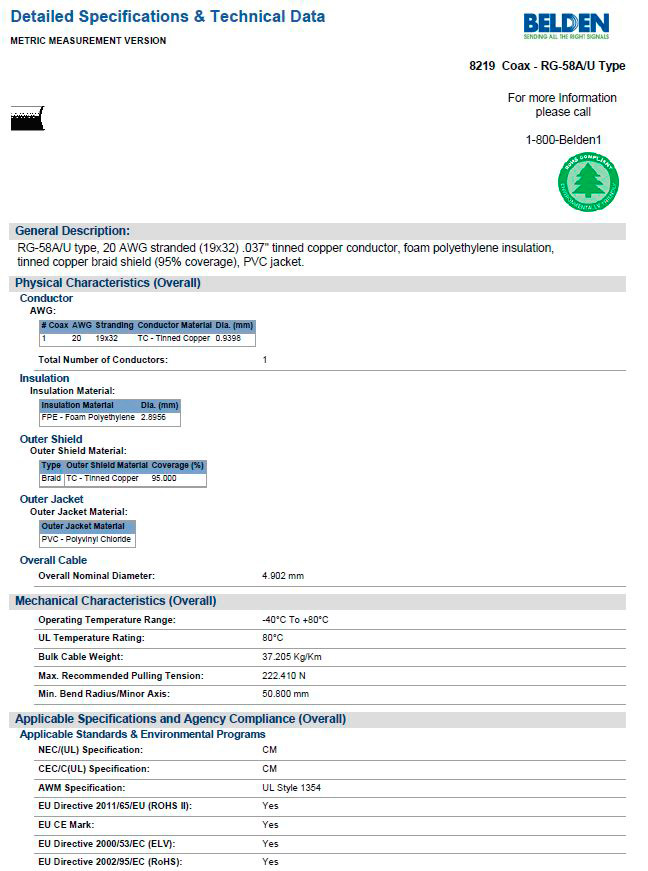

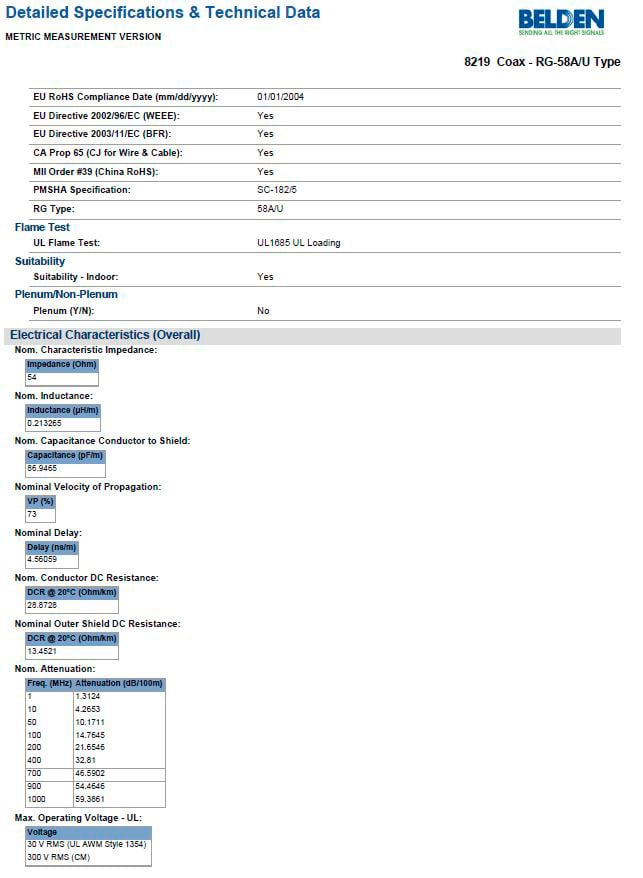

See Belden BL-8219-500 Specifications (PDF)
