Belden 8241F RG59/22AWG Analog Coaxial Cable - Stranded BC / BC Braid / PVC Jacket - Black - 1000 Foot

Name: Belden 8241F RG59/22AWG Analog Coaxial Cable - Stranded BC / BC Braid / PVC Jacket - Black - 1000 Foot
Brand: Belden
SKU: BL-8241F-1000
Price: 987.89 USD
Availability: PreSale

ITEM #: BL-8241F-1000 MFG #: 8241F J5C1000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,200.00

Our Price:

$987.89

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8241F J5C1000 - Overview

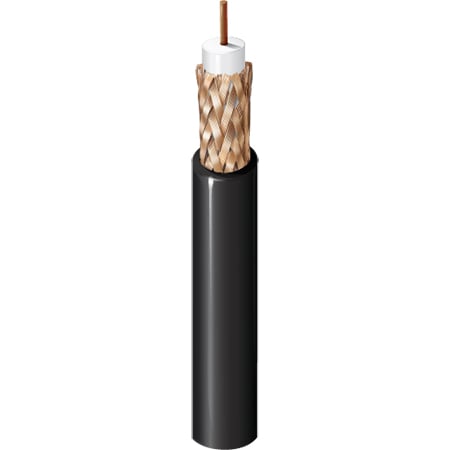

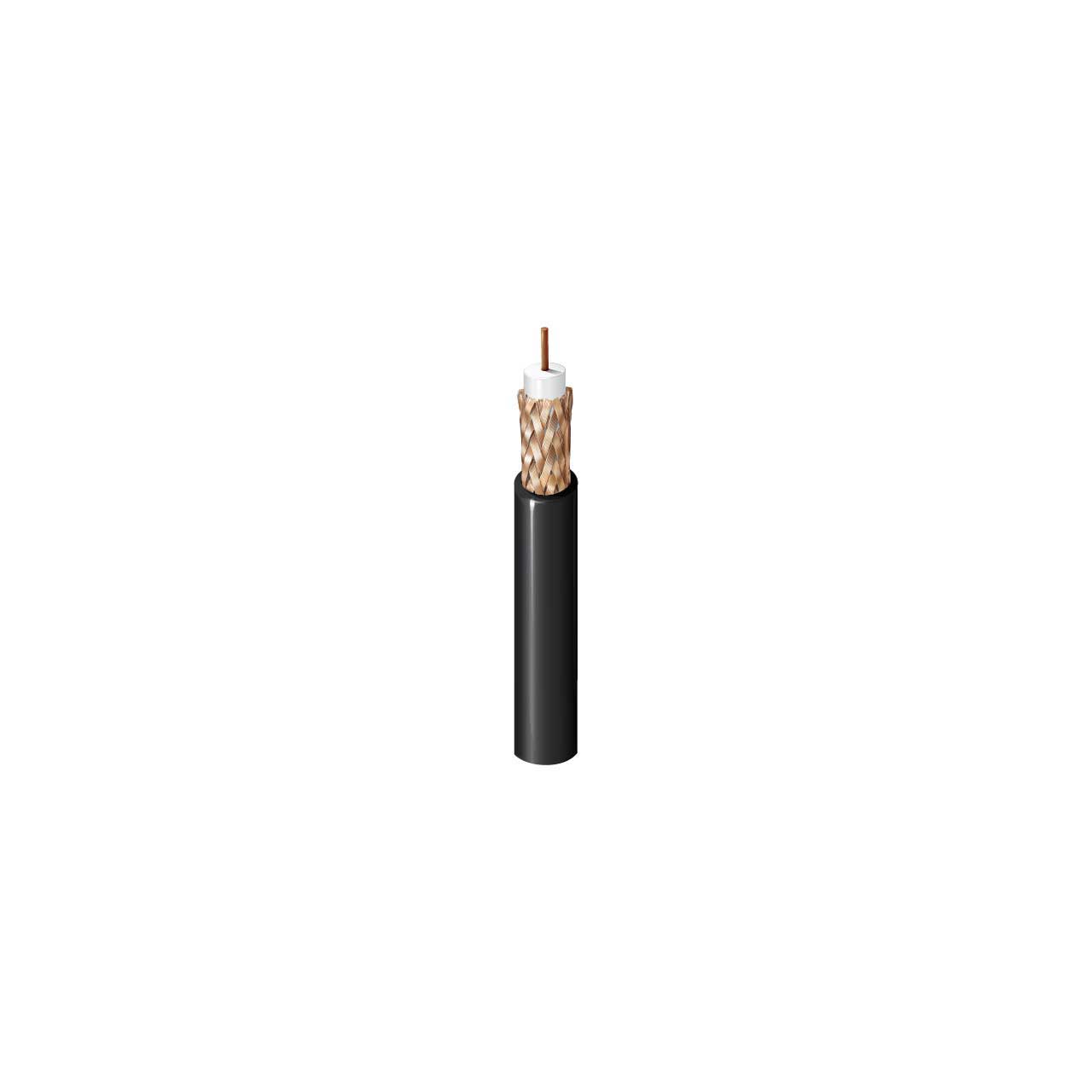

Belden 8241F RG-59/U, 22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Specifications:
- Number of Coax: 1
- RG Type: 59/U
- AWG: 22
- Stranding: 7x30
- Nominal Inductance: 0.09 µH/ft
- Nom. Capacitance Conductor to Shield: 17.3 pF/ft
- Nominal Conductor DCR: 15 Ohm/1000ft
- Nominal Outer Shield DCR: 2.6 Ohm/1000ft
- Outer Conductor DCR: 2.6 Ohm/1000ft
- Nominal Characteristic Impedance: 75 Ohm
- Frequency [MHz]: 400 MHz
- Max. Insertion Loss (Attenuation): 7.4 dB/100ft
- Non-UL Voltage Rating: 300 V RMS
- Non-UL Temp Rating: 60°C
- Operating Temp Range: -30°C To +60°C
- Bulk Cable Weight: 33 lbs/1000ft
- Max. Pull Tension: 65 lbs
- Min. Bend Radius/Minor Axis: 2.5 in
- Conductor Material: BC - Bare Copper
- Insulation Material: FPE - Foam Polyethylene
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Nom. Characteristic Impedance: 75 Ohms
Item Includes:
- 1x Belden 8241F RG59/22AWG Analog Coaxial Cable - Black - 1000 Foot
GTIN:
0612825357612
