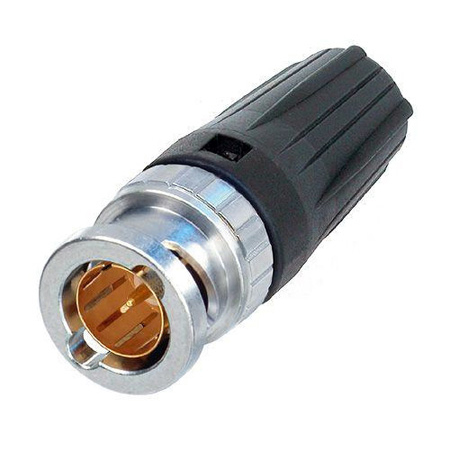

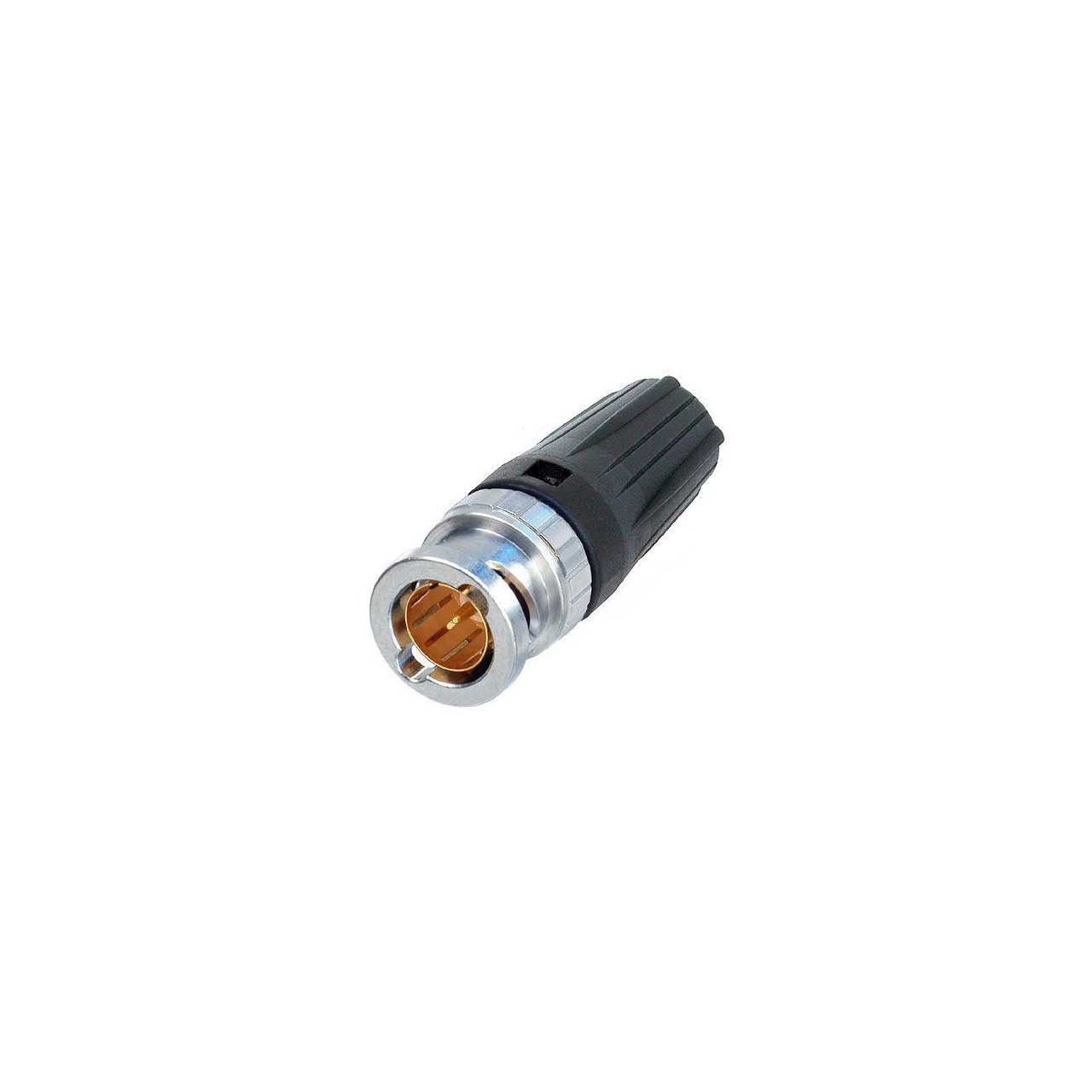

Neutrik NBNC75BLP9 Rear Twist BNC for Belden 1505A - 8241F and Canare L-4CFB

NBNC75BLP9 - Overview

• Features:

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies


• Specifications:

  • Suitable Cables:
  • Argosy Image 720, Belden 1505A (ANH), Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F)

    Crimp Size:
  • Pin: 1.6 mm (square)
  • Shield: 6.47 mm (hex)


• GTIN:

  7613187004889
