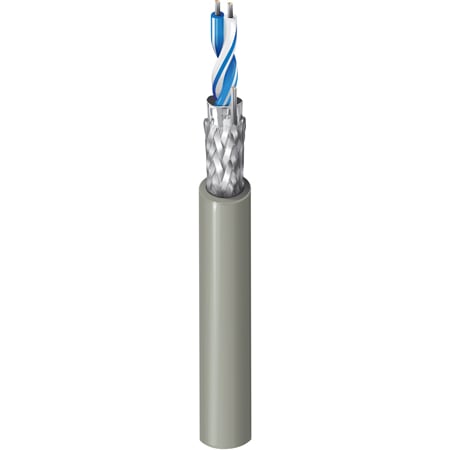

Belden 82841 is a RS-485, CMP/Plenum rated, Single-Pair, Low Capacitance Electronic/Computer Cable. It features a pair of 24AWG (7x32) Tinned Copper Conductors with FEP Insulation, an Overall Beldfoil® +Tinned Copper Braid(90%) Shield, in a PVC Outer Jacket.
Belden RS-485 cables are the reference choice for automation systems, including Modbus, BACnet MS/TP, CANopen, or DMX512. Low capacitance and enhanced noise protection allow extended reach and the highest performance under harsh conditions, as well as improving safety in case of fire.
Applications
RS-485
Point of Sale (POS) Kiosk
Computer Communications
Low Voltage Analog Signals (4-20ma, 0-10v, ...)
Low Voltage Digital Control (24v, .)
Line Level Audio
Panel Wiring
Serial communication (RS-485 standard) for PLCs, VFDs, HMIs, motors, RTU, SCADA, within noisy environments over long distance, etc.
