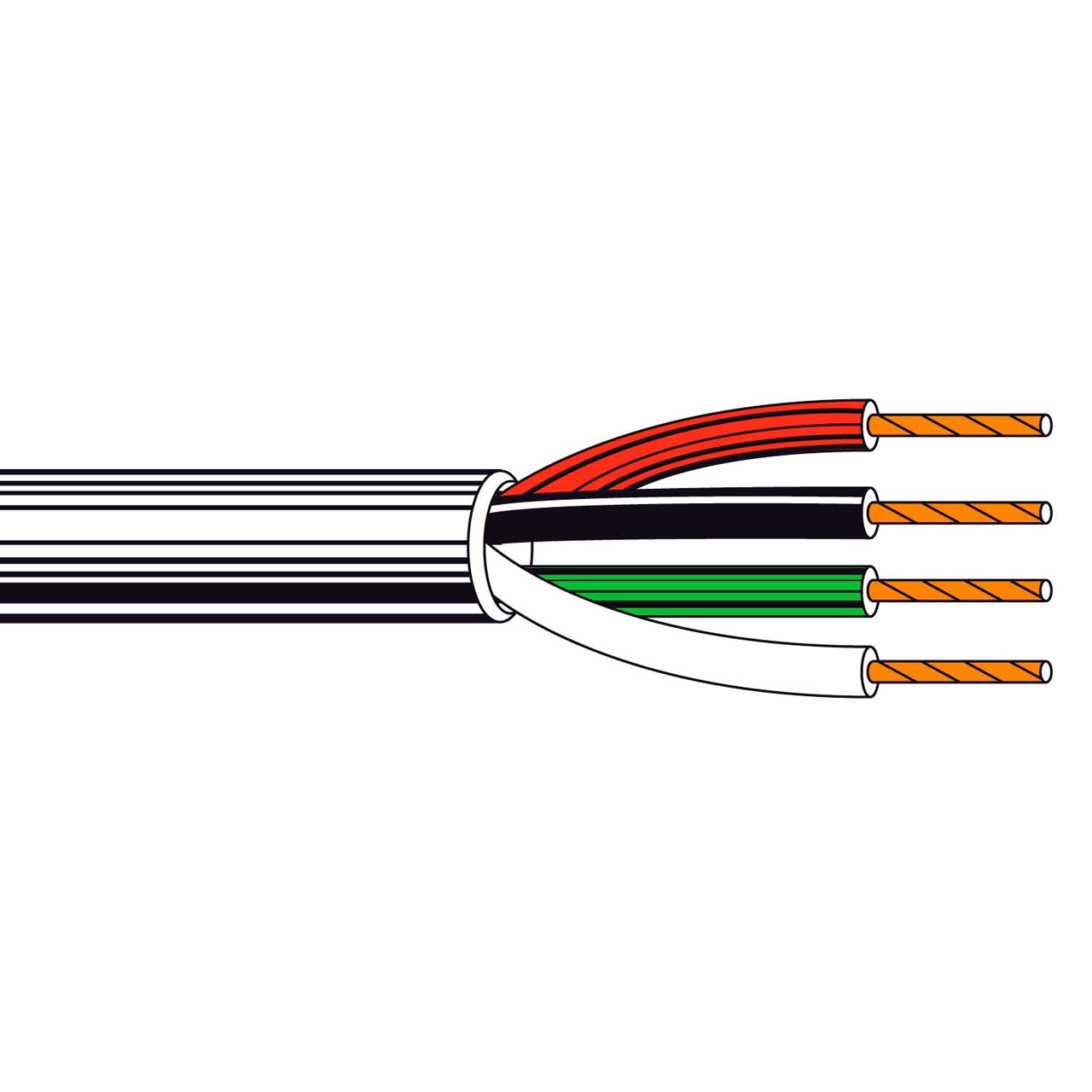

Belden 8489 Non-Paired - Four-Conductor 18 AWG Control Cable - Chrome - 1000 Foot Unreeled

8489 060U1000 - Overview

• Specifications:

  • AWG: 4 Conductors, 18 AWG, 19x30 Stranding Tinned Copper
  • Insulation Material/Thickness: Polyvinyl Chloride/0.017 In.
  • Outer Jacket Material/Thickness: Polyvinyl Chloride/0.032 In.
  • Operating Temperature Range: -20°C To +60°C
  • UL Temperature Rating: 60°C (UL AWM Style 2598)
  • Bulk Cable Weight: 44 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 83 lbs.
  • Min. Bend Radius/Minor Axis: 2.750 in.
  • NEC/(UL) Specification: CL3, CMG
  • NEC Articles: 725, 800
  • CEC/C(UL) Specification: CMG
  • AWM Specification: UL Style 2598 (300 V 60°C)
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • Flame Test
  • UL Flame Test: UL1685 FT4 Loading
  • CSA Flame Test: FT4
  • Suitability
  • Suitability - Indoor: Yes
  • Plenum/Non-Plenum
  • Plenum (Y/N): No
  • Plenum Number: 88489, 82489


• GTIN:

  0612825208730
