Belden 8770 Multi-Conductor Str TC Multi-Pair Audio Control/Electronic Cable - 18 AWG - Chrome - 1000 Foot

ITEM #: BL-8770-1000 MFG #: 8770 0601000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,398.40

Our Price:

$2,052.25

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

8770 0601000 - Overview

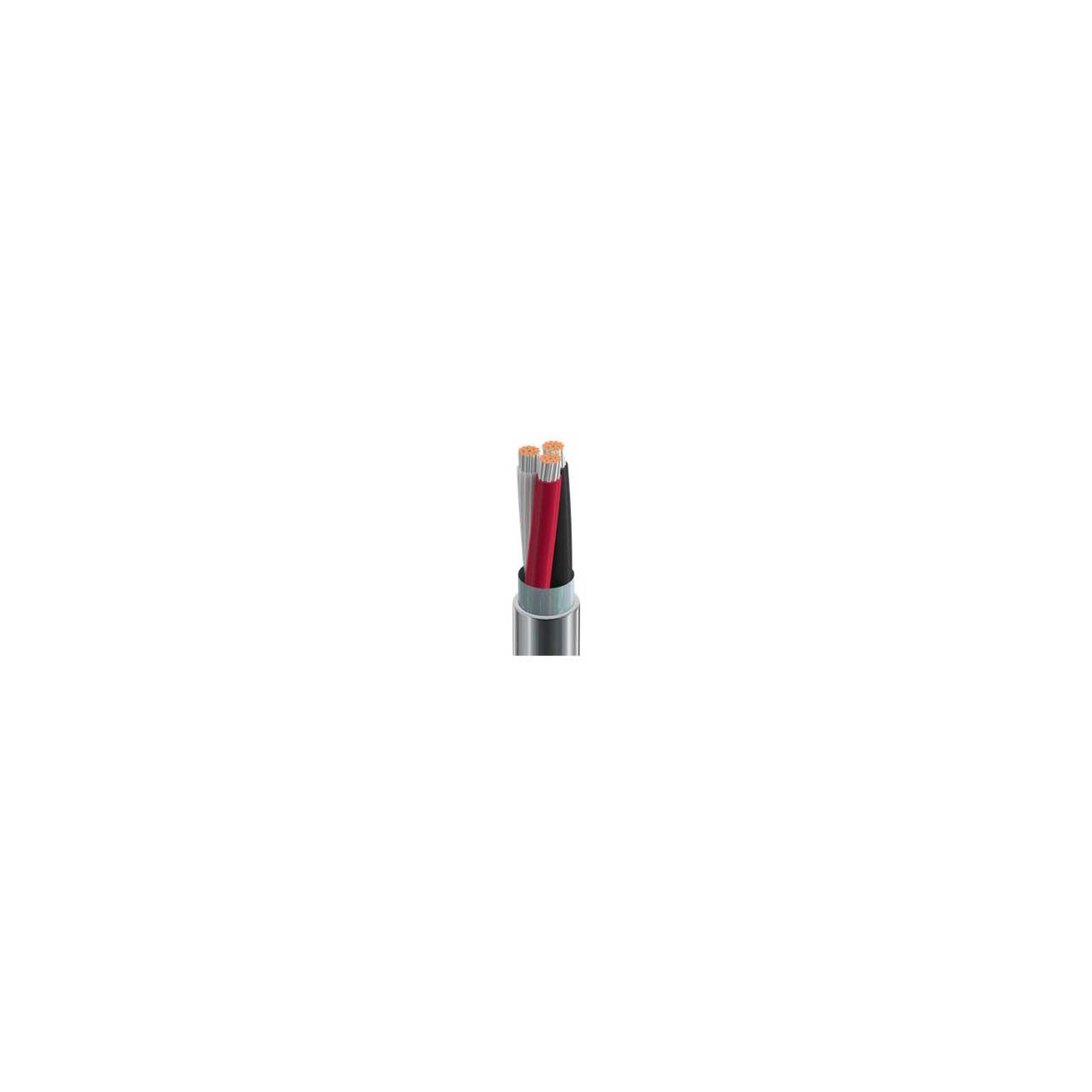

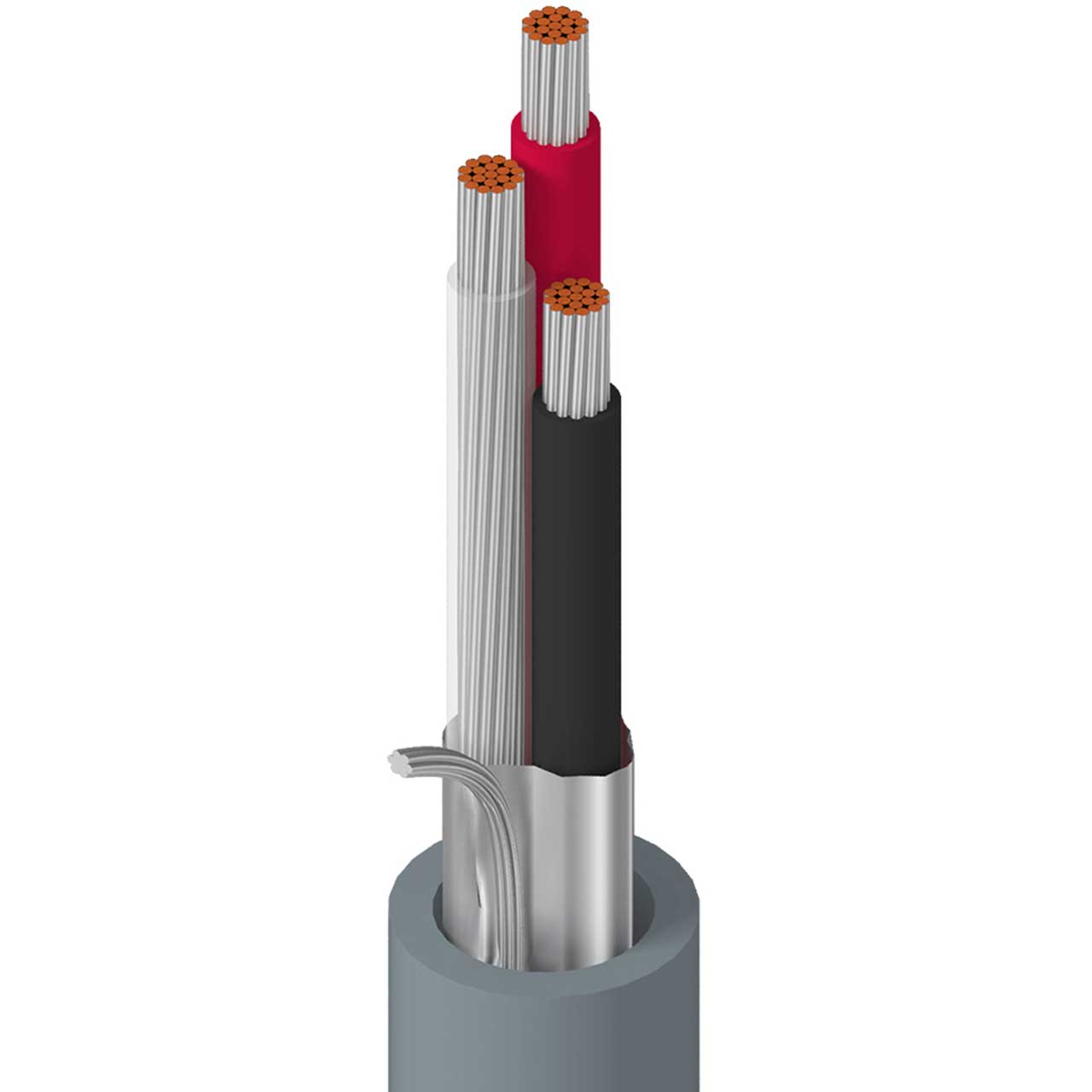

Belden 8770 is a 3 Conductor, Multi-Pair, 18AWG (16x30) Tinned Copper Electronic Cable. It features PE Insulation, Overall Beldfoil® Shield in a CM Rated PVC Outer Jacket.

A Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

Applications
Instrumentation and control panels
Line level audio
Telecommunications
Voice communications
Panel wiring
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage control (24v, …)
Water meters
Thermometers

  • Features:

    • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
    • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
    • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

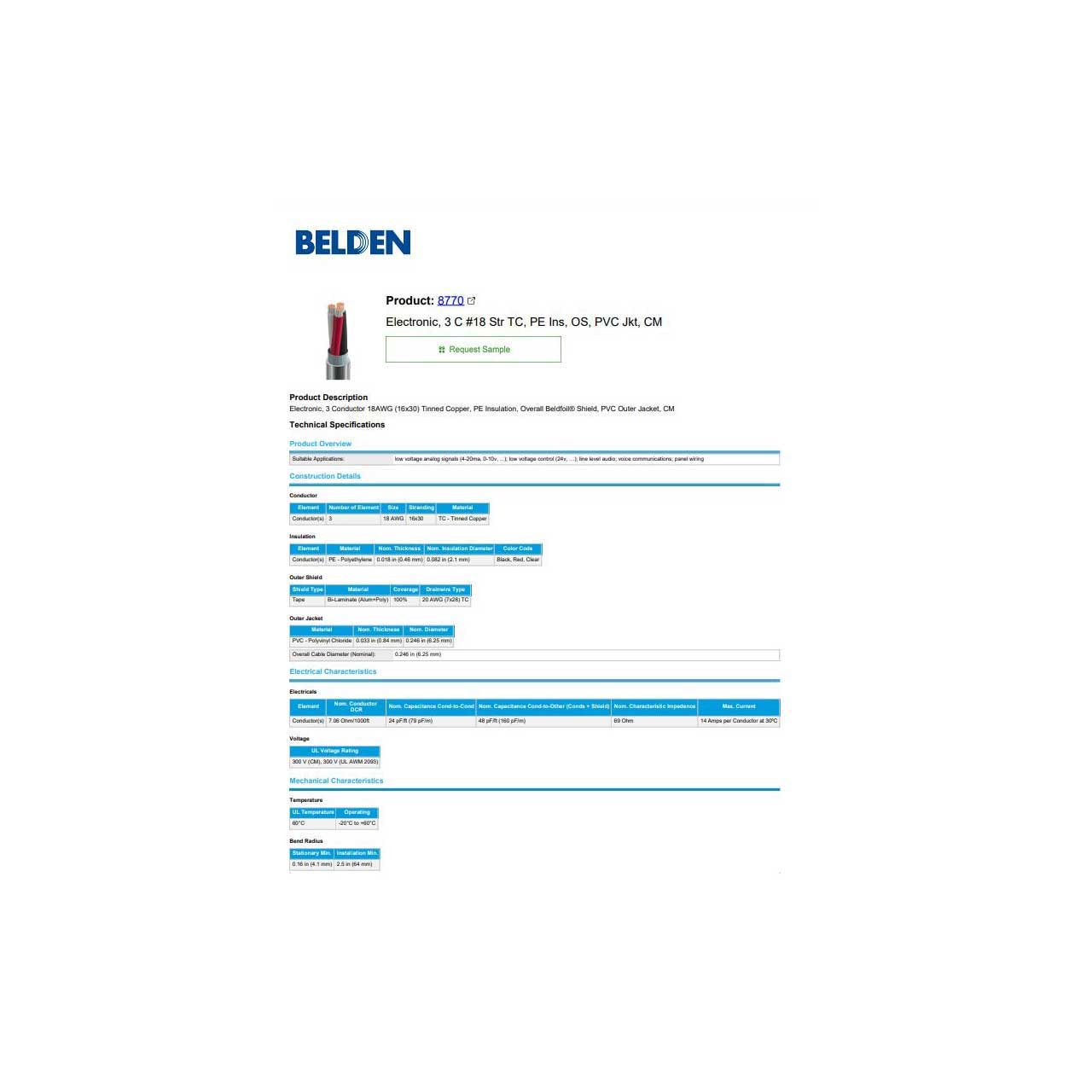

  • Specifications:

    • Conductor Elements: 3
    • Conductor AWG: 18
    • Conductor Stranding: 16x30
    • Conductor Material: TC - Tinned Copper
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 20 AWG (7x28) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.033 in (0.84 mm)
    • Outer Jacket Nom. Diameter: 0.246 in (6.25 mm)
    • Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)
    • Nom. Conductor DCR: 6.6 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 24 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 48 pF/ft
    • Characteristic Impedence: 69 Ohm
    • Max. Current: 5.3 Amps per Conductor at 25°C
    • Nom Outer Shield DCR: 8.5 Ohm/1000ft
    • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2093)
    • Max. Pull Tension: 74 lbs
    • Bulk Cable Weight: 36 lbs/1000ft
    • Environmental Suitability: Indoor
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: UL1685 UL Loading, FT1, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CM


  • Item Includes:

    • 8770 Audio Control/Electronic Cable - 18 AWG - Chrome - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825215608
