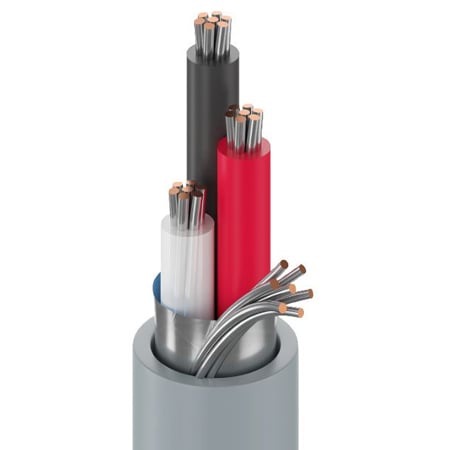

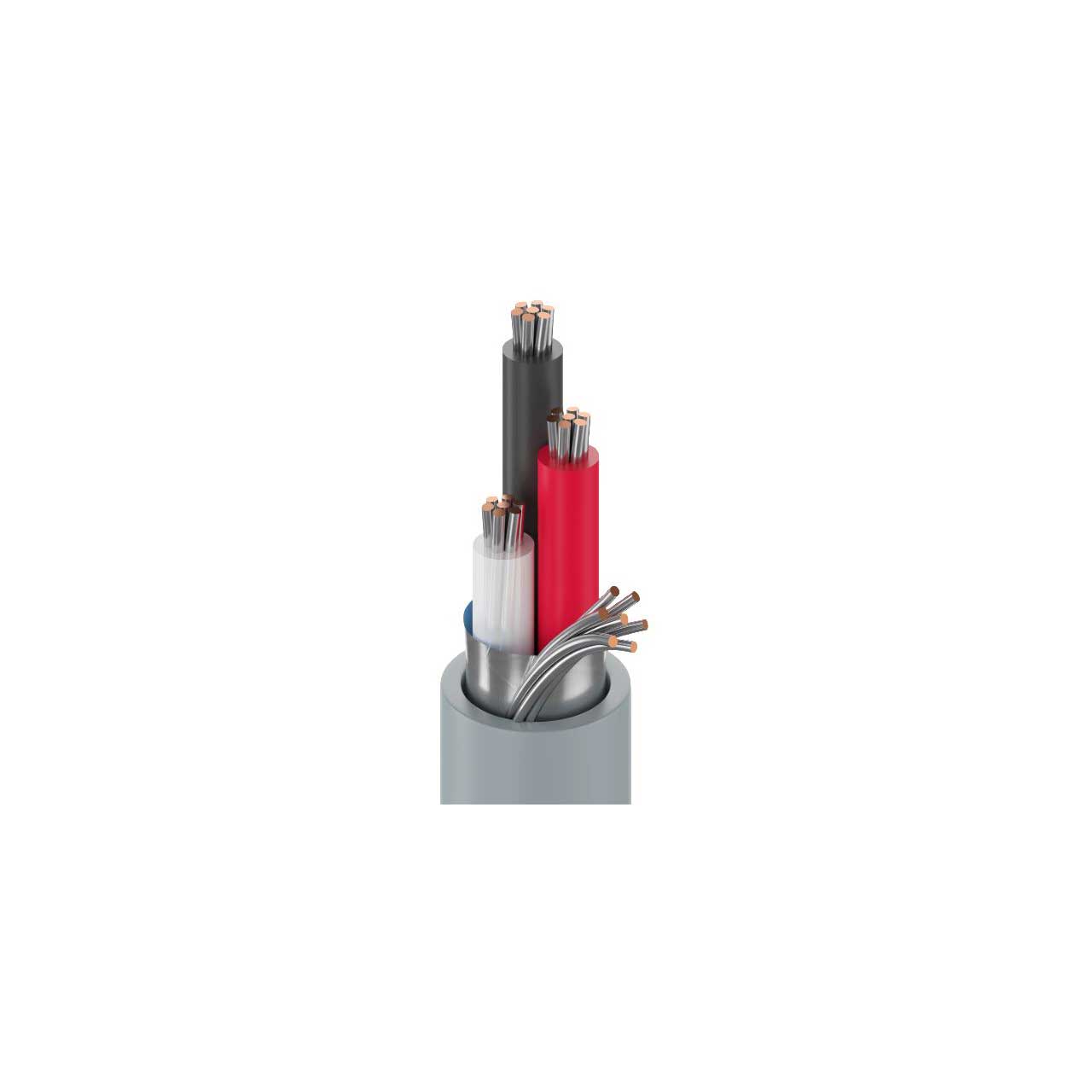

Belden 8771 CM Rated Electronic Audio Control and Instrumentation Cable 3x22AWG - Chrome - 500 Feet

8771 060500 - Overview

• Features:

  • Eliminate Noise Interference: Best-in-class patented Beldfoil® shield technology delivers 100% coverage to protect signals
  • Consistent Signal Transmission: Superior physical toughness maintains performance in extreme environmental conditions
  • Lower Capacitance: Strong signal transmission over extended distances
  • Increased Flexibility: Finely stranded conductors offer easier installation

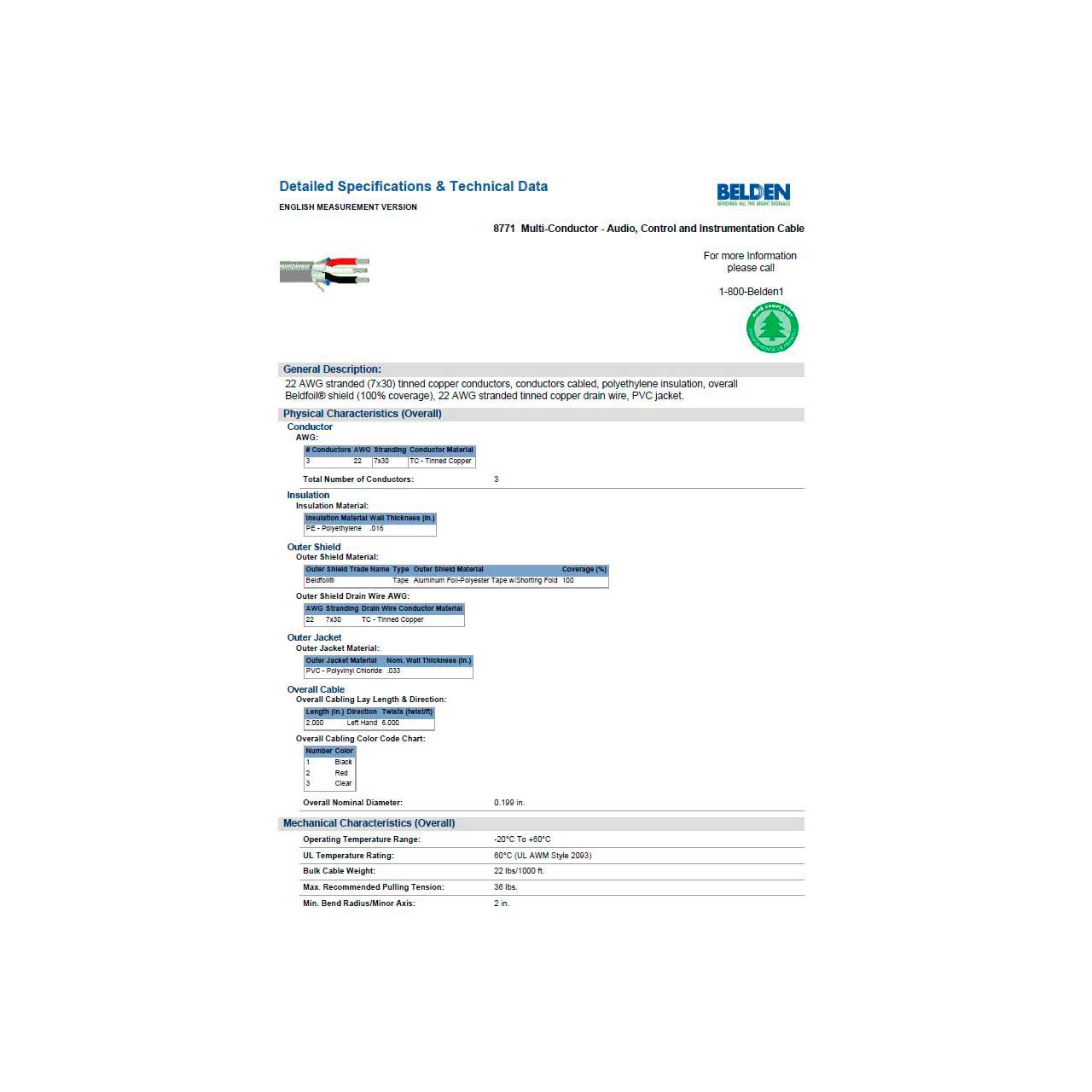

• Specifications:

  • Number of Conductors: 3
  • Total Number of Conductors: 3
  • AWG: 22
  • Stranding: 7x30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Nom Insulation Wall Thickness: .016 in
  • Outer Shield Material Trade Name: Beldfoil
  • Outer Shield Type: Tape/Braid
  • Outer Shield Material: Aluminum Foil-Polyester Tape w/Shorting Fold
  • Outer Shield % Coverage: 100%
  • Outer Shield Drain Wire AWG: 22
  • Outer Shield Drain Wire Stranding: 7x30
  • Outer Shield Drain Wire Conductor Material: TC - Tinned Copper
  • Nom. Conductor DCR: 15 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 23 pF/ft
  • Nom. Capacitance Cond-to-Other (Conds + Shield): 41 pF/ft
  • Max. Current: 2.9 Amps per Conductor at 25§C
  • Nom Outer Shield DCR: 11.7 Ohm/1000ft
  • UL Rating Temp: 60°C (UL AWM 2093)
  • Operating Temp: -20°C to +60°C
  • Max. Pull Tension: 36 lbs
  • Bulk Cable Weight: 22 lbs/1000ft
  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65

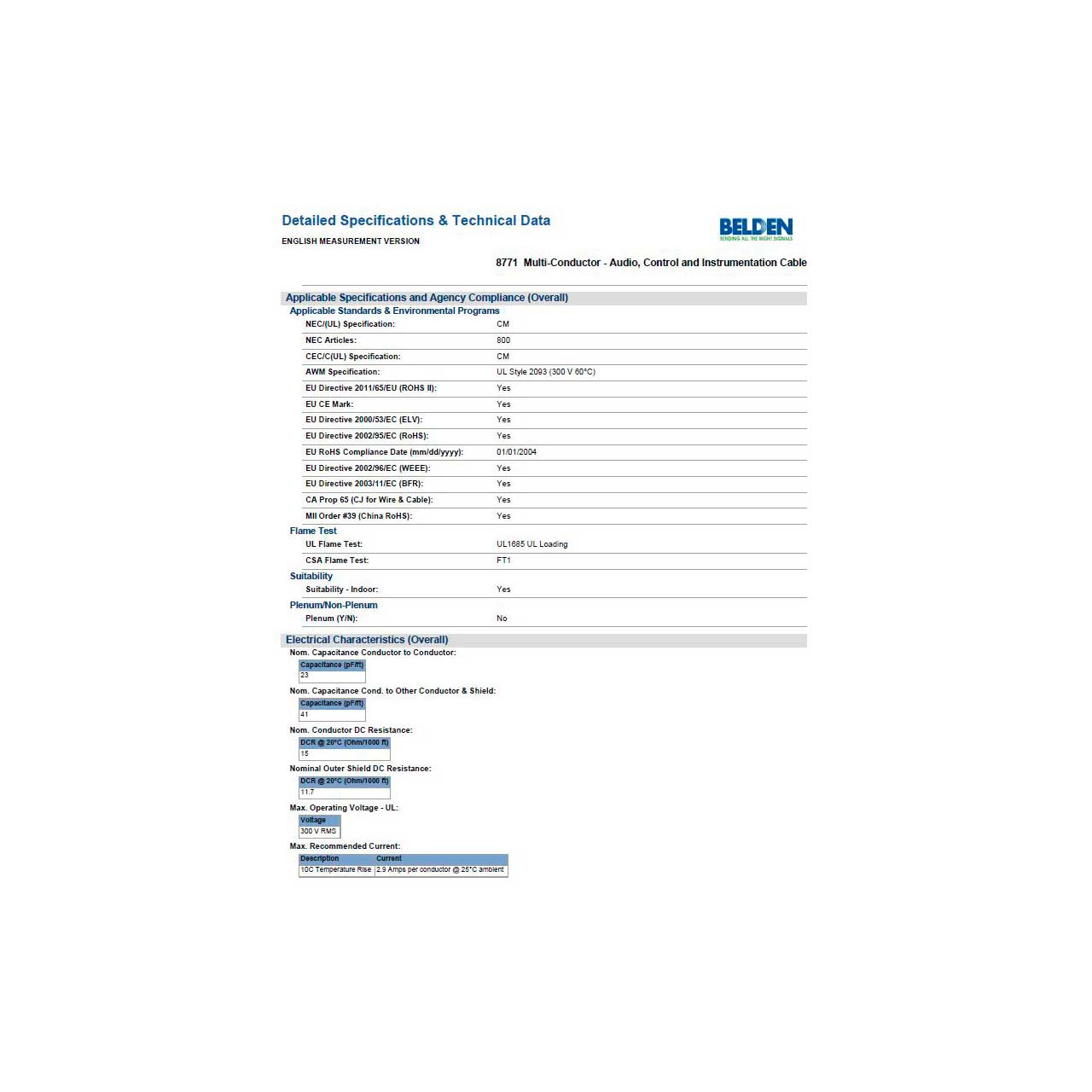

  • Flammability / Fire Resistance: UL1685 UL Loading, FT1, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: 2093


• Item Includes:

  • 8771 Electronic Audio Control and Instrumentation Cable - Chrome - 500 Feet


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825215745
