Belden 9116P CMP/Plenum Series 6 RG6 Plenum Broadband Coaxial Cable - Solid Shield/BCCS 18AWG - Natural - 1000 Foot

Name: Belden 9116P CMP/Plenum Series 6 RG6 Plenum Broadband Coaxial Cable - Solid Shield/BCCS 18AWG - Natural - 1000 Foot
Brand: Belden
SKU: BL-9116P-1000
Price: 836.41 USD
Availability: PreSale

ITEM #: BL-9116P-1000 MFG #: 9116P 8771000

Belden

List Price:

$1,743.10

Our Price:

$836.41

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9116P 8771000 - Overview

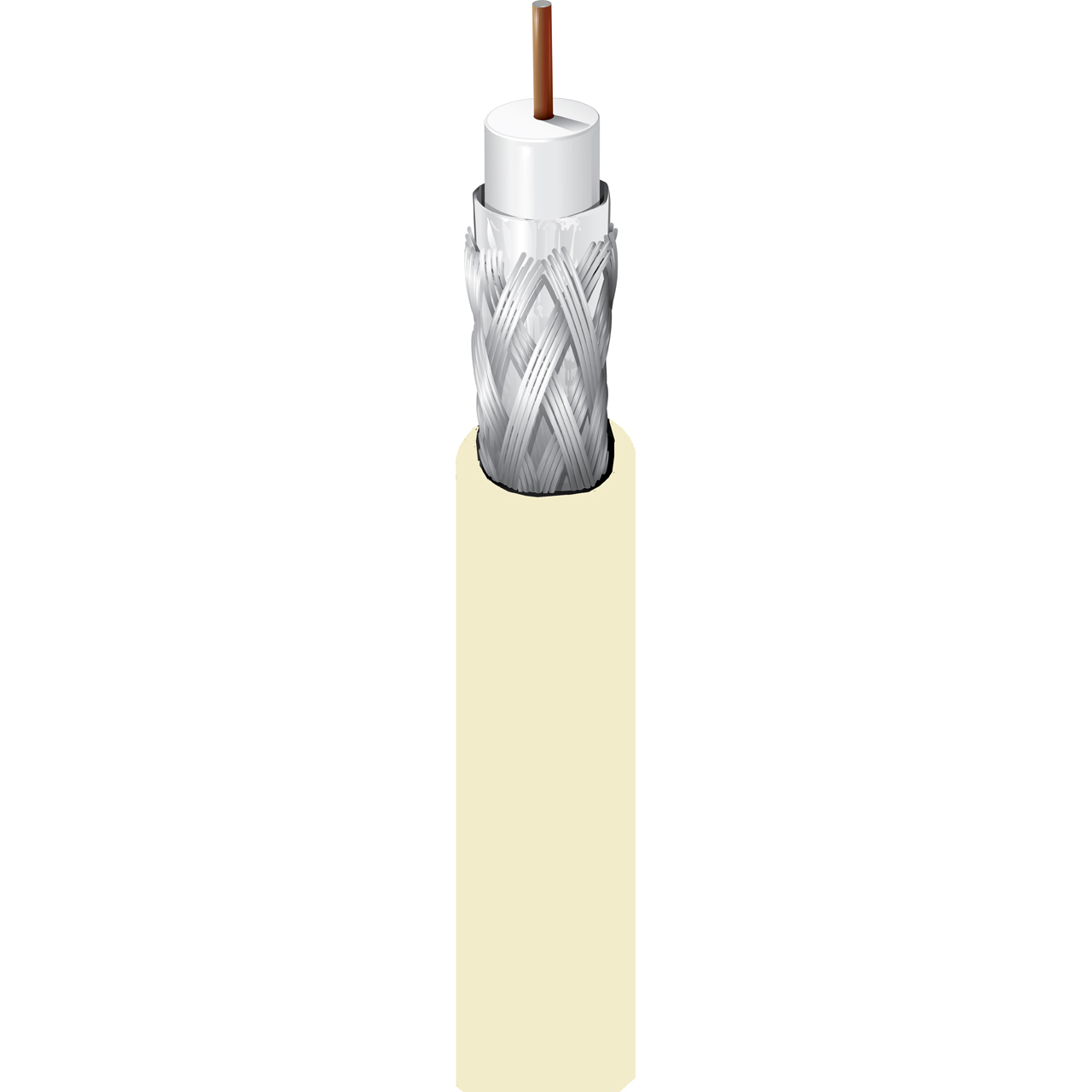

Belden 9116P is a CMP/Plemum rated Series 6 Broadband Coax. It's 18AWG with a Solid Bare Copper Covered Steel Conductor, FEP Insulation, a Foil + 60% Aluminum Braid Shield in a Flamarrest® Jacket.

Belden carries a comprehensive portfolio for broadband drop cables suitable to meet broadband CATV application needs. Constructed with standard foil/braid, tri or quad shielding to supply the level of RF leakage and interference protection required for any installation.

Applications
Broadband
Cable Television (CATV)
RF drop cable
Over-The-Air (OTA) antennas

Features:
- High Standards: Meets or exceeds applicable ANSI/SCTE standards for drop coaxial cable
- Environmental Flexibility: Can install in any environment regardless of temperature, water, moisture or humidity
- Durable: Contains a corrosion resistant center conductor
Specifications:
- Number of Coax: 1
- Series Type: Series 6
- Conductor AWG: 18
- Conductor Stranding: Solid
- Conductor Material: BCCS - Bare Copper Covered Steel
- Conductor Nom. Diameter: 0.040 in
- Insulation Material: FFEP - Foam Fluorinated Ethylene Propylene
- Nom. Insulation Diameter: 0.170 in (4.32 mm)
- Outer Shield Material Trade Name: Duobond II
- Outer Shield Material: Dual Shield - Bonded Duofoil/AL - Aluminum
- Outer Jacket Material Trade Name: Flamarrest
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket & Overall Nom. Diameter: 0.235 in (5.97 mm)
- Plenum (Y/N): Y
- Plenum Number: 9116,9116N,9116R
- Nom. Characteristic Impedance: 75 Ohms
- Overall Nominal Diameter: 0.235 Inch
- Environmental Suitability: Indoor - Plenum, Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- NEC / UL Compliance: CMP, CATVP
- CEC / C(UL) Compliance: CMP
Item Includes:
- 9116P Cable Solid Shld/BCCS 18AWG - Natural - 1000 Foot
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825224501

9116P 8771000 - Recommended Accessories

ICM DB6PL2 Double Bubble RG-6 Plenum F Coax Compression Connector - Size 2
ICM-DB6PL2
Our Price: $0.96
ICM CPLCRBC-BR Cable Pro Radial Double Bubble Compression Tool - Blue
ICM-CPLCRBC-B
Our Price: $157.95
ICM Cable Pro PSA59/6 RG59/6 Adjustable Cable Stripper with RG6 Flaring Tool
ICM-PSA596
Our Price: $45.58
Blonder Tongue DGS-2 Digital Ready 5-1000 MHz 2-Way F Splitter
DGS-2
Our Price: $3.52

9116P 8771000 - Reviews

9116P 8771000 - Attachments

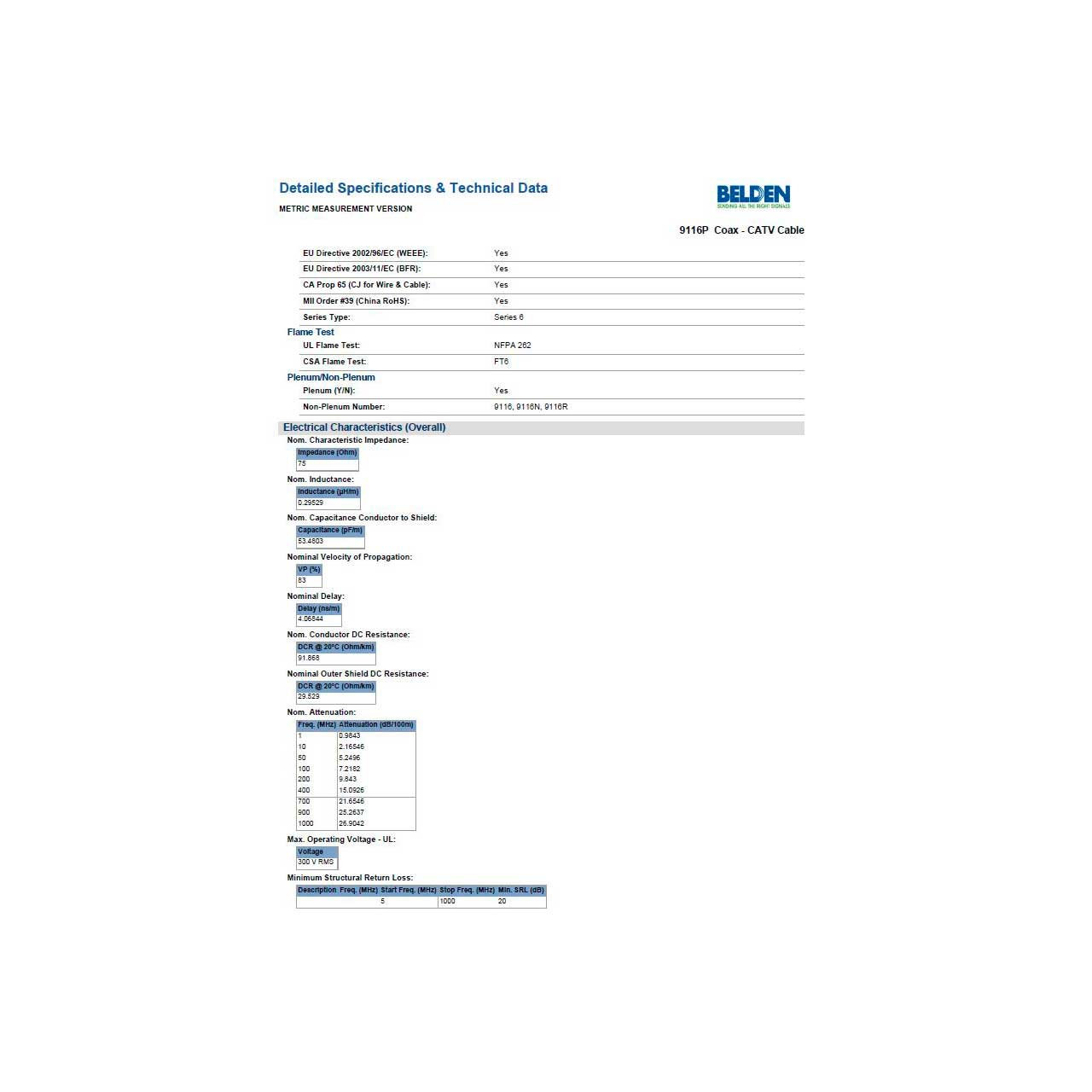

9116P Spec Sheet
