Belden 9221 Indoor/Outdoor 75 Ohm Analog Minature Coax Video Cable Str TC/90% Braid 30AWG - Black - 500 Ft

ITEM #: BL-9221-500 MFG #: 9221 010500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$550.40

Our Price:

$486.02

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9221 010500 - Overview

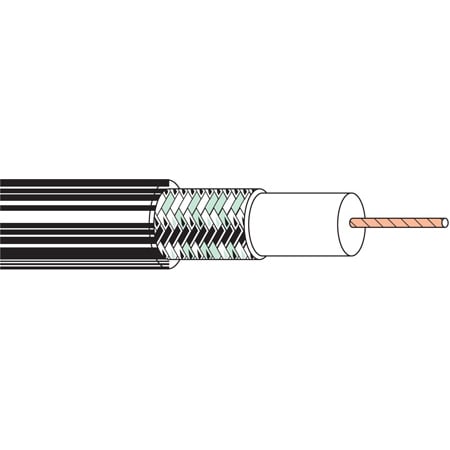

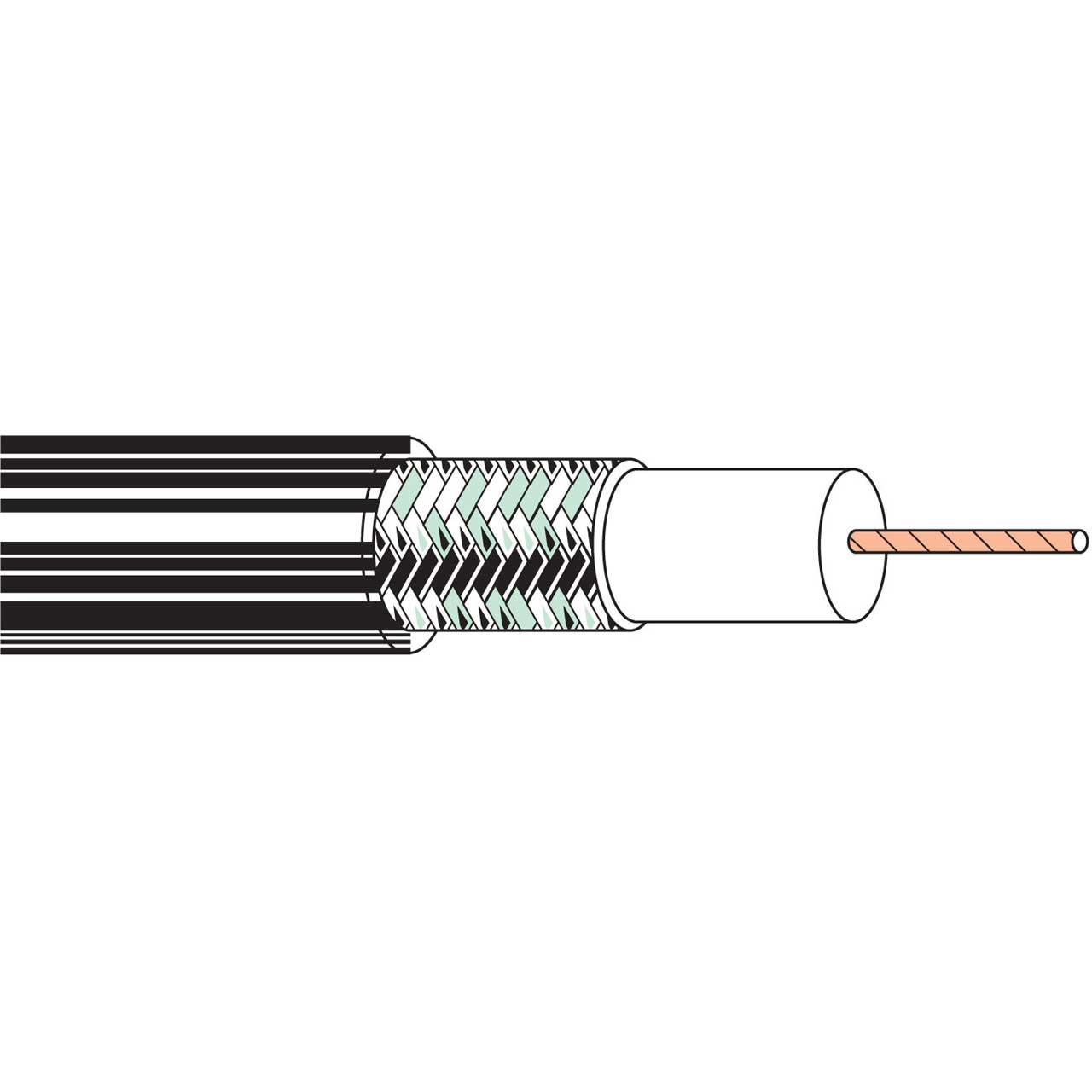

Belden 9221 is a 30 AWG stranded (7x38) Analog Mini Coax Video Cable with a .012" tinned copper conductor, foam HDPE insulation, tinned copper braid shield (90% coverage), in a PVC jacket.

Applications
Standard Analog Video Cable
75 Ω Miniature Coax

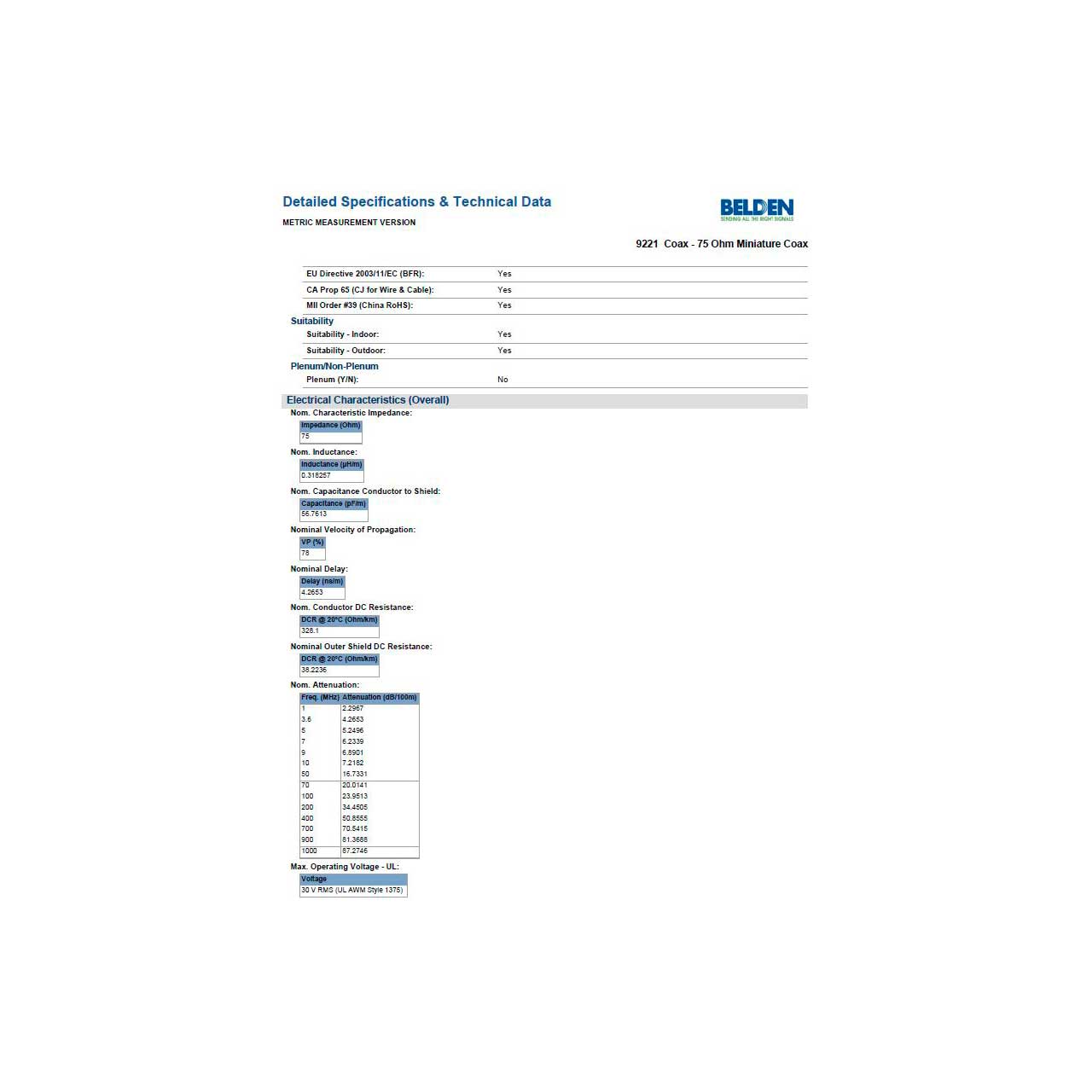

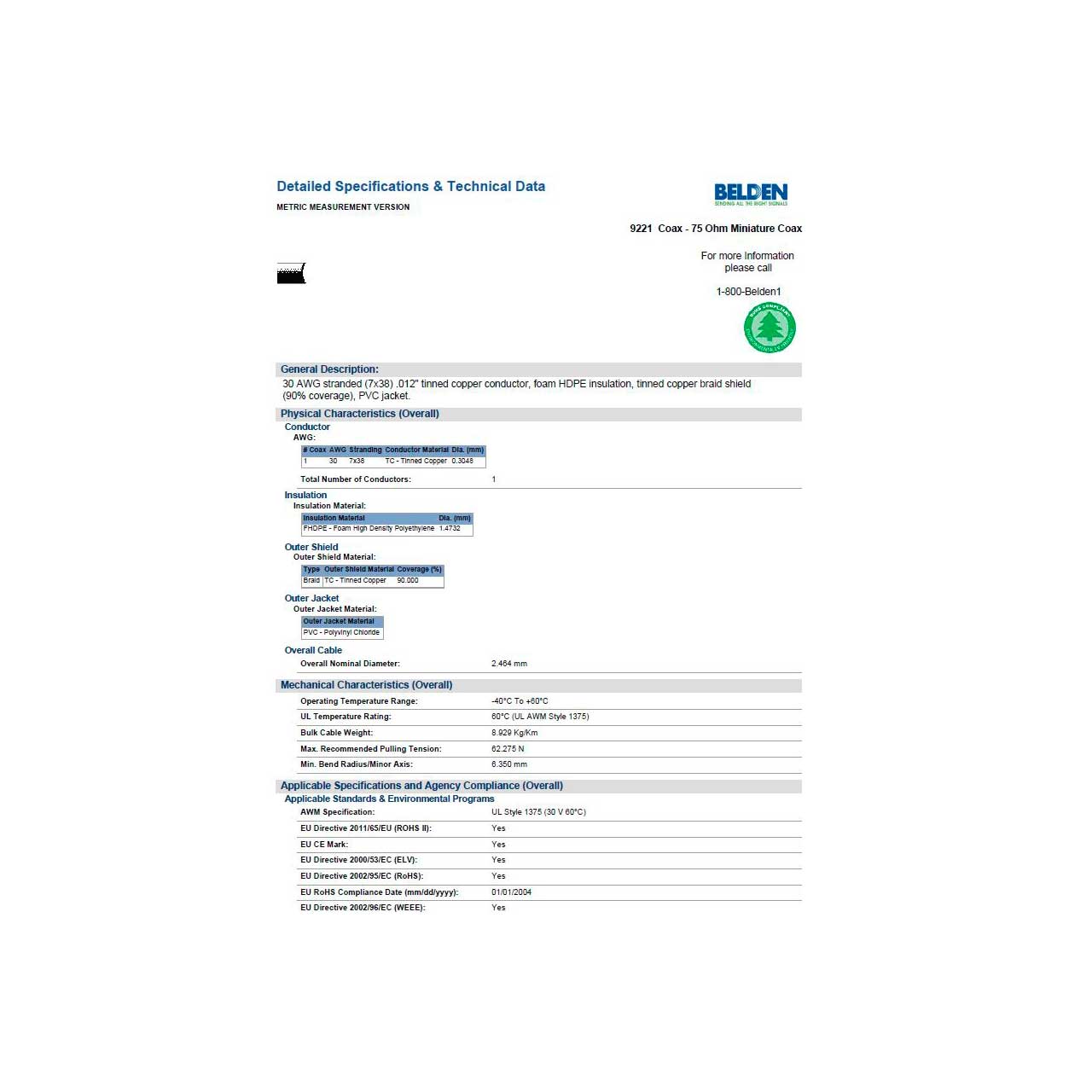

  • Specifications:

    • Conductor Impedance: 75Ω
    • Number of Coax: 1
    • Conductor AWG: 30
    • Conductor Stranding: 7x38
    • Conductor Material: TC - Tinned Copper
    • Conductor Nominal Diameter: 0.012 in
    • Insulation Material: FHDPE - Foam High Density Polyethylene
    • Insulation Nominal Diameter: 0.058 in
    • Outer Shield Type: Braid 90% Coverage
    • Outer Shield Material: TC - Tinned Copper
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • UL Voltage Rating: 30 V RMS
    • Plenum (Y/N): N
    • Environmental Space: Indoor/Outdoor
    • IEC Flammability: IEC 60332-1-2


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825358848
