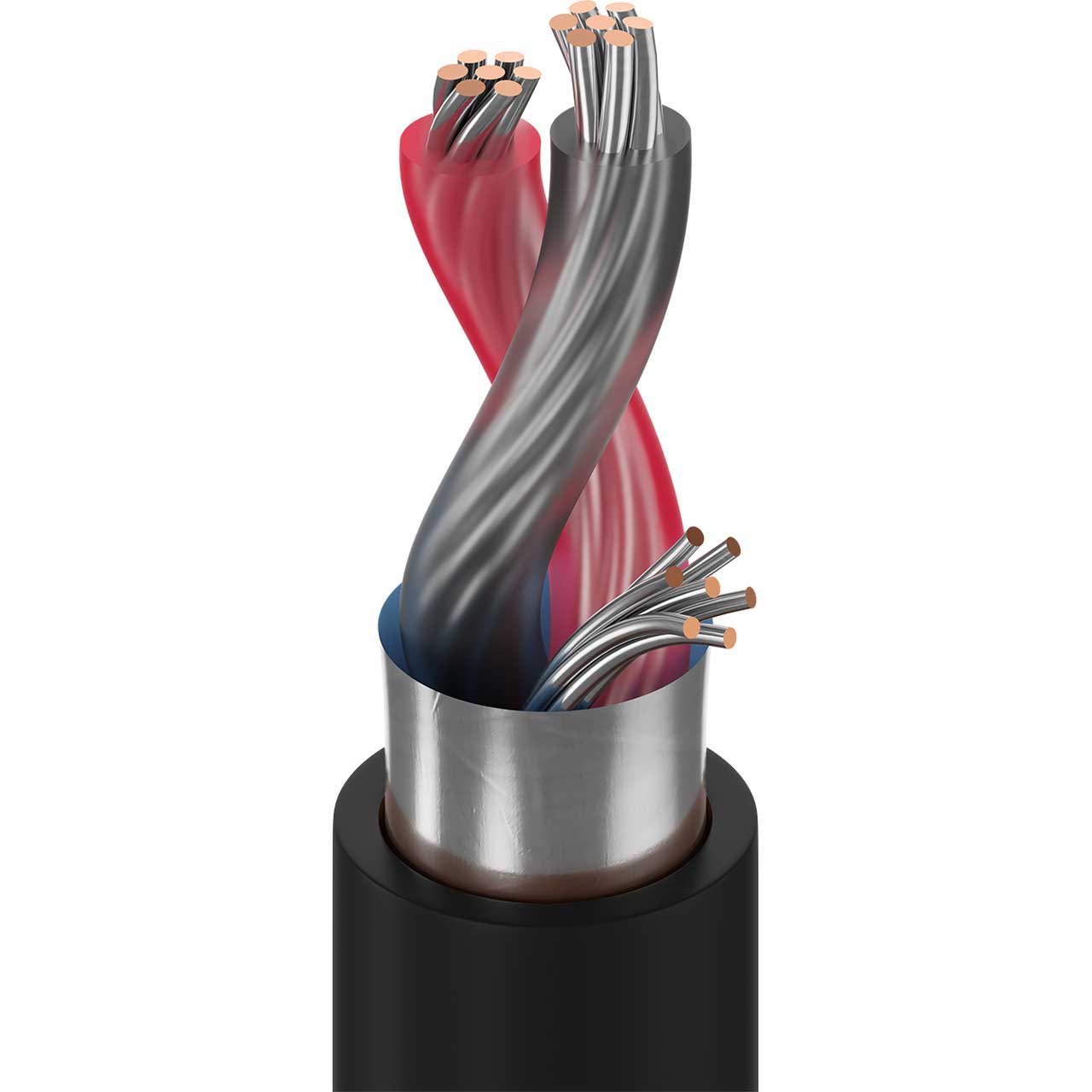

Belden 9451P CMP/Plenum Single Pair Line Level Audio Cable Str TC Shielded 22AWG - Black - 500 Foot Reel

9451P 010500 - Overview

• Features:

  • Easy Stripping: Foil shields bonded to the cable jacket support faster installation
  • Rated for Many Applications: Audio Cables are CM, CMR and CMP rated
  • Improved Performance: Shorting fold technique to maintain metal-to-metal contact


• Specifications:

  • Environmental Suitability: Indoor - Plenum
  • Conductor Count: 2
  • Total Number of Pairs: 1
  • Conductor Size: 22 AWG
  • Stranding: 7x30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: FEP - Fluorinated Ethylene Propylene
  • Insulation Thickness: 0.008 in (0.20 mm)
  • Insulation Diameter: 0.044 in (1.1 mm)
  • Insulation Color Code: Black & Red
  • Outer Shield Type: Tape
  • Outer Shield Material: Bi-Laminate (Alum+Poly)
  • Outer Shield Coverage: 100%
  • Outer Shield Drainwire Type: 22 AWG (7x30) TC
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.017 in (0.43 mm)
  • Outer Jacket Nom. Diameter: 0.127 in (3.23 mm)
  • Overall Cable Diameter (Nominal): 0.127 in (3.23 mm)
  • UL Voltage Rating:300 V (CMP)
  • UL Temp Rating: 60°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 14 lbs/1000ft
  • Max Recommended Pulling Tension: 27 lbs
  • Min Bend Radius/Minor Axis: 1.25 in
  • NEC/(UL) Specification: CMP
  • CEC/C(UL) Specification: CMP
  • CPR Euroclass: Eca


• Item Includes:

  • 9451P Audio Cable 22AWG - Black - 500 Foot Reel


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825253068
