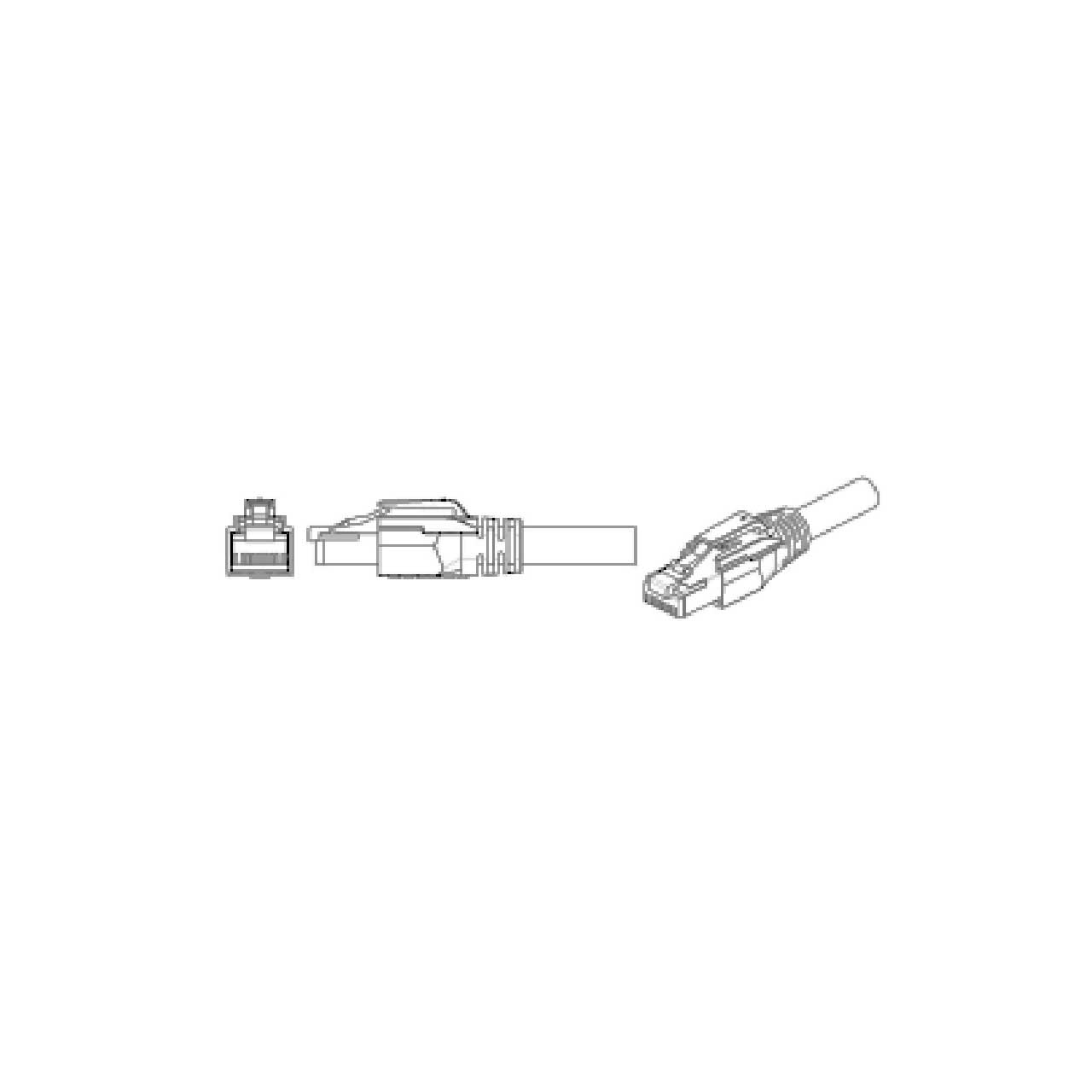

Belden CAF1100040 10GX F/UTP CMR Patch Cord - Black - 40 Feet

CAF1100040 - Overview

• Specifications:

  • Conductor: 8 conductor 4 pair 24 AWG solid stranding bare copper
  • Insulation Material: Polyolefin
  • Inner Jacket Material: Polyvinyl Chloride
  • OUter Shield Material: Shield Foil Aluminum
  • Outer Jacket Material: Polyvinyl Chloride
  • Overall Cabling Fillers: Cross Web
  • Overall Nominal Diameter: 0.275 in.
  • Boot Color: Translucent
  • Wiring Scheme: T568A/B-T568A/B
  • Plug / Jack Compatibility: RJ45
  • Storage Temperature Range: -40° C To +70° C
  • Installation Temperature Range: -10° C To +60° C
  • Operating Temperature Range: -10° C To +60° C
  • Max. Recommended Pull Tension: 11.250 lbs.
  • Min. Bend Radius (Overall Cable): 2.200 in.
  • UL Rating: Riser
  • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2006
  • MII Order #39 (China RoHS): EUP 50
  • Telecommunications Standards: Category 6A - TIA 568.C.2, Class EA - ISO/IEC 11801:2002 Amendment 2
  • Safety Listing: Bi-national Standard Listed
  • Suitability - Indoor: Yes
  • Current Rating: 1.500 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 20 m-Ohm
  • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
  • Length: 40 Feet
  • Color: Black


• GTIN:

  0611589057523
