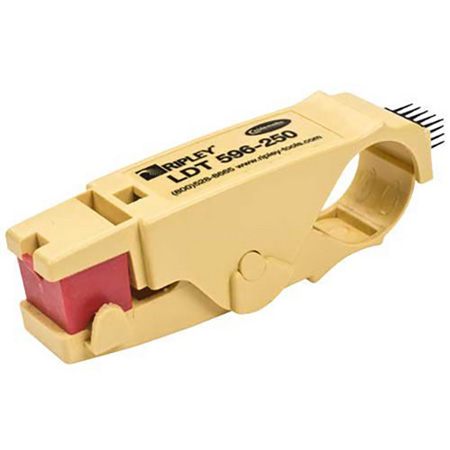

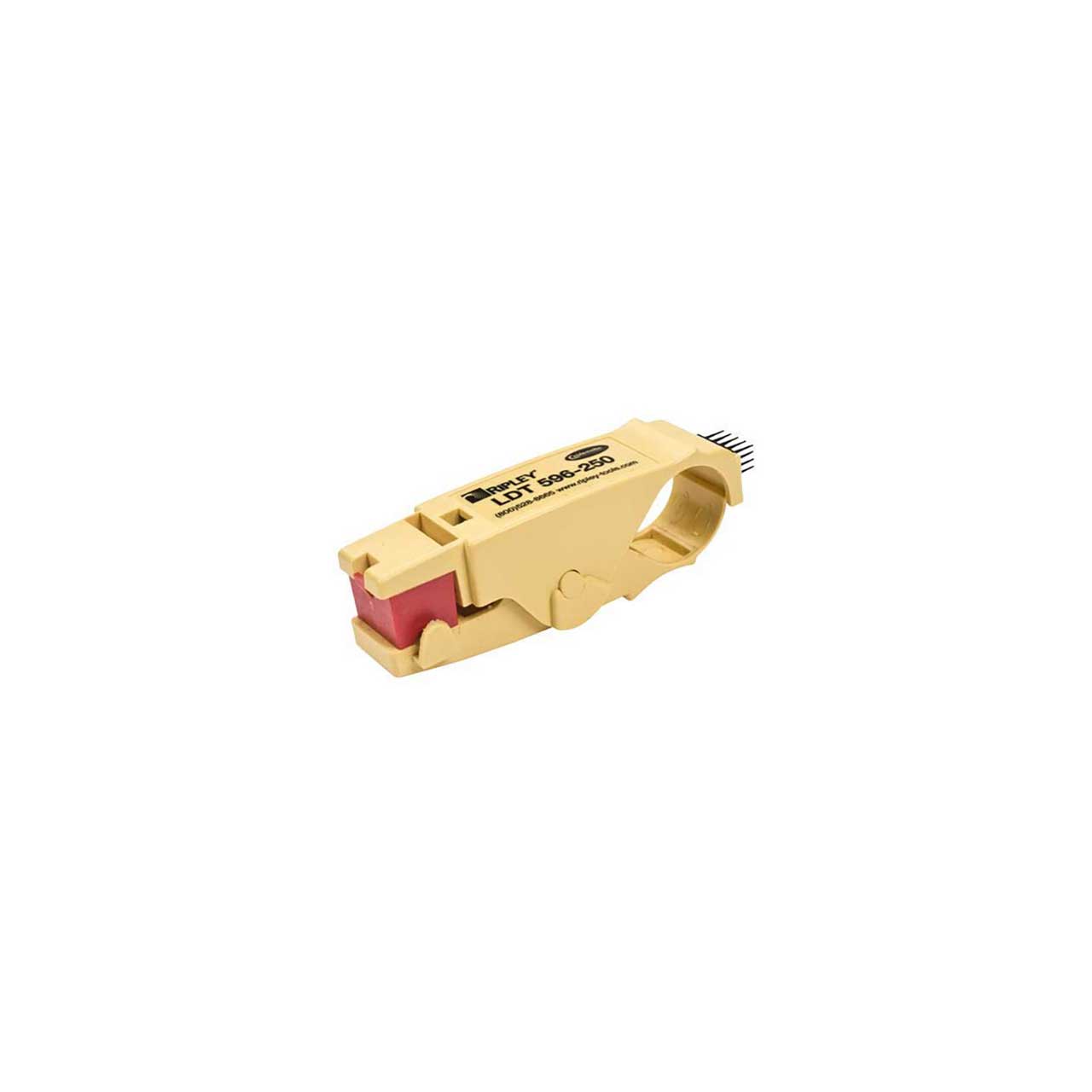

Belden LDT596-250 Cable Prep Tool

LDT596-250 - Overview

• Features:

  • Lightweight and Compact Body Design that allows cable preparation of 59,6 and N48 coax cable (std, tri and quad) without any adjustment or blade cassette change out
  • One Step cable preparation precisely exposes the center conductor by
  • 5/16 in. (7.93 mm) and removes the proper length of jacket at 1/4 in. (6.35mm)
  • Supplied with unique polymer braid brush attachment for folding back the braid after cable preparation
  • Built-in strip stop for precise preparation every time
  • Lightweight, impact resistant "High-Visibility" yellow polymer construction
  • LDT can be supplied with other blade cassettes
  • Superior quality tool steel blade cassettes will perform 3500+ preparations under normal usage
  • Blade cassettes color-coded and marked with cable series type for easy identification
  • RBB Replacement Braid Brushes


• Specifications:

  • Product Overview
  • Environmental Space: Indoor
  • Suitable Applications: Stripping tool for RG59 and RG6 (1505-, 1694-, 70081- and 70082-cables)

    Mechanical Characteristics
  • Footprint/Type: Coax

    Applicable Environmental and Other Programs
  • EU RoHS Compliance Date (yyyy-mm-dd): 2012-10-29
