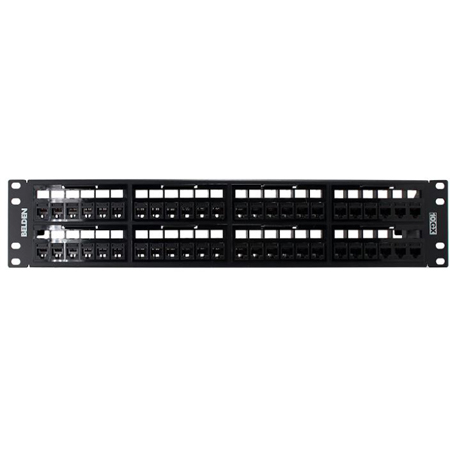

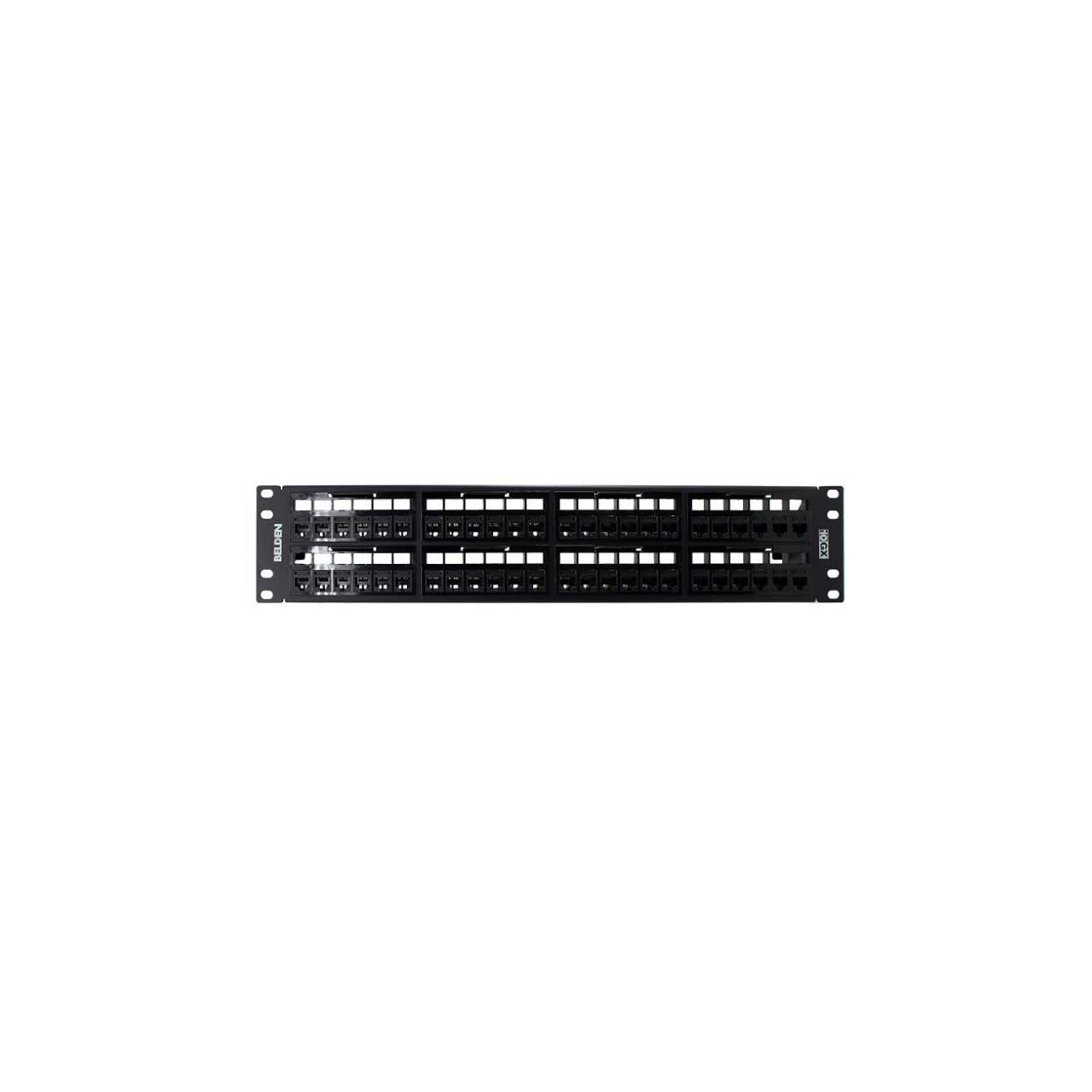

Belden RVAPPF2U48BK 10GX REVConnect Cat6a Patch Panel - 48 Port - 2U (Preloaded) - Black

RVAPPF2U48BK - Overview

• Features:

  • Convenient Reconfiguration: Terminate cables on the patch panel so hardware isn't disturbed when adding or removing cables
  • Reduce Wear and Tear on Ports: Because all connections are made with the patch panel, cables aren't plugged or unplugged directly from devices
  • Easy Routing and Management: Allows top, bottom or side cable entry


• Specifications:

  • Capacity: Max. Capacity 48 connectors (preloaded)
  • Access: Front Connection Flush
  • Termination Area: Front and Rear
  • Footprint/Type: KeyConnect
  • Plug / Jack Compatibility: RJ45
  • Cable/Connector Retention: 15 lbs.
  • Connector/Hardware Retention: 20 lbs.
  • Plug/Connector Retention: 11.250 lbs.
  • Storage Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +60°C
  • Operating Temperature Range: -10°C To +60°C
  • UL Rating: UL94 V-0
  • EU Directive: 2011/65/EU (ROHS II) Yes
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
  • MII Order #39 (China RoHS): EUP 50
  • Telecommunications Standards: Category 6A - ISO/IEC 11801:2002 Ed.2, TIA 568.2-D
  • Safety Listing: c(UL)us Listed
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
  • Suitability: Indoor Yes


• Item Includes:

  • 1x RVAPPF2U48BK 10GX REVConnect 48-Port 2U Patch Panel - Black
  • 48x 10GX REVConnect Jacks - Black
  • 50x REVConnect Cores
  • 8x Clear Windows
  • 2x Rear Cable Management Bar
  • 4x Screws (10x32)
  • 4x Screws (12x24)
  • 2x Velcro Straps
  • 4x Frames
  • 1x Installation Guide
