Belden SPE102 DataTuff Industrial Single Pair Ethernet SPE Cable 10Mbps - 22AWG SF/UTP PVC - Blue Jacket - 1000 Foot

ITEM #: BL-SPE102-1000BE MFG #: SPE102 0061000

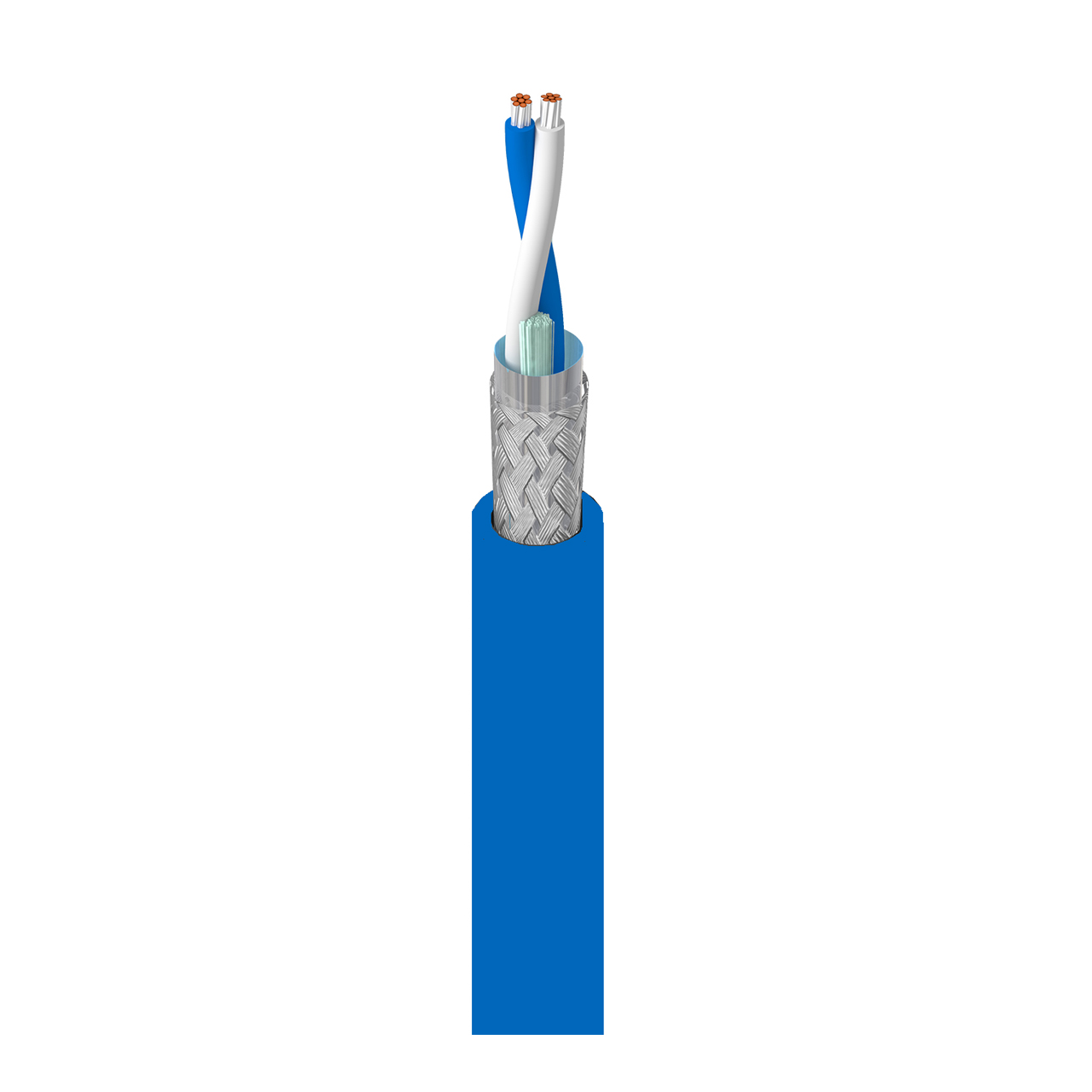

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,762.00

Our Price:

$3,124.93

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SPE102 0061000 - Overview

DataTuff Single-Pair Ethernet (SPE) Cables minimize the complexity of connecting and powering edge devices while providing higher reach and bandwidth over a single twisted pair. With strong shielding and jacketing options, the Single-Pair Ethernet cables provide reliable, uninterrupted connectivity from remote field devices to the cloud, even in the harshest environments. And with Power over Data Line (PoDL) capability to consolidate data and power delivery, you can benefit from increased uptime, process efficiency and operational profit.

Belden DataTuff SPE102 is an industrial 22AWG SF/UTP PVC single pair ethernet 10Mbps cable suitable for data communications, cameras, PLCs, switches, outdoor, indoor, etc.

Why SPE, Why Now?
Industrial Ethernet protocols like Modbus TCP/IP, EtherCat, EtherNet/IP and Profinet have significantly improved communication at the routing and supervisory levels, but much of the device-to-device communication at the field/IO level has long relied on traditional Fieldbus protocols like Profibus, AS-Interface, Modbus, CANOpen, DeviceNet, CC-Link and IO-Link that typically require multiple segregated and proprietary cabling plants.

Traditional Fieldbus protocols have long been touted for their time-sensitive transfer and determinism to ensure that the right information is sent and received when and where it is needed, which is critical for communication in industrial control and automotive applications. However, the development of Time-Sensitive Networking (TSN) by the IEEE addresses these needs via time synchronization and deterministic communication over standard Ethernet.

With vast increases in the number of sensors and actuators at the field/IO level and the growing demand for more information, traditional Fieldbus protocols are quickly becoming the bottleneck within the automation environment, topping off at 10 to 12 Mbps with limited link lengths. As more links are integrated within automation systems and machinery, bulky Fieldbus cables take up too much space and come with costly and challenging installation (often in filled conduit).

With the introduction of SPE, together with TSN capability, the time is right for one standard end-to-end Ethernet network and entirely digitized communication. The end-user gains significant benefits from enabling massive amounts of sensors, actuators and I/O modules at the field level, feeding data from the field to programmable logic controllers (PLCs), manufacturing execution systems and on to the factory enterprise backbone to the cloud simultaneously in real-time.

  • Features:

    • Easier to Power Edge Devices: Edge-to-cloud connectivity is enabled with 50W Power over Data Line (PoDL) capability, making it easier to connect and power more edge devices
    • Eliminates the Need for Gateway Devices: Compatibility with universal EtherNet/IP protocol removes the need for additional devices, saving costs
    • Offers Extended Reach: Reach up to 1km, providing 10X the range compared to traditional 4-pair Ethernet cables
    • Rugged Design: Engineered to withstand harsh industrial environments with strong shielding and jacketing options to ensure uptime

  • Specifications:

      Conductor
    • Size: 22 AWG
    • Stranding: Solid
    • Material: TC - Tinned Copper
    • No. of Pairs: 1

      Insulation
    • Material: PE - Polyethylene (Foam)
    • Nom. Insulation Diameter: 0.067" (1.7mm)
    • Color Code: White & Blue

      Outer Shield
    • Shield Type:
      - Tape: Bi-Laminate (Alum+Poly) 100% Coverage
      - Braid: Tinned Copper (TC) 90% Coverage

      Outer Jacket
    • Material: PVC - Polyvinyl Chloride: 0.245" (6.22mm) Nom. Diameter
    • Overall Cable Diameter (Nominal): 0.245" (6.22mm)

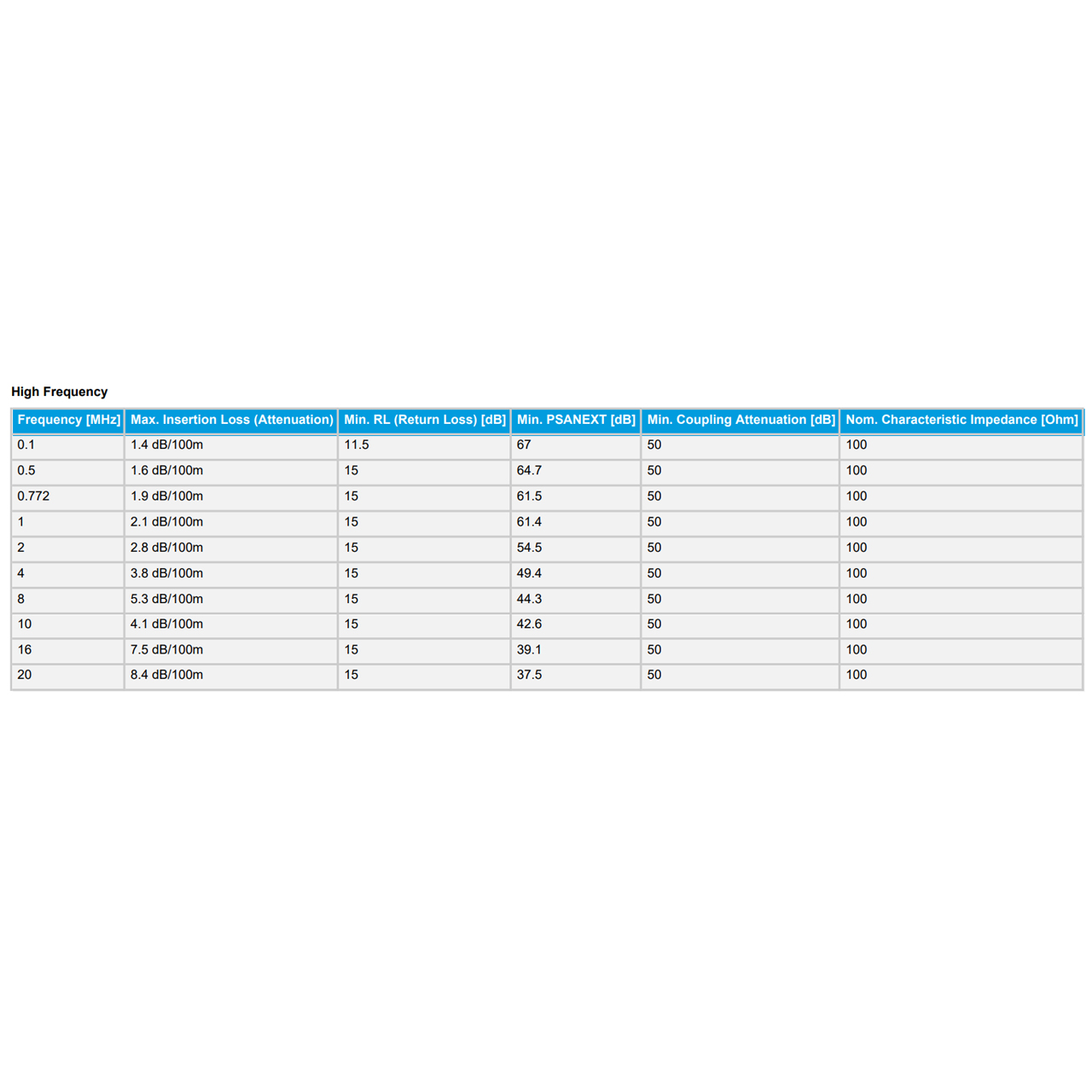

      Electricals
    • Max. Conductor DCR: 59Ω/km
    • Max. Mutual Capacitance: 56pF/m (17pF/ft)
    • Max. Capacitance Unbalance: 330pF/100

      Delay
    • Frequency: 100MHz
    • Max. Delay: 450ns/100m
    • Nom. Velocity of Prop.: 76%

      Voltage
    • UL Voltage Rating: 300V (UL 13 PLTC)

      Temperature
    • UL Temperature: 167°F (75°C)
    • Operating: -22°F - 167°F (-30°C - 75°C)

      Bend Radius
    • Installation Min.: 2" (51mm)
    • Max. Pull Tension: 10lbs (4.5kg)
    • Bulk Cable Weight: 38lbs/1000ft

      Standards and Compliance
    • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
    • Flammability/Reaction to Fire: UL 1685 UL Loading
    • NEC/UL Compliance: CM, PLTC
    • IEEE Compliance: IEEE 802.3cg
    • TIA/EIA Compliance: ANSI/TIA-568.5
    • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2022-04-27

  • Item Includes:

    • 1x Belden SPE102 DataTuff Industrial Single Pair Ethernet 10Mbps Cable - 22AWG SF/UTP PVC - Blue Jacket - 1000 Foot
